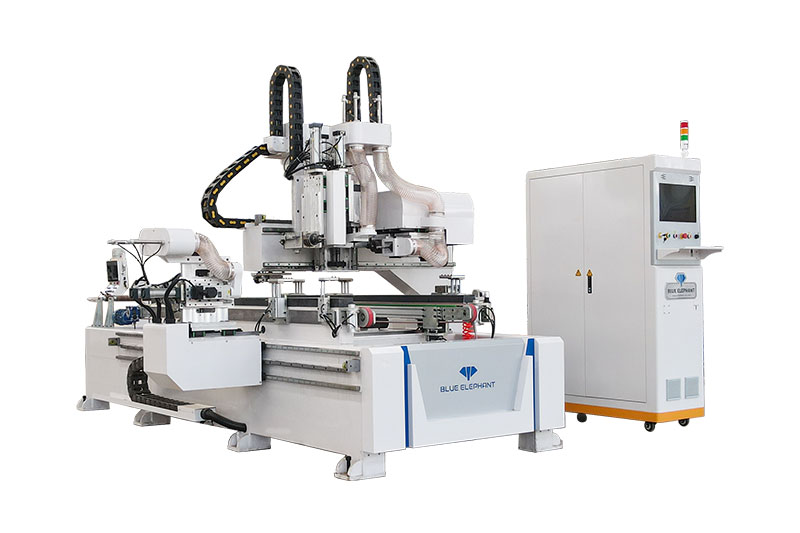

Through-type Double-channel Keyhole Hinge Machine for Sale
Best CNC Wood Door Lock Hole Machine CNC Woodworking for Sale
The door lock hole making machine is a crucial piece of equipment in woodworking machinery, offering flexible customization for factory processing needs. It is primarily used for processing wooden doors, door frames, window frames, window sashes, door locks, lock steps, hinges, door closers, and more. It significantly boosts production efficiency and effectively reduces labor costs.
1. The keyhole hinge machine uses a through-type design with conveyor rollers to transport door panels, enabling intelligent online operation.
2. It features 7 motion axes, automatic door width adjustment, precise alignment for lock slots and bodies, and simultaneous processing of hinges and lock holes, saving time, effort, and steps.
3. Lock slots, lock steps, bolt slots, paint holes, door closers, and hinges can all be processed quickly.
4. Automatic width, length, and thickness measurement ensure smart and precise processing.
| EM3.2-1126 Through-type Double-channel Door Lock Making Machine | |
| Machine model | EM3.2-1126 |
| Machine dimension | 4200mm×3200mm×2400mm |
| Max. processing size | 1100mm×2600mm |
| Min. processing size | 400mm×1800mm |
| Max. processing thickness | 35mm-65mm |
| Key hole spindle power | 6kw×1 2.2kw×1 |
| Key slot spindle power | 6kw×1 2.2kw×1 |
| Hinge spinlde power | 3.5kw×1 2.2kw×1 |
| Paint hole and door closer power | 3. 5kw(Double head) |
| Total power | 25.6kw |
| Max. processing speed | 50m/min |
| Air pressure | 0.5-0.7mpa |
| Total weight | 3000kg |
Click for details
The CNC door lock making machine is mainly used for processing wooden doors, door frames, window frames, window sash grooves, door locks, door lock steps, door lock hinges, end face paint holes, door closers, hinges, etc.
The machine has a one-year warranty and free after-sales service for life.
No, it can only process wood materials.

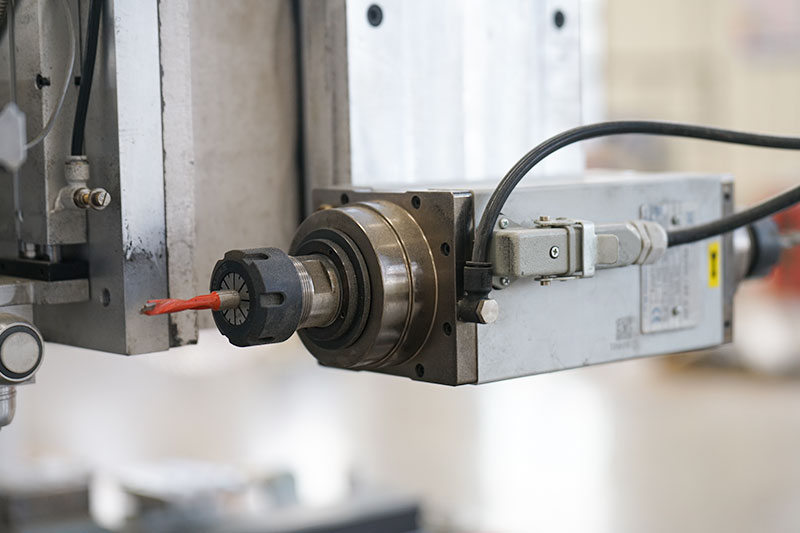

Front and rear machining spindle

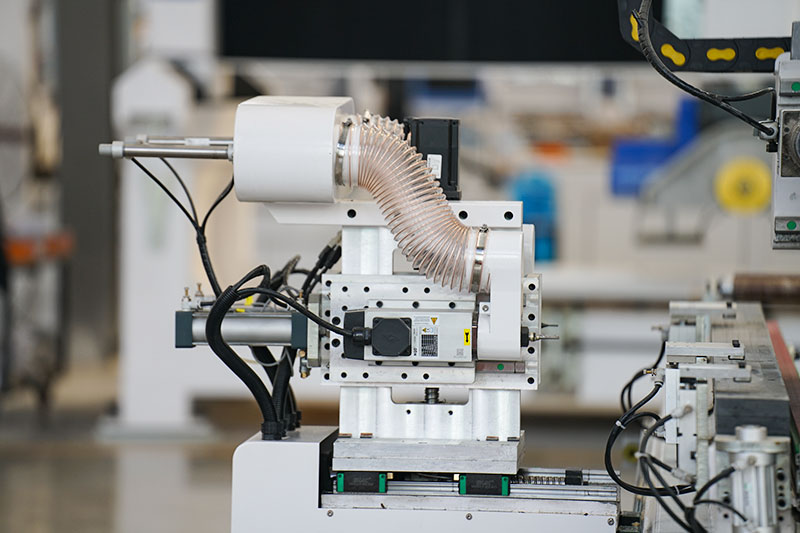

Hinge processing device

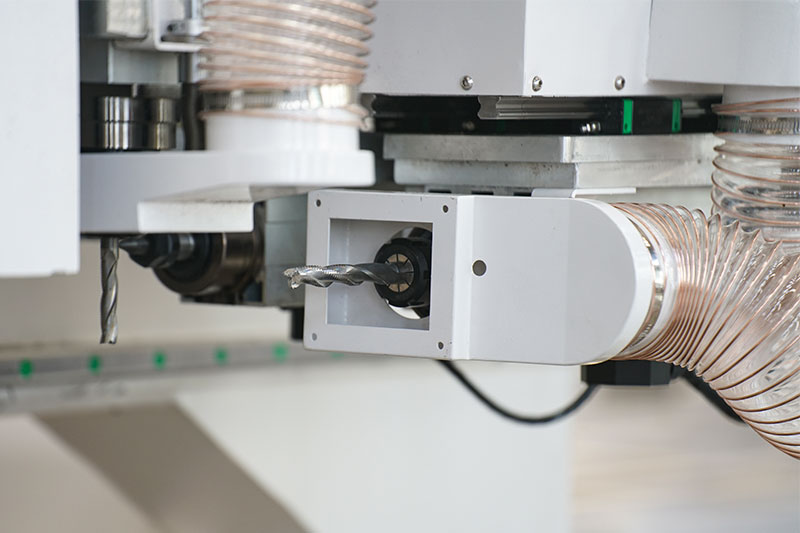

Lock groove processing device

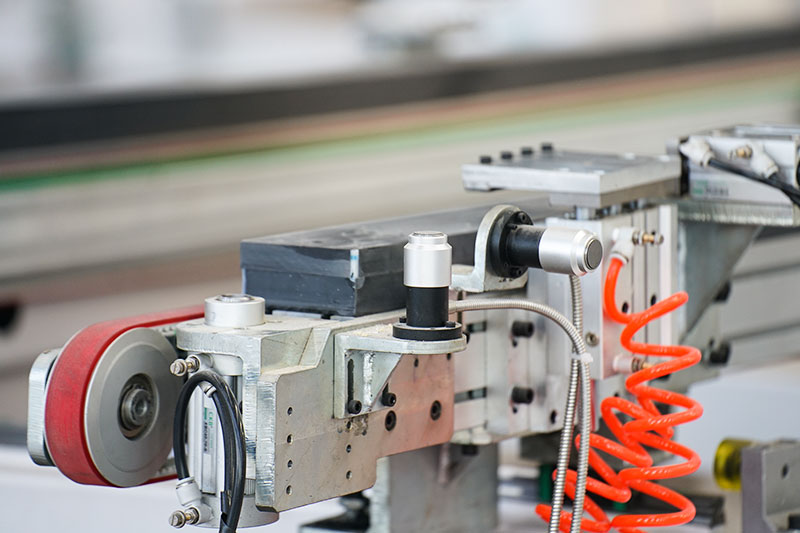

Tool setting
