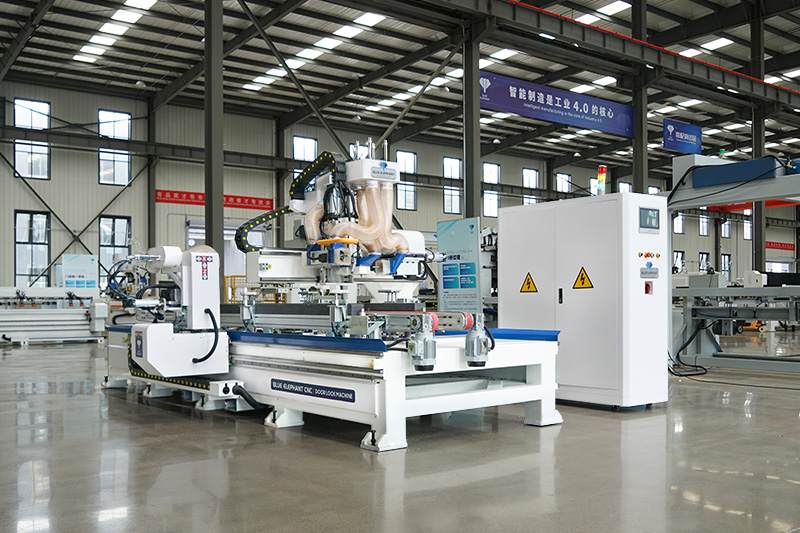

EM3.2-1126 Through-type Double-channel Door Lock Making Machine
Best CNC Wood Door Lock Hole Machine CNC Woodworking for Sale at Cost Price

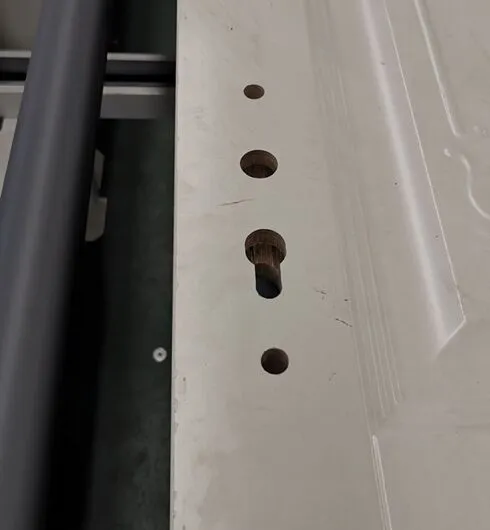

The CNC door lock making machine is mainly used for processing wooden doors, door frames, window frames, window sash grooves, door locks, door lock steps, door lock hinges, end face paint holes, door closers, hinges, etc. All processing can be completed at one time, which can quickly improve production efficiency and effectively reduce labor costs. In addition, the door lock making machine can also be used for milling, drilling, grooving and punching in the shape of keyholes on the plane and side of wooden doors, and can also be used for grooving and drilling in wooden furniture.

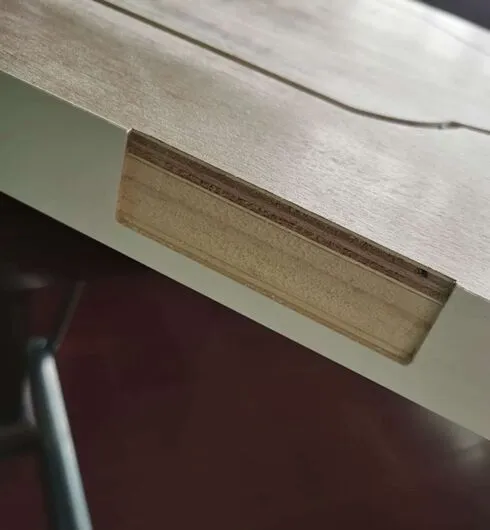

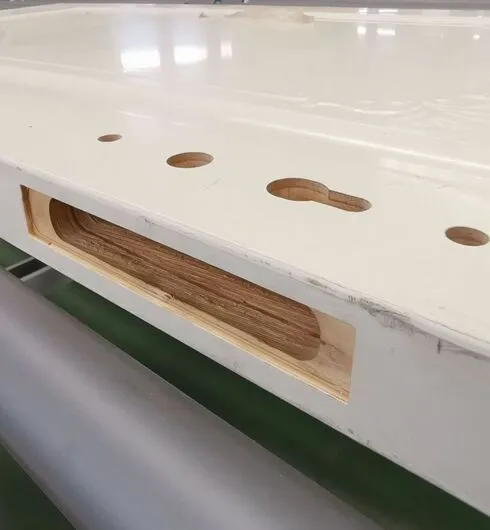

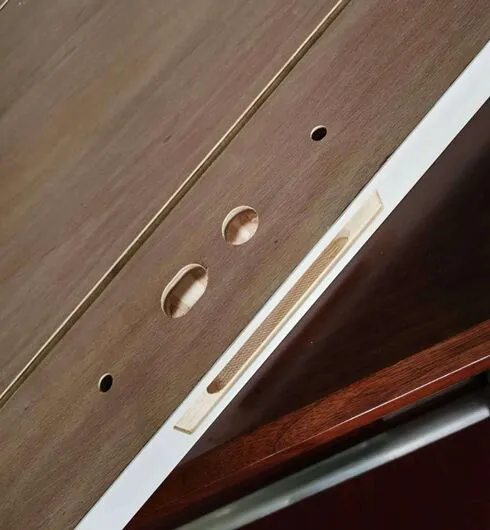

1.This machine can be used for multiple purposes. Lock slots, lock steps, lock holes, latch slots, paint holes, door closers, and hinges can all be processed quickly.
2.It can save time, effort and process. This machine is equipped with 7 motion axes.The door width can be adjusted automatically. Lock groove and lock body are precisely matched. And hinge and lock hole can be processed at the same time.

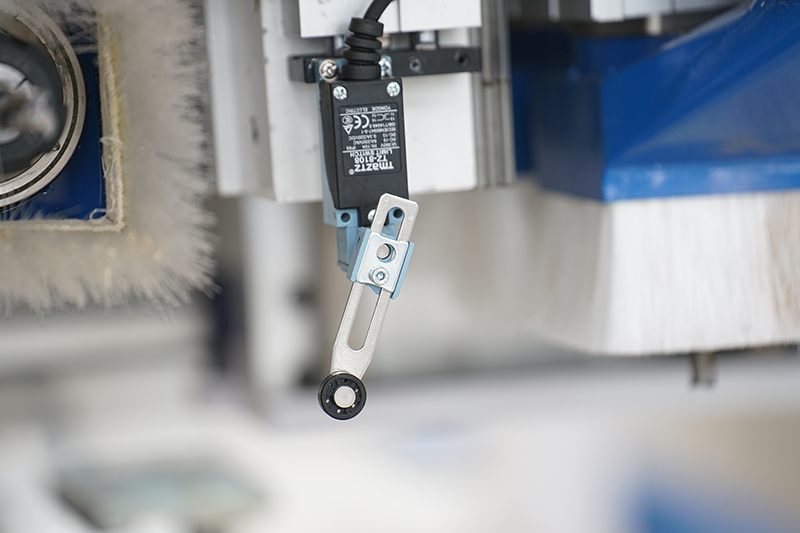

3.It can measure width, length and thickness automatically, convenient and fast,realizing intelligent and precise processing.
4.The processed door panels are transmitted by through-type transmission rollers, which can be operated intelligently.
| EM3.2-1126 Through-type Double-channel Door Lock Making Machine | |
| Machine model | EM3.2-1126 |
| Machine dimension | 4200mm×3200mm×2400mm |
| Max. processing size | 1100mm×2600mm |
| Min. processing size | 400mm×1800mm |
| Max. processing thickness | 35mm-65mm |
| Key hole spindle power | 6kw×1 2.2kw×1 |
| Key slot spindle power | 6kw×1 2.2kw×1 |
| Hinge spinlde power | 3.5kw×1 2.2kw×1 |
| Paint hole and door closer power | 3. 5kw(Double head) |
| Total power | 25.6kw |
| Max. processing speed | 50m/min |
| Air pressure | 0.5-0.7mpa |
| Total weight | 3000kg |
Click for details
No, it can only process wood materials.
The CNC door lock making machine is mainly used for processing wooden doors, door frames, window frames, window sash grooves, door locks, door lock steps, door lock hinges, end face paint holes, door closers, hinges, etc.
The machine has a one-year warranty and free after-sales service for life.

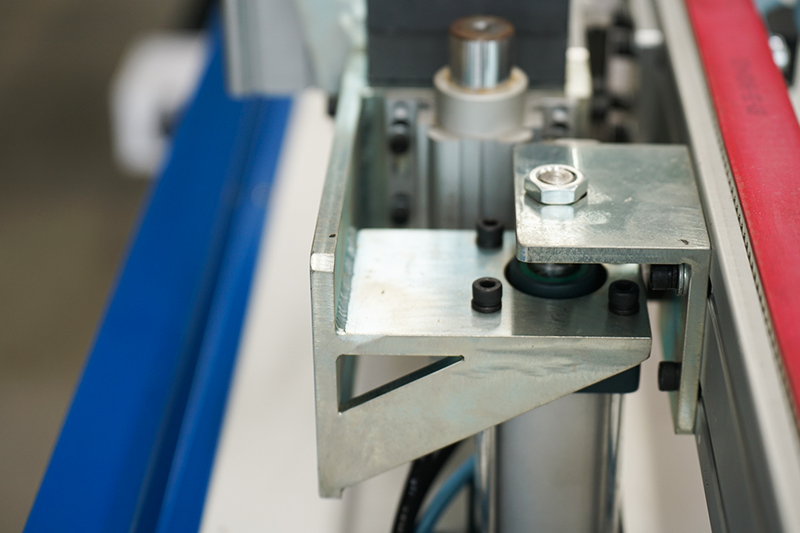

Conveyor belt lifting cylinder

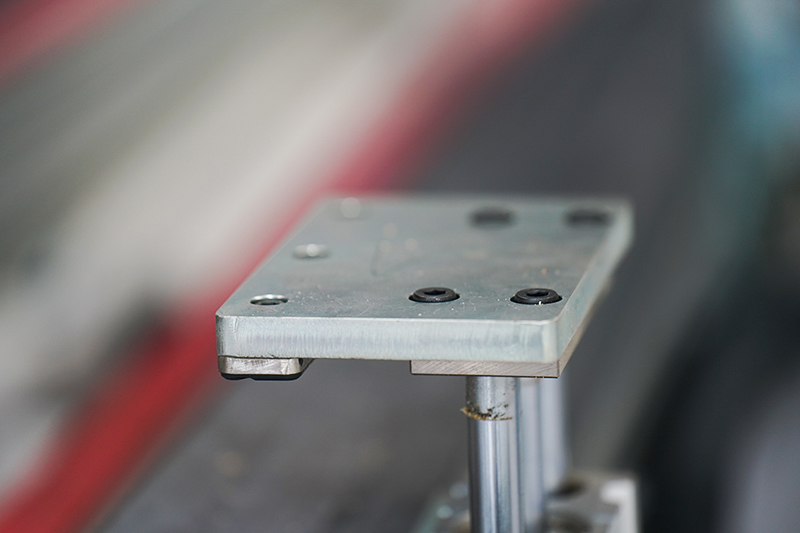

Door panel fixture

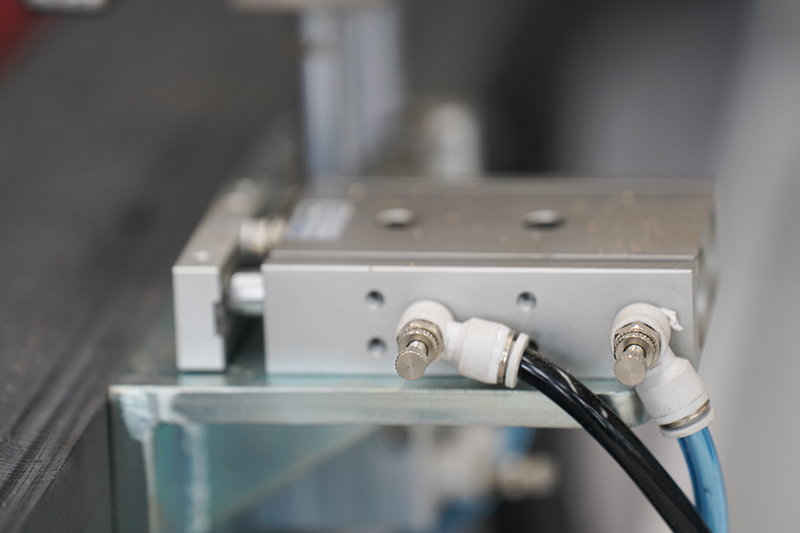

Door panel side push cylinder

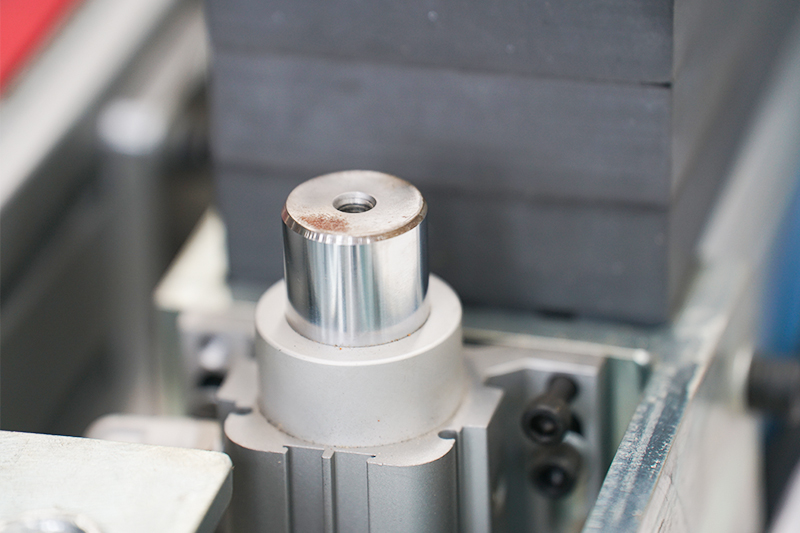

Front positioning cylinder
