Wood Door Four Sides Cutting Machine

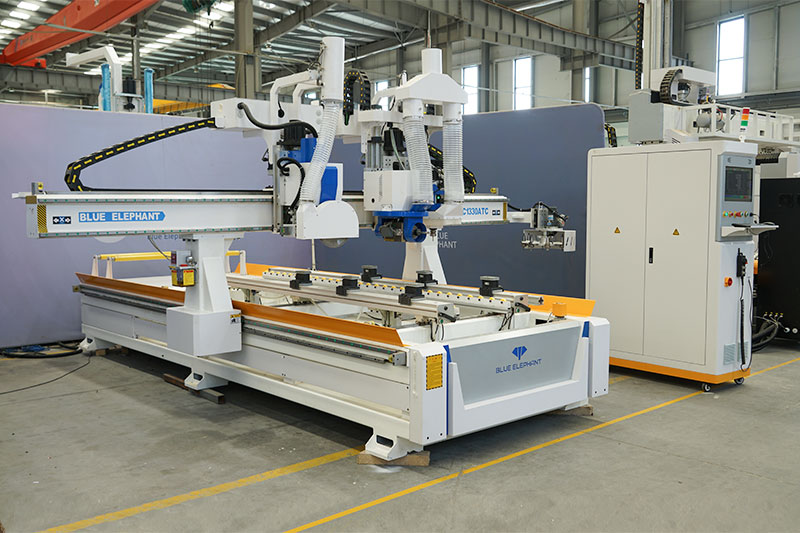

Multifunctional Door Machining Center
The Blue Elephant multifunctional furniture CNC machining center for door making is a fully automatic wooden door making machine specially used for the door edge cutting, hinge hole drilling and door lock hole drilling. It combines the functions of traditional door hinge hole machines and four-side cutting saw machines into one, which greatly improves the processing efficiency.
1. Two saw blades can rotate 90°, perfectly completing the wooden door squaring.
2. Double-head horizontal spindle can rotate 270°to process the four sides of the wooden door, such as lock slot, hinge slot, slide slot, hanging wheel slot, paint hole, door closer, latch slot, etc.

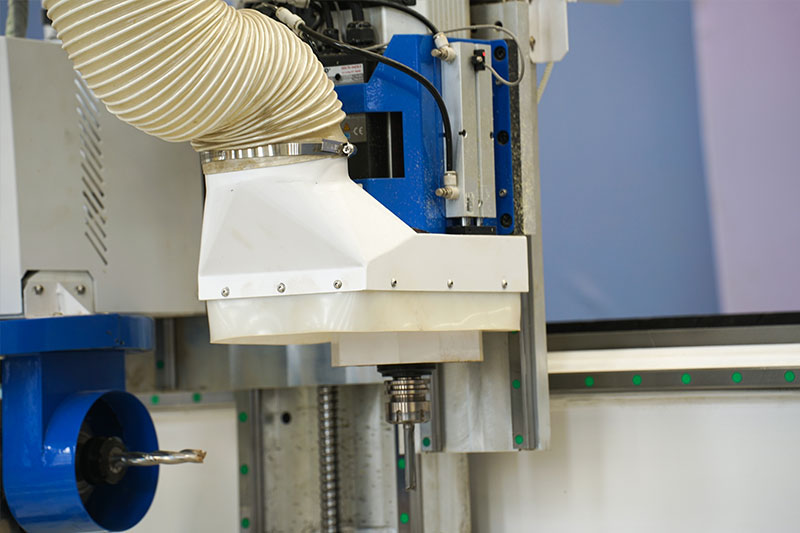

3. ATC air cooling spindle with 8-tool carousel tool change magazine can realize door lock hole drilling, carving, cutting, etc.
4. PTP adsorption table can freely adjust the size of the adsorption area according to the width of the door panel, which is fast, precise, and stable.
5. Loading and unloading device is convenient to position plate and save a lot of effort and time when processing.
| X, Y, Z axis travel | 1300x3000x200mm |
| System | Syntech 8 axis system |
| ATC Spindle | 9kw air cooling spindle，ISO30 |
| Horizontal spindle | 5.5kw double-head horizontal spindle，rotating 90° |
| Saw spindle | 1.5kw+7.5kw saw blades，rotating 90° |
| Motor | servo motor |
| Reducer | Japan SHIMPO reducer |
| Tool changer | 8-tool carousel tool changer magazine |
| Worktable | PTP table，4 zone |
| Vacuum pump | 4KW Becker Vacuum pump，KVT3.140 |
| Dust collector | 5.5KW |
Click for details

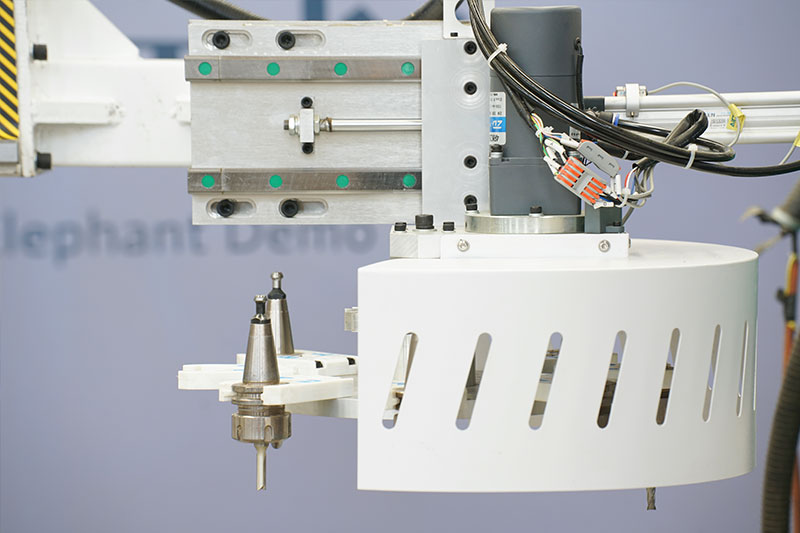

Multifunctional Door Machining Center ATC Magazine

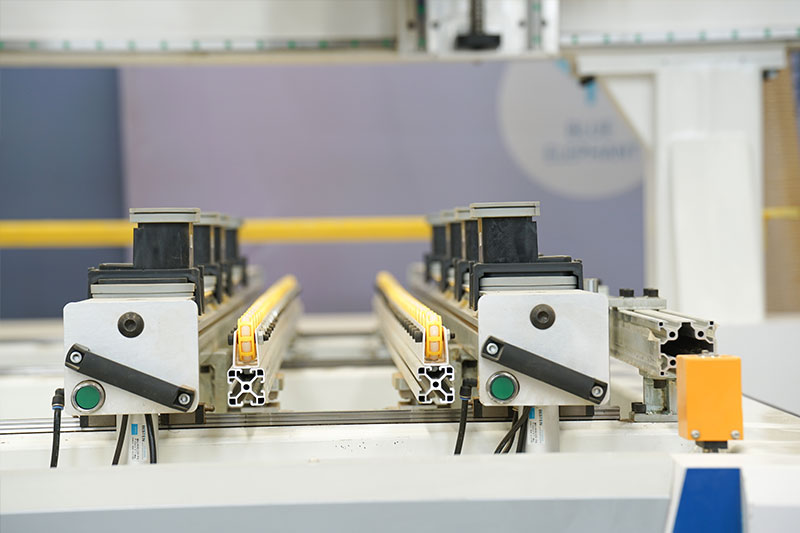

Multifunctional Door Machining Center Parts

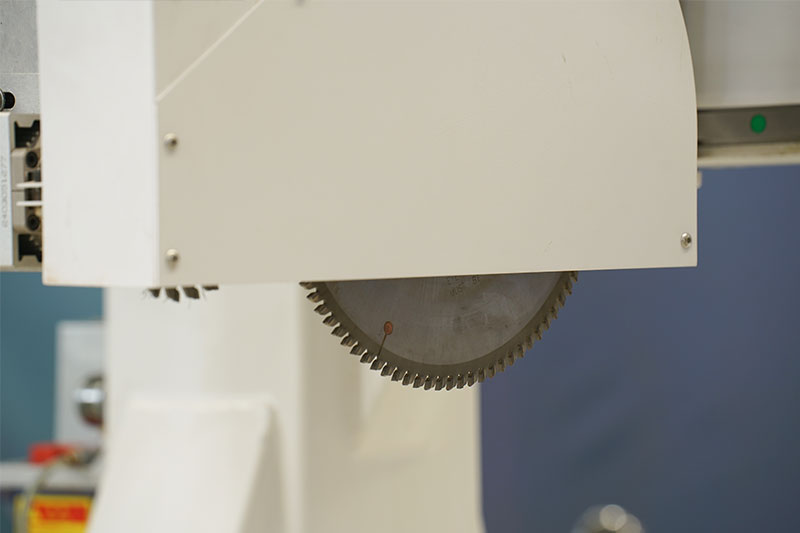

Multifunctional Door Machining Center Saw Spindle
