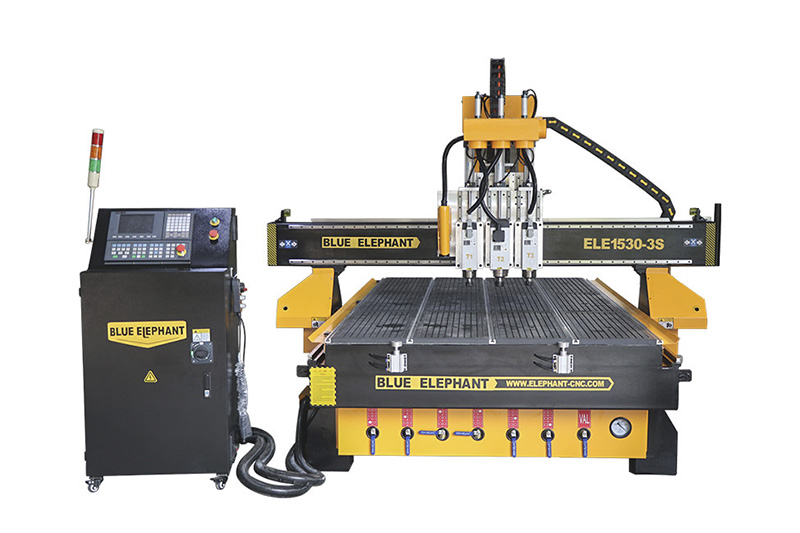

Automatic 1530 5×10 Digital Wood Cutting Machine with CCD Camera for Sale

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-1530-3S
Category : CCD Camera Patrol CNC Router
Price Range : $8000 to $12000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

This digital wood cutting machine can complete the user's three processing requirements at one time, greatly improving the processing efficiency. In addition, it is equipped with CCD camera, which can realize automatic patrolling and cutting function. With multiple functions, it is suitable for multiple user options.

Features

1. Using the new generation CCD, it can scan the marking points quickly and efficiently, and effectively improve the processing efficiency.
2. With three spindles, it can choose three different tools to work according to the different processing requirements.
3. Equipped with 850W Leadshine servo motor, it has the features of high power and high precision.
4. Manufactured with the large square tube bed, it is more stable and guaranteed accuracy.

Parameters

Model	ELECNC1530-3S
Machine structure	10-12mm steel plant heavy duty body
Work table	Vacuum& T-slot work table
Positioning cylinder	Optional: 5 pieces (X2,Y3)
Linear guide	20# Taiwan linear guide
Transmission	X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam
Command language	G Code & M Code
Traveling speed	30m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.07mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, all full set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain

Click for details

Frequent Asked Questions

What is the vacuum working table for？

It can secure the wood panels by vacuum suction. When you process large wood panels, it is very helpful than clamps. The clamps are more suitable for processing small objects.

Can the machine be equipped with 4 sets of water cooling spindle?

Not recommend, because all water cooling spindles need water pump or chiller to cooling, it is not convenient when the machine change spindles.

Could three spindles work together?

No, the three spindles work one by one,to do different working. It is like simple version of ATC machine. For example, you can use the first spindle to cut, the second to engrave, and the third to drill.

CCD Camera Patrol CNC Router Details

Spindles

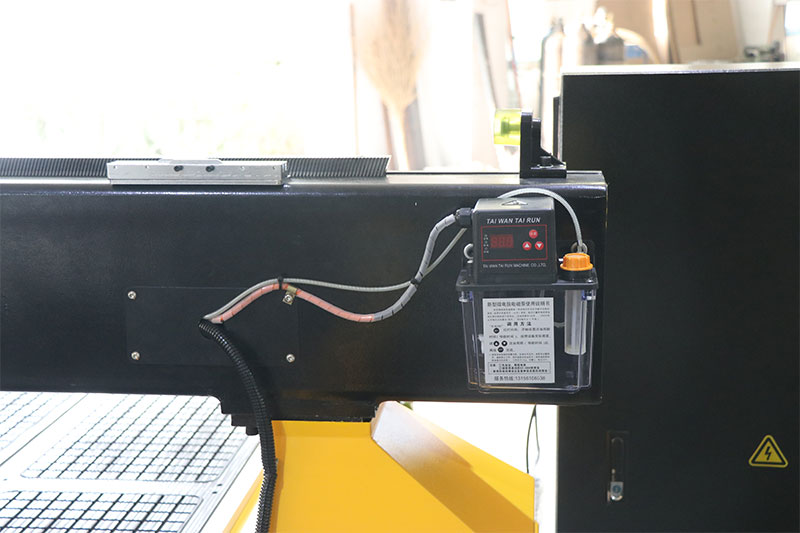

Lubrication

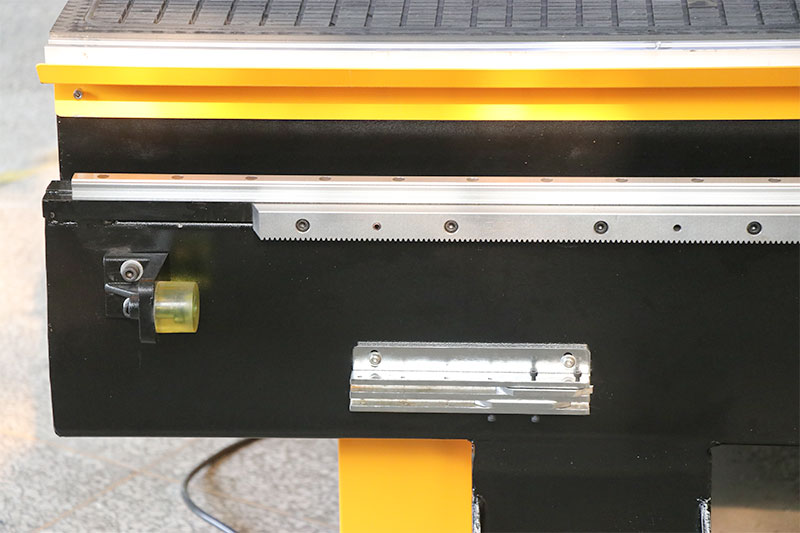

Guide rail

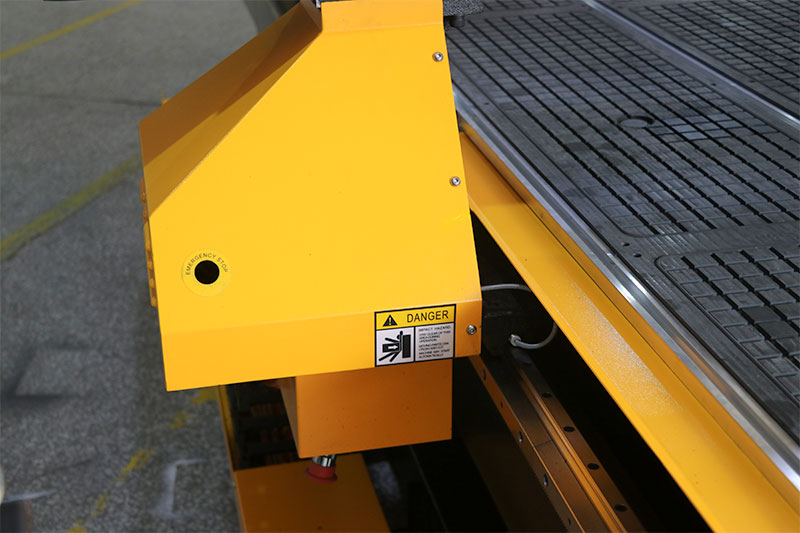

Motor

Application

A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.

Samples

Click for solution

Production Facility

Quality Control & Testing

Click for quotation
