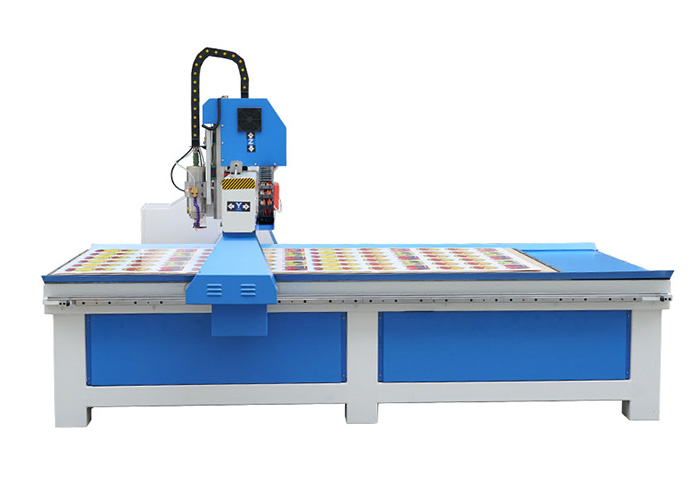

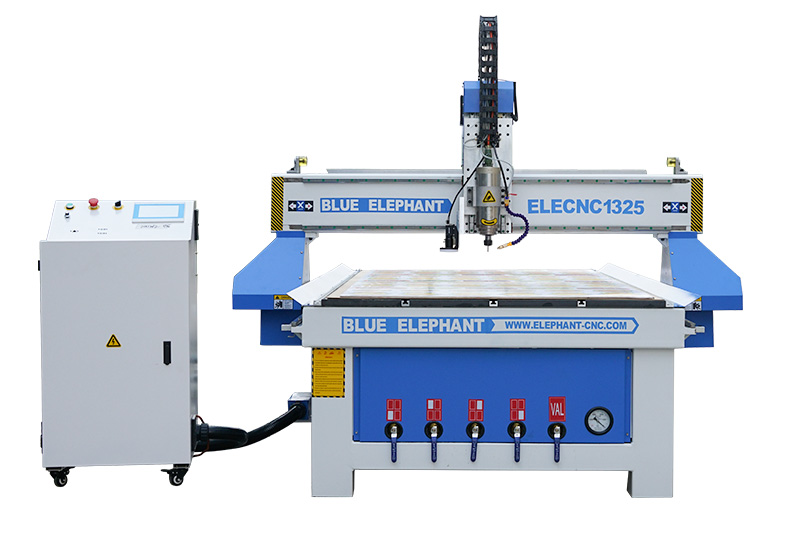

1325 CCD CNC Wood Router
4x8 ATC CNC Router with CCD
This is a CNC router with camera CCD automatic edge patrol function. This machine can not only meet the engraving function of ordinary woodworking machines, but also realize the automatic edge inspection and cutting function of acrylic and other materials.
1. Equipped with CCD visual recognition system, with the functions of automatic edge search, positioning and cutting.
2. Adopting a Changsheng water cooling spindle, it has the characteristics of high speed and low noise.
3. Adopting Mach 3 and Ruida system to control the spindle and CCD separately, it is easy to operate.
4. Whether it is work area or accessories selection can be customized according to user requirements.
| Model | ELECNC1325 |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 3.0kw water cooling spindle, 24000rpm, ER20 |
| Inverter type | 3.7kw |
| CCD camera | CCD camera with the RD control system |
| Control system | Mach 3, option: DSP A11 |
| Driving system | Step motor 450B with Leadshine 860H driver, option: leadshine mix servo motor/YASKAWA servo motor |
| Reducer | Optional |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | manual lubrication system |
| Tool calibration | NO |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3,Ucancam, Aspire, etc. |
| Command Language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
Click for details

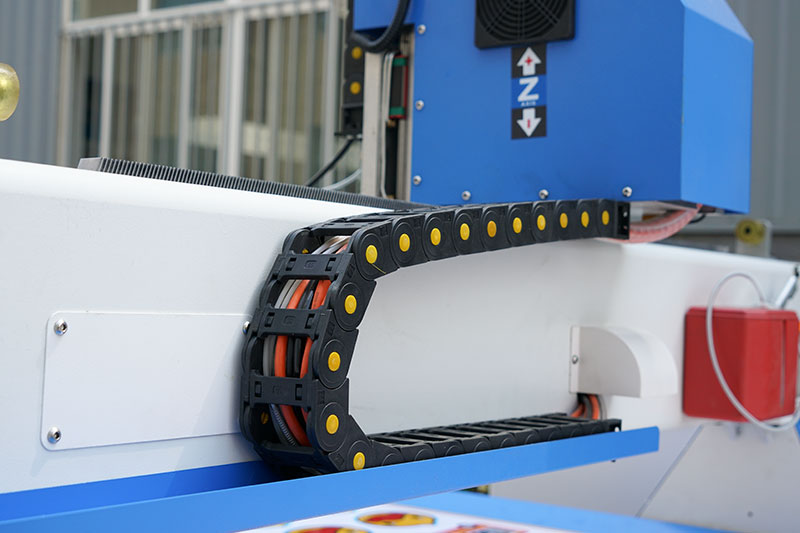

Towline
Electric parts

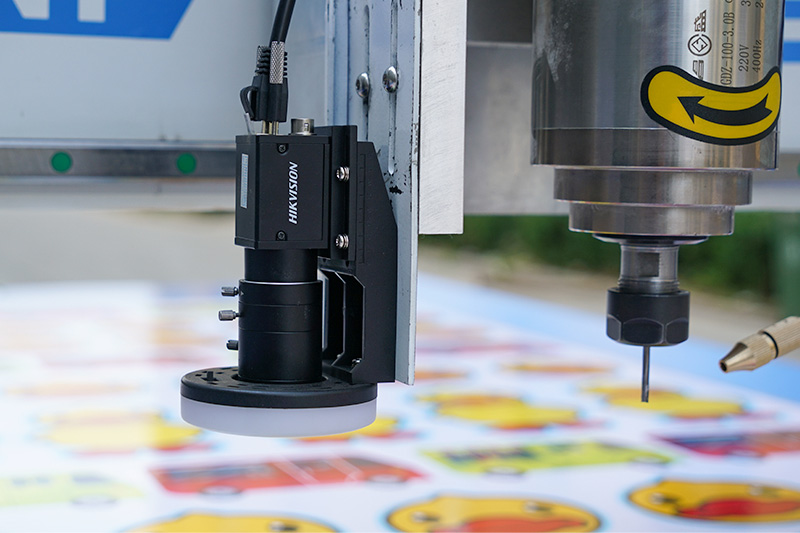

CCD

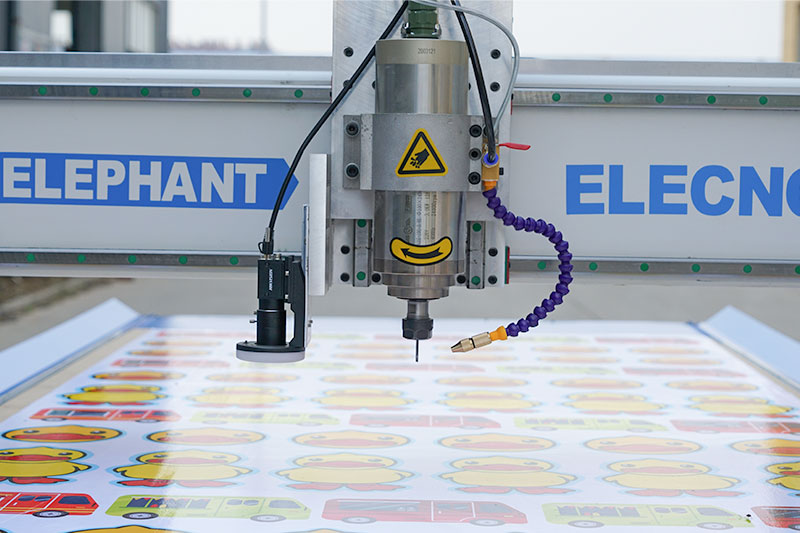

Spindle
