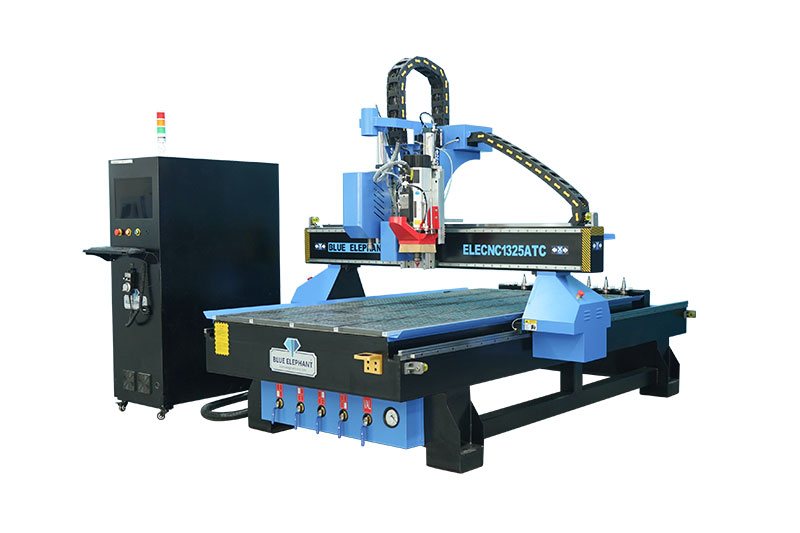

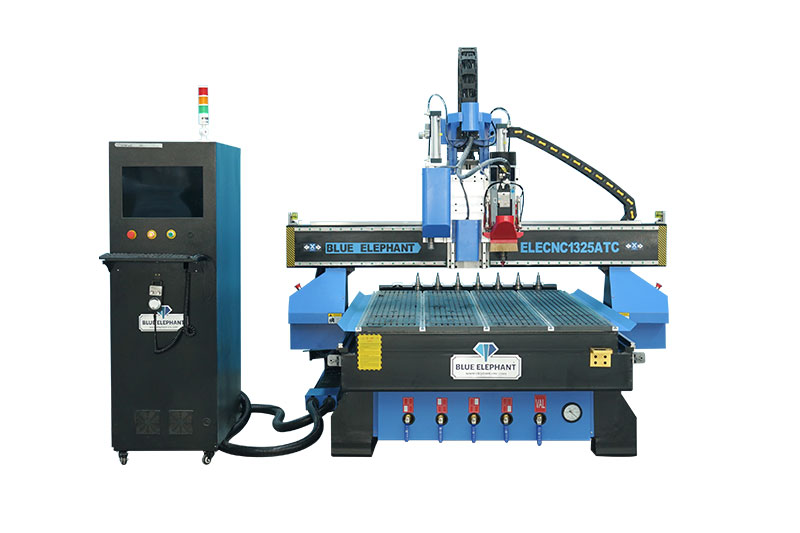

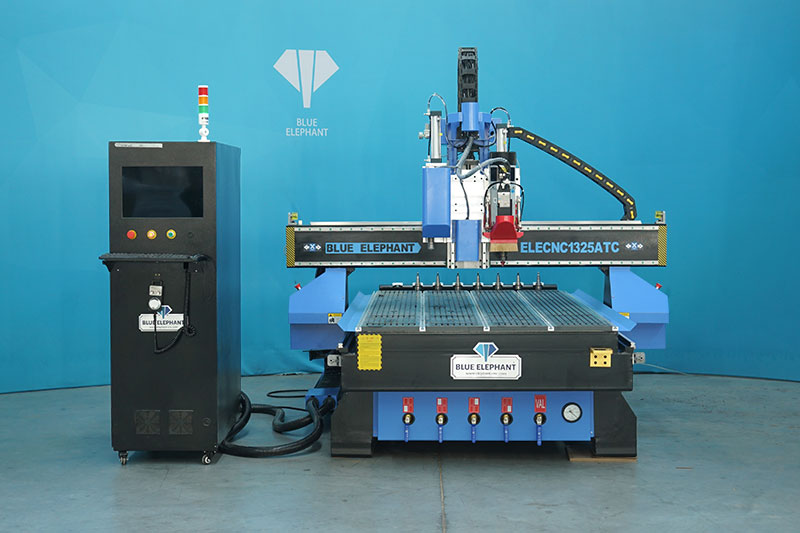

This is a multifunctional ATC CNC router machine with a CCD camera. Besides, it is also equipped with an oscillating cutter on the head. Therefore, this automatic tool changing CNC router machine can cut flexible and soft materials, like paper, leather, fabric, etc. Furthermore, the CCD camera can detect the edges of images automatically, which help cut out irregular shapes of printed boards.
1. Using a new type CCD system, it can scan the image edges with strong recognition ability, fast positioning speed, and high positioning accuracy. This helps to cut out irregular printed shapes from a wooden board.
2. The oscillating cutter enables this CNC machine to cut various flexible materials, such as fabric, leather, cloth, paper, rubber, etc.
3. It can cut out large-area images from a wooden board automatically, precisely and quickly. One operator can run several machines at the same time, which saves human labor and improves work efficiency.
4. Equipped with a 18000rpm automatic tool change spindle, it can change tools fast with low noise and large torque.
| Model | ELECNC1325ATC | |
| Working area | 1300*2500*200mm | |
| Spindle power | 9KW HQD ATC air-cooled spindle, 0-18000rpm | |
| CCD | With edge detecting function | |
| Oscillating cutter | 3mm amplitude | |
| Voltage | 380V, 3PH, 50Hz | |
| Tool magazine | Linear type tool magazine with 8 tools | |
| Inverter | Fuling inverter | |
| Control system | Blue Elephant customized control system | |
| Motor and driver | 850W Leadshine servo motors and drivers | |
| Working Table | T-slot & vacuum working table | |
| Limit switch | Japan OMRON limit switch | |
| Frame structure | Square steel tube | |
| Linear guide | Taiwan linear guide rails | |
| Reducer | Japan Shimpo | |
| Lubrication system | Automatic lubrication system 1.5L | |
| Cables | Germany Igus cables with CE,cUL certificate | |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. | |
| Command language | G Code & M Code | |
Click for details

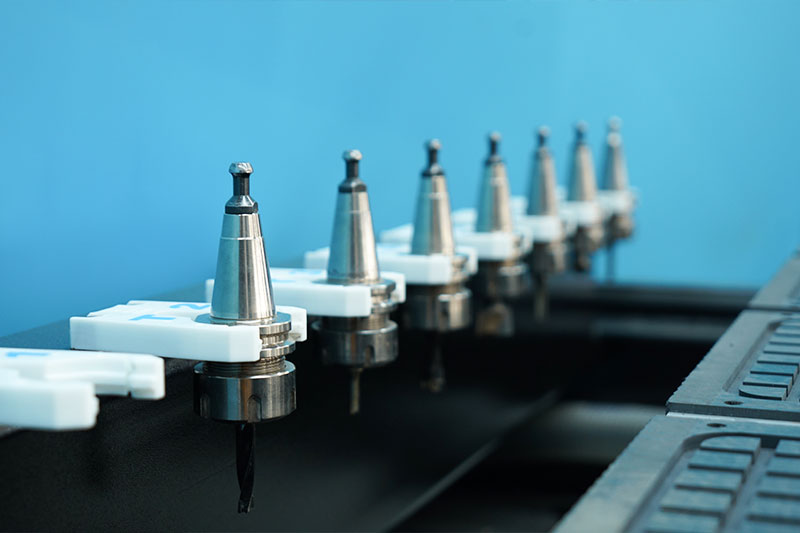

Tool magazine

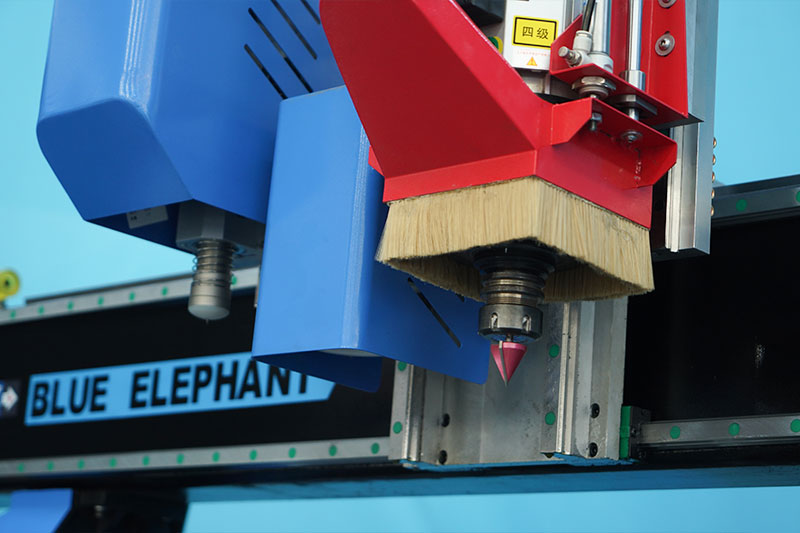

Spindle

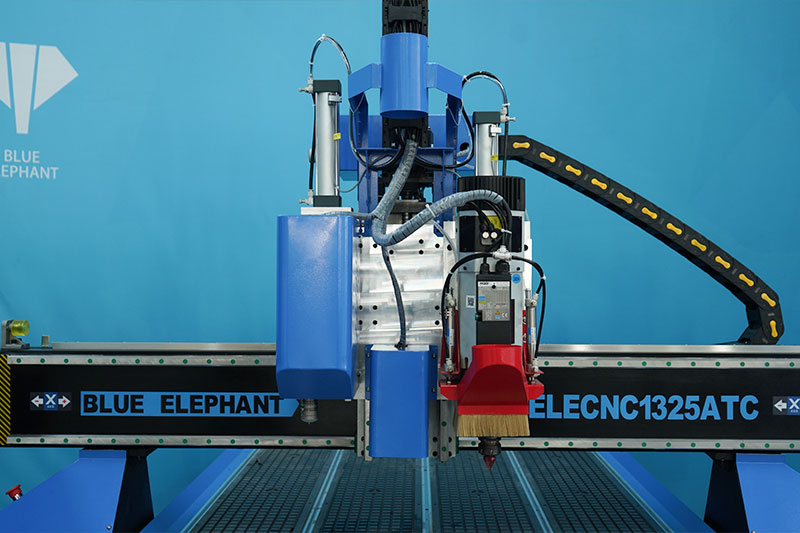

Head

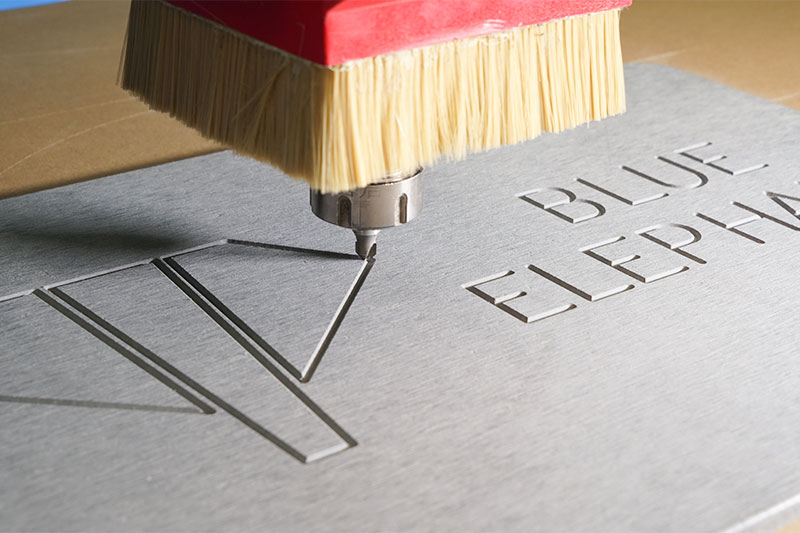

Tool
