This CCD camera patrol CNC router can not only patrol cut but also engrave, drill and mill. So it is suitable for diversified processing needs. Moreover, this machine is equipped with carousel tool magazines, and 8pcs spindles can be automatically switched according to the machining requirements, thus greatly improving the user's machining efficiency.
1. Using the new generation CCD, it can scan the pattern edges quickly and efficiently, which effectively improves the processing efficiency.
2. Equipped with HSD air cooling spindle, it has the features of high power and high precision.
3. Manufactured with the large square tube bed, it is more stable and guaranteed accuracy.
4. Adopting Syntec 11MB control system, it is convenient and easy to operate.
| Model | ELECNC2133ATC |
| X,Y axis travel | 2100x3300mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3,Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump | Water circulation Ring blower Rotary vane,oil-free: Tongyou,Taiwan Eurovac,Germany Becker |
| Dust collect system | 3kw,5.5kw,7.5kw,etc,including dust hood, pipe, all full set New type |
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
Click for details

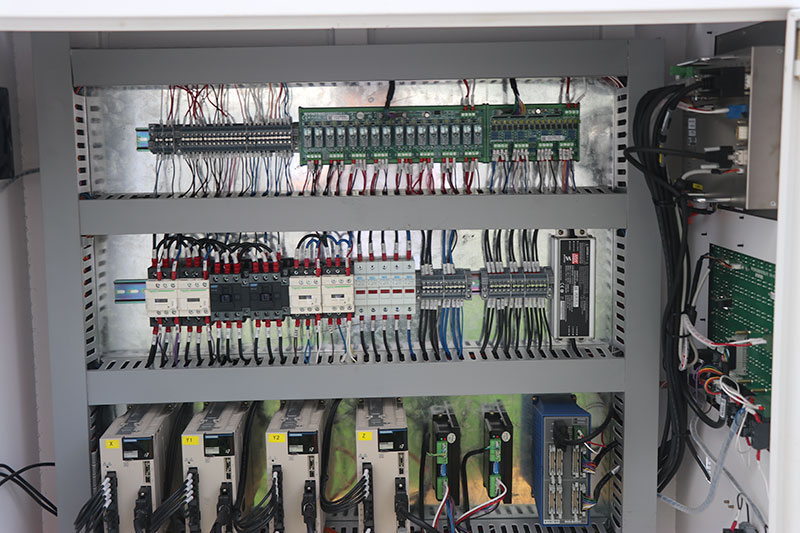

Electric parts

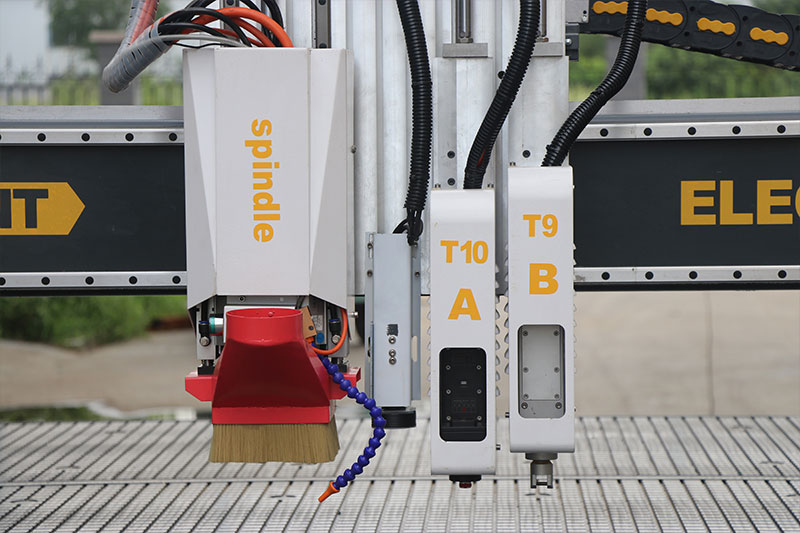

Spindles
