Description

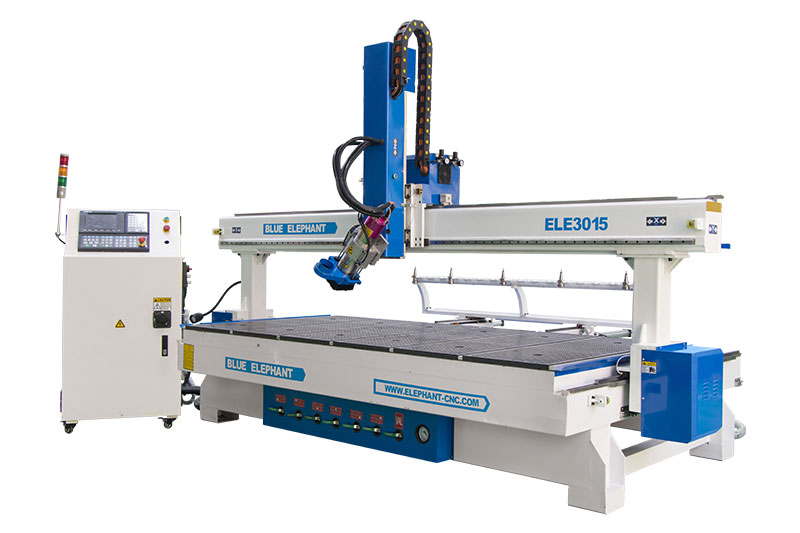

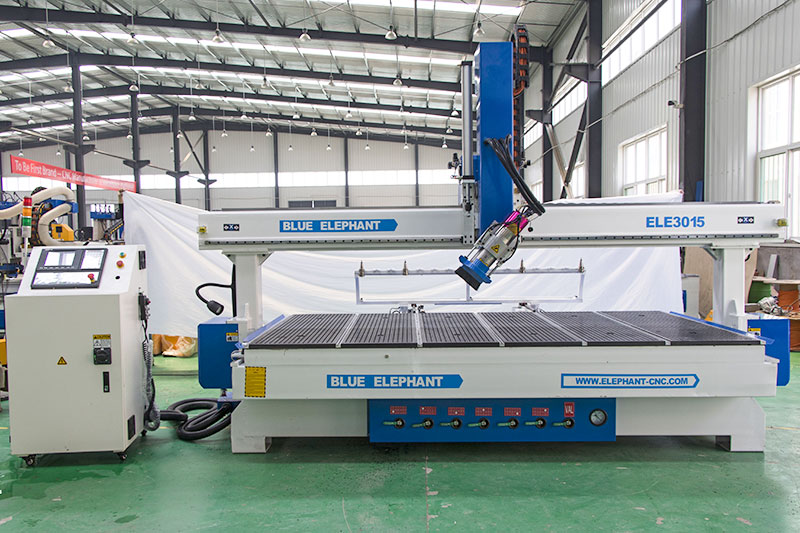

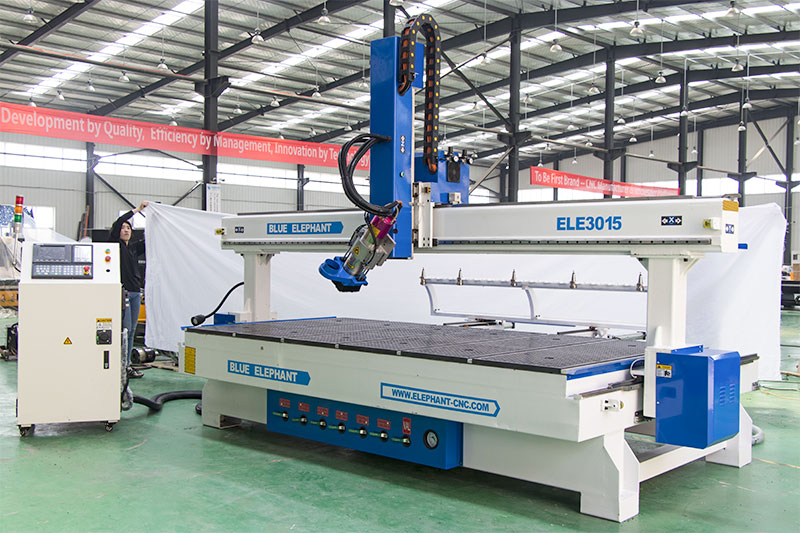

3015 wood CNC router gantry spans the table of 3000mm and has a linear auto tool changer with 16 slots. It is good at 3D woodworking and furniture making like cabinet, wooden door, solid wood furniture, panel wood furniture, tables, chairs, and some others.

Features

1. Heavy-duty strong T-structure and vacuum table;
2. The wood CNC router machine has 16 slots linear type tool magazine, and different knives can be installed in tool holder;
3. Taiwan SYNTEC system and Changsheng HQD ATC water cooling spindle with max-speed of 24000RPM swings ±90 degrees for 3D woodworking;

Parameters

Model	ELECNC3015ATC
X,Y axis travel	3000x1500mm, option: 13002500mm; 21003000mm; 2100*4000mm, etc
Z axis travel	200mm, option: 300mm, 400mm, 500mm, 600mm, etc
Spindle type	5.5kw ATC water cooling spindle, BT30, ER32
Inverter type	5.5kw
Drilling bank	Option
Tool magazine	Linear type auto tool changer Option: carousel type auto tool changer
Tool holder with collet	BT30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC controller, option：LNC
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces (X3, Y2)
Linear guide	Taiwan Linear guide ( dust proof as option)
Transmission	X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language	G Code
Traveling speed	60m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

X,Y,Z Working Area	3000x1500x400mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
Table Surface	Vacuum&T-slot Table
X, Y Structure	Helical Rack gear, Abba 25# Linear Square Guide
Z Structure	Taiwan TBI Ball Screw, Abba 25# Linear Square Guide
Spindle Power	5.5kw Changsheng ATC Water Cooling Spindle
Drive Motors	Japan YASKAWA
Control System	Taiwan SYNTEC

Click for details

Frequent Asked Questions

1. For 4 axis machine, supply which software?

We free supply Powermill/UG software with post processor. Post process has RTCP function, RTCP means have a cutting tool compensation setting.

2. Why the machine is with special tool stock ?

The machine is with longer working width but shorter working length, the tool stock is with cylinder for improving the tool changing speed.

3.What is the 4 axis?

The 4 axis means the machine spindle can be swing for ±90°，suitable for difficult 3D model making.

ATC CNC Router Details

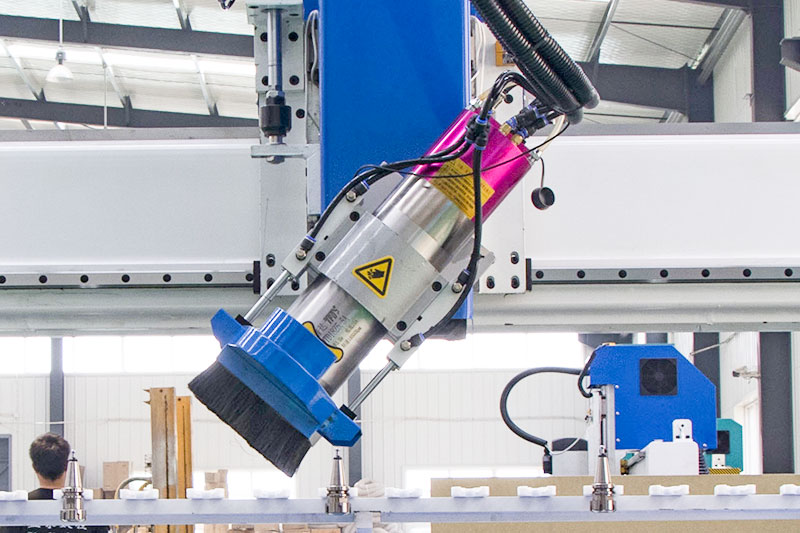

ATC spindle

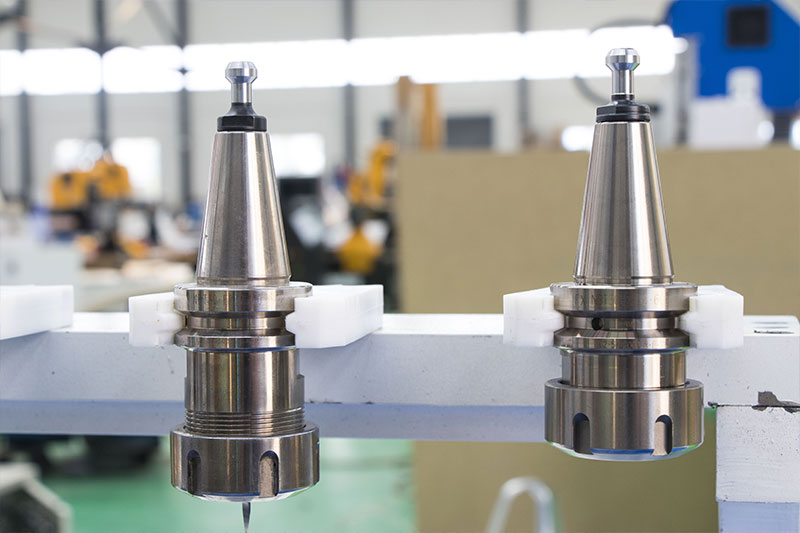

Linear automatic tool changer

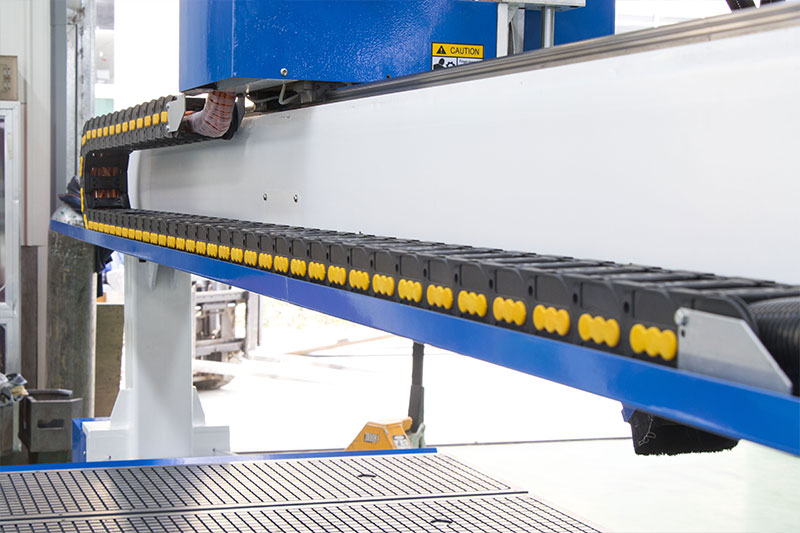

Towline

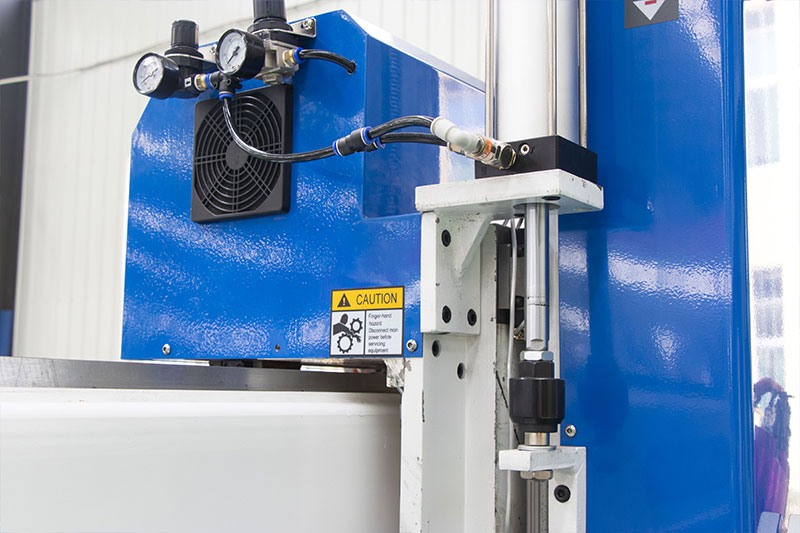

Balance cylinder

Application

Woodworking industry: Processing of three-dimensional wave board, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window, and auxiliary processing of shoe polishers, game machine cabinets and panels, mahjong tables, computer tables and panel furniture. Advertising industry: Advertising signage, logo making, acrylic cutting, plastic molding, and processing of various advertising materials and decorative products. Mold industry: It can engrave copper, aluminum, iron and other metal molds, as well as artificial marble, sand and stone, plastic plates, PVC pipes, wooden boards and other non-metal molds. Craft gift industry: It can carry out a variety of shadow carvings, reliefs, and widely used in crafts industry.

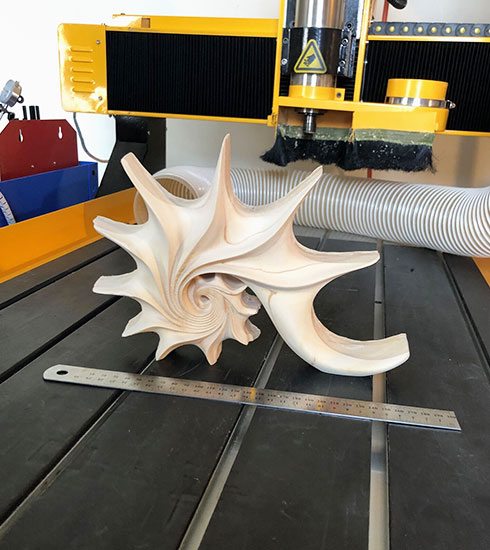

Samples
