1530 4 Axis ATC CNC Router

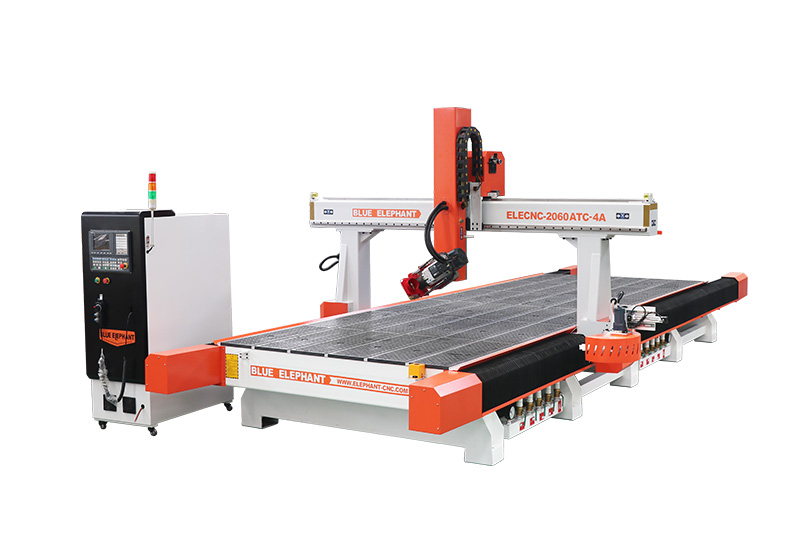

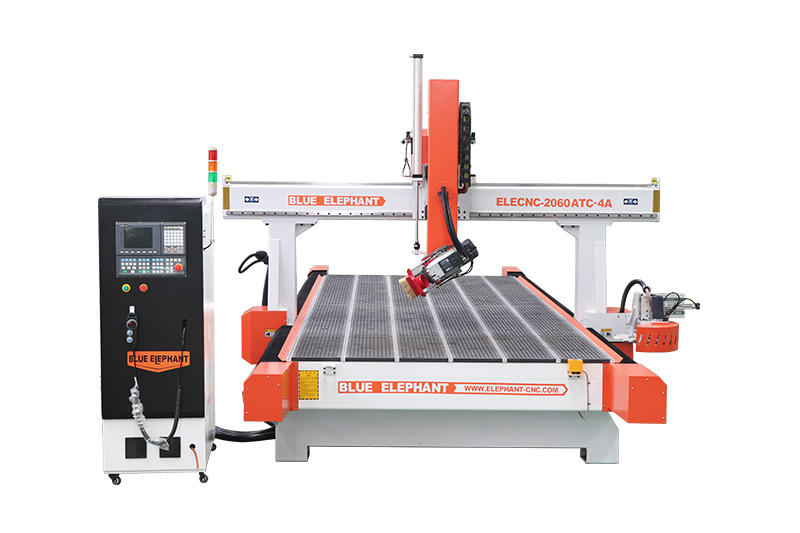

This 3D CNC wood carving machine is an ATC CNC router with a 4th axis of swing spindle, and a table size of 2000x6000. With different tool kits, it can do complex engraving/carving/cutting works.
1. Carousel tool changer automatically changes the required tool during machining of the workpiece without stopping work.
2. Multiple processes are completed in one operation, greatly improving work efficiency.
3. The heavy-duty steel frame is aged by vibrating aging and heat ageing.

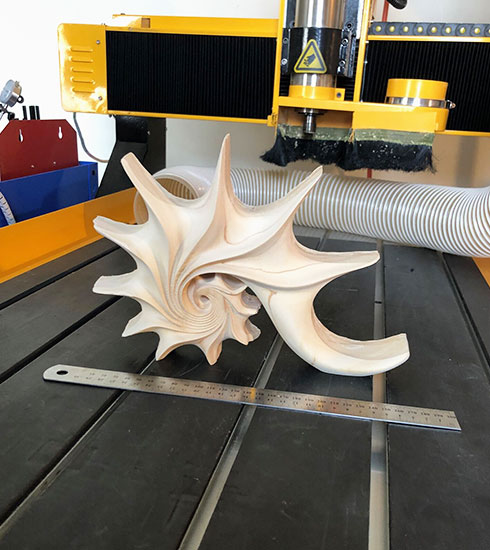

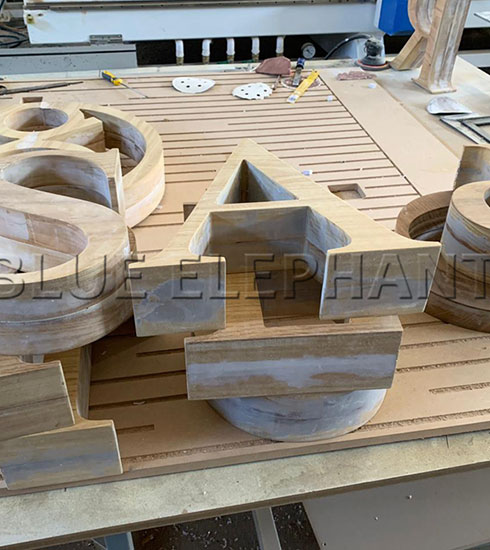

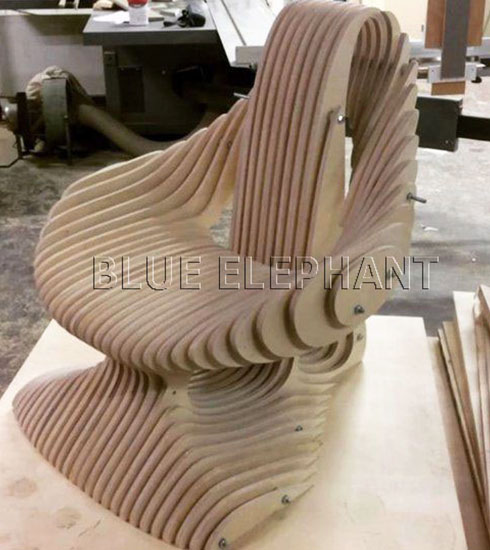

4 Axis CNC router machine is suitable for 2D/3D wood carving.
3D CNC Wood Carving Machine is a combination of 3 axes, 4 Axis, and ATC CNC router.
The ATC system adopts an automatic carousel tool changer, which is a faster way to manage tools/bits, this wood CNC machine is a recommended for a long time, heavy-duty, and complex of furniture/doors/cabinet making.
| Model | ELECNC2060ATC-4A |
| X,Y axis travel | 2000x6000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 600mm, option: 400mm, 500mm, 700mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet:φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets, option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |
| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 320mm. |
Click for details
The 4th axis stands for that the spindle can swing +90 degree to -90 degree from left to right, and it is mainly used to carve 3D moulds, like car and boat moulds.
For 4 axis machine, we use UG/Powermill professional software. We offer free version, and you also can use your own software.
There is a 4th turntable which can make the spindle to swing from﹣90° to +90°. Blue Elephant choose the turntable which working on metal CNC machine. It can work with aluminum and copper as well.

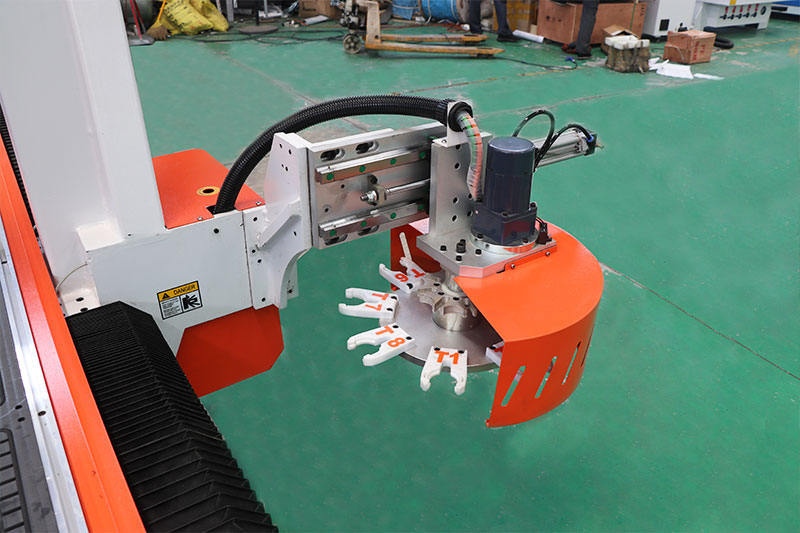

Tool magazine

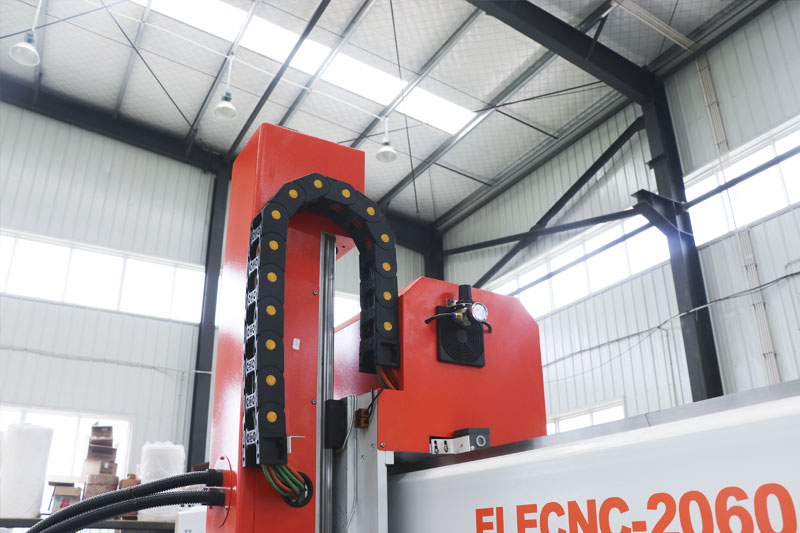

Z axis towline

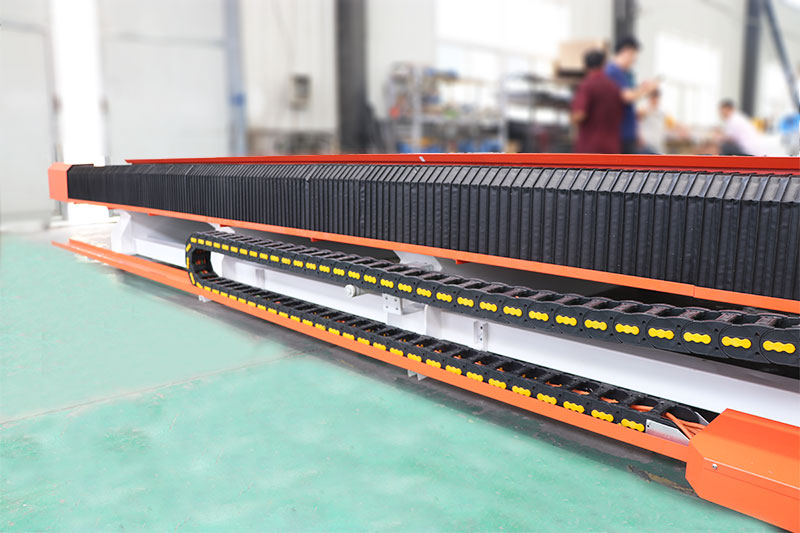

Y axis towline

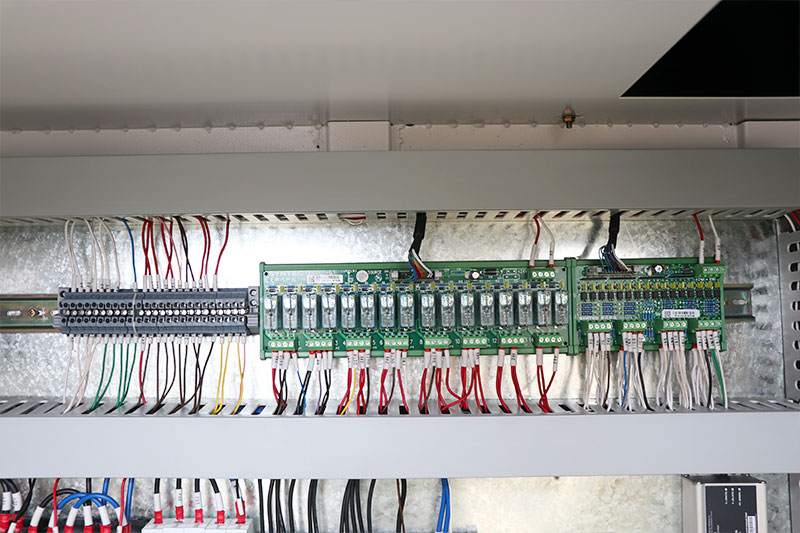

Wiring
