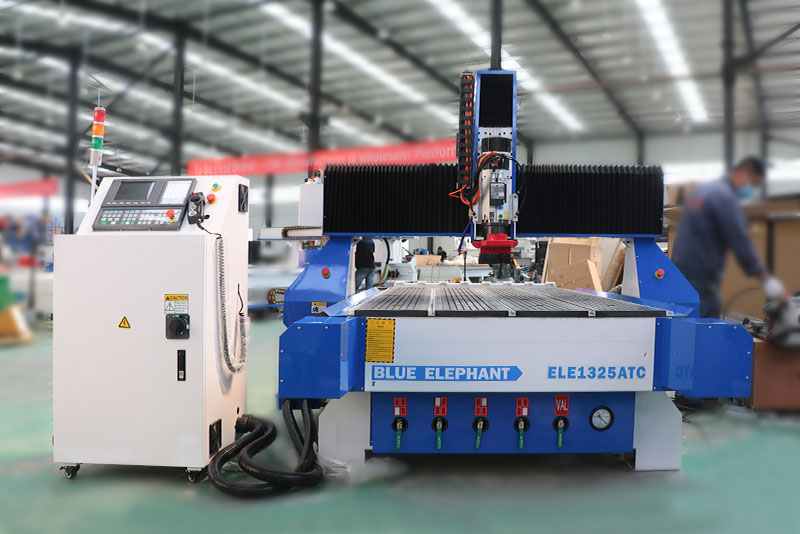

1325 Linear ATC CNC Router
1325 Carousel ATC with Drill Head

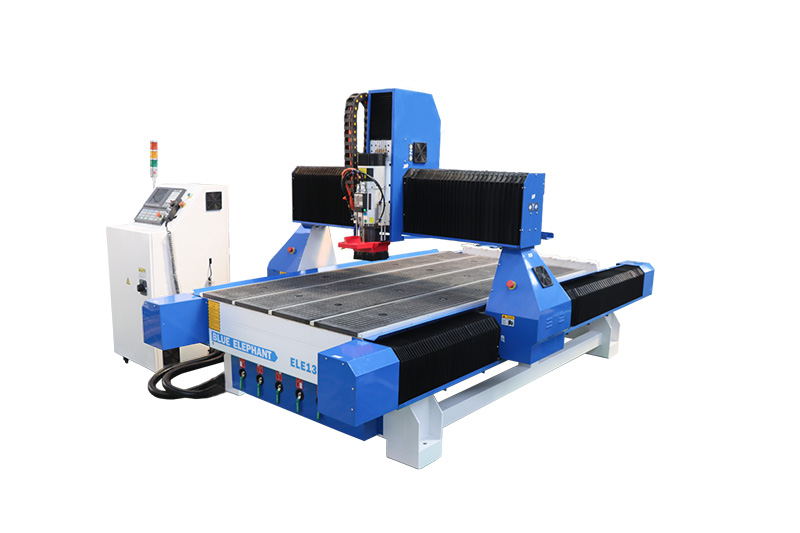

This 4x8 China ATC CNC wood router has a linear tool changer magazine. It is one of the most hot-selling machine for woodworking. And it can also be equipped with a carousel tool changer, a rotary device or other CNC router kits according to your actual needs.
1. Heavy-duty welded frame and gantry ensures ATC CNC Wood Router suitable for a long time and efficient woodworking.
2. Multi-head or spindle machines can change 2 or 3 or 4 tools when process different kinds of raw materials, but ATC CNC Routers can change more than 8 types of tools automatically according to the different knife functions in the engraving process.
3. If you want to do 3D objects or molds or more complex steps, the spindle is required to swing 180 degrees. Please refer to a 4 Axis CNC router.
4. Please notice that all the specifications can be made and designed to follow your own situation.
| Model | ELECNC1325ATC |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Option: Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30,ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30,HSK F63), etc. |
Click for details

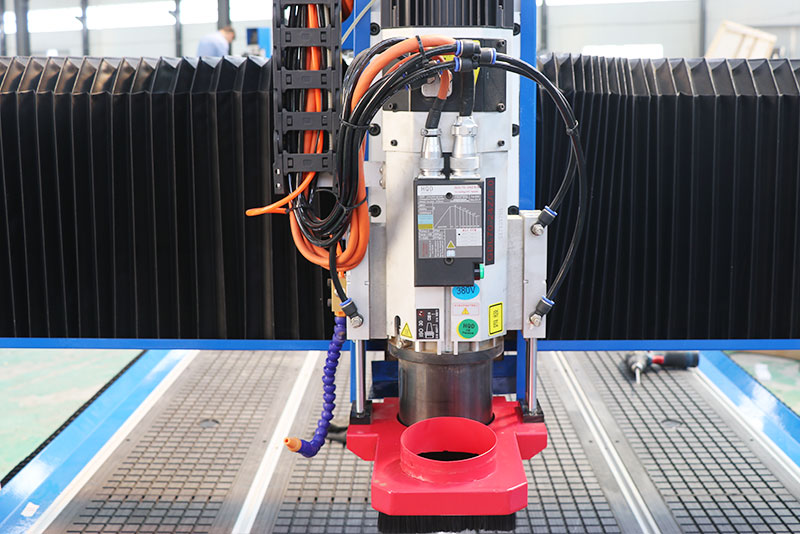

ATC Spindle
