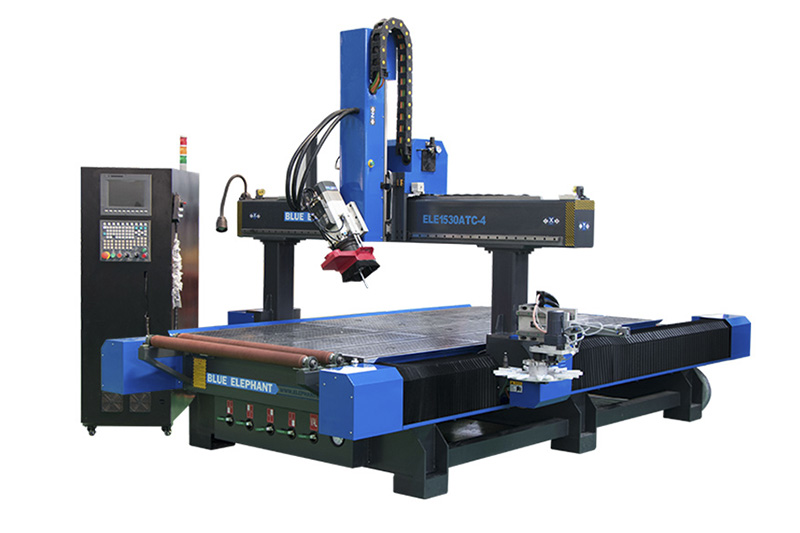

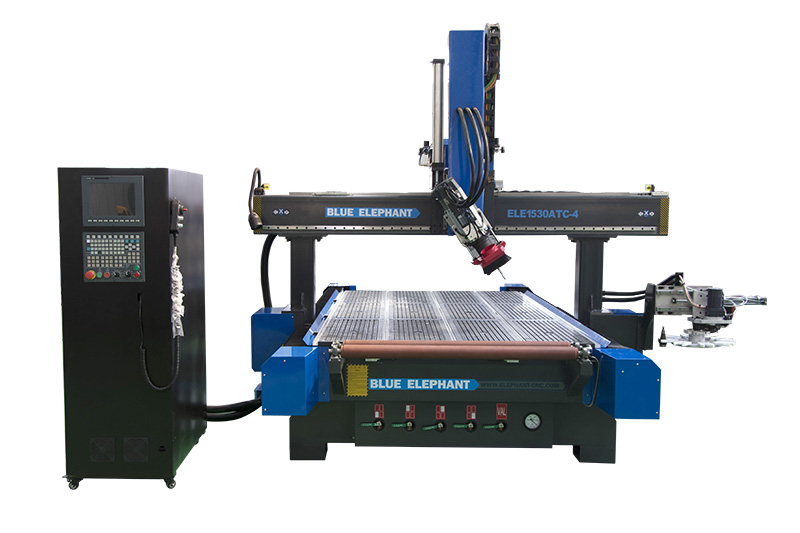

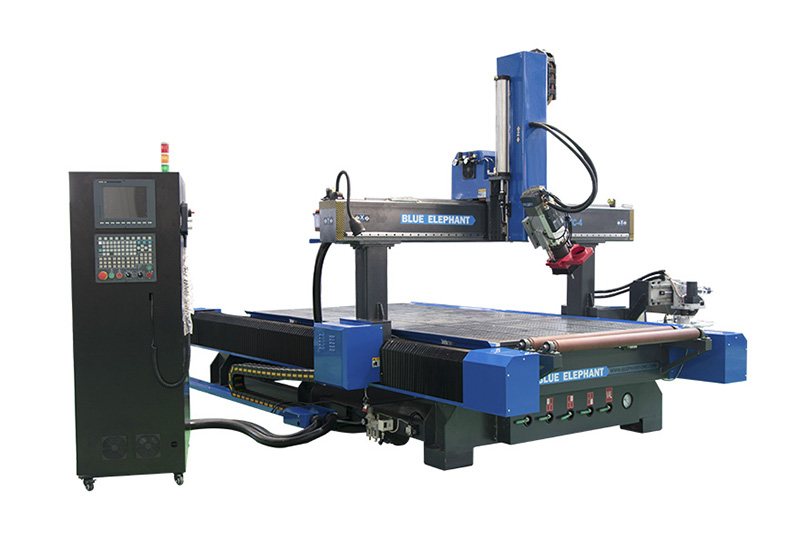

1530 4 Axis ATC CNC Router
1530 4 Axis ATC CNC Router
5x10 disc automatic tool changer CNC router has kits of 4th axis CNC spindle for 2D or 3D wood carving. The ATC CNC system is designed for automatic tool changing, while the upload roller device is for the wood panel and MDF feeding. It is mainly used for wood carving, MDF or plywood engraving, marbles carving, cabinet and doors making, etc.
1. Automatic Carousel tool CNC has 8 tool holders, they are designed for quick tool changing;
2. 4 Axis CNC Machines can carve complex 3D objects and molds.

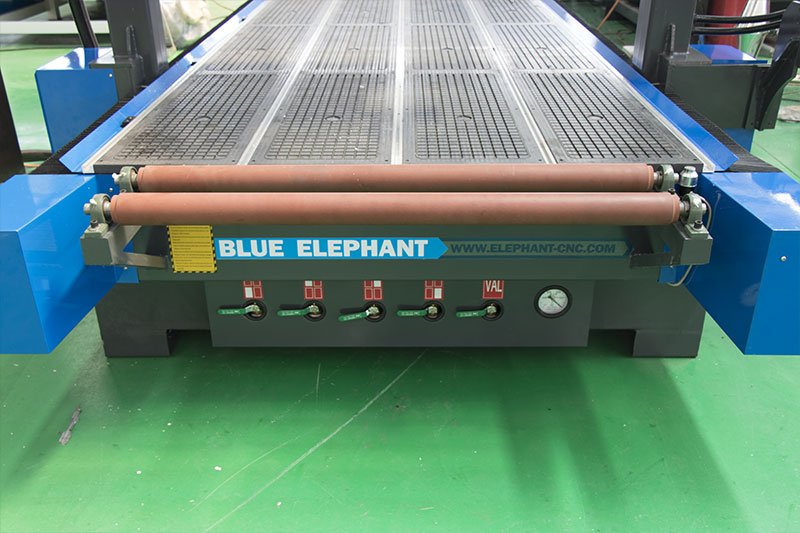

3. 2 feeding rollers in the front of the table, which make MDF or wood plate get through table conveniently.

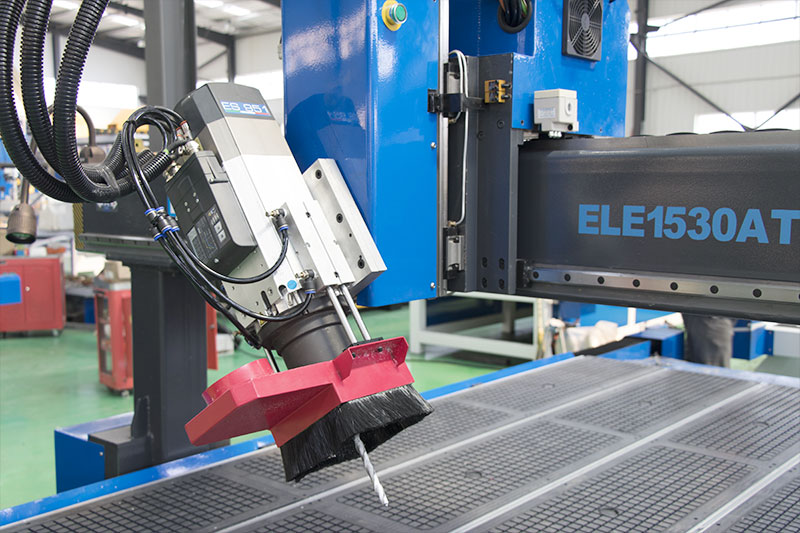

4. Italy HSD ATC air cooling spindle is quality and famous.
5. Dust cover optional can be added on the Y-axis or the other axis.
| Model | ELECNC1530ATC-4A |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, 700mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw inverter |
| The 4th axis | Cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: linear type auto tool changer |
| Tool holder with collet | ISO30,ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Germany Siemens control system Option: Taiwan SYNTEC/LNC controller |
| Driving system | 1kw Germany Siemens AC servo driver and motor, 4 sets. Option: 1kw Japan YASKAWA AC servo driver and 850w AC servo motor/1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 7 pieces (X3,Y4) |
| Linear guide | Taiwan PMI Linear guide |
| Transmission | X, Y axis: Taiwan J&T helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 320mm. |
Click for details
Spindle

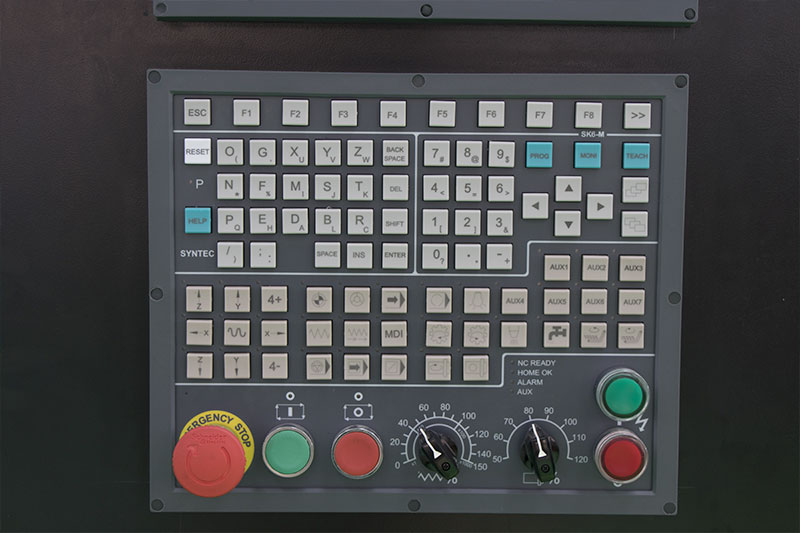

Control panel
Press roller

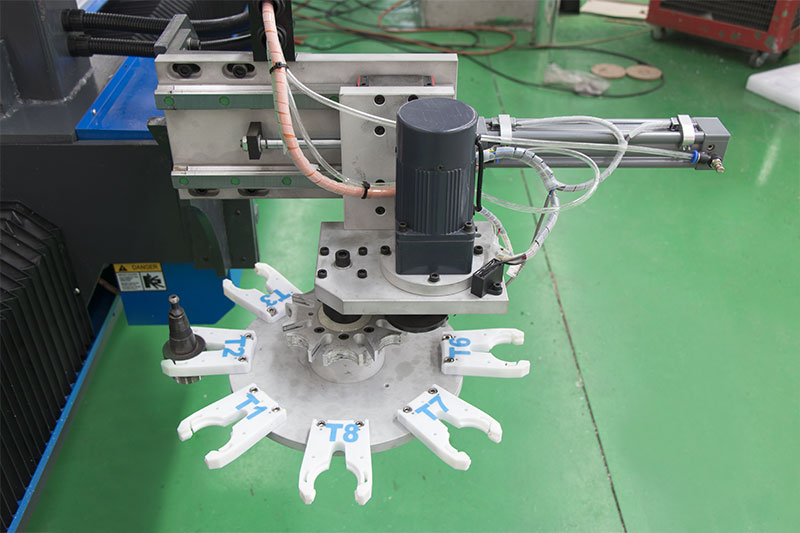

Tool magazine
