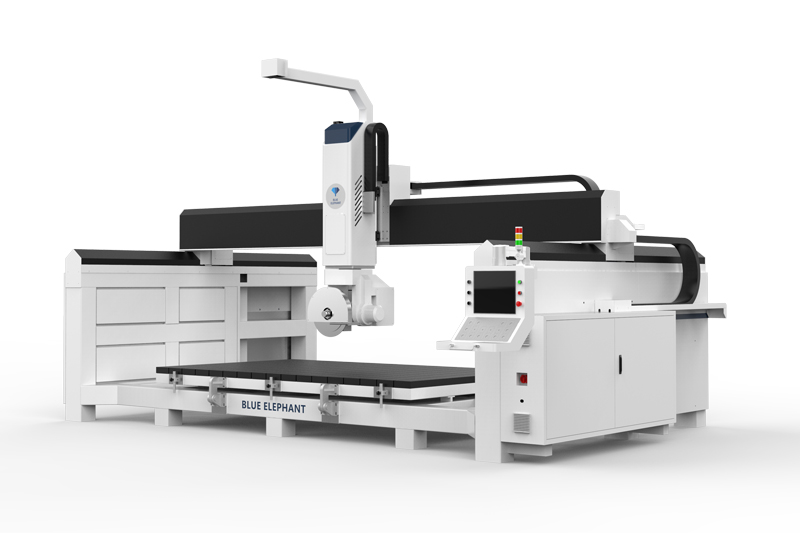

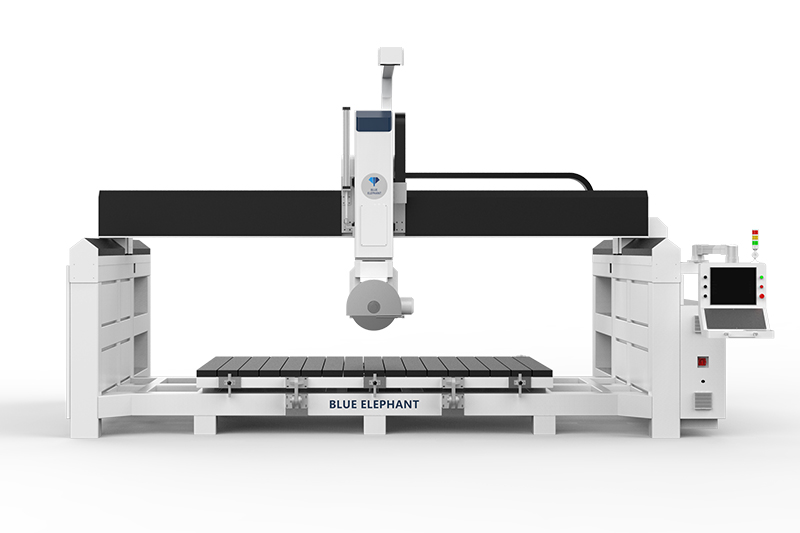

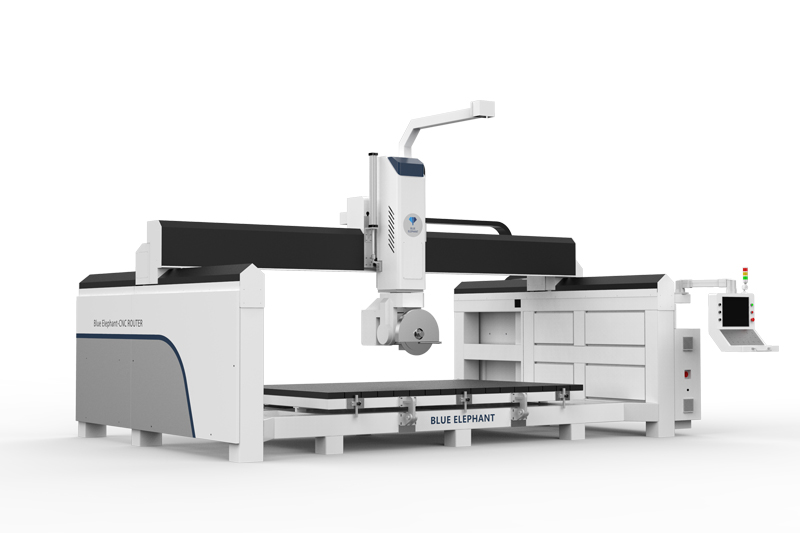

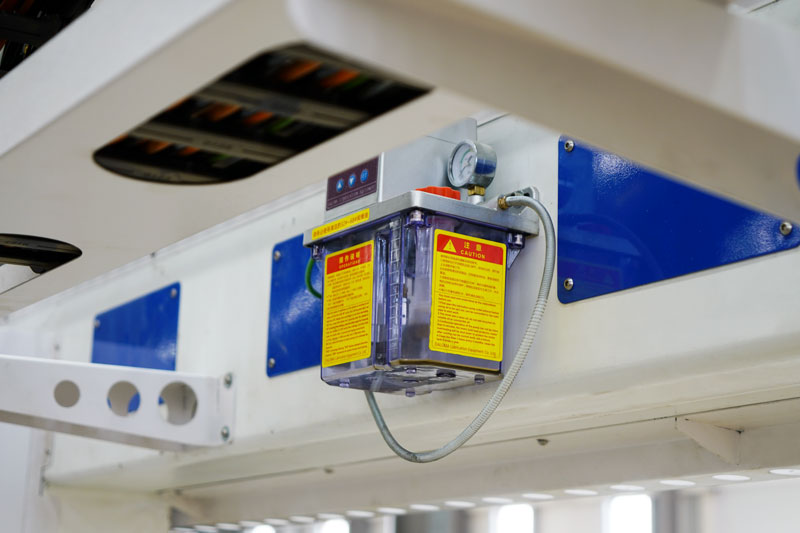

5 Axis CNC Stone Cutting Bridge Saw
5-axis Bridge Saw for Stone Cutting
This is a newly 5 axis CNC bridge saw for stone cutting. We add a camera to automatically position plates. And the machine head can swing freely at 360°, which can cut and edge at any angle and shape for granite, marble, artificial stone, slate and other stone materials. Its maximum cutting length is 2800mm, maximum cutting widths is 1200mm, and maximum cutting thicknesses is 100mm. The worktable can tilt up to 80°and the spindle can rotate to 90° or 360°. So it gains popularity in slate application industry, prefabricated building industry, home decoration industry, etc.
1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.

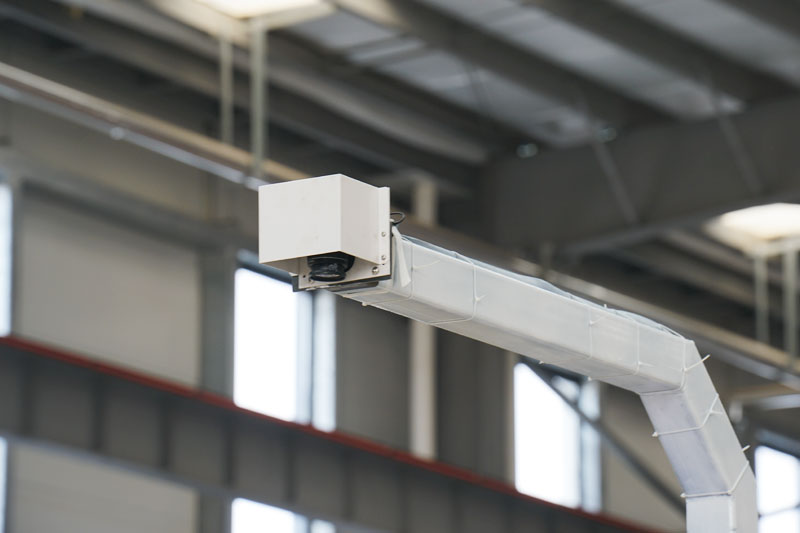

2. It can take pictures to position stone plates, and can automatically plan the cutting path directly from the generated map, which greatly improves the processing efficiency.
3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 80°.

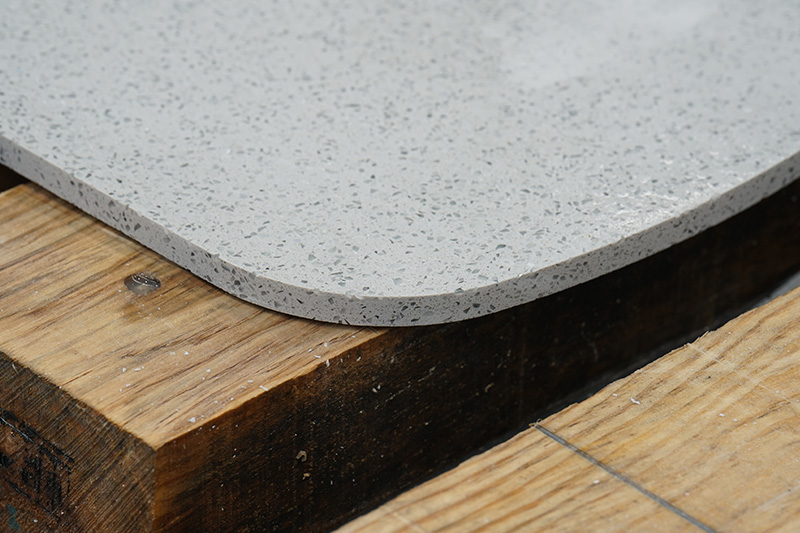

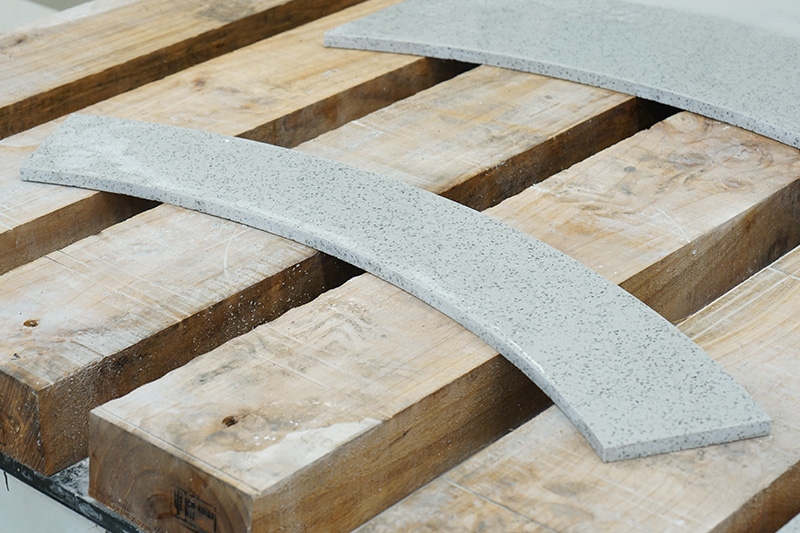

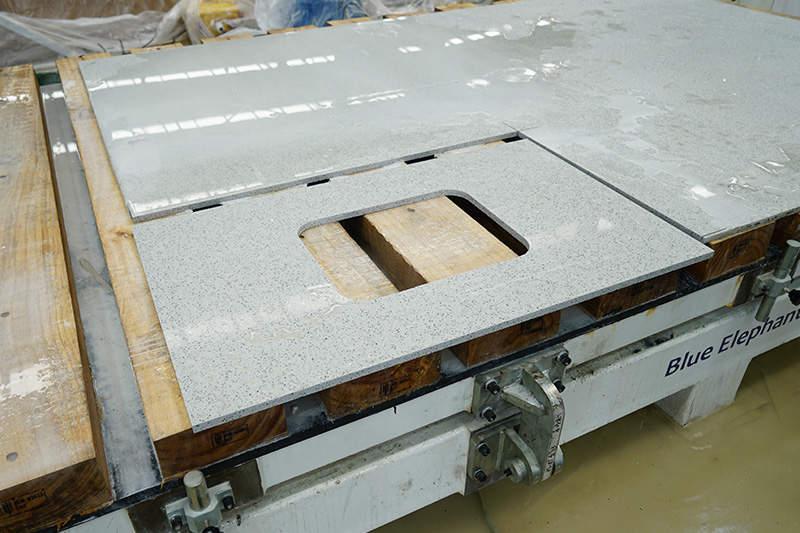

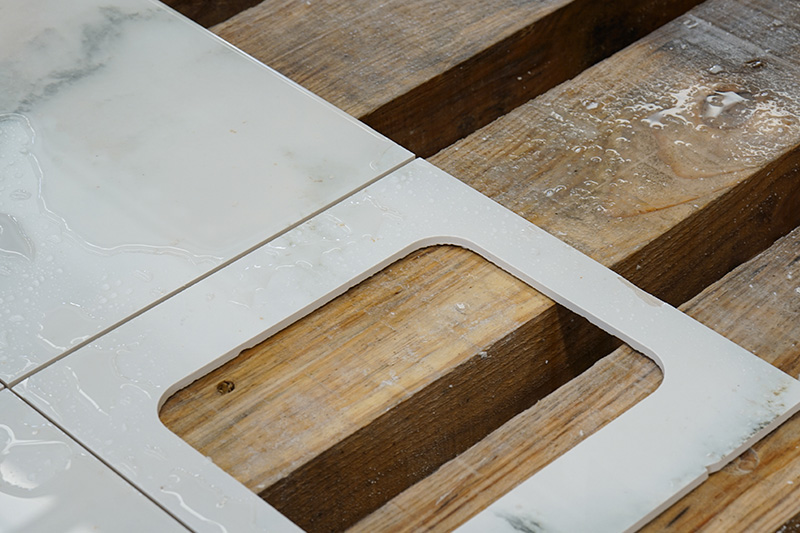

4. Adopts a 11kw motor with high precision, it can complete circular cutting, square cutting, sector cutting, oval cutting, 45 miter cutting, drilling, external edge polishing, etc.
5. The robotic system has a lift capacity of 75 kgs for stone slab moving.
6. The 5-axis cutting head can miter and interpolate in any direction.
| ES5 5 axis CNC stone bridge saw | ||
| Working travel | X, Y, and Z | 3200*2000*400mm |
| C axis | ±360° | |
| A axis | 0-90° | |
| Moving speed | Xaxis | 30m/min |
| Yaxis | 30m/min | |
| Zaxis | 15m/min | |
| Servo motor | Xand Y | 1300W absolute servo motor |
| Zaxis | 1300W absolute servo motor with brake | |
| A and C | 1000W absolute servo motor | |
| Guide rail | X, Y, and Z: # 30 | |
| Rack | X、Y | 2MT-WIN |
| Worktable | Structure | Square timber |
| Worktable size | 3200×2000mm | |
| Turning angle | 0-80° | |
| Max. weight for turning | 800KG | |

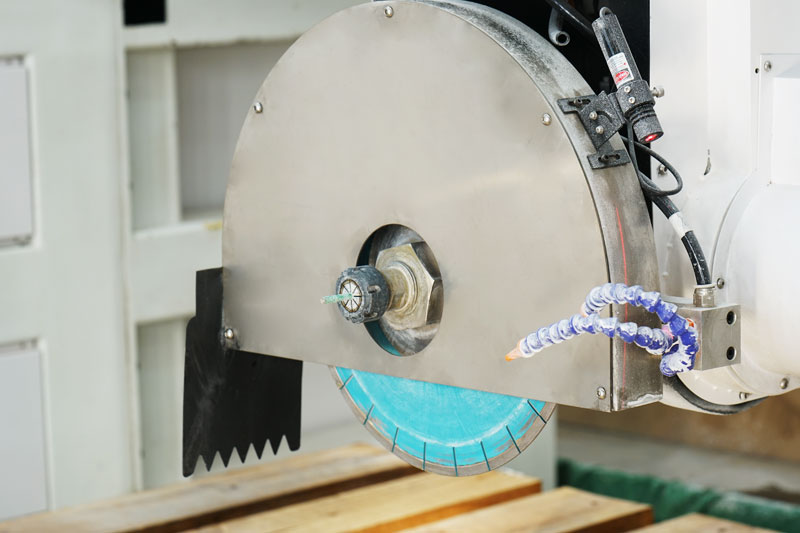

| Saw | Dimension | 450mm |
| Max. cutting thickness | 100mm | |
| Ball screw | Z | 3210PREYP |
| Reducer | X/Y: Japan SHIMPO | |
| Saw motor | 11KW motor, rated: 3000r/min | |
| Inverter | 15KW BRICH | |

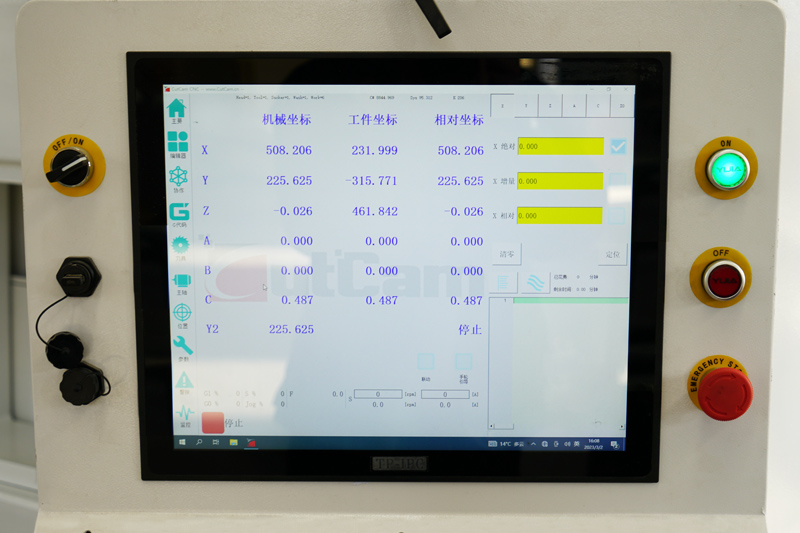

| Control system | Blue Elephant customized system (built-in CAM software) | |
| Low-voltage electronics | French SCHNEIDER | |
| Working air pressure | 0.7-0.8Mpa | |
| Voltage | 380V/3P/50HZ | |
| Overall dimension | 5.85×4.5×3.3m | |
| Weight | 5.5ton | |
