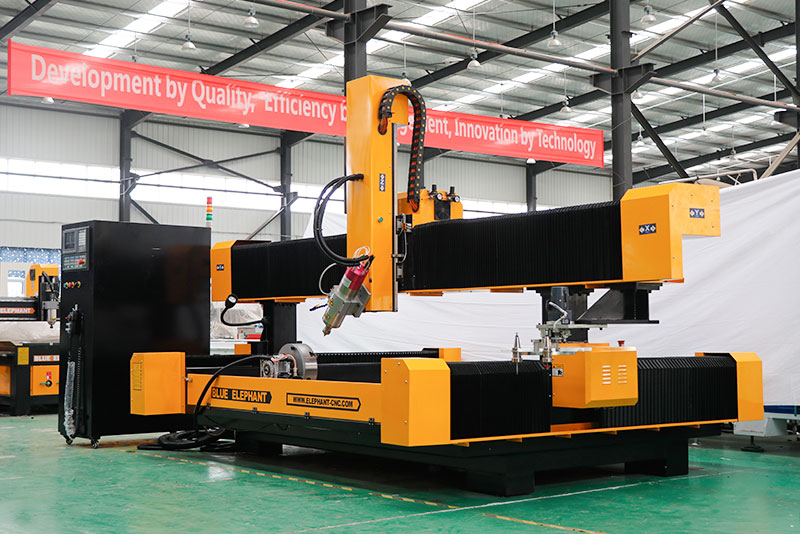

4 Axis Stone CNC Router Engraving Granite
4 Axis Stone CNC Router Carving Granite

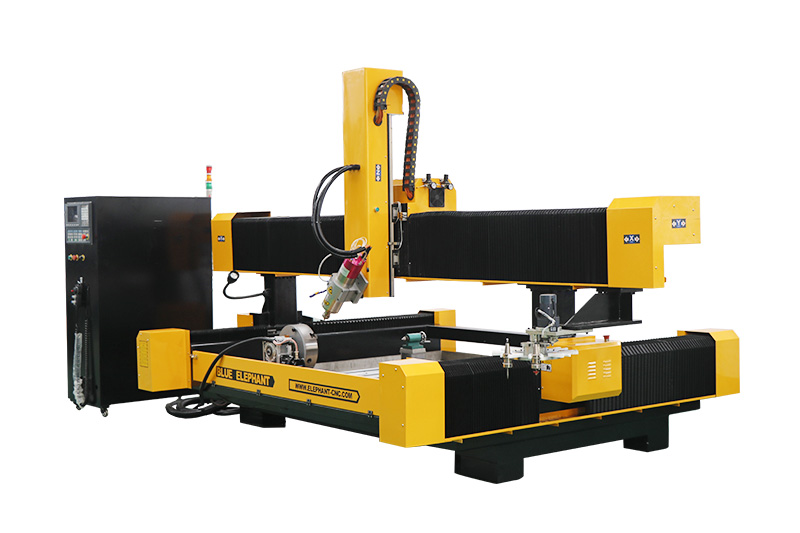

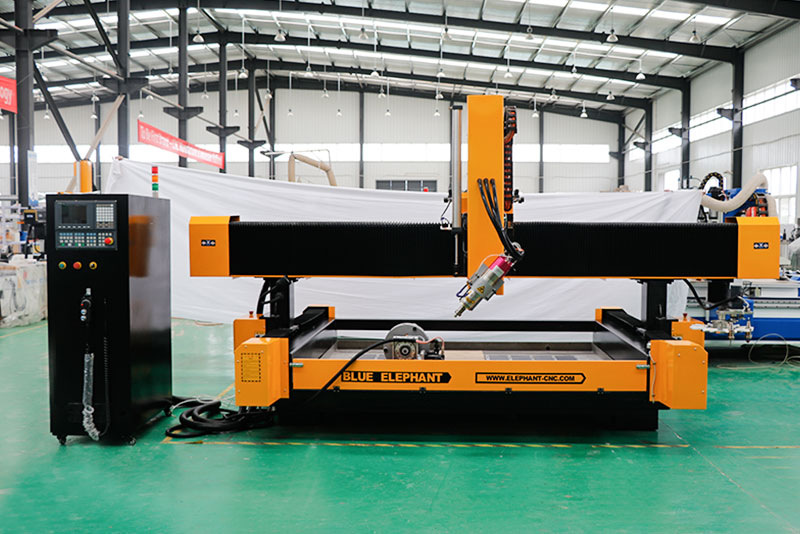

Compared with other stone engraving machine, this ATC 3D granite engravcing machine add carousel automatic tool changer. And we also install different knives in tool holder, so it promote the working efficiency greatly.
1. Designed with carousel automatic tool changer, and the working efficiency can be greatly promoted.

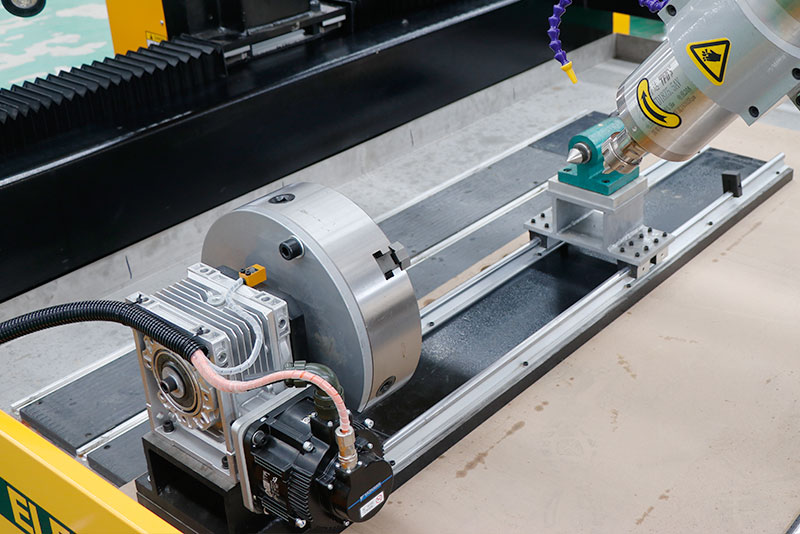

2. Designed with rotary device, and the diameter, length and position of rotary device can be customized according to your requirements.
3. Adopting Changsheng ATC water cooling spindle, and the speed can be reached to 18000rpm for per minutes.
4. Please notice that all the specifications and working size can be designed with your requirements.
| Model | ELECNC2113ATC-4A |
| X,Y axis travel | 2100*1300mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 600mm, option: 500mm, 600mm, 700mm, etc. |
| Spindle type | 5.5kw ATC water cooling spindle, NBT30, ER32 |
| Inverter type | 5.5kw |
| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer |
| Tool holder with collet | NBT30,ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stainless work table |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Cooling system | Water cooling |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Click for details
Rotary axis

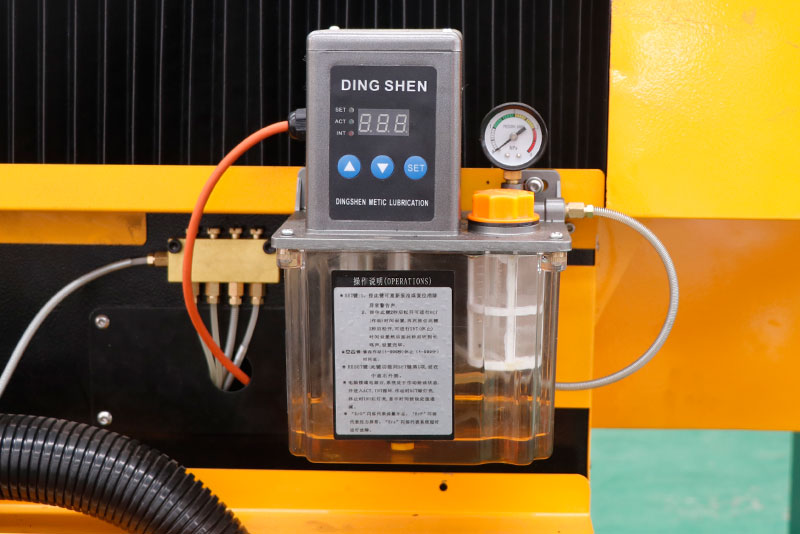

Lubrication

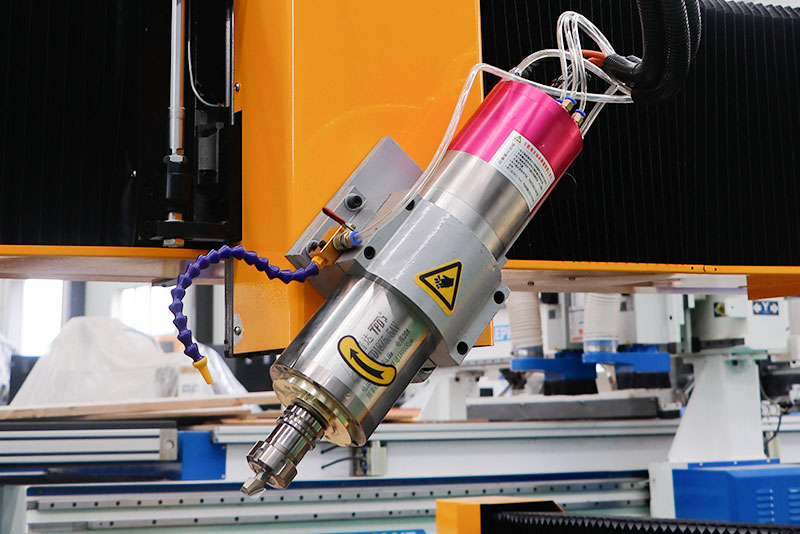

Spindle

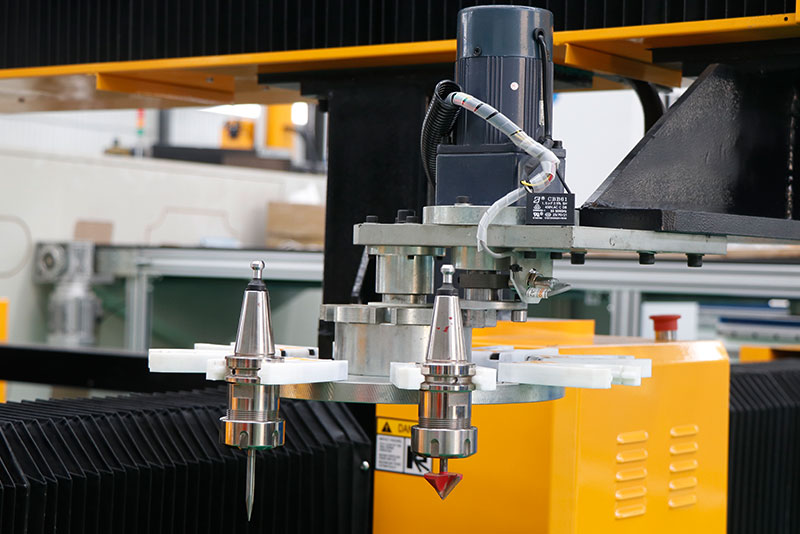

Tool magazine
