Stone CNC Router for Carving Granite

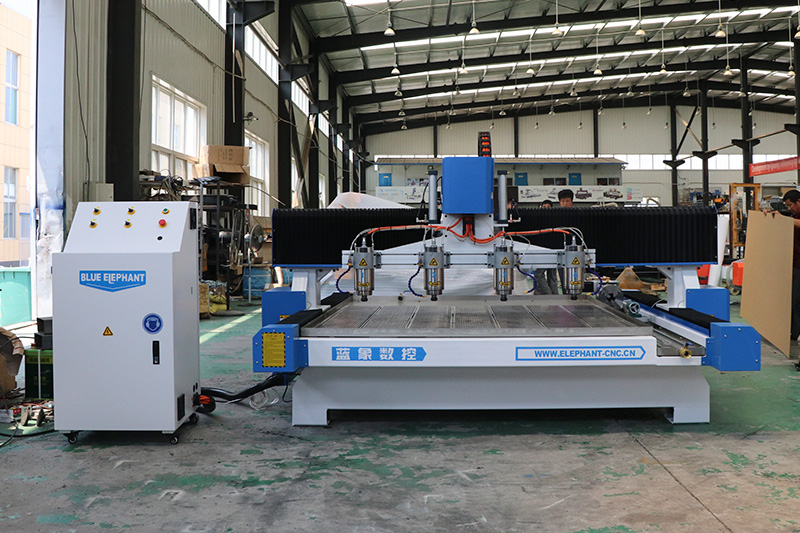

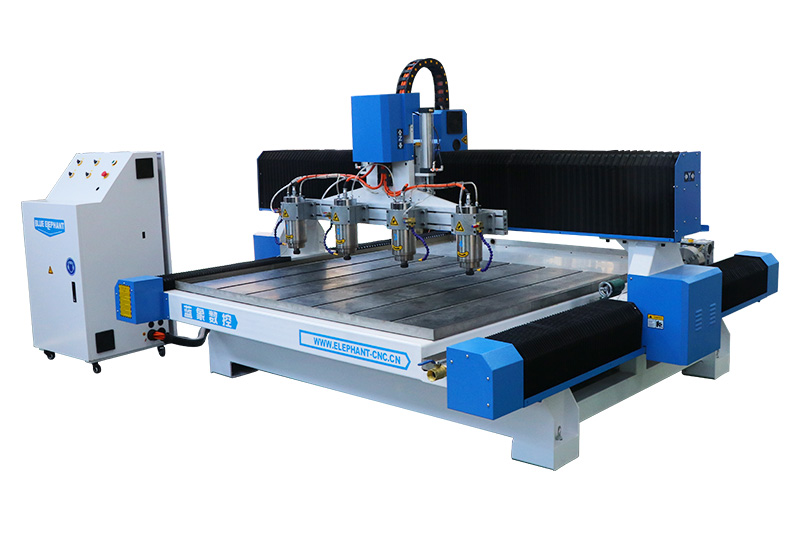

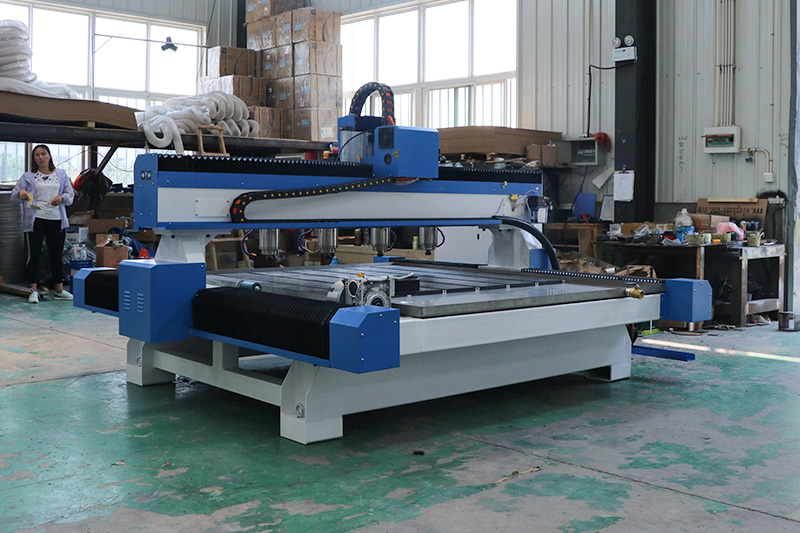

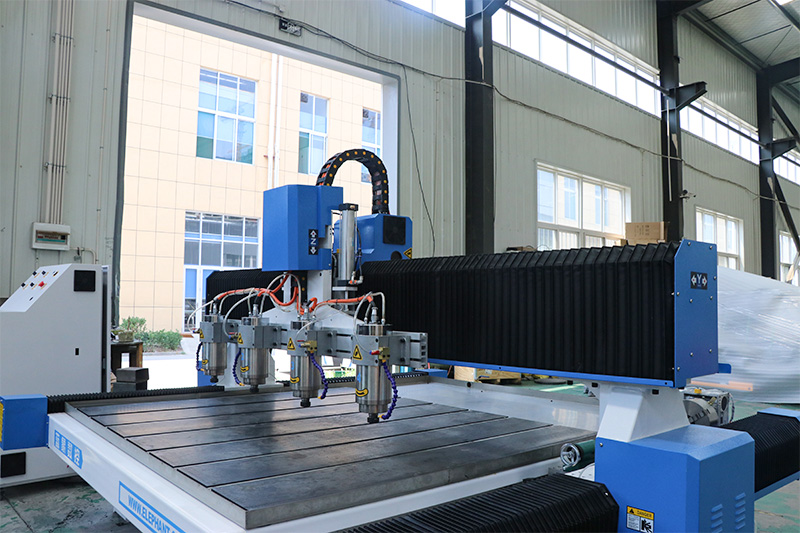

4 Axis CNC Granite Engraving Machine
This 3D stone varving machine with multi-spindle has a variety of machining functions. Firstly, it can meet a variety of work pieces at the same time, improving production efficiency. If you have a processing need for mass production, consider this machine.
1. Equipped with a counter top with a sink, the machine is more suitable for machining work pieces in the stone industry or in metal.
2. The water spray function can reduce the wear on the spindle during processing, thus extending the life of the machine.
3. Adopting International imported brand components like motor and driver, which make the machine have a longer service life.
4. This machine can also be used in the woodworking industry, such as processing some hardwood and other materials.
| Model | ELECNC1815-4S Stone CNC Router |
| X,Y axis travel | 1800x1500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, etc |
| Spindle type | 3kw water cooling spindle, 24000RPM 4.5kw/ 5.5kw/ 6kw for optional |
| Inverter type | 3.7kw Fuling inverter |
| Control system | Mach3 controller |
| Driving system | Stepper motors and drivers |
| Machine structure | Professional stone cnc bed, with heavy duty body more thicker and stronger |
| Work table | slot working table, with steel water sink; Stainless steel sink for optional |
| Linear guide | Taiwan linear guide 20# |
| Transmission | X,Y axis: Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Dust cover | Dust covers for X, Y axis, protect the rails |
| Cooling system | Water cooling |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 25m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.05mm |
| Working accuracy | ±0.05mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Spindle | 4.5kw/ 5.5kw/ 6kw water cooled spindle |
| Controller | DSP handle controller |
| Rails | Taiwan 25# linear rails |
| Motors | Leadshine servo motors Or Japanese Yaskawa servo motors |
Click for details

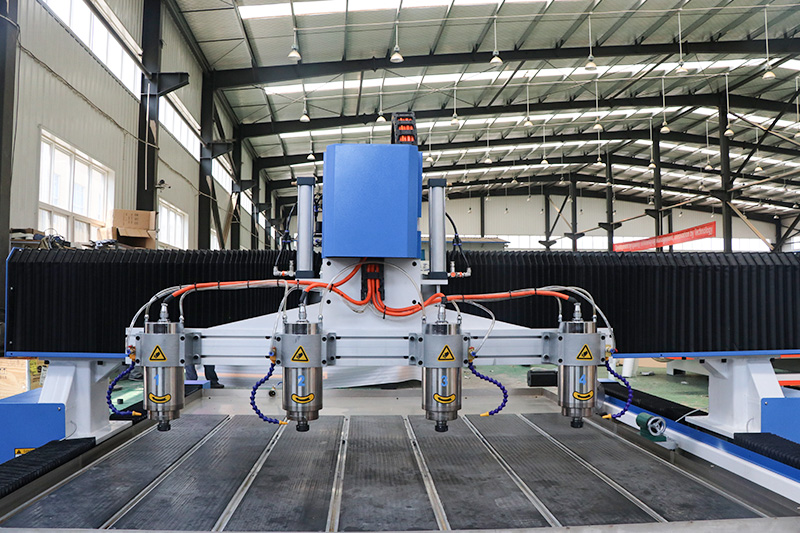

4 Spindles
Vacuum & T-slot worktable

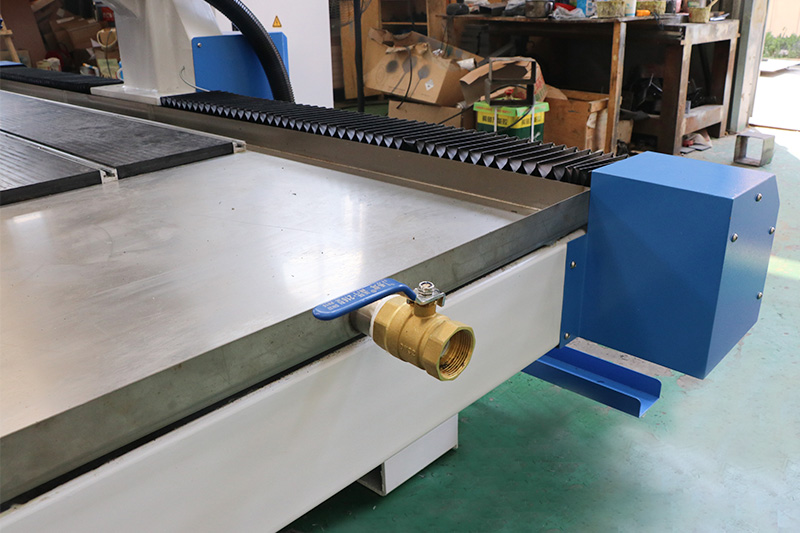

Water valve
Electronic components
Click for solution
Click for quotation
Thanks for quickly installation and training from Blue Elephant. Now the machine is working well, I need time to learn more. Anyway, I love this machine. Blue Elephant is my right choice.
After-sales service is good so that it is easy to set up and use. The machine also works well and I am satisfied with the purchase.
The machine is runing more smooth without problems, we are happy with our purchase. All in all, we want to thank you for top quality machine with good deal.
Now all works great. Joints are tight. And I just completed some projects! I use this machine to do more bathroom projects. The machine works great. Cutting surface is smooth, it’s a very good machine for my work.
