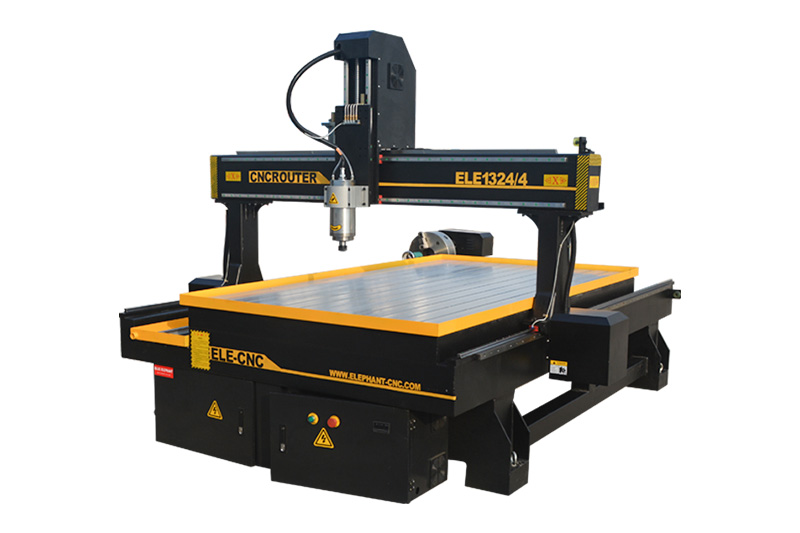

Affordable 1324 Portable Stone Engraving Machine for Marble and Granite Carving

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-1324S
Category : Stone Engraving Machine
Price Range : $6,500 to $35,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

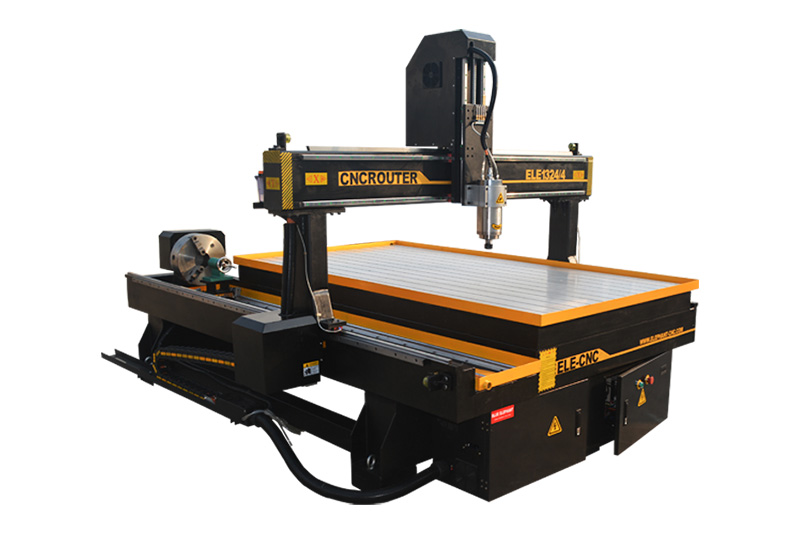

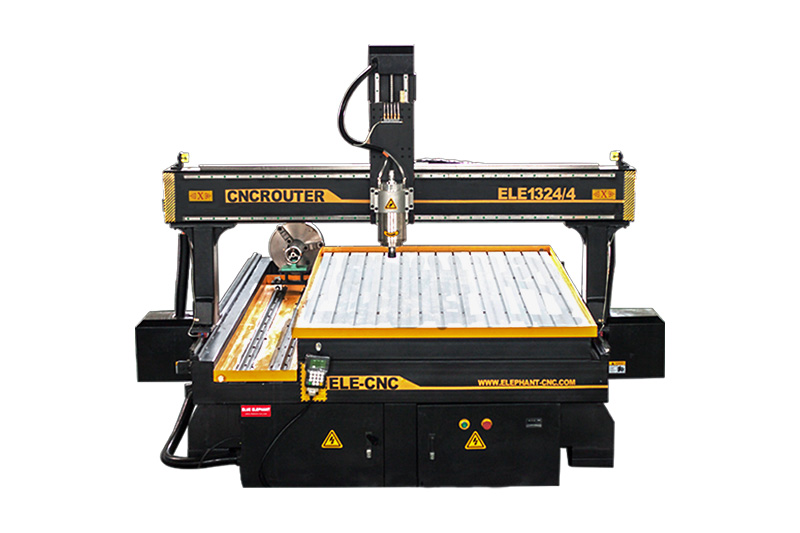

This stone CNC router machine is one of the model of stone engraving machines. We add a rotary device on one side of machine, it is very suitable for making cylinder.

Features

1. With heavy duty frame which is made of thicker and bigger welded steel tube, it is stronger and more durable.
2. We add a 200 mm rotary on one side of machine, it is suitable for making cylinders.
3. DSP A18 control system supports 4 axis CNC router and is very convenient for operation.
4. We import all components from international famous brands, which greatly extends the service life of the machine.

Parameters

Model	ELECNC1324 with rotary device
X,Y axis travel	1300x2400mm, option: 13002500mm; 15003000mm; 2100*3000mm, etc
Z axis travel	400mm, option: 200mm, 300mm, 500mm, 600mm, etc
Spindle type	5.5kw water cooling spindle, ER25
Inverter type	5.5KW Delta inverter series B
Control system	DSP B18 4axis control system
Driving system	850ww Japan Yaskawa servo motors and drivers Option: 1.5kw Leadshine servo
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot work table with PVC protection
Linear guide	Taiwan linear guide, 25#
Transmission	Taiwan TBI ball screw 2510
Lubrication system	1.5L automatic lubrication system
Tool Calibration	Manual tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Aspireetc
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

X, Y, Z Working Area	1300x2500x400mm
Table Surface	T-slot Table
X, Y Structure	#20 HINWIN linear guide, helical rack
Z Structure	Hiwin Rail Linear guide and Ball Screw
Spindle Power	5.5 KW
Drive Motors	YASKAWA Servo drivers and motors
Operating System	DSP A18 4 axis control system
Software Compatibility	Type3/UcancameV9 Software

Click for details

Frequent Asked Questions

1.Can I add an extra water spray for cooling while processing stones?

Yes. If you need, it can be designed for you.

2.What is the diameter of the rotary device?

The machine is equipped with 200mm rotary device. In addition, we also have the rotary device of 300mm, 400mm, etc.

3.How to use the DSP controller?

It’s a handle controller with only fewer buttons, which is easy to operate. And it’s designed with the USB port, which can transfer drawing designs directly.

Stone Engraving Machine Details

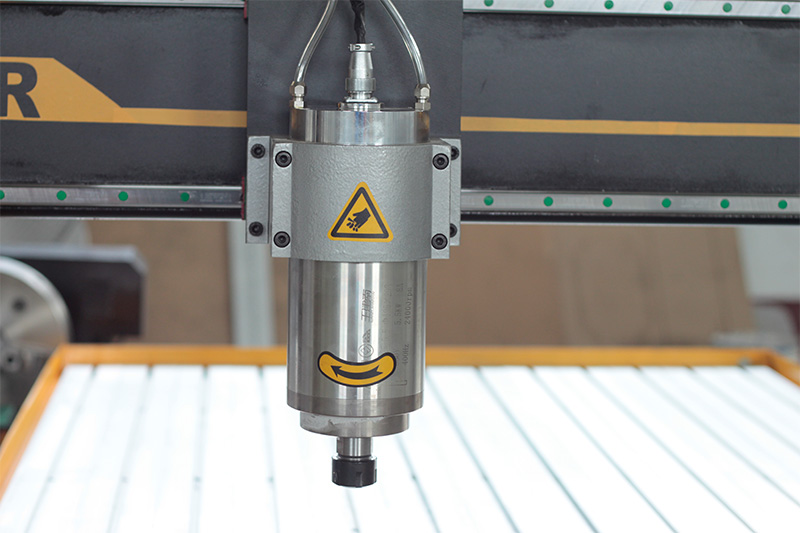

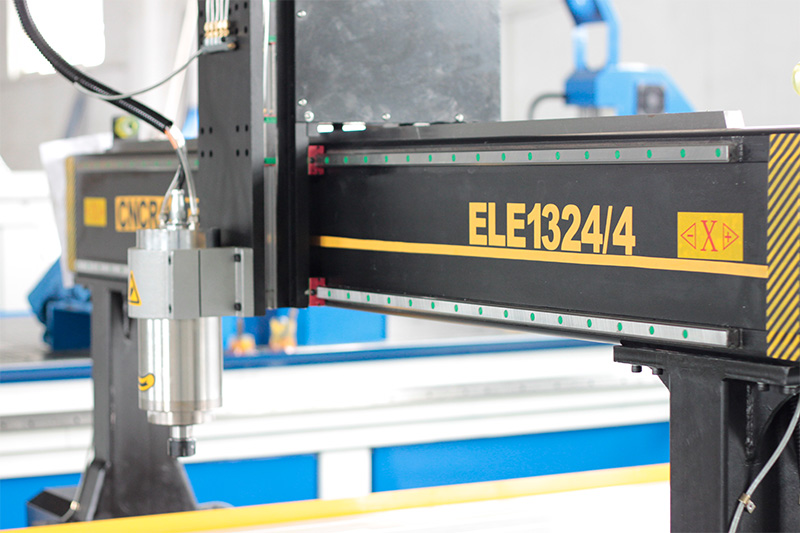

Spindle

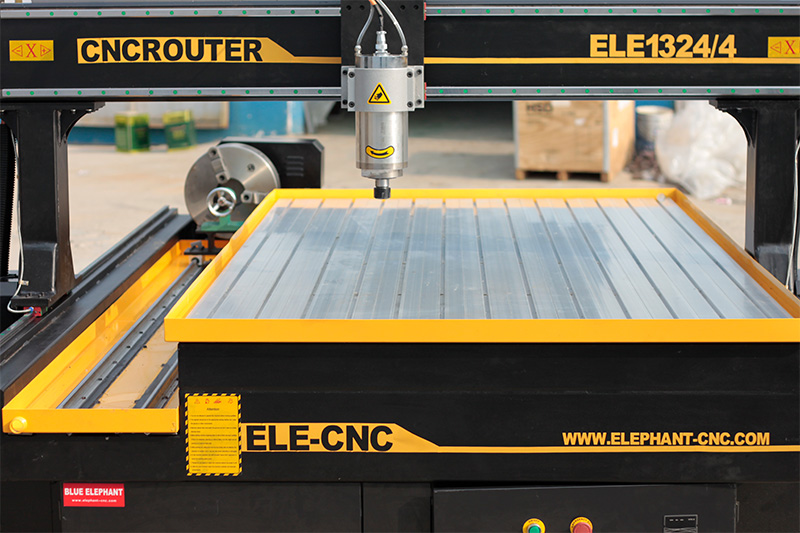

Aluminum working table

Linear guide

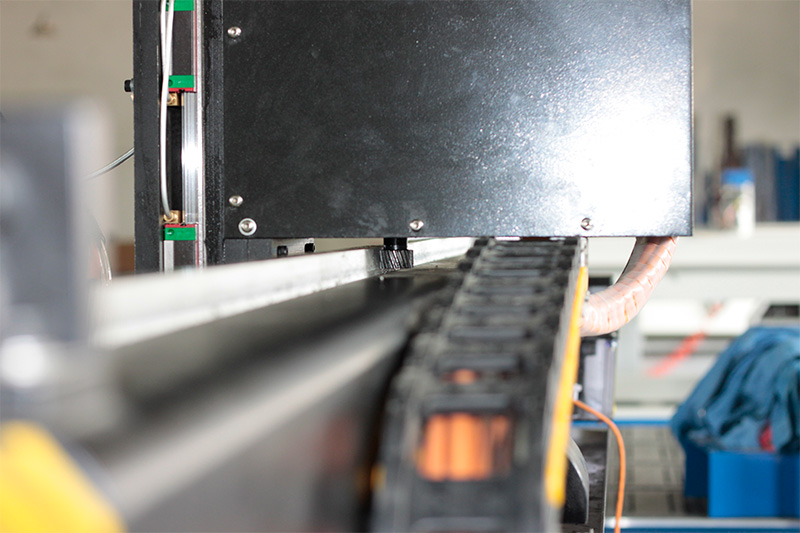

Towline

Application

INDUSTRIES

Stone engraving machine can deal with stone work, such as line carving, 2D plane carving, 3D relief carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, , stainless steel, iron, copper, etc. If you have the above materials need to process, stone engraving machine is definitely your best choice.

MATERIAL

Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones
Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA
Soft metal: aluminum, brass, copper, mild steel
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
