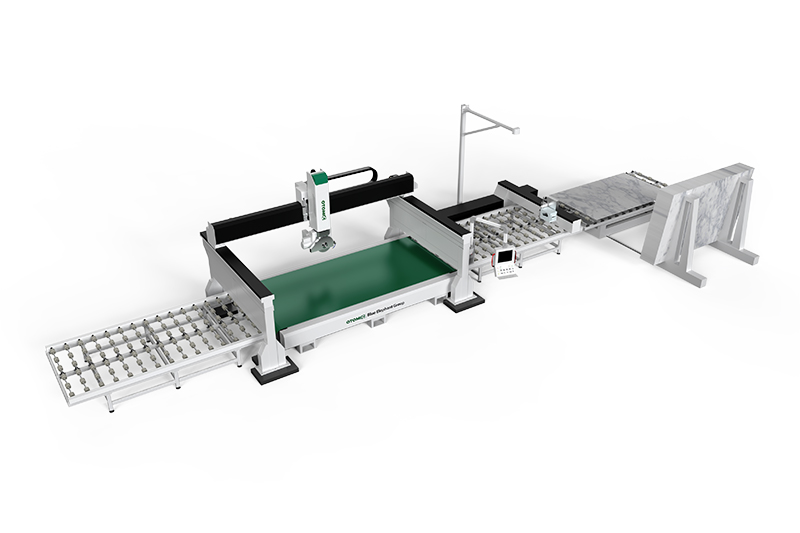

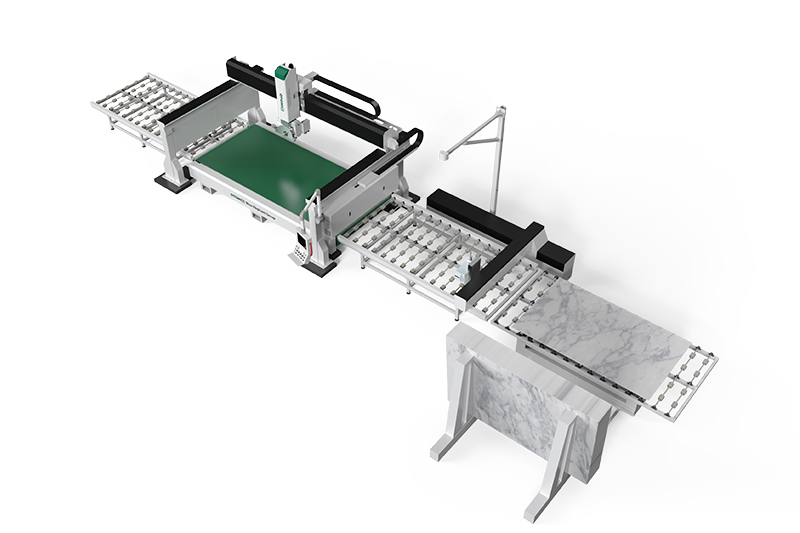

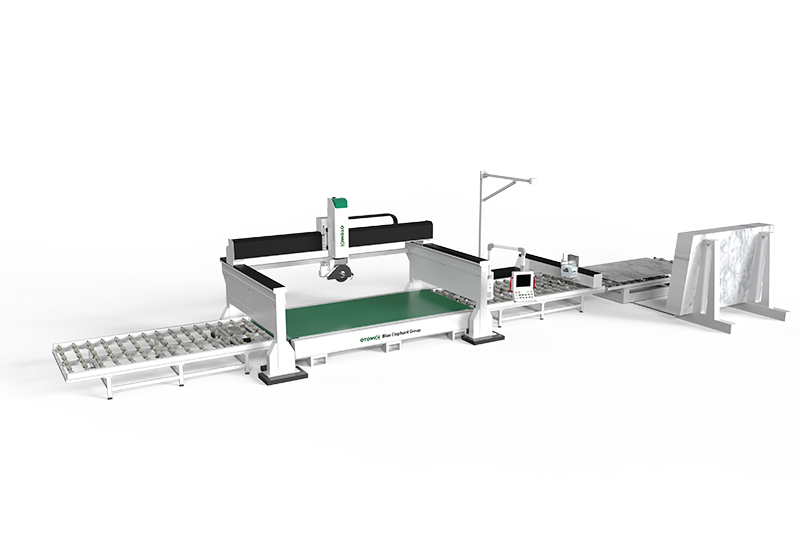

5-Axis CNC Marble Stone Bridge Saw
5 Axis CNC Granite Bridge Saw with Camera
This 5 axis CNC marble stone bridge saw line has multiple functions, such as high-definition scanning, typesetting, and automatic cutting. We can also call it 5 axis bridge saw CNC quartz stone cutting line. This marble stone production line is very popular in the garden architecture, house construction, stone sculpture, etc.
1. Automatic loading platform
It continuously transports stone slabs, saving loading time and labor.
2. Camera
The camera of the 5 axis marble stone bridge saw machine can make photos to locate the specific slab position, and generate a variety of reasonable layout plans.
3. Automatic cutting
The marble five-axis bridge cutting saw generates codes with one click and automatically cuts the marble slabs, which is simple and convenient.
4. Automatic unloading platform
The unloading platform can automatically classify stone slabs of different shapes and sizes to improve working efficiency.
| QX3400-5X-LP Marble Stone Cutting Production Line | |||
| Bridge Saw | Working travel | X, Y, and Z | 3400*2000*250mm |
| C axis | ±365° | ||
| A axis | 0-90° | ||
| Maximum thickness | 80mm | ||
| Moving speed | 25m/min | ||
| Spindle | 22kw water cooling spindle, 4000rpm | ||
| Control system | CutCam | ||
| Motor | CutCam servo | ||
| Reducer | Japan SHIMPO | ||
| Worktable (optional) | Max. weight for feeding | 1500kg | |
| Max. speed for feeding | 10m/min | ||
| Saw | Dimension | 450mm | |
| Size | 18000×3500×3600mm | ||
