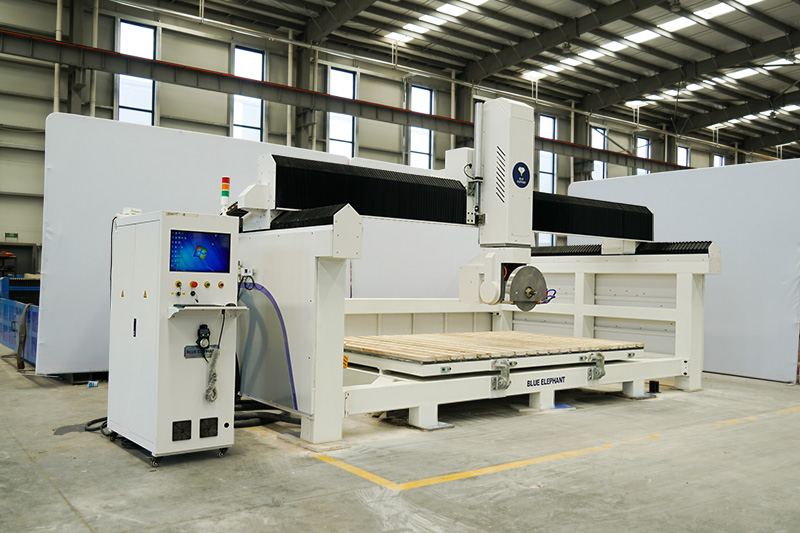

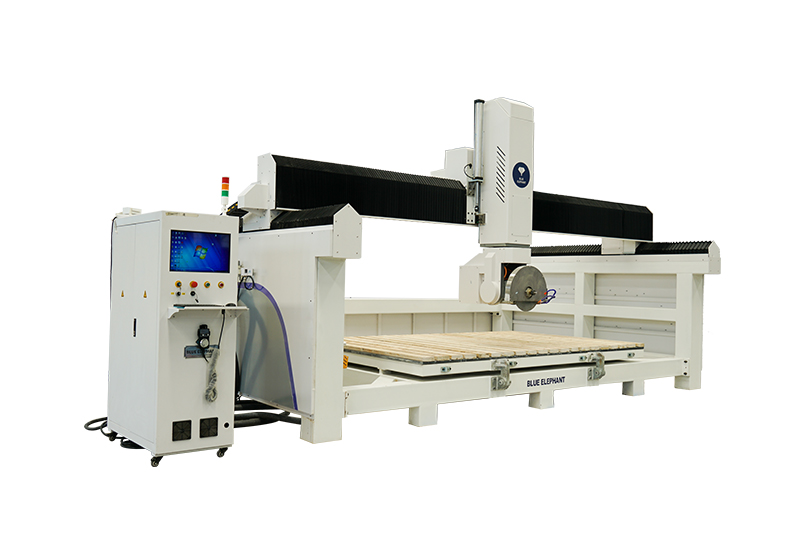

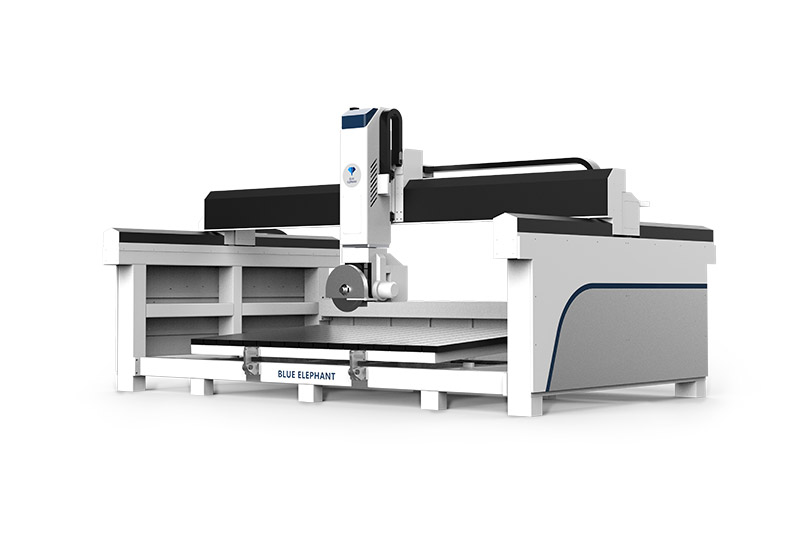

5 Axis Stone CNC Cutting Bridge Saw
5 Axis Bridge Saw for Slate Cutting
This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, etc. The 5 axis bridge saw gains popularity in the stone processing plants, kitchen countertop processing, background wall profiling, and other fields.

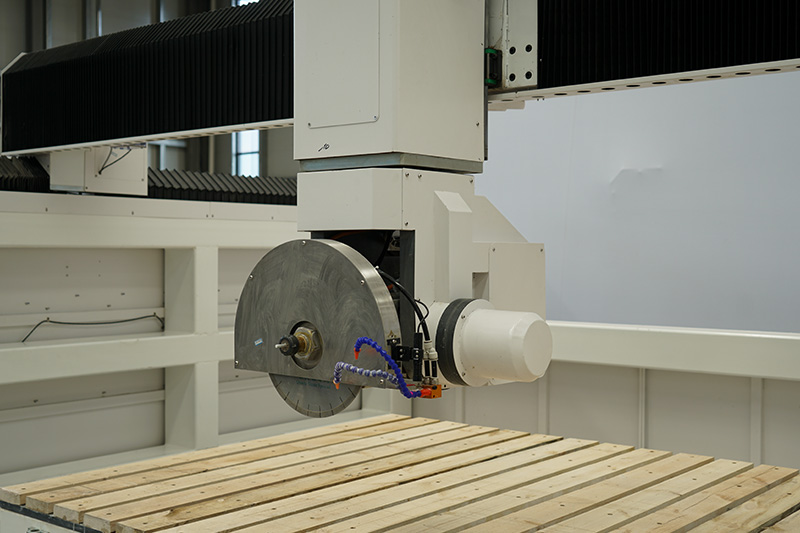

1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation.
2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.

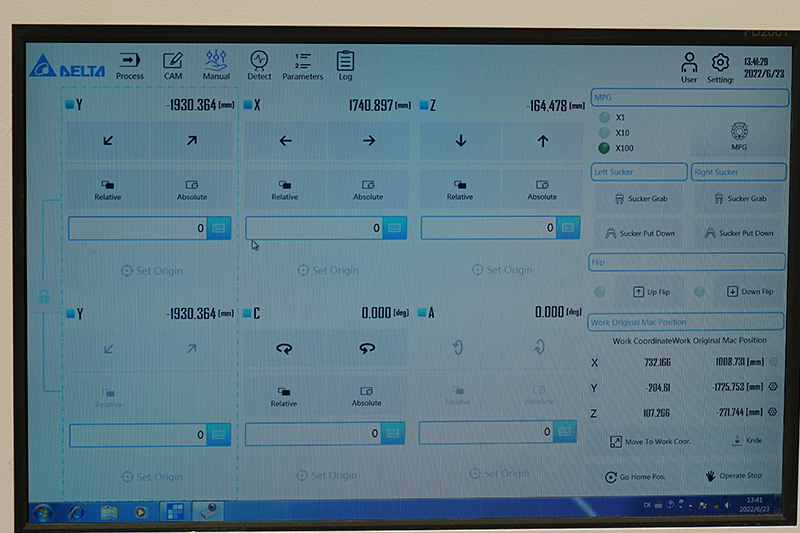

3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.
5. It is capable of cutting lengths of up to 2800mm, widths of 1200mm and thicknesses of 100mm.
6. The table automatically tilts up to 80 degrees. And the spindle is automatically rotated 90° or 360°by hydraulic pressure.
| ES5-3220 5 axis CNC stone bridge saw | ||
| Working travel | X, Y, and Z | 3200*2000*400mm |
| C axis | ±360° | |
| A axis | 0-90° | |
| Moving speed | Xaxis | 30m/min |
| Yaxis | 30m/min | |
| Zaxis | 15m/min | |
| Servo motor | Xand Y | 1300W absolute servo motor |
| Zaxis | 1300W absolute servo motor with brake | |
| A and C | 1000W absolute servo motor | |
| Guide rail | X, Y, and Z: # 30 | |
| Rack | X、Y | 2MT-WIN |
| Worktable | Structure | Square timber |
| Worktable size | 3200×2000mm | |
| Turning angle | 0-80° | |
| Max. weight for turning | 800KG | |
| Saw | Dimension | 450mm |
| Max. cutting thickness | 100mm | |
| Ball screw | Z | 3210PREYP |
| Reducer | X/Y: Japan SHIMPO | |
| Saw motor | 11KW motor, rated: 3000r/min | |
| Inverter | 15KW BRICH | |
| Control system | Blue Elephant customized system (built-in CAM software) | |
| Low-voltage electronics | French SCHNEIDER | |
| Working air pressure | 0.7-0.8Mpa | |
| Voltage | 380V/3P/50HZ | |
| Overall dimension | 5.85×4.5×3.3m | |
| Weight | 5.5ton | |
Click for details
Software
Saw blade

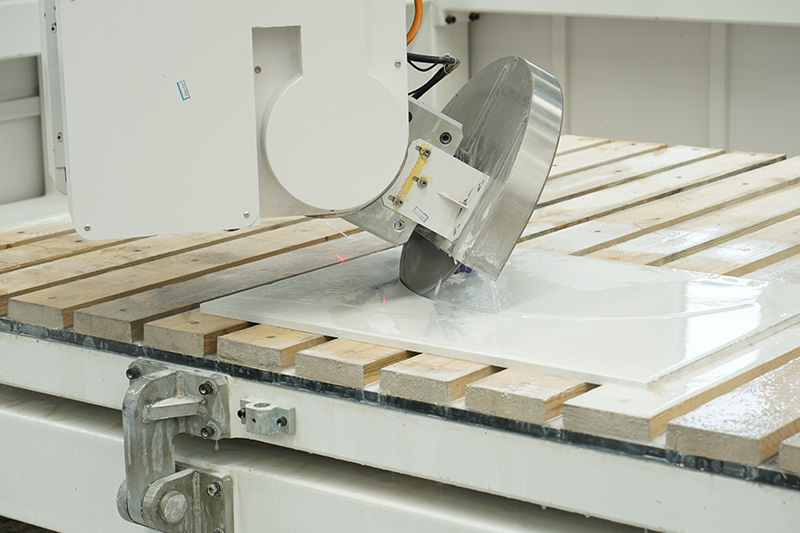

Inclined cutting
Engraving with tool

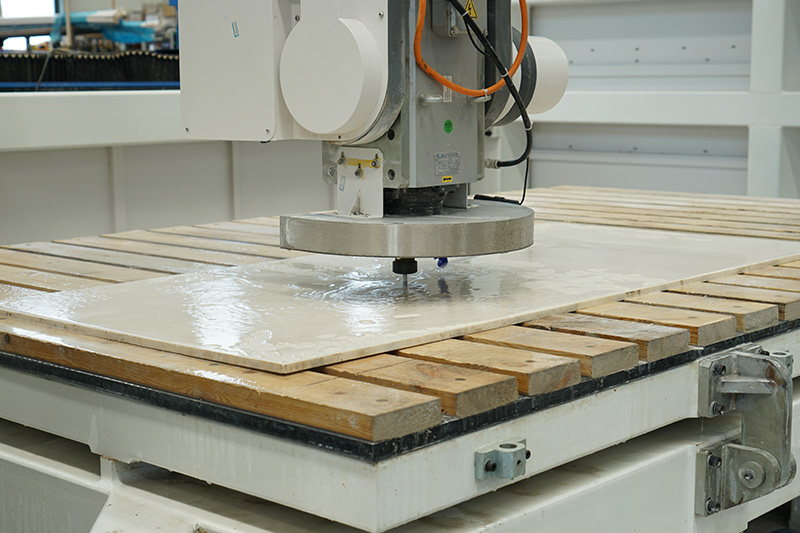

The 5 axis CNC stone bridge saw can process quartz, marble, artificial stone and slabs in regular and irregular shapes. It is good at cutting, milling, chamfering and edging. And it can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, etc.

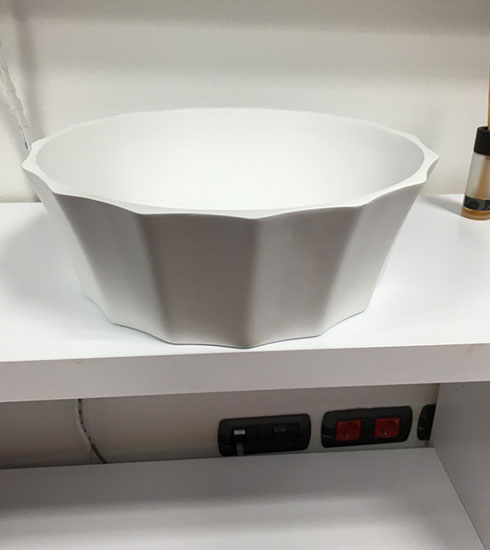

The automatic stone cutting bridge saw can process products of sanitary ware, stone furniture, interior decoration, etc. For example, wash basins, bathroom countertop, stone tables, dinning tables, kitchen tables, etc.
