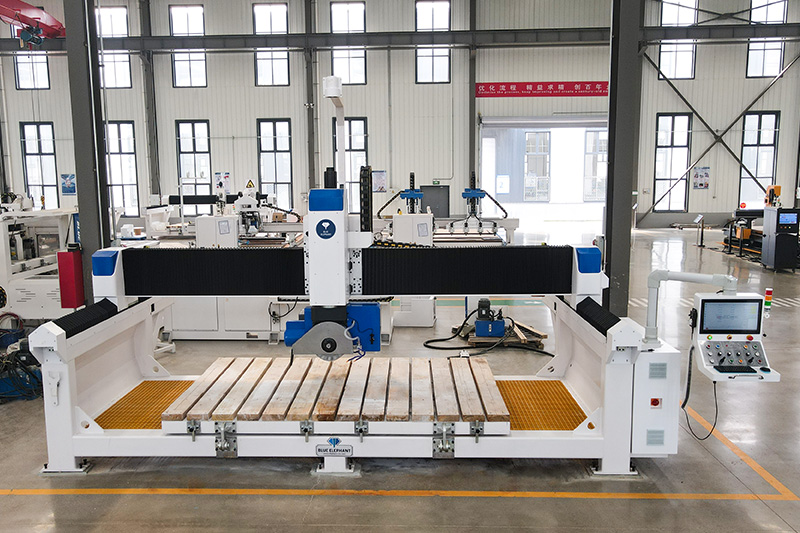

5＋1 CNC Bridge Saw with Blue Elephant System
5＋1 CNC Bridge Saw with Italy ESA System for Sale
The latest 5+1 CNC bridge saw is capable of precision cutting and shaping granite, marble, engineered stone, slate, and various other stone materials at any desired angle and shape. It is equipped with premium imported components, ensuring superior performance and durability. Additionally, the system offers customization options, including the Italian ESA system.
1.The slab can be positioned by taking photos. In addition, this machine can automatically plan the cutting path directly from the generated map, greatly improving processing efficiency.
2.The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
3.The overturned worktable is adopted, which has large overturning weight redundancy, up to 85°.
4.The Blue Elaphant servo motor is used to complete circular cutting, square cutting, fan cutting, oval cutting, 45° bevel cutting, drilling, outer edge polishing, etc.
| Worktable size | 3200×2000mm |
| Max. cutting thickness | 100mm |
| Chassis voltage/frequency | 380V/3P/50HZ |
| Control system | Blue Elephant System |
| Saw blade motor/speed | 22KW Rated 300 rpm |
| Saw Blade Motor Driver | Motor comes with |
| Spindle | Shengfeng 5.5KW Liquid-cooling spindle |
| Inverter | ZONCN |
| Saw blade tilt angle | 0-90° |
| Bed structure | Bridge saw split bed |
| Reducer | X/Y:Japan SHIMPO |
| Worktable structure | Rotating square timber 0-85° |
| Water cooler | CW-5000TI |
| Chassis | Side mount chassis |
| Guide rail | #30 |
| Rack | Taiwan 2M |
| Lubrication system | 1.5L Automatic lubrication |
Click for details

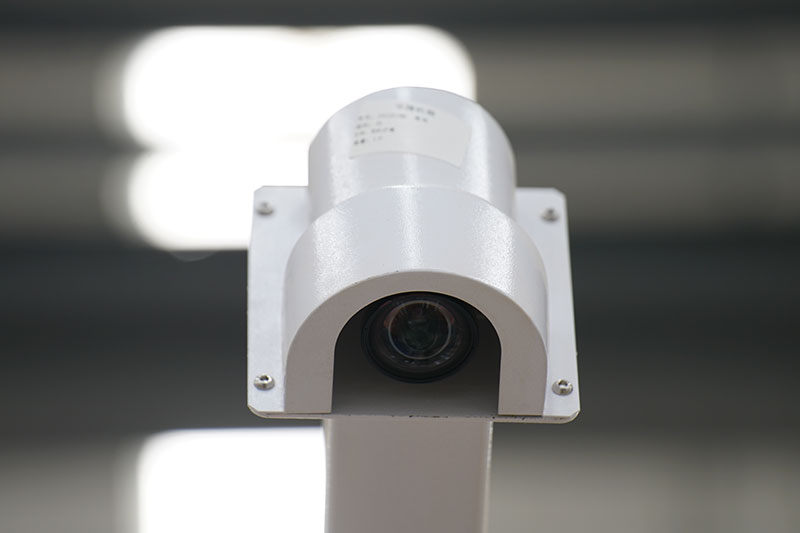

Camera

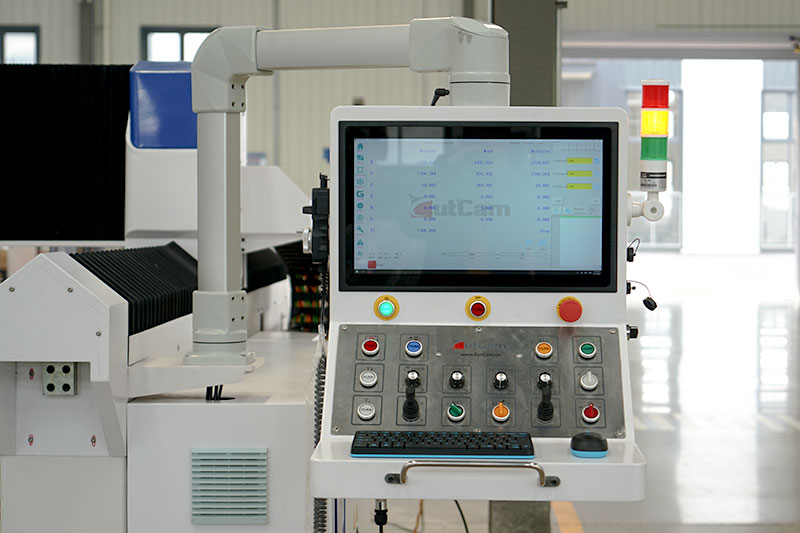

Controller panel

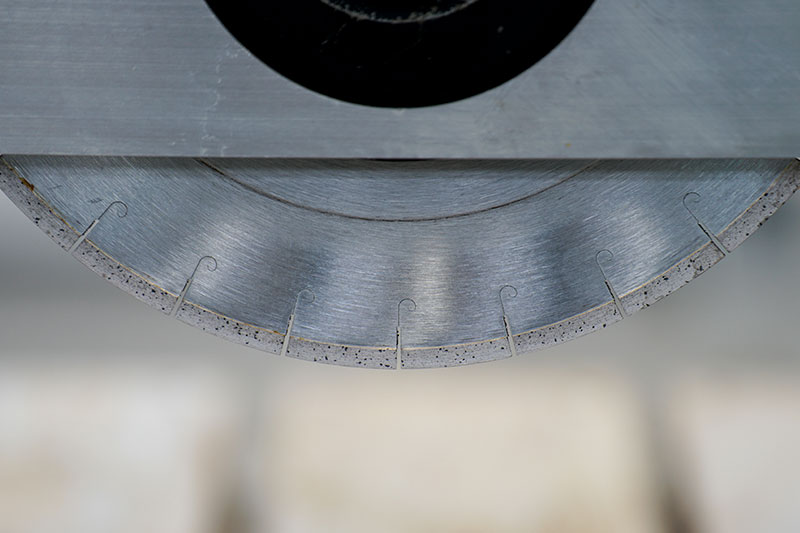

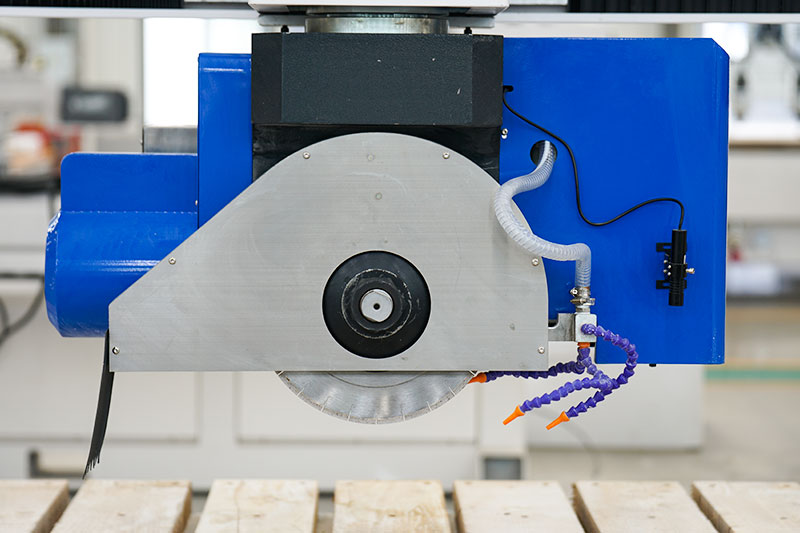

Saw blade

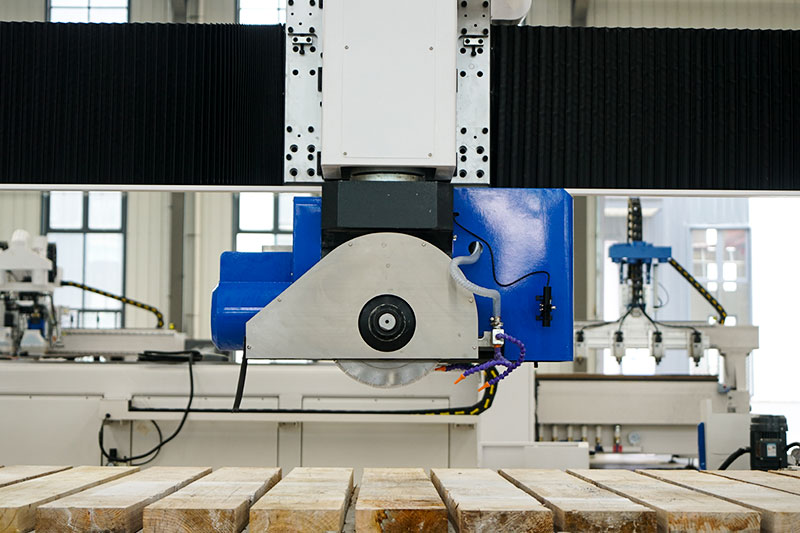

Bridge saw part
