Name: Best 4 Axis CNC Bridge Saw Machine for Granite and Marble Stones Sale in France FR ES4-3220
Brand: Blue Elephant
SKU: ES4-3220-54-1471
Price: 32600.00 USD
Availability: InStock
Rating: 4.8 (95 reviews)

Affordable 4 Axis CNC Granite Bridge Saw Machine for Sale with Camera

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ES4-3220
Category : 4 Axis Bridge Saw
Price Range : $30,000 to $40,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

This latest 4 axis CNC bridge saw's c axis can rotate 0° or 45°, it can automatically cut stone materials. Besides, we can add camera and infraded head to this machine, increasing the positioning accuracy and precision. It gains great popularity in various stone processing industries.

Features

1. The 4 axis bridge saw blade can be tilted by 45°to cut standard-size boards and realize four-sided chamfering, plane grooving, basin hole digging, etc.
2. The bridge saw worktable can overturn 85° to facilitate loading and unloading of stone materials.
3. The infrared ray head can locate the cutting position to make the cutting be faster and more accurate.
4. Automatic suction cup can move the board and avoid saw notch.

Parameters

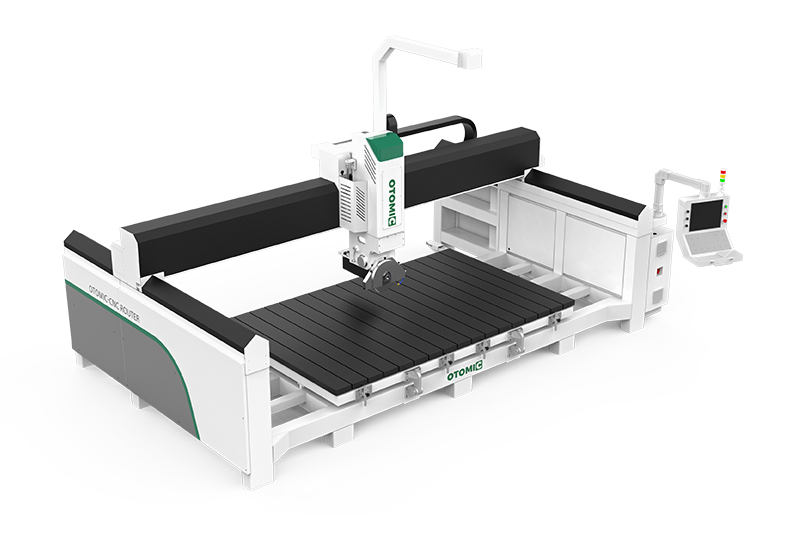

ES4-3220 4 Axis CNC Bridge Saw
Travel	3 axis	32002000200mm
	C axis	±360°
	A axis	0/45°
Speed	X axis	30mmin
	Y axis	30mmin
	Z axis	10mmin
Servo motor	X axis、Y axis	2KW HANYU absolute value servo motor
	Z axis	2KW HANYU absolute value servo motor（with brake）
	C axis	1KW HANYU absolute value servo motor
Guide	Y axis	Taiwan 30#
	X axis	Taiwan 30#
	Z axis	Taiwan 30#
Rack	X axis、Y axis	2M
Worktable	Structure	squared timber
	Size	3200×2000mm
	Flip angle	0-85°
	Reverse weight	800KG
Saw blade	Size	360mm
Saw blade	Maximum thickness	60mm
Screw	Z axis	3210
Reducer	X/Y axis SHIMPO reducer
Saw blade motor	15KW Saw blade motor (rated: 2930r/min)
Inverter	18.5KW Fuling inverter
Controller	Blue Elephant customized control system（built-in CAM software）
Low-voltage apparatus	Schneider
Air Pressure	0.6-0.8Mpa
Voltage	380V/3P/50HZ
Machine size	5.85m×4.5m×3.6m
Machine weight	3.5t

Click for details

Frequent Asked Questions

What machining processes can this machine complete?

It can complete edge milling, curved edge cutting, countertop cutting and milling, inclined edge cutting, arc edge cutting and milling, wash basin cutting and other processes.

What software and control system does it use?

This 5 axis stone bridge saw is provided with a built-in CAM software with Blue Elephant customized control system dedicated for stone CNC machine. The interface is human friendly, so it is easy to learn and operate.

Can the worktable rotate?

Yes, the worktable of this machine can flip up to 80 degrees to facilitate the unloading of stone slabs. It also improves work efficiency and saves human labor.

4 Axis Bridge Saw Details

Application

The 4 axis quart CNC bridge saw can cut rhombus, sector, square, rectangle, trapezoid, quadrilateral, special shape, polygon, circle, oval, countertop, stove board, specification board, pot hole, etc.

The 4 axis bridge saw for stone can also cut marble, granite, and other stones for making stone sculptures, countertops, tombstones, and so on. In addition, it is also used in building construction. It can cut building materials such as bricks, concrete slabs and tiles to suit a variety of construction needs.

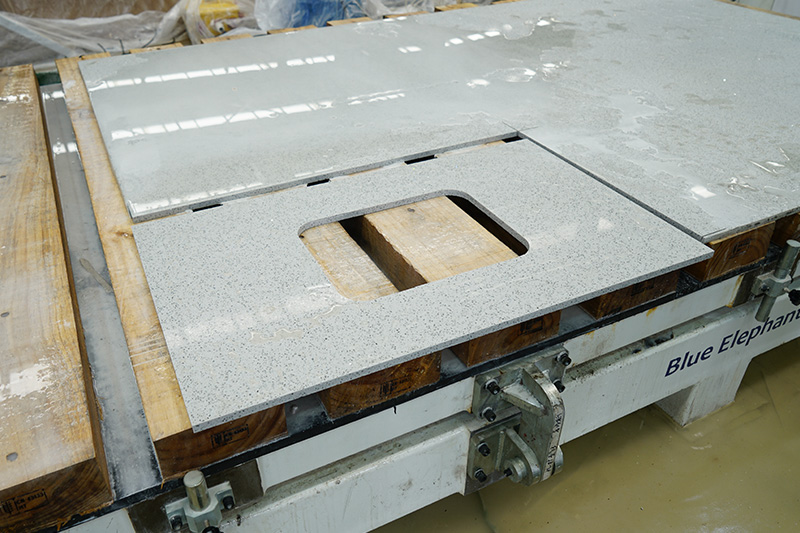

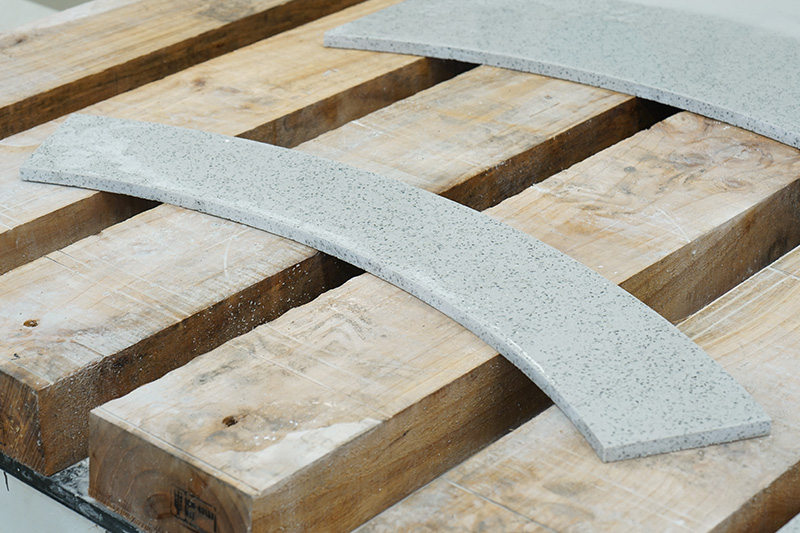

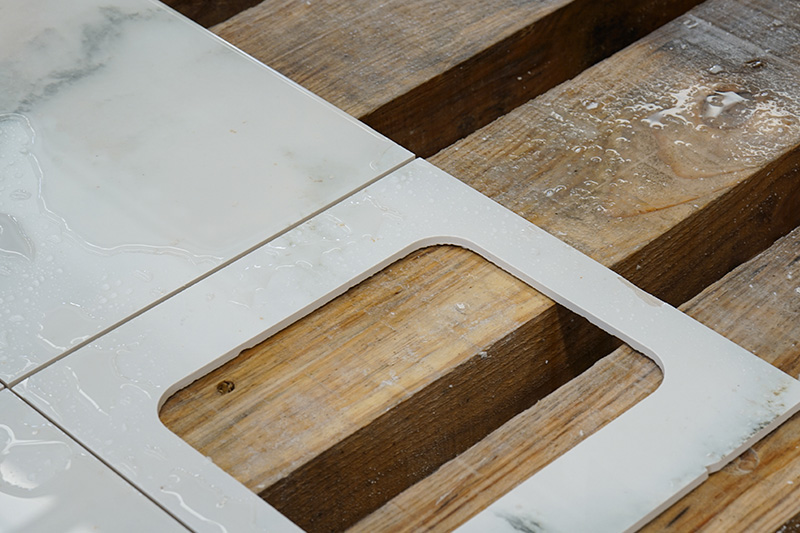

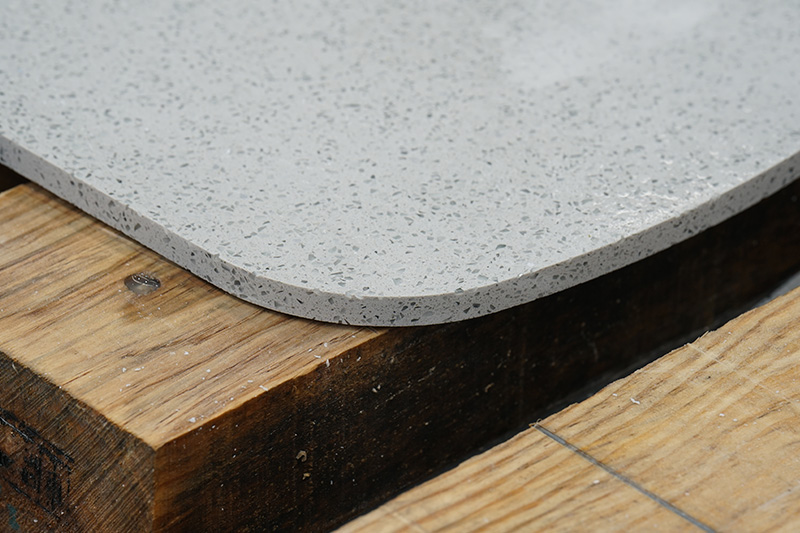

Samples

Click for solution

Production Facility

Quality Control & Testing
