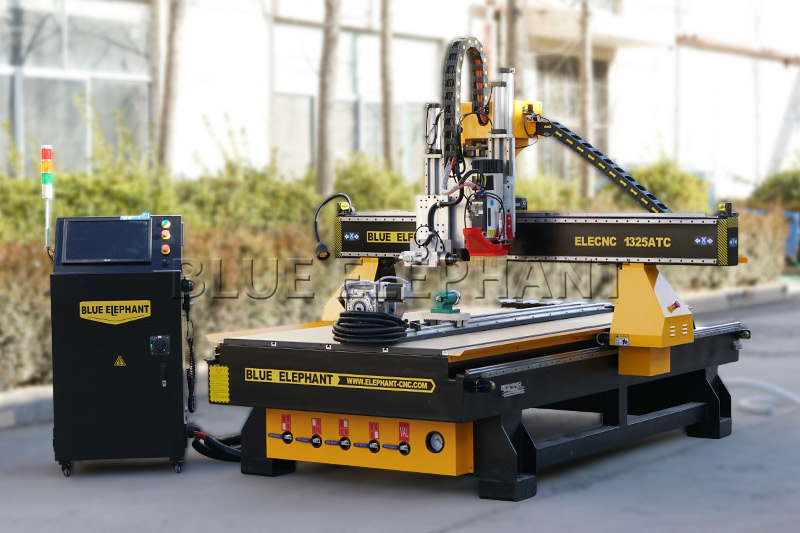

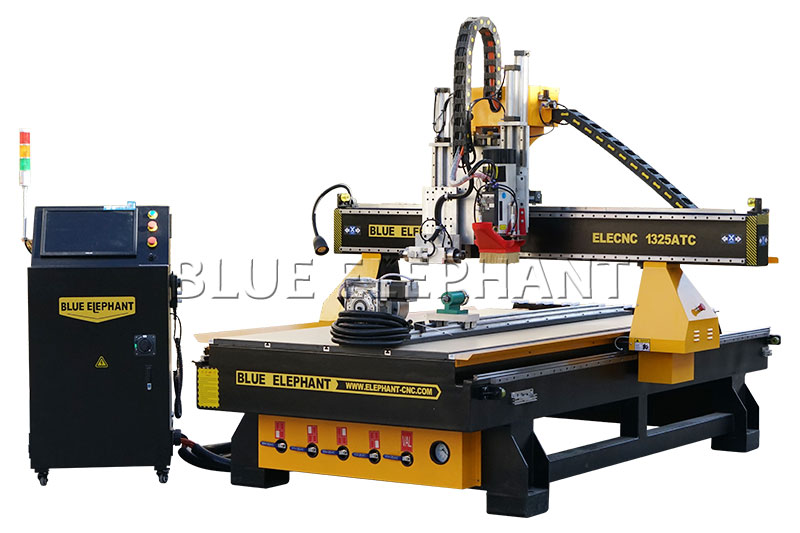

This is a CNC wood lathe turning machine with automatic tool change. There is no need to stop working during the processing, and there is no need to manually change the tool, which greatly saves time, improves processing efficiency, and ensures higher processing quality.
1. Fast speed and high output. Large pillars around 9 * 9 can be completed in one minute. Compared to manual, it saves time and effort.
2. Equipped with frequency converter. The speed is controlled by the handle, which can be adjusted at any time according to personal requirements. It is more convenient for users to use.
3. Simple drawing. Computer drawing, U disk input, random design, input is more accurate. Therefore, the machining accuracy is improved.
4. The bed adopts casting technology, which has the characteristics of large thickness, never deformation and sufficient weight, which increases the overall stability of the equipment.
| Description | Parameter |
| X,Y,Z Working Area | 1300*2500*300 mm |

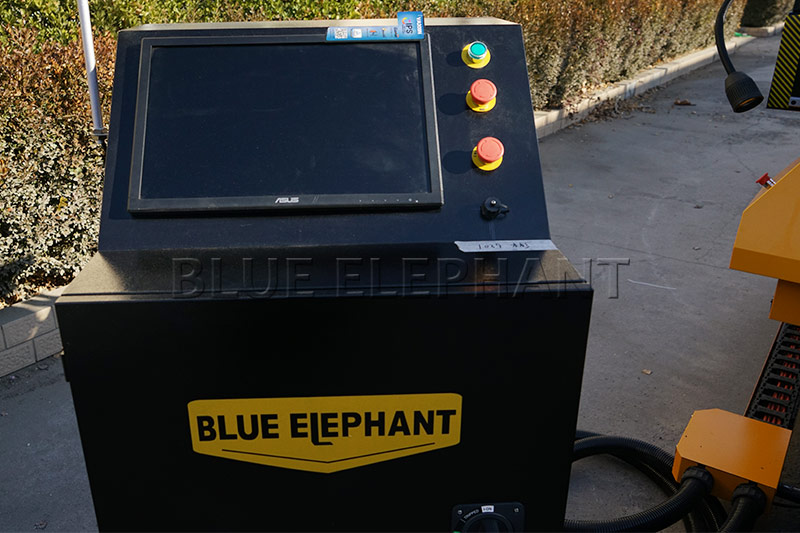

| Control system | MW2200 control system with computer screen |
| Working Voltage | 380V, 3phase, 50Hz (Option) |

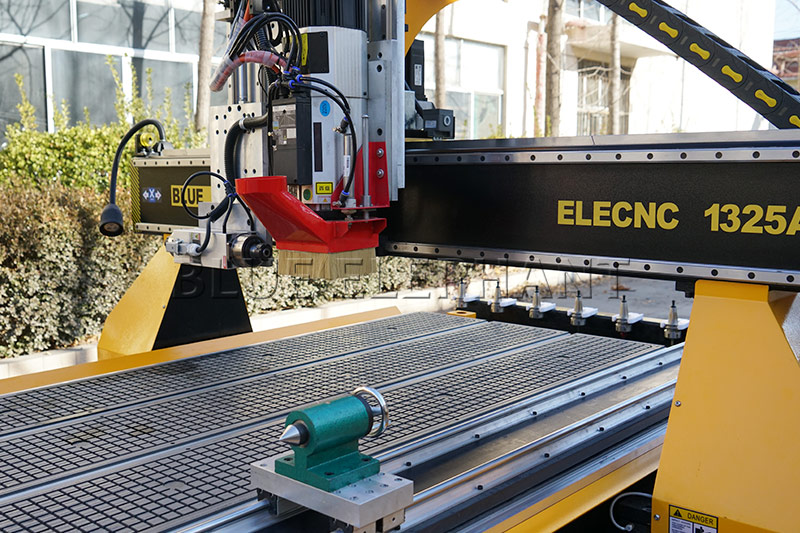

| Spindle | 9kw HQD air cooling ATC spindle+3.5KW horizontal spindle |
| Inverter | 11kw Fuling inverter |
| Motor and driver | Leadshine 750W servo system |
| Table Surface | Vacuum and T-slot table |
| Rotary device | 200mm diameter rotary device |
| X,Y axis | Taiwan PMI 25# square guide way for X,Y axis |
| Z axis | Taiwan TBI ball screw for Z axis |

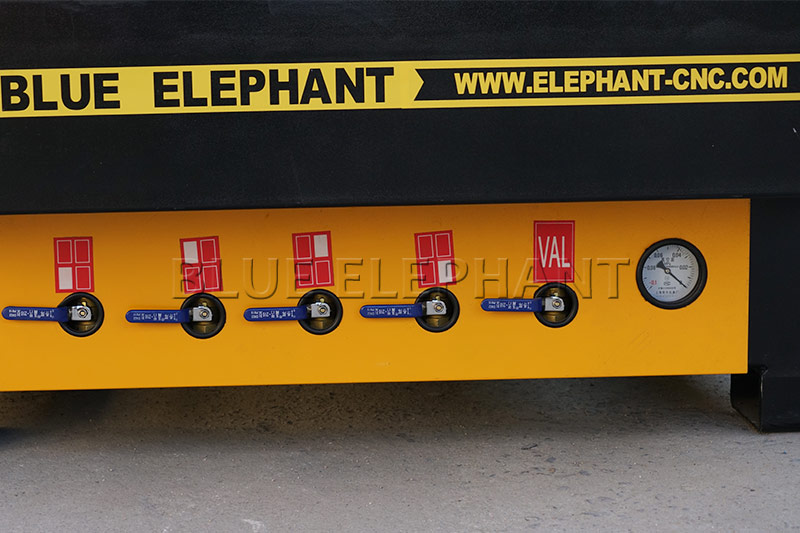

| Vacuum pump | 2Kw dry vacuum pump(Double segment)*2 |
| Tool change | linear tool change magazine |
