2040 4 axis ATC CNC Router
Carousel 2040 CNC Machine

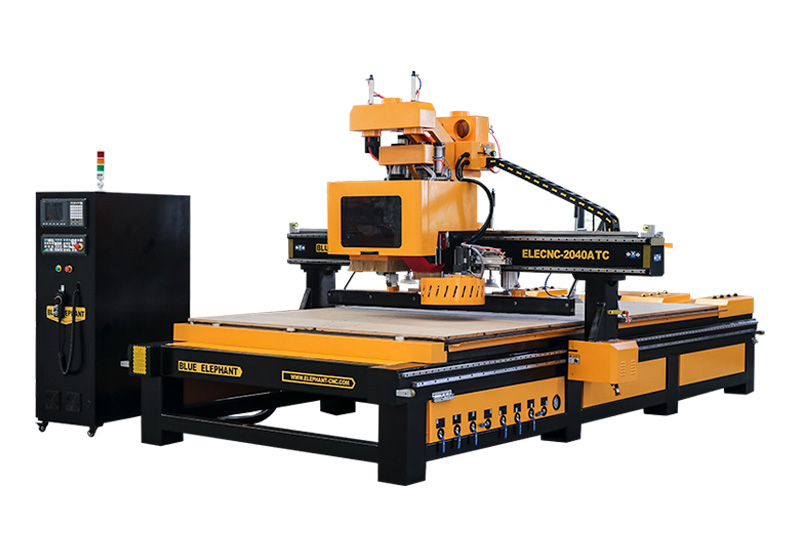

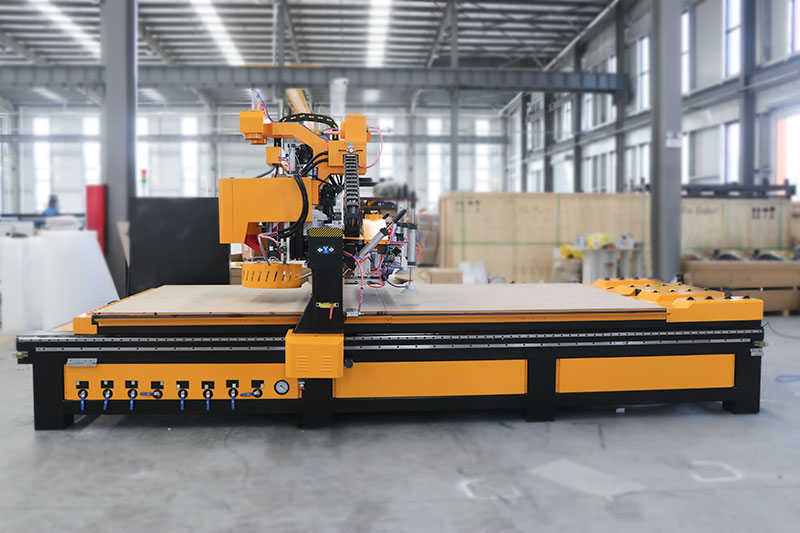

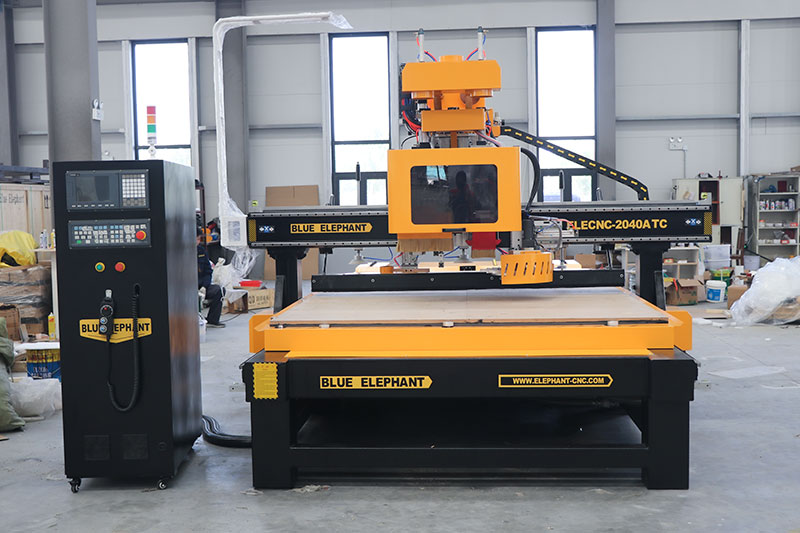

ELECNC-2040 CNC woodworking machine with auto tool changer for sale at the best price. The ATC CNC router machine with a disc tool magazine and a drill head is different in appearance from other CNC woodworking machines. It can drill both vertial and lateral holes effectively and precisely. With the 2000x4000mm big working size, it is suitable for most sizes of panels.
1. ATC woodworking machine has a reserved loading function, saving manpower and time.

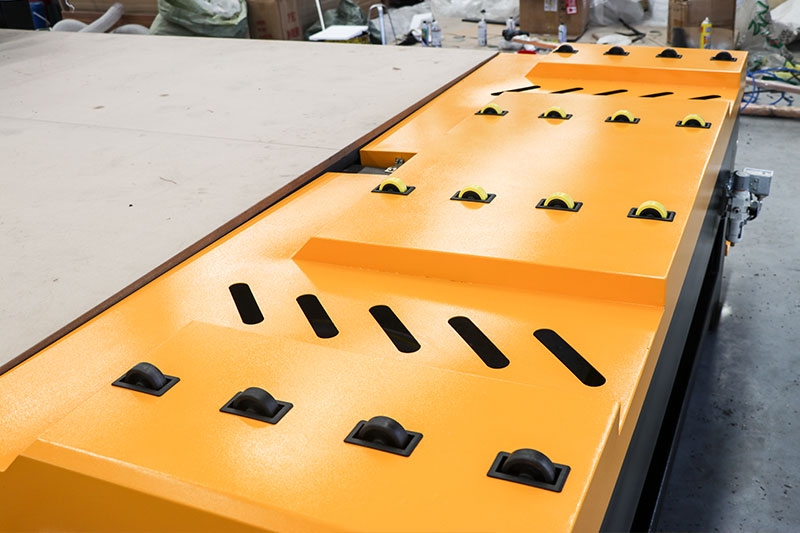

2. This CNC router is equipped with loading rollers which help the loading of heavy wood panels. It is very popular in the panel furniture industry.

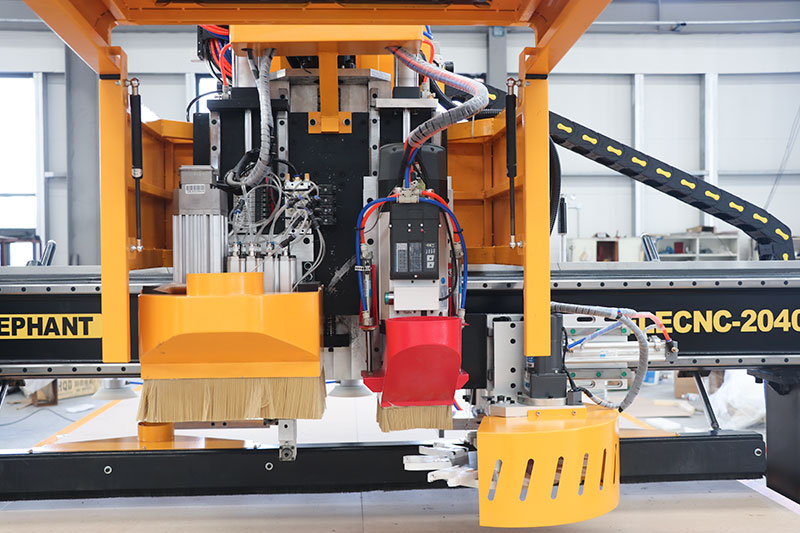

3. HSD 9+3+1 drilling head makes the drilling work more effective and convenient.
4. It is a multi-functional machine that will meet various needs. The specifications and configurations can be customized according to customers' demands.
| Model | ELECNC2040ATC |
| X,Y axis travel | 2000x4000mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm,etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional: Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel Linear type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |

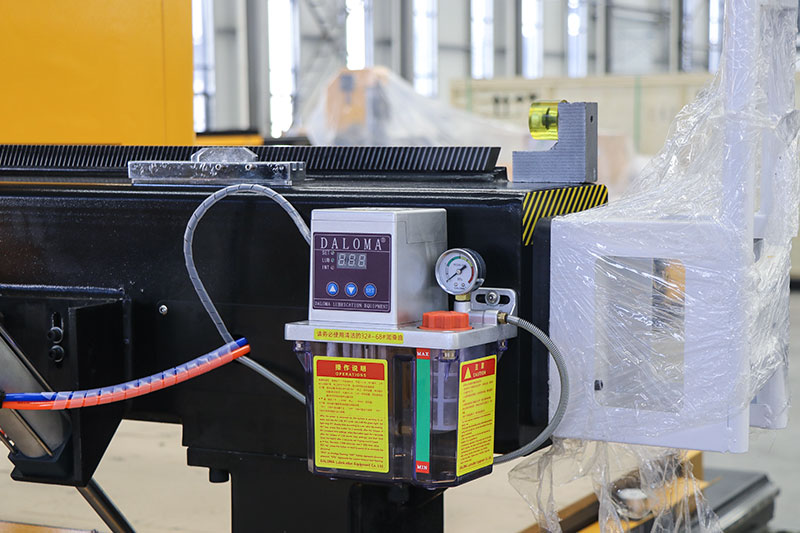

| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3,Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc. |
