Description

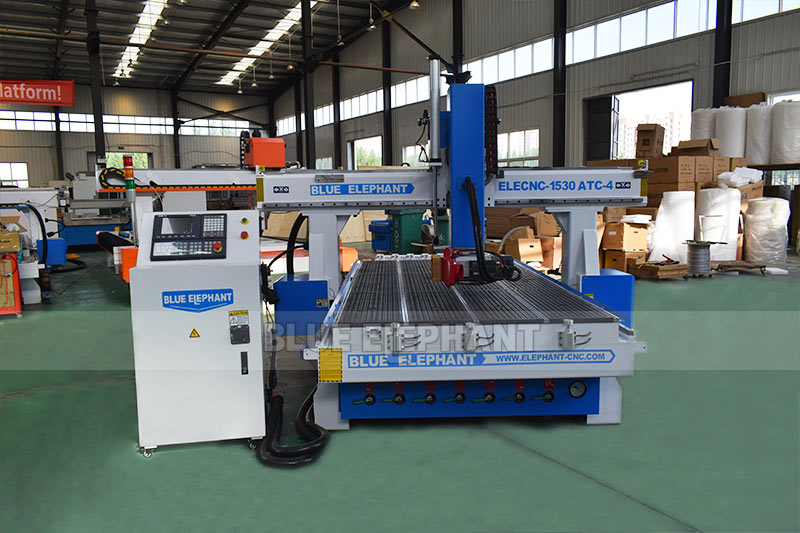

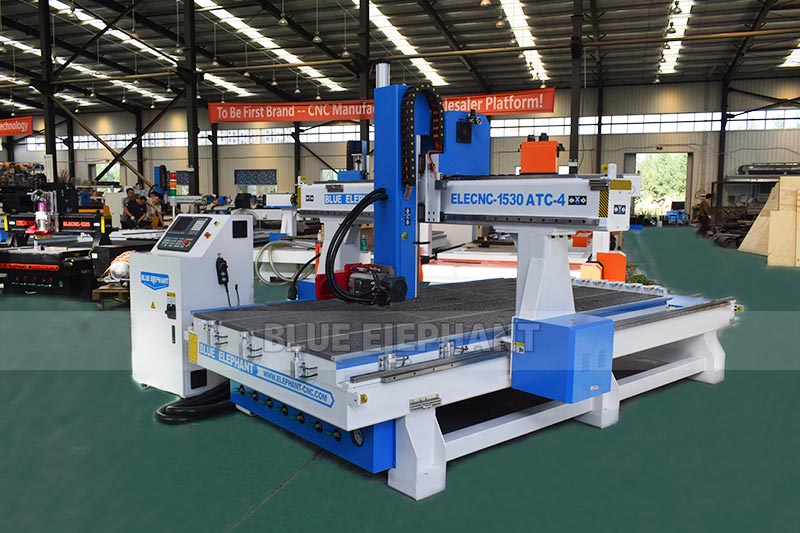

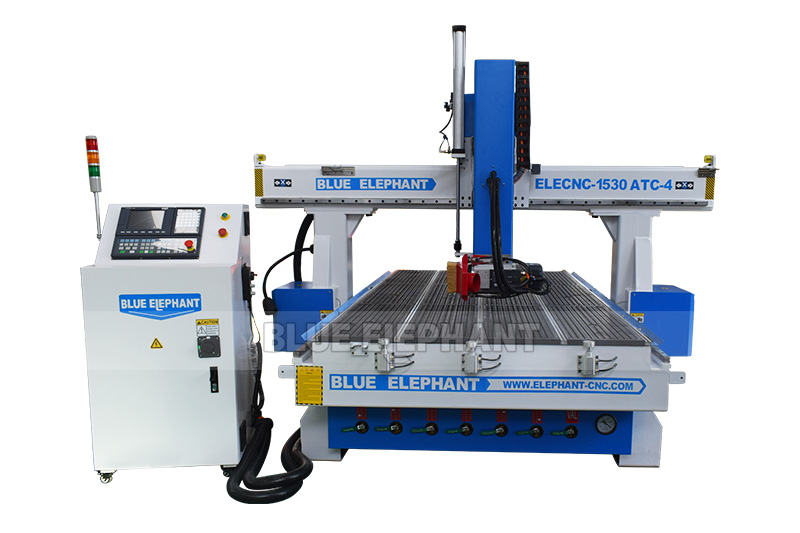

ELE1530 5x10 4 Axis ATC CNC Router for sale at cost price. 4 Axis CNC Router swings spindle 180 degrees, it works on aluminum mold, hardwood, soft metal, 3D musical instruments, and other 3D wood surface engraving and carving. Linear tool magazine with 8 tools makes this ATC CNC router using different tools without machine stop.

Features

1. Italy HSD ATC air cooling spindle can swing 180 degrees,which makes the machine can process some complex objects and molds;
2. Lager working size and processing area, the working efficiency can be greatly promoted;
3. The heavy-duty frame and gantry make the machine work more stable;
4. A high-performance drive motor ensures the machine working with high speed and accuracy;

Parameters

Model	ELECNC1530ATC-4A
X,Y axis travel	15003000mm, option: 13002500mm; 21003000mm; 21004000mm, etc
Z axis travel	400mm, option: 500mm, 600mm, 700mm, etc
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
The 4^th axis	Cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree
Tool magazine	linear type auto tool changer Option: carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC / LNC controller
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces (X2, Y3)
Linear guide	Taiwan linear guide
Transmission	X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Powermill, UG, Alphacam, Fusion 360, etc
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou,Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc
Rotary device	Industrial-grade support of rotary device,diameter 200mm, 320mm.

Click for details

Frequent Asked Questions

Which one should I choose, DSP? NC Studio? Or Syntec/Siemens controller?

DSP hand-held control can control your CNC router without connecting to a computer.
NC Studio controller is based on Windows 8 or Windows 10 operating system. It can control your CNC router through the computer.
Syntec/Siemens controller is an independent control system and can control complex processing paths. It is quite suitable for large-size CNC routers with servo motor.

How do I know if the worktable size is suitable for my processing requirements?

It’s important to select a suitable worktable size. You can choose the worktable size based on the dimension of your materials and the number of parts that cut at a time.
If you are engaged in furniture production, like doors and cabinets, you shall choose the worktable with the size of 4*8, 5*10, or 6*10.
However, when you want to use a CNC router to make small-size crafts or gifts with wood, PVC, plastic, or glass, you can choose a mini CNC router to do the job.

How does the vacuum worktable work?

The vacuum worktable aims to secure workpieces during the processing. There is a perforated tabletop above the vacuum chamber. And the vacuum pumps are used to keep the pressure of the vacuum chamber below the ambient pressure. The pressure difference between the atmosphere and the vacuum chamber keeps the workpieces at the proper position on the top of the vacuum chamber. The major purpose of the vacuum worktable to allow access to all sides of the processed part, except for the side that is in contact with the vacuum worktable.

ATC CNC Router Details

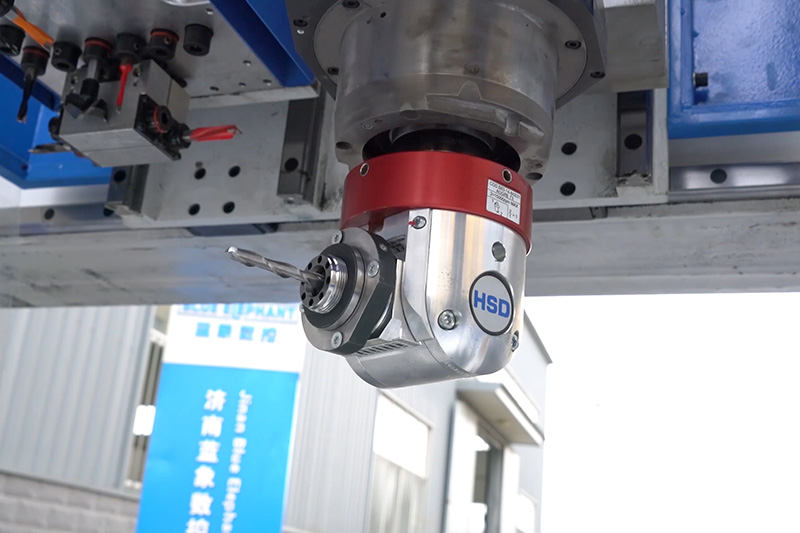

Aggregate head

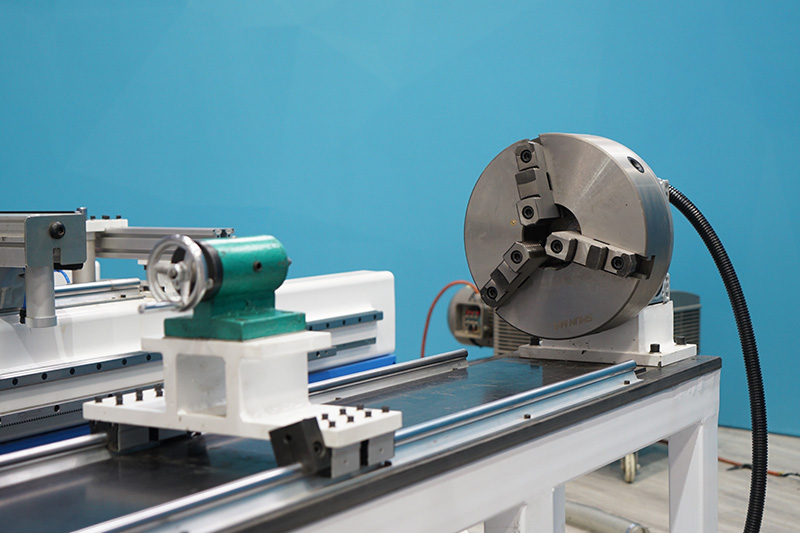

Rotary device

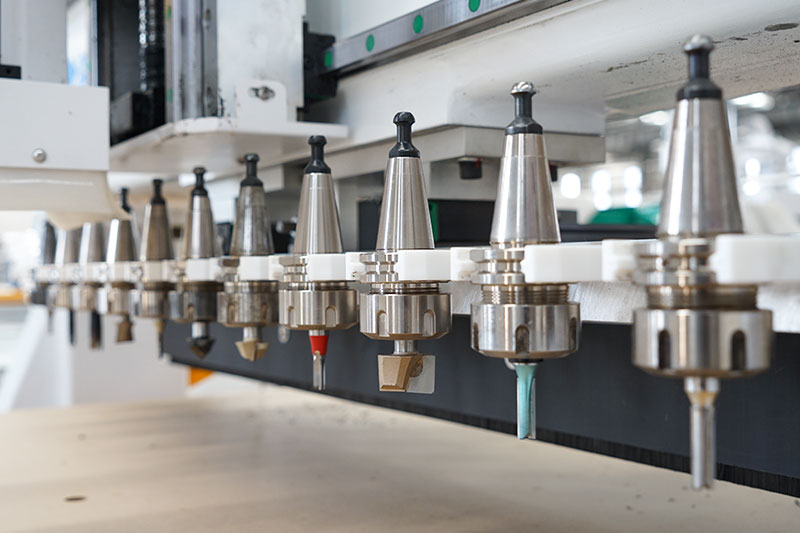

Linear tool magazine

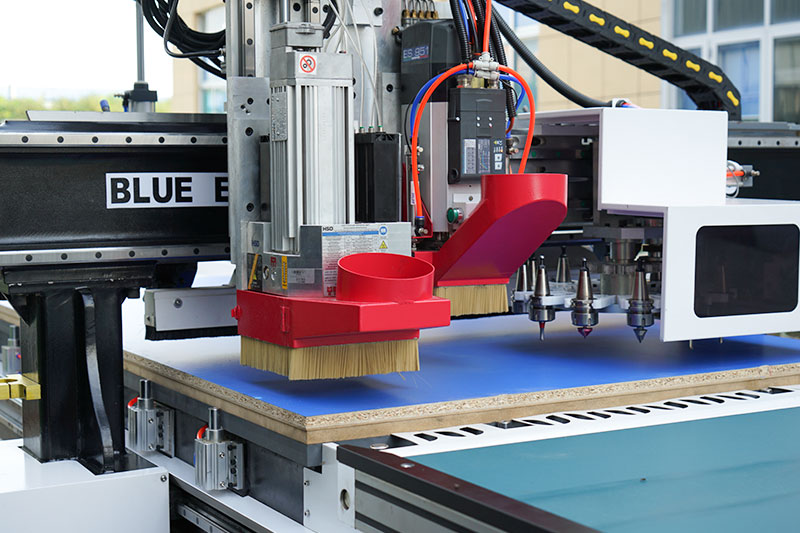

HSD ATC spindle

Application

The 4 axis ATC CNC router here refers to the ATC CNC router with a rotating spindle, which can swing 180° from left to right. The working path of the 4 axis ATC CNC router includes X, Y, Z and A axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Mold industry: wood mold, foam mold and metal mold

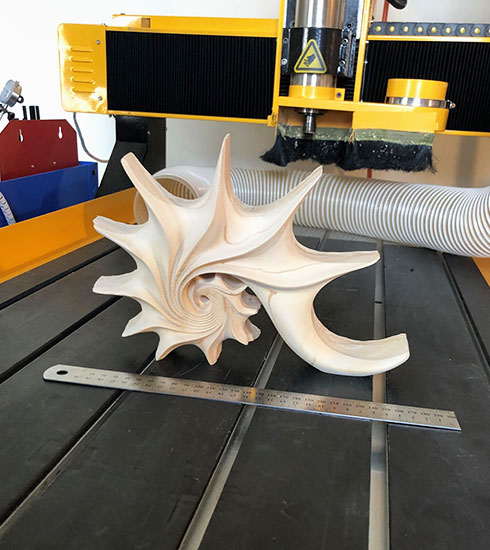

Samples

Click for solution

Production Facility

Quality Control & Testing

Click for quotation
