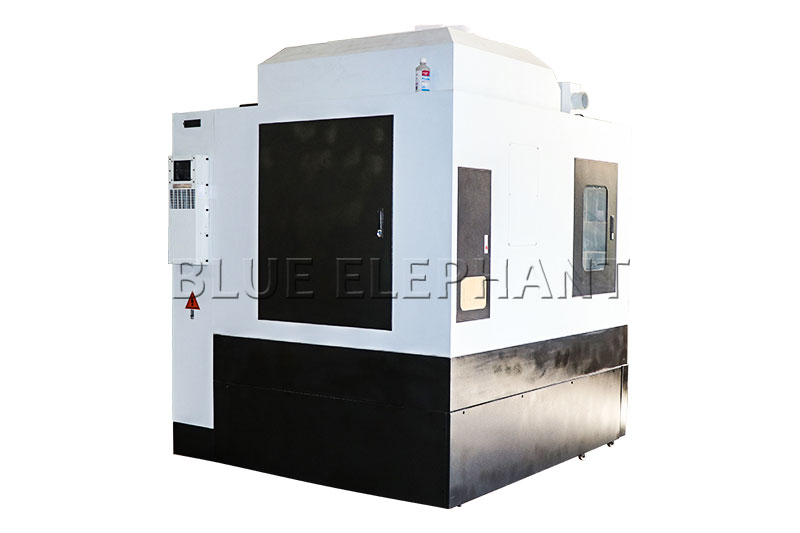

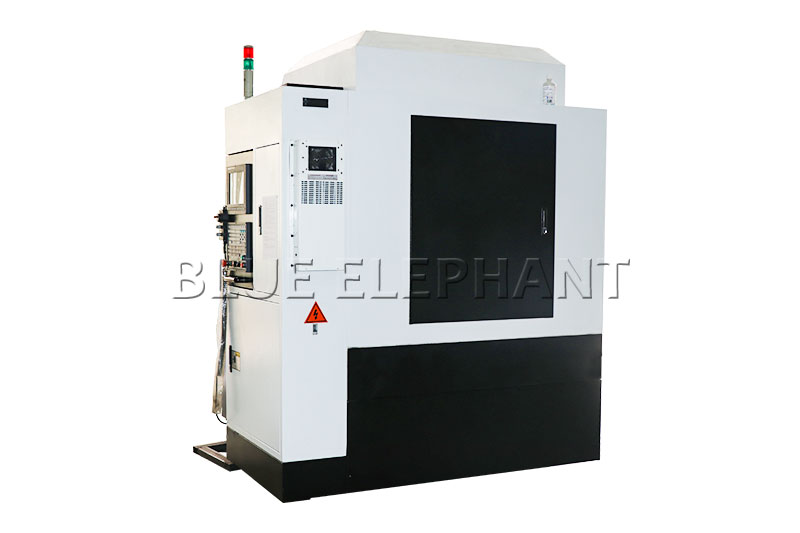

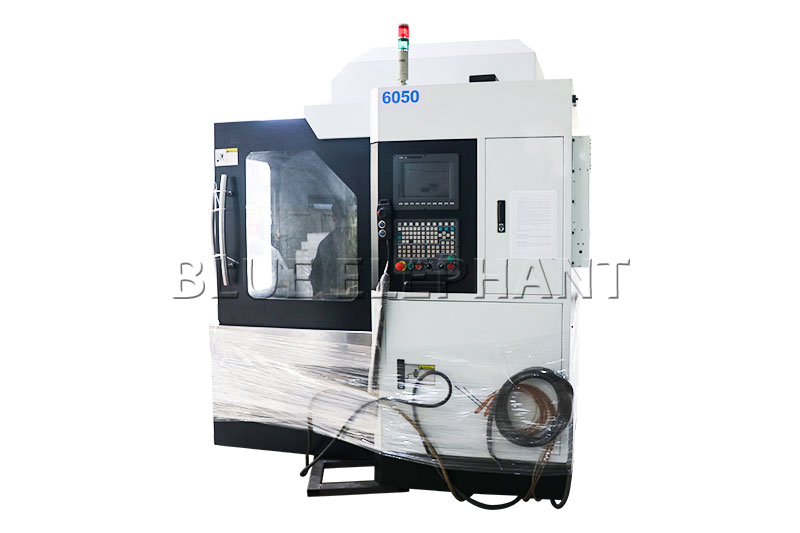

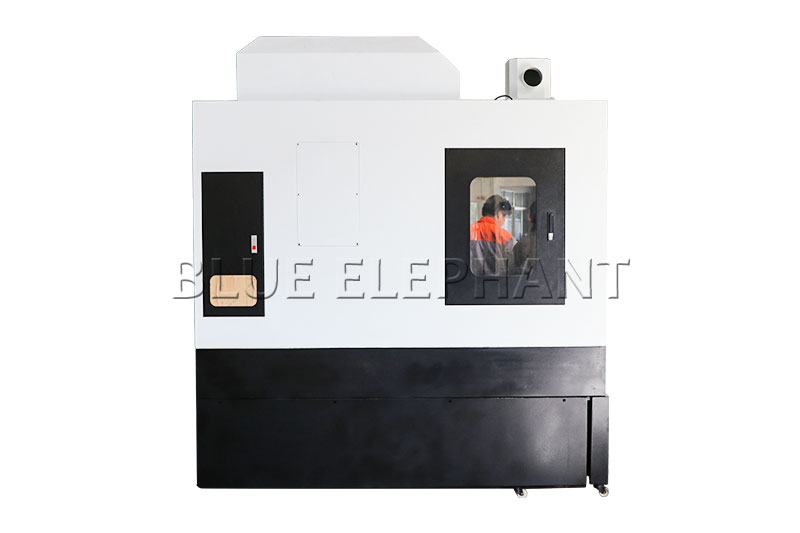

This is a CNC milling machine that can be used for both engraving and milling with the features of high precision and high efficiency. And it is mainly used for the processing of all kinds of metal plates, and a small amount of milling, and the precision processing of small molds.
1. The machine bed is made by casting iron materials, so the machine structure is stronger, more stable, non-deformation.
2. With C3 grade guide rails, and there are bears on two sides of square guide rails, which can improve the accuracy during high speed working.
3. All parts passed tested before installation, after installed, there also have a strict test to make sure the higher accuracy and precision.
4. Equipped with the Taiwan Syntec 6MA controller system, which has better stability, higher controller speed, better working performance.

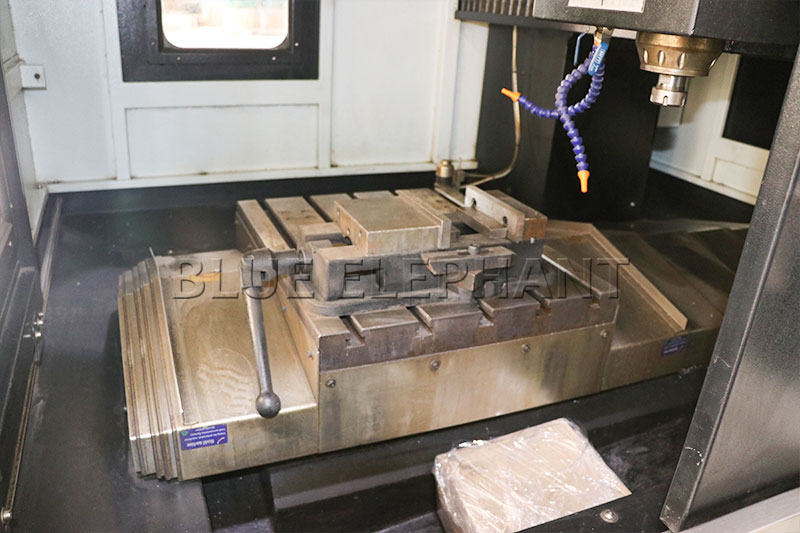

| Working Table size | 600mm*500*250mm |
| Max working weight | 300kg |
| Spindle | 5.5KW water cooling spindle |
| Spindle RPM | 0-24000rpm |
| Controller system | Taiwan Syntec 6MA |
| Servo Motor | Japan Yaskawa servo motor |
| Spindle | 5.5KW water cooling spindle |
| Precision Square guide rails | Taiwan TPI P5 Grade |
| Ball Screw | Taiwan 3205 ball screw /30 square guide rails |
| Cooling system | included |
| Lubrication system | 2L18kg/cm3 |
| Air Limitation | Included |
| Cooling system for Spindle | Automatic |
| Cover | Full cover for machine bed |
| Inverter | 5.5KW |
| Calibration | Included |
| Wireless control board | included |
| Max moving speed | 10m/min |
| Position precision | 0.02mm/300mm |
| Re-position precision | 0.01mm |
| Machine Weight | 1500KGS |
