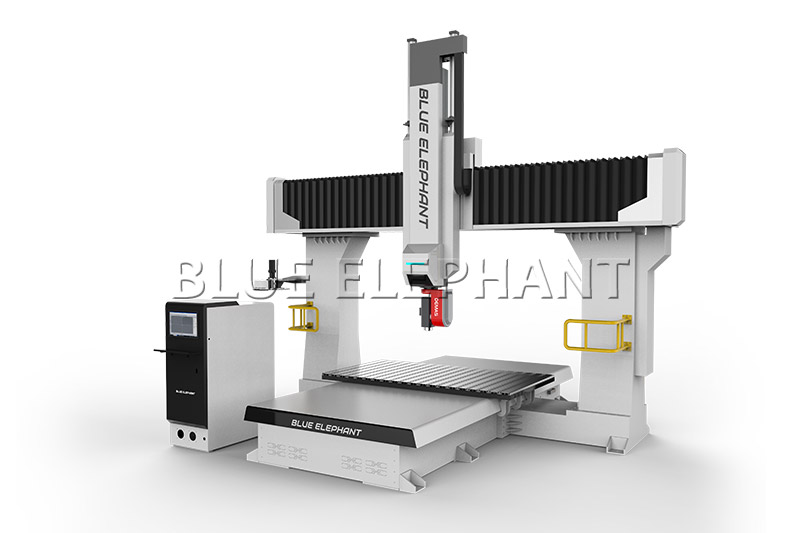

This 5 axis CNC milling machine has so many advantages. Such as fast machining speed, high machining efficiency, and high machining accuracy. Only being clamped once, it can complete the processing of the pentahedron work piece at one time.
1. Multi-process processing can be performed on multiple space surfaces on the work piece at a time, greatly improving processing efficiency.
2. Equipped with world-renowned controller, it has the advantages of powerful functions, high processing accuracy and fast speed.
3. Adopting a diversified control system to control the processing speed, idle speed and cutting speed separately, which greatly improves the quality.
4. Adopting world top class components, it can ensure the machine with a longer service life.
| Item | Description |
| working area | 2400*1200*1000 |
| Movement type | Movable table |
| Tool magazine | Carousel type tool change |
| Working voltage | 380V/50HZ/3P |
| Control system | Taiwan SYNTEC controller |
| Spindle | 10KW SACCARDO 5axis spindle |
| Inverter | 15KW Delta inverter |
| Servo motor | 1.3KW YASKAWA servo |
| Linear guide | PMI#35 for Y axis, PMI#30 for X and Z axis, |
| Lubrication system | Auto lubrication system |
| Tool change | Auto tool change |
