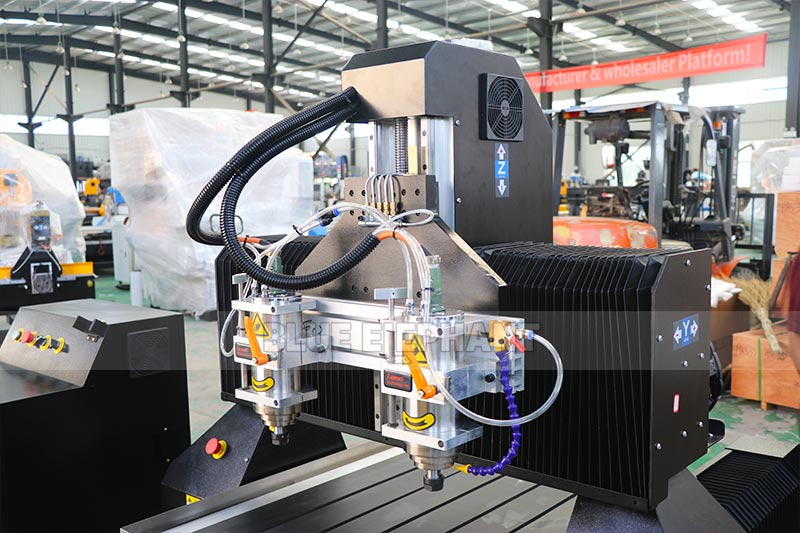

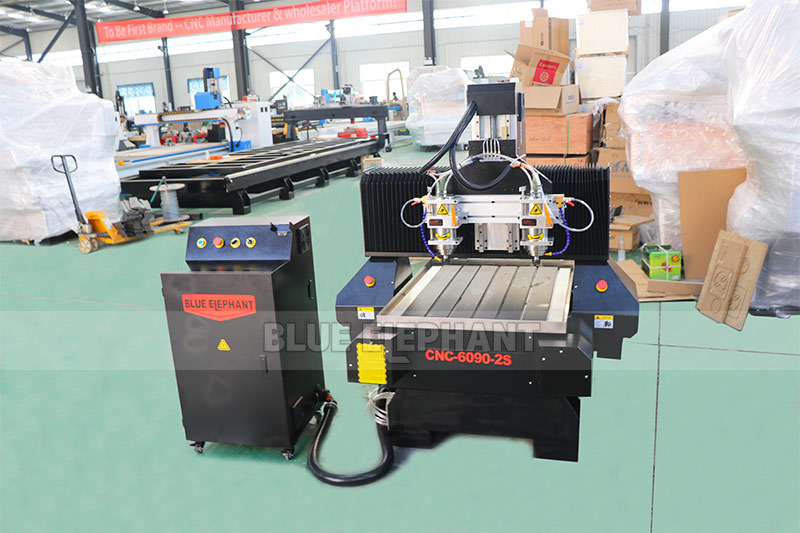

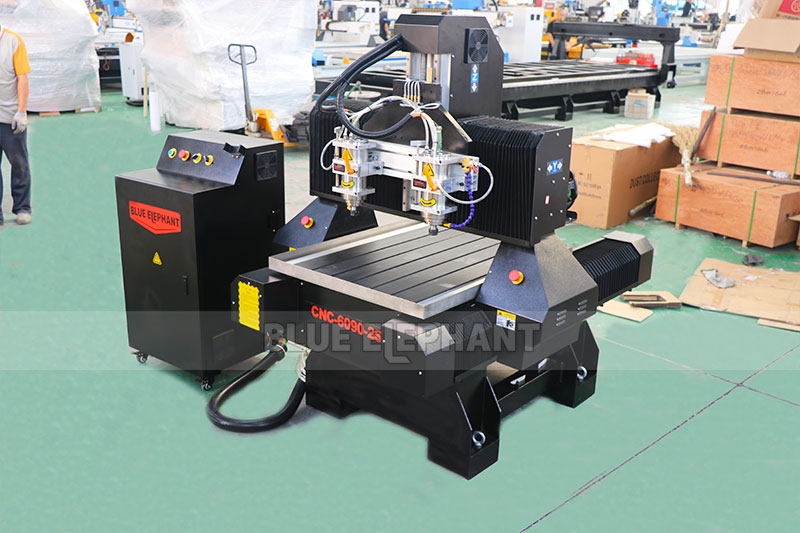

This is a mini CNC milling machine equipped with two spindles, and the spindle is processed at the same time, which not only can meet the processing requirements of ordinary advertising CNC router, but also greatly improve the processing efficiency.
1. Adopting rack transmission, it has the feature of stable performance, stable operation and higher machining precision.

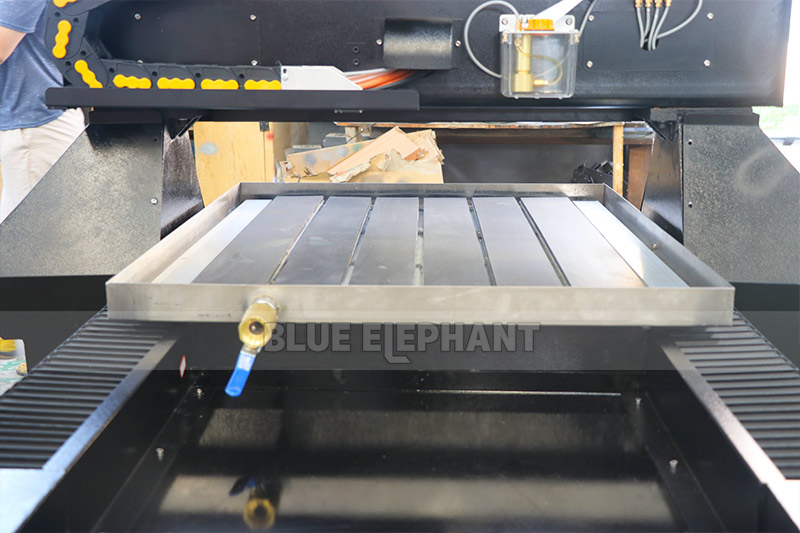

2. With the T-slot with PVC protection working table, it is especially suitable for processing metal and other hard work pieces.

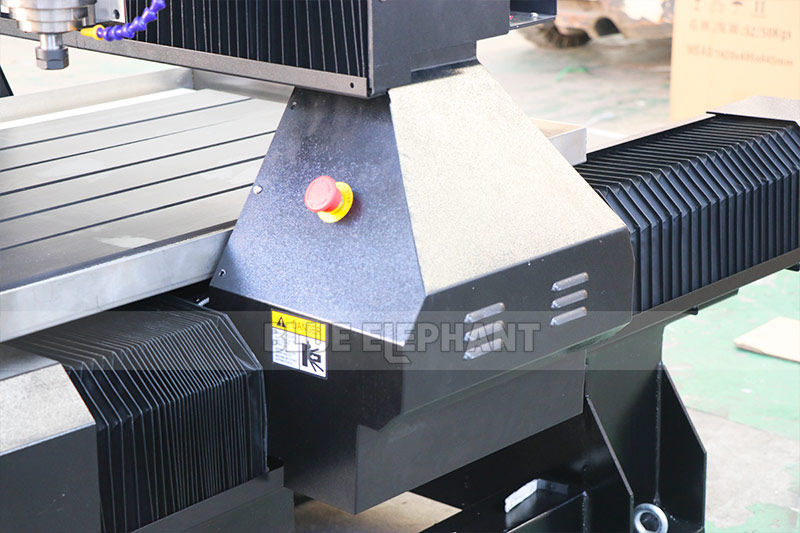

3. Equipped with a dust cover to effectively protect the rack and guide rails, maximizing the service life of the machine.
4. All parts and parameters can be customized according to specific processing requirements
| Model | ELECNC-6090 |
| Working area | 600*900*200mm |
| Spindle | 2 * 3kw cs water cooling spindle |
| Spindle speed | 24000rpm |
| Inverter | 3.7kw fuling inverter |
| Control system | DSPA11 handle use controller |
| Motor and driver | 750w Leadshine easy servo motor and drivers |
| Working Table | T-slot with pvc protection working table |

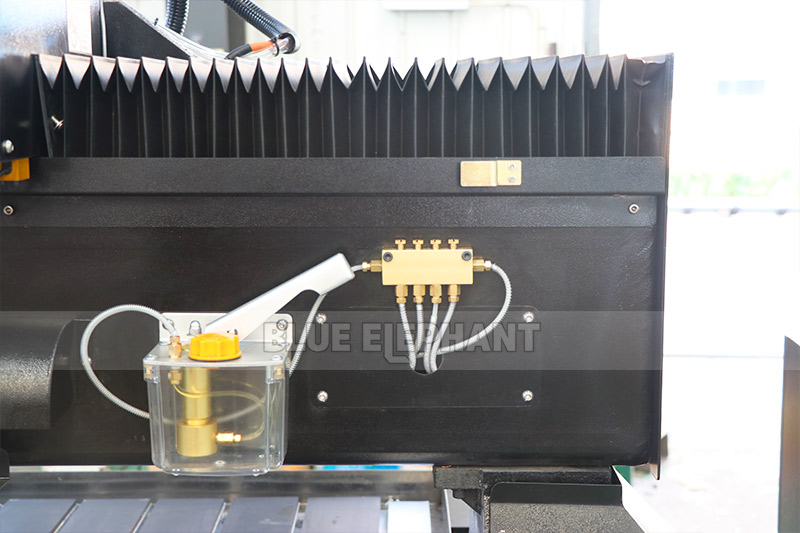

| Lubrication system | Manual lubrication |
| Voltage | 220V, 50HZ(customized) |
| Cooling system | water tank with water cooilng sprayer |
