2137 Wood CNC Router Machine
2030 Wood CNC Machine Engraving MDF

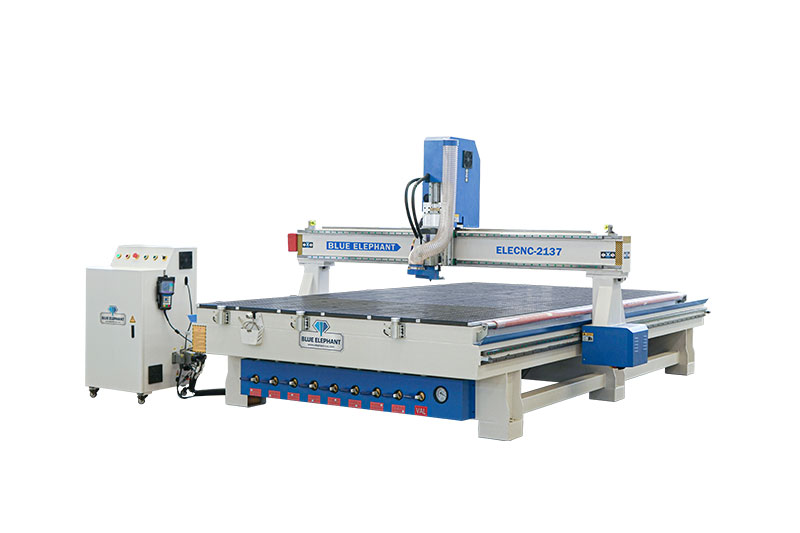

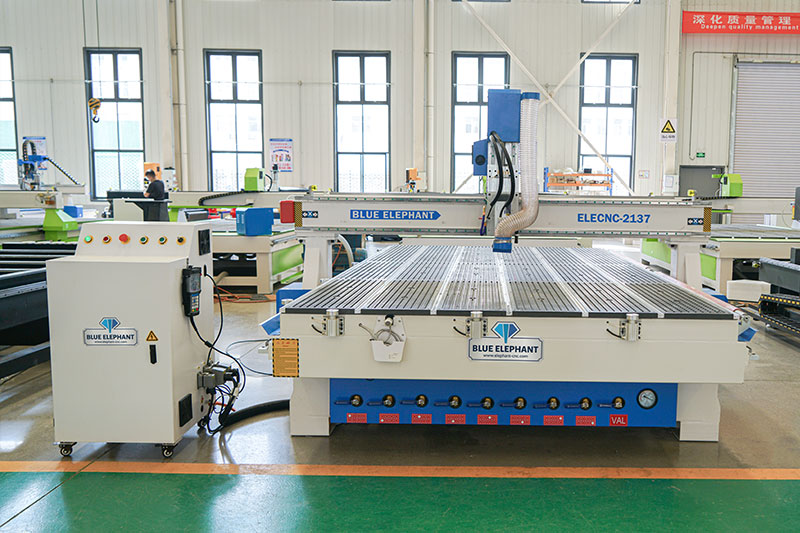

This 2137 wood CNC router machine is a 3-axis CNC router designed for making cabinet doors, equipped with a T-slot vacuum table. The table size is 2100*3700*200mm, providing ample space for engraving and cutting standard Polywood or MDF. It securely holds workpieces in place, saving time and improving production efficiency. The CNC router machine comes with an original Italy HSD spindle, ensuring high speed and superior quality for the CNC wood engraving machine.
1.The heavy-duty frame and gantry structure ensure more stable machine operation.
2.The Japanese YASKAWA servo system extends the machine's service life.
3.The DSP control system makes it very easy to learn and operate.
4.It quipped with auxiliary loading rollers to improve manual loading efficiency. The rollers feature a rubber-coated surface to prevent scratching and effectively protect the sheet material.
5.The positioning cylinder quickly locates the sheet material to be processed, reducing manual alignment time and improving feeding efficiency.
| X,Y,Z axis travel | 2100*3700*200mm |
| Voltage | 380V,3PH,50HZ |
| Control system | DSP B57 |
| Spindle power/speed | 6 KW HSD air cooling spindle, 18000rpm |
| Inverter | 7.5KW Delta |
| Motors and drives | YASKAWA 850W |
| Bed structure | Large square tube |
| Table structure | T-slot&vacuum work table,8 divisions |
| Side panel type | Column |
| Linear guide | #25 Taiwan |
| Limit switch | Japan OMRON |
| Rack | 1.5M JT |
| Lubrication system | Automatic lubrication |
| Vacuum pump voltage and frequency | Ribake 11KW double vortex pump 380V,3PH,50HZ |
| Dust collect system | Old style double bag dust collect system 380V,3PH,50HZ |
| Positioning cylinder | X:3, Y:4 |
| Tool setting | Automatic tool setting |
Click for details
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.

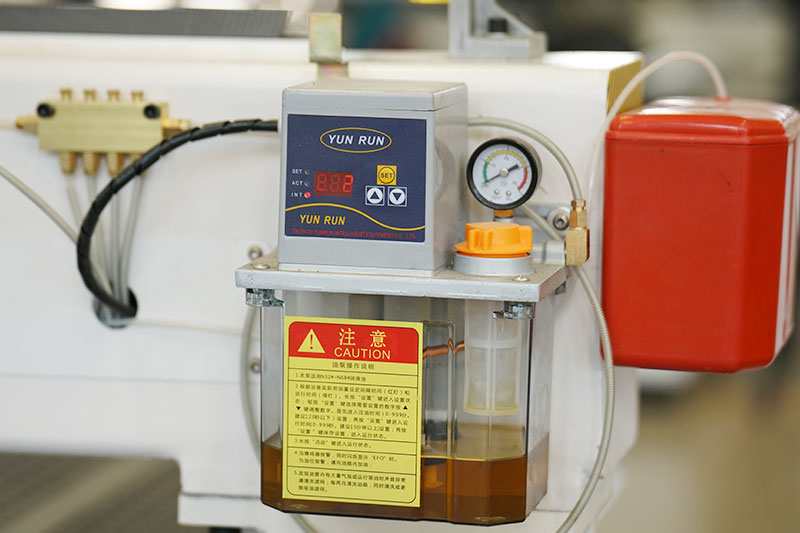

Lubrication system

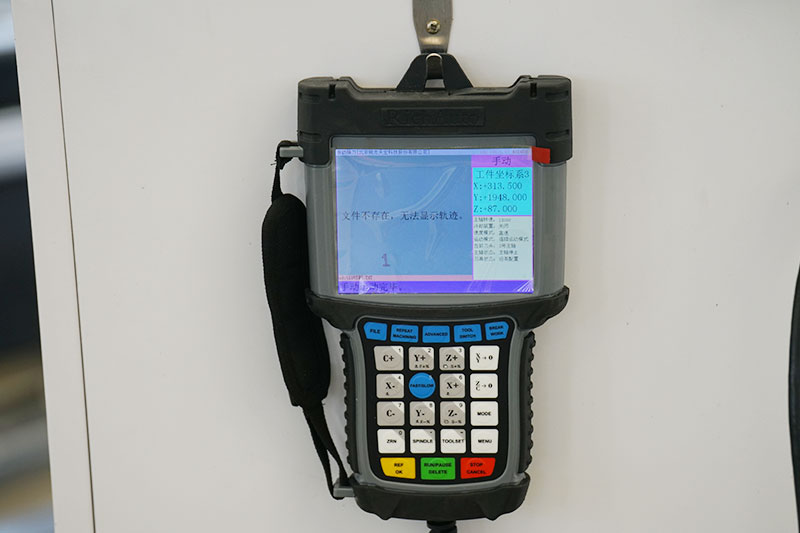

Control System

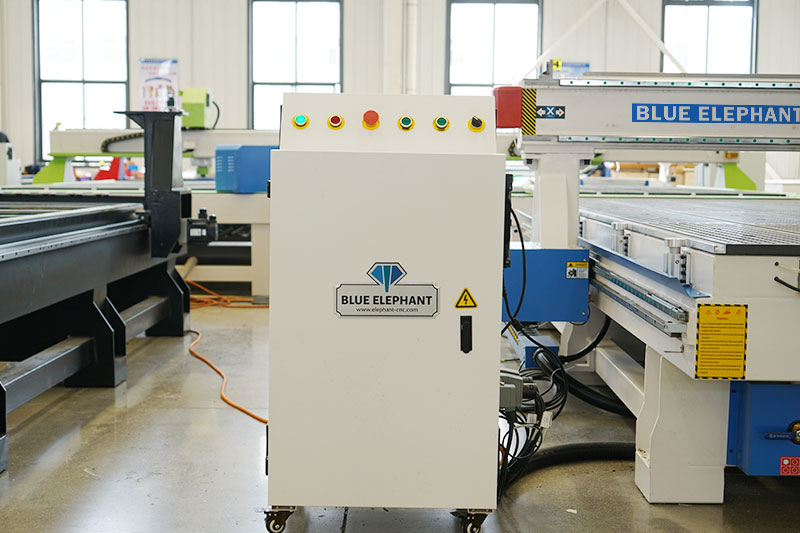

Chassis

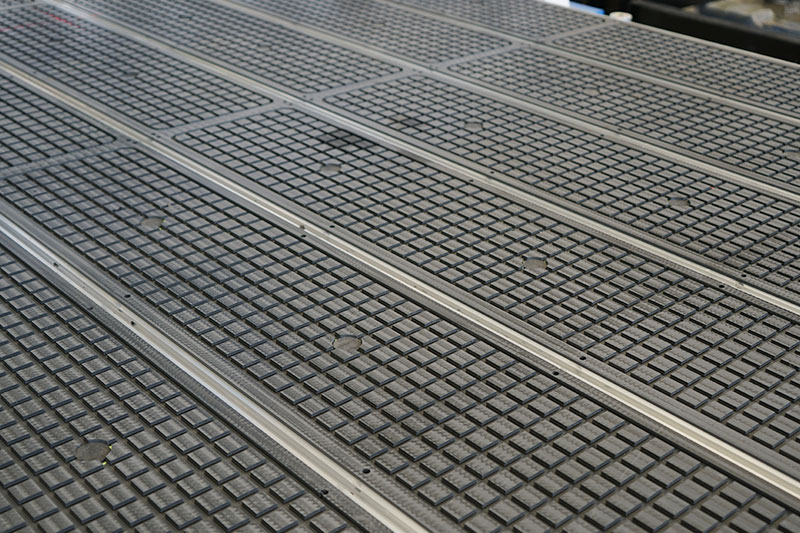

T-slot&vacuum work table
Click for solution
Click for quotation
We used it to make cabinets for four years, I like it very much! Thanks to Blue Elephant for providing such a good-quality machine and perfect after-sales service.
I’ve had a Blue Elephant machine for around 3 years. It’s reliable and always do the jobs well. So it’s very simple, very strike forward but does extremely well, the backup and support from Blue Elephant has been first class, the next machine I buy will be Blue Elephant. All those people are thinking about their machine and their purchase, I have a lot of experience in purchasing machines from China, especially from Blue Elephant. Blue Elephant manufacture very good machines, you can trust them.
We are happy with machine work. You know we are a government institution doing research in robotics cnc build some parts to our robots. We really like the machine performance.
The machine is operating fine and I almost fall in love with it. When I will upgrade my business I would love to work with you again! Great thanks.
