1325 CNC Router Engrave on MDF
1325 CNC Router Engrave on Wood

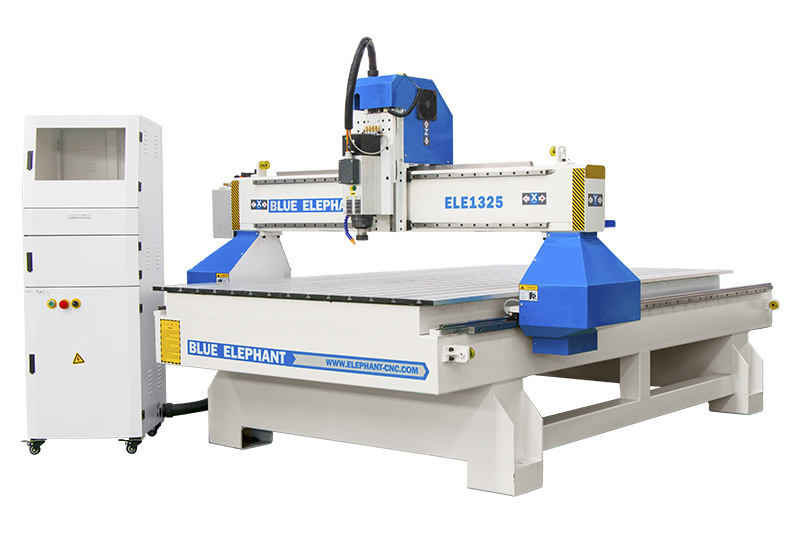

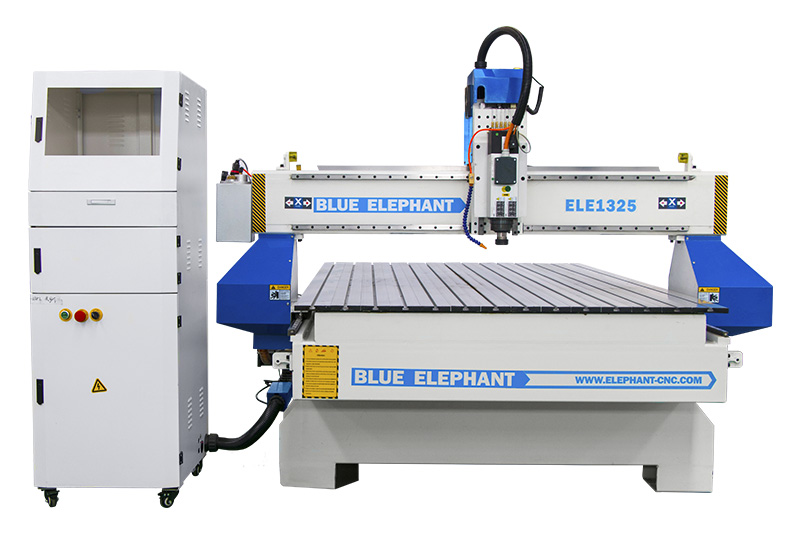

Quality CNC Wood Router Table for sale, this CNC machine with Italy spindle & 4x8 table, it adopts ordinary aluminum T-slot working table and Italy spindle. With the features of low cost and being good at 2D/3D wood engraving & carving, it is suitable for cabinet, doors making, etc.
1. CNC Wood Router Table is equipped with original Italy HSD spindle, powerful and quality guaranteed.
2. WEI HONG control system is a very good choice for this kind 3 Axis CNC wood router table.
3. Designed with heavy-duty frame and gantry, this CNC Wood Router Table works stably;
4. With automatic oil mist cooling, it prolongs the lifetime of the bits and ensures the carving quality.

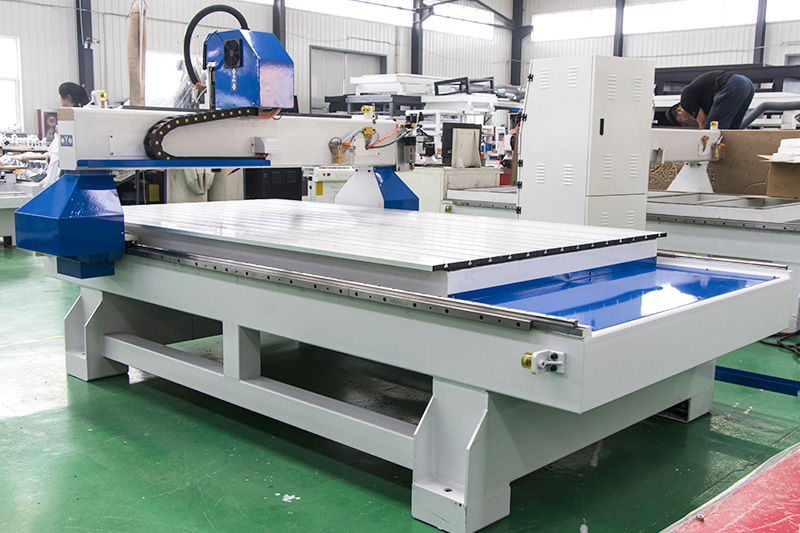

This CNC Wood Router Table is an entry-level 3 Axis CNC Router. The machine frame and gantry are made of thick-enhanced steel, which can make the machine stable when gantry moving or spindle routering.
A stable machine frame is very important for bits positioning accuracy, there is also a Semi-Automatic Tool Sensor helping the CNC wood router table get the right position for bits.
| Model | ELECNC1325 |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 7kwair cooling spindle, ISO30, ER32 |
| Inverter type | 7.5kw |
| Collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Nc studio PM95A controller, option: DSP |
| Driving system | FL 118 stepper motor and Leadshine DM1182 biggest driver, 4 sets. option: YASKAWA AC servo driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | TaiwanLinear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | Manual lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5kw, 6.0kw, 9kw etc. |
Click for details

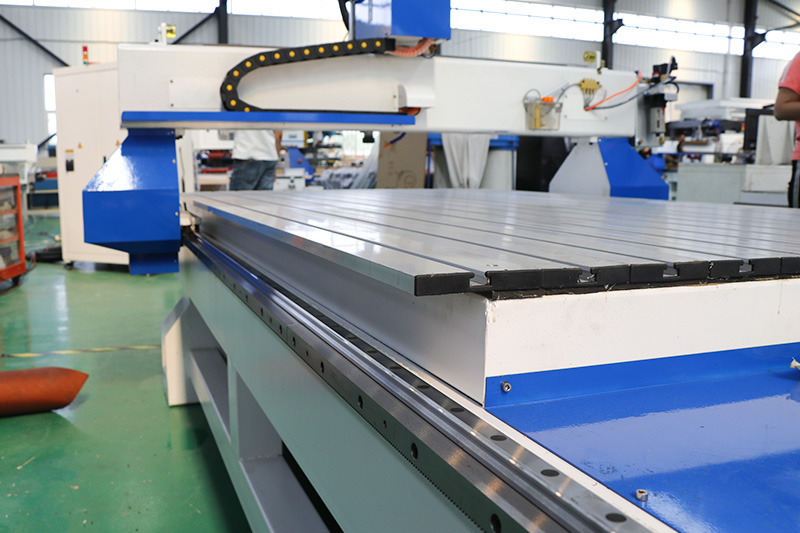

Aluminum Working Table

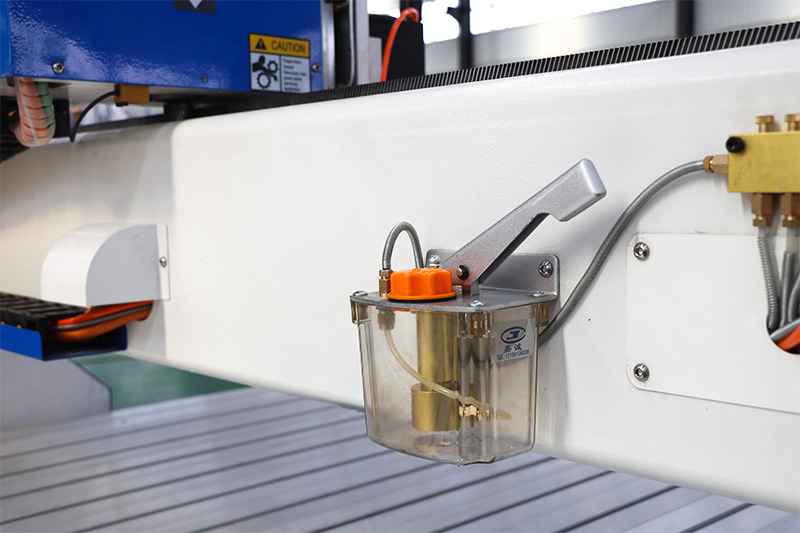

Manual Lubrication System

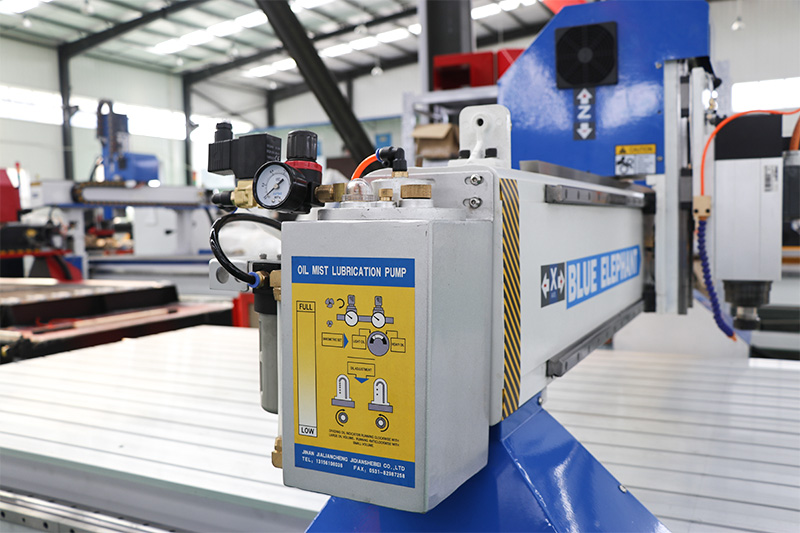

Oil Mist Lubrication Pump

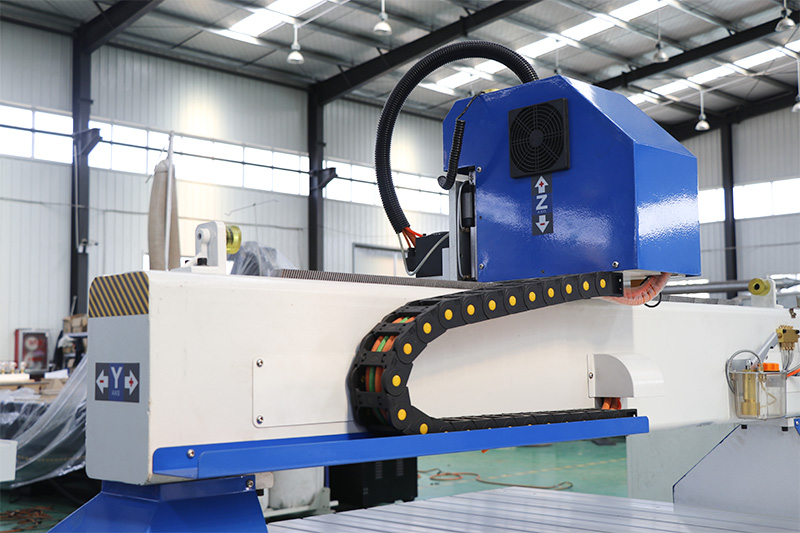

Towline
Click for solution
Click for quotation
