1325 CNC Machine Working Video
1325 CNC Router Cut Solid Wood

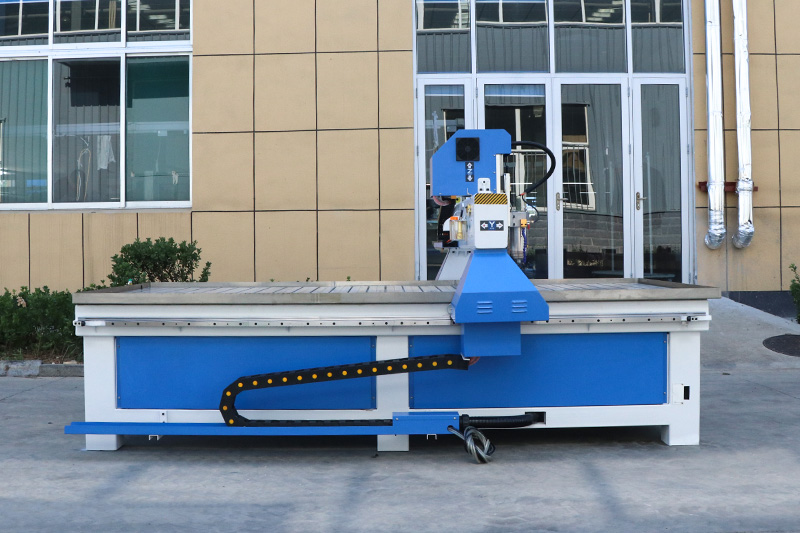

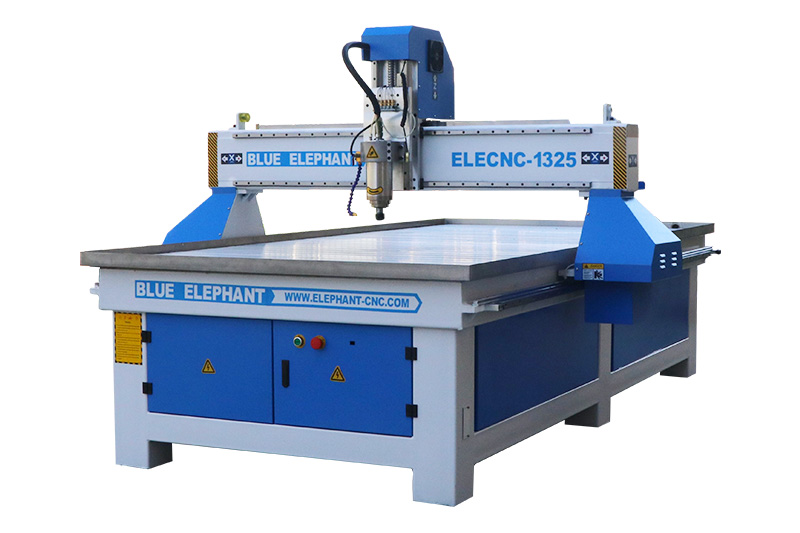

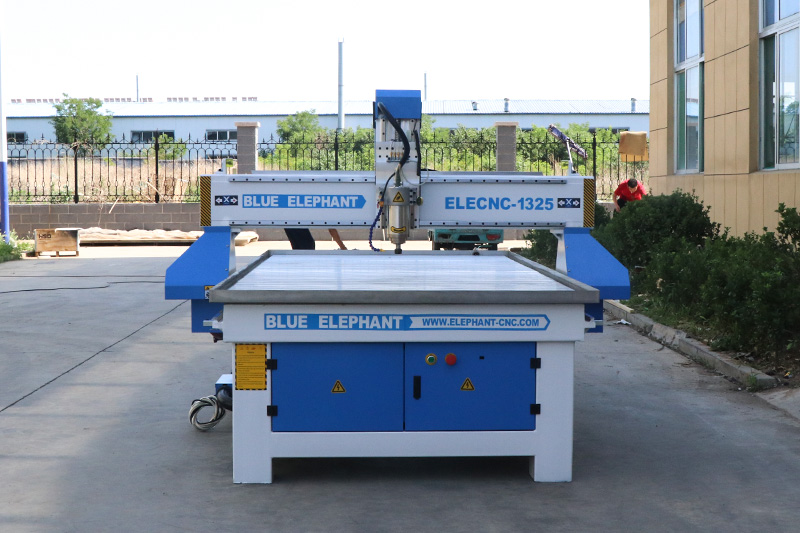

This 3 axis 1325 wood router machine is also a classical type wood engraving machine among the users, and mainly used for some simple processing on the wooden furniture. It can realize the engraving process on most non-metal materials.
1. Equipped with the Mach3 control system, it is easy and continent to operate and use.
2. With the thicker and bigger welded steel tube frame, it is also suitable for engraving stone and hard work piece.
3. Adopting Leadshine motor and driver, it can achieve fast and stable processing of the machine.
4. With Changsheng water cooling spindle, it has the features of low noise, good cooling effect, long service life, etc.
| Model | ELECNC1325 3 Axis |
| X,Y axis travel | 1300x2500mm, option:1500*3000mm;2000*3000mm;2100*4000mm,etc |
| Z axis travel | 200mm, option:300mm |
| Spindle type | 3kw water cooling spindle, ER20 |
| Inverter type | 3.7kw Fuling inverter |
| Control system | Mach3 control system |
| Driving system | Stepper 450B and Leadshine 860H drivers |
| Machine structure | Heavy duty welded steel frame |
| Work table | Aluminum T-slot working table with water sink |
| Cooling system | Water cooling spray |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Manual lubrication system |
| Tool Calibration | Manual tool sensor |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible Software | Artcam, Aspire,etc |
| Command Language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.05mm |
| Working Accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Working table | Vacuum working table |
| Vacuum pump |
|
| Dust collect system |
|
| Protection device | Light curtain |
| Spindle type | Water/air cooling spindle 4.5kw, 5.5kw, 6kw, etc |
| Rotary device | Diameter 100mm, 200mm, etc |
Click for details

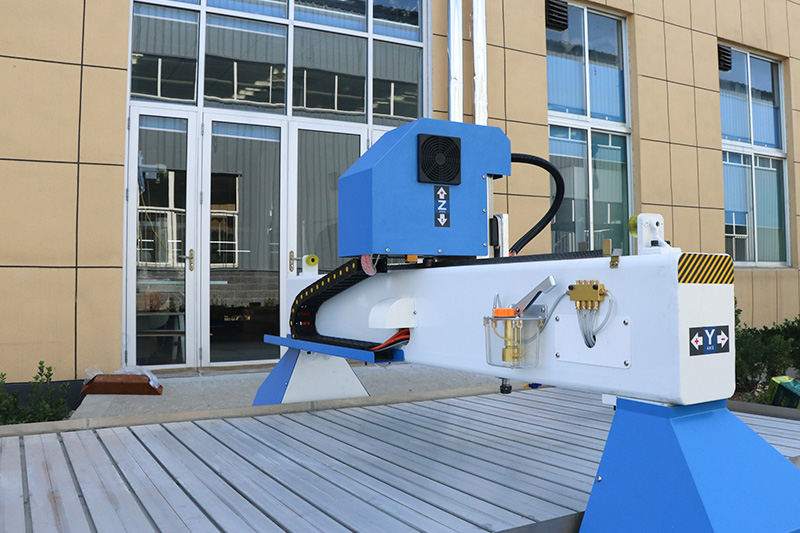

Manual Lubrication System

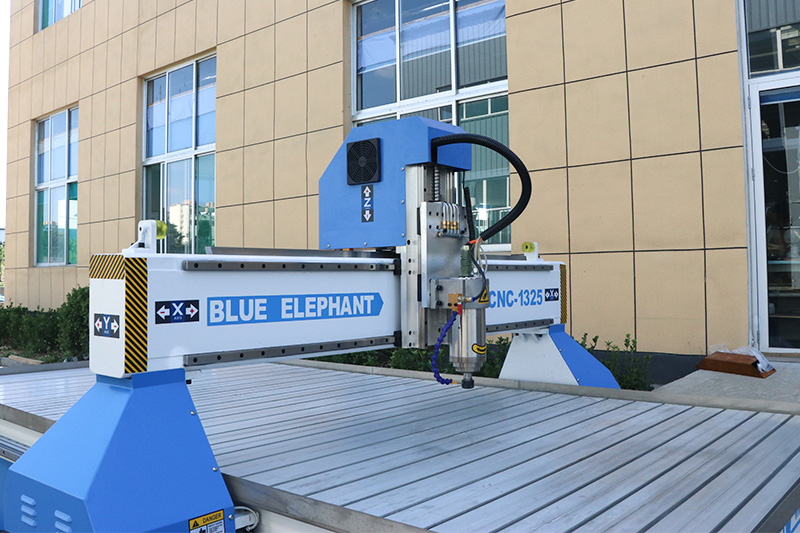

Water Cooling Spindle

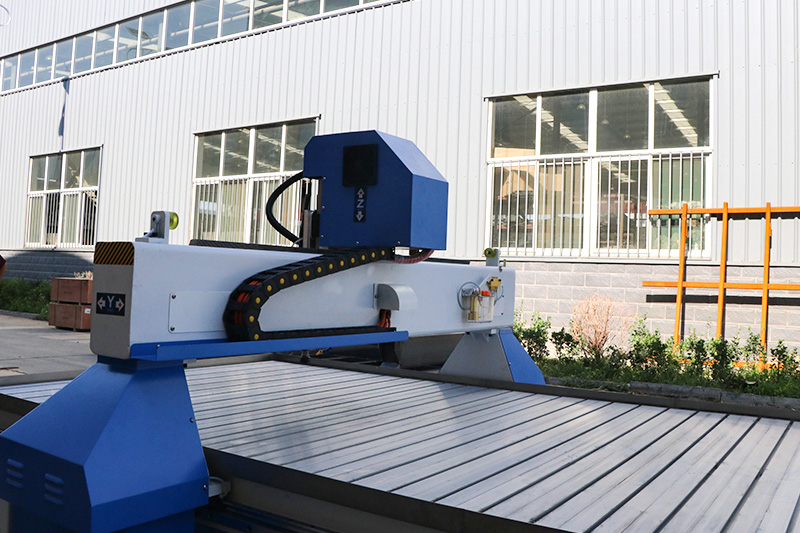

Aluminum T-slot Working Table

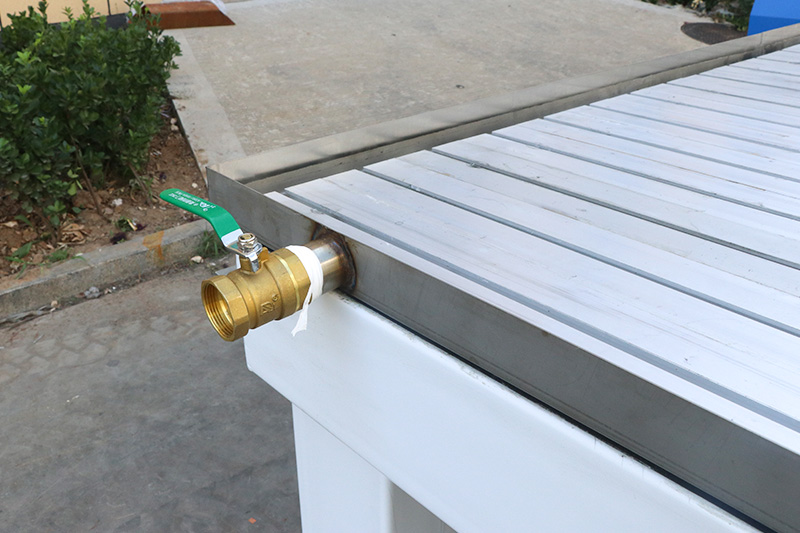

Water Valve
Click for solution
Click for quotation
