4*8ft 3 Axis Wood Router

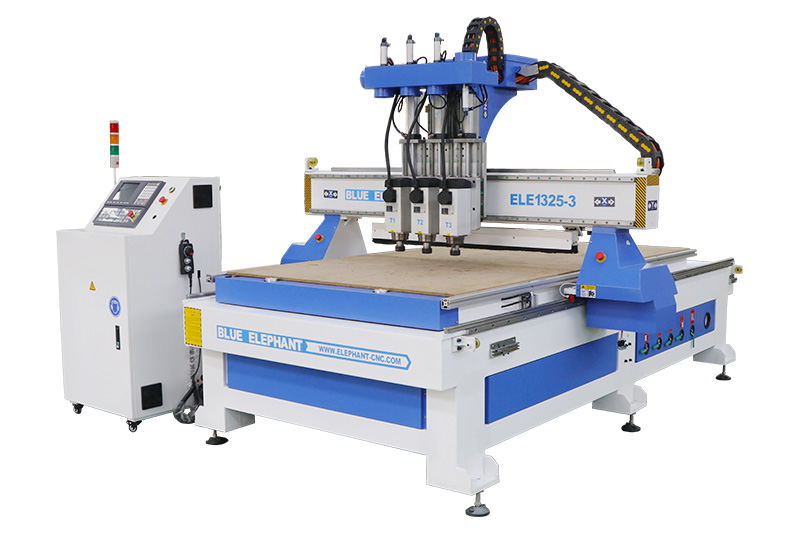

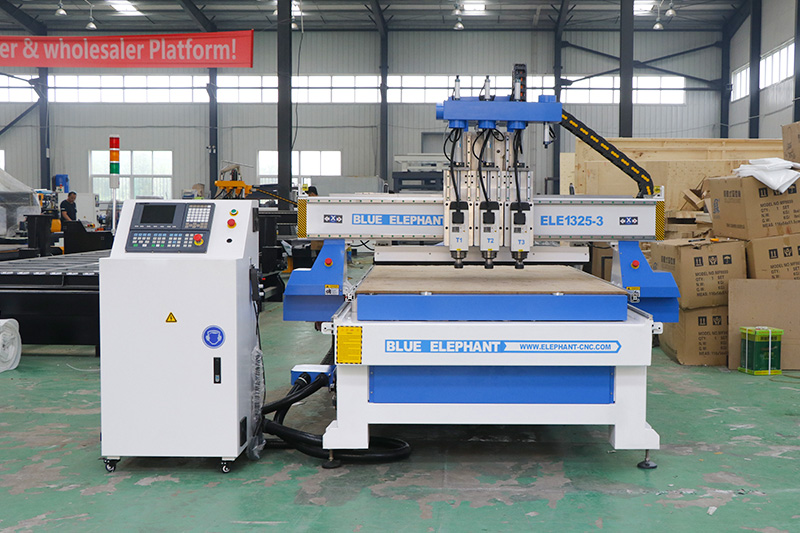

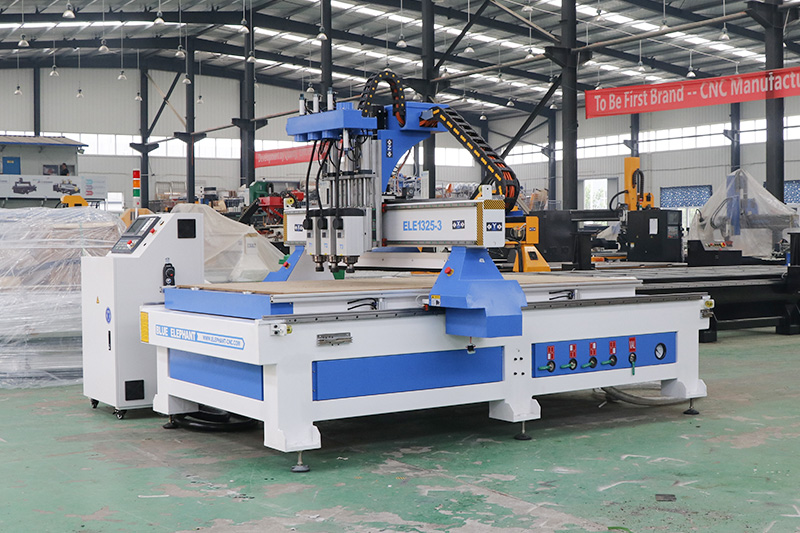

1325 Three Spindles CNC Router
This is one of the typical multi-spindle CNC router with three air cooling spindles and the account of spindle can be customized according your requirements. This type of multi-spindle engraving machine is designed for users with large production volumes.
1. There are three spindles which can hold 3 different functions tools.
2. Three spindles can work one by one. It is one of the economical ATC CNC machines.
3. With the vacuum working table, it can fix wood board and other materials very well.
| Model | ELECNC1325-3S |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 6kw HQD Air Cooling Spindle*3 |
| Inverter type | 7.5kw Fuling Inverter |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30,ER32 collet:φ4,φ6,1/8,1/2 |
| Control system | DSP controller |
| Driving system | 750W Leadshine servo motor & driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T-slot & vacuum work table option：aluminum working table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | The Tool Auto Checking Instrument |
| Cables | Germany Igus cables with CE certificate |
| Compatible software | Artcam Aspire software |
| Command language | G Code |
| Traveling speed | 20m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.02mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.1mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | air compressor |
| Protection device | Light curtain |
| Spindle | 3.5kw HQD Air Cooling Spindle |
Click for details

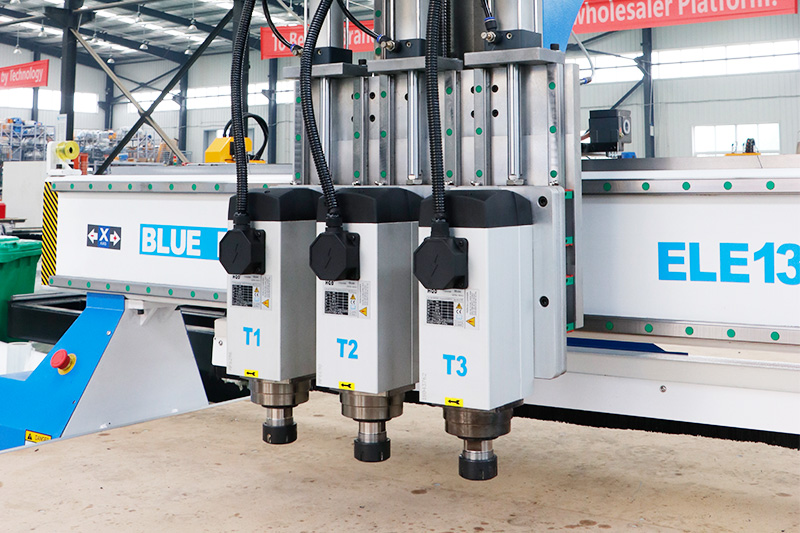

Air Cooling Spindles
Linear Guide

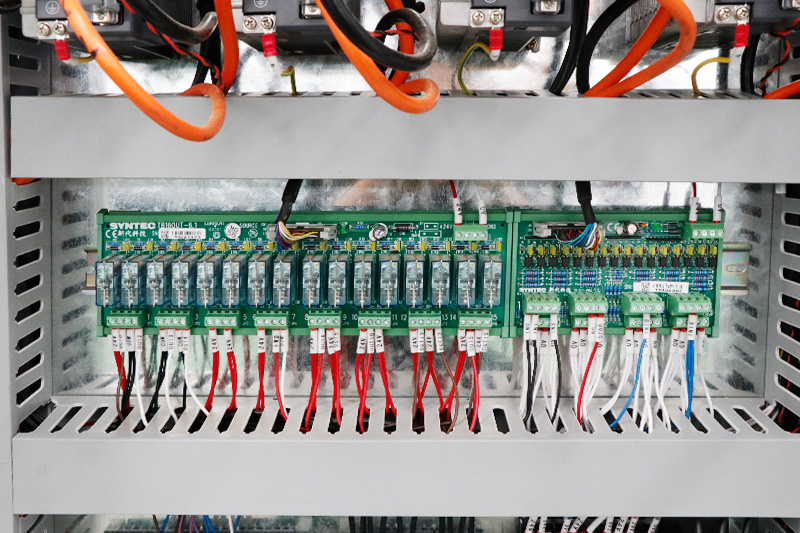

Electrical Components

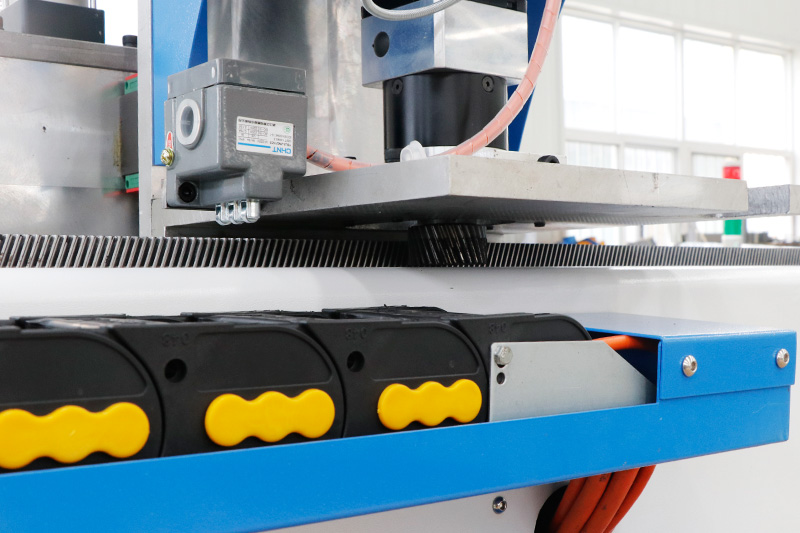

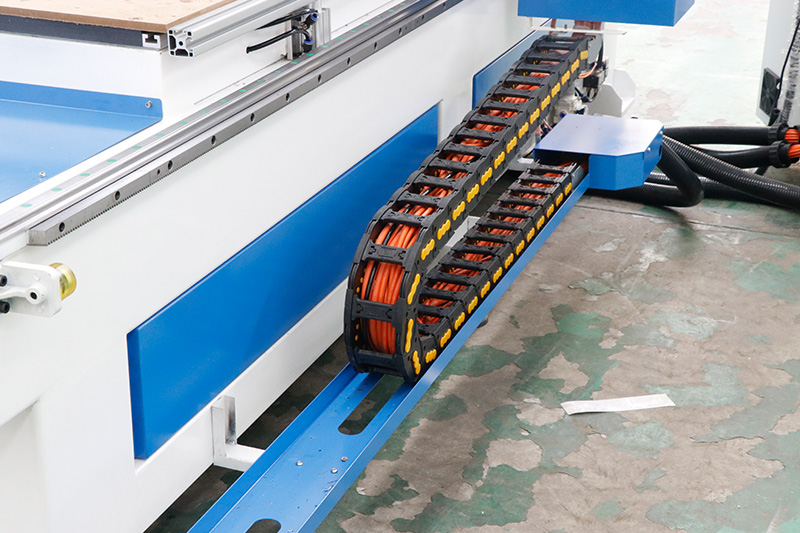

Towline
