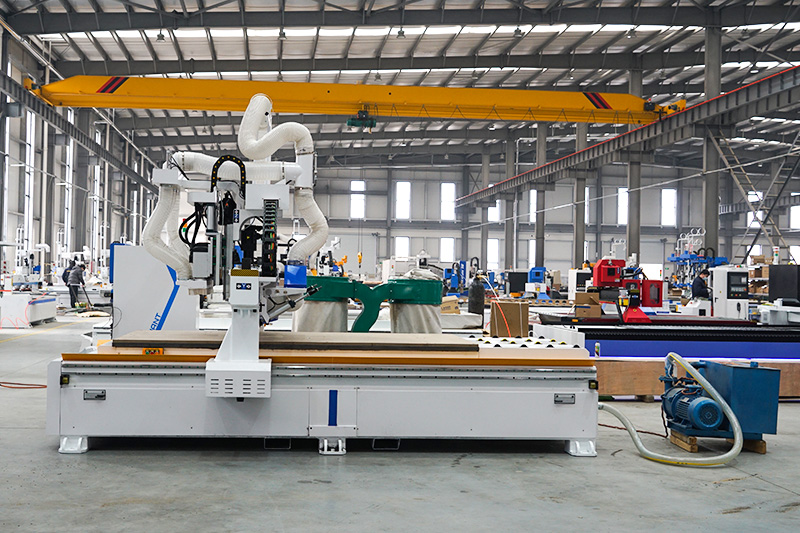

4 Spindle CNC Nesting Machine

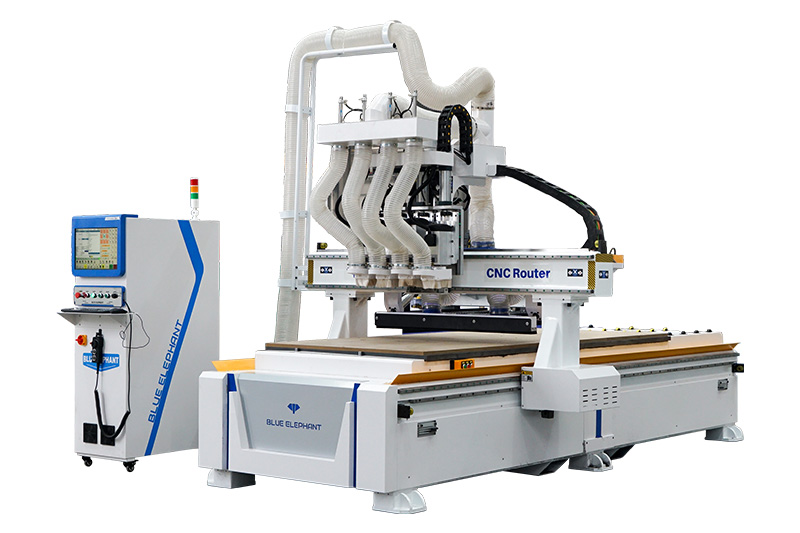

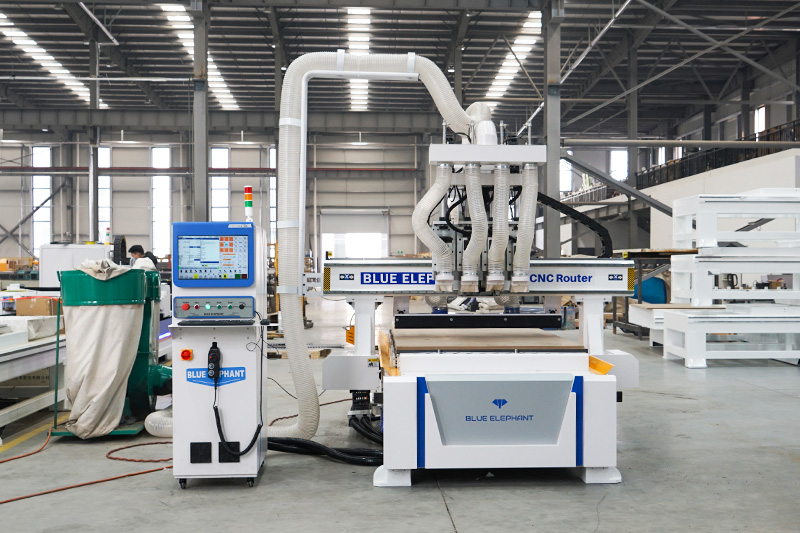

Popular 1325-4S CNC Router for Wood
This is a newly designed 4 head CNC router with 4×8ft worktable, which better meets the requirements of users. With the advantages of high cost performance, low cost and high production efficiency, this type of multi spindle CNC router is deeply loved by users at home and abroad.
1. The normal frame is not easily deformed to ensure stability during high-speed operation, and it has the features of low inertia and no distortion.
2. Assembled with Taiwan linear square guide rail and doubt-nuts anti-gap rod ball screw, it can ensure high accuracy, low noise, and long life service.
3. Adopting two 4.5KW air cooling spindles and 2 6KW air cooling spindles. 6KW spindles for cutting boards, while 4.5kw spindles for CNC engraving or drilling.
4. Small rack gap and high precision.
| Model | ELECNC1325-4S |
| X,Y axis travel | 1300x2500mm, option:1500*3000mm;2000*3000mm;2000*4000mm,etc |
| Z axis travel | 200mm, option:300mm,400mm,500mm,600mm,etc |
| Spindle type | 4.5kw HQD air cooling spindle×2set, 18000RPM 6kw HQD air cooling spindle×2set, 18000RPM |
| Inverter type | 7.5kw Taiwan DELTA |
| Control system | Taiwan LNC 2200 controller, with screen, mouse, keyboard, handwheel |
| Driving system | 850W Leadshine servo motors and drivers |
| Reducer | Japanese SHIMPO reducer |
| Machine structure | Heavy duty body more thicker and stronger |
| Work table | Vacuum work table |
| Positioning cylinder | X axis 2pcs; Y axis 3pcs |
| Linear guide | Taiwan Linear guide 25# |
| Transmission | X, Y axis: Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible software | Artcam,Alphcam,Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.05mm |
| Working accuracy | ±0.05mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump | 7.5kw water cooling vacuum pump 5.5kw Tongyou vacuum pump/ 7.5kw Tongyou vacuum pump |
| Dust collect system | 5.5kw etc,including dust hood, pipe, all full set |
| Air Compressor | 7.5kw Air compressor |
| Spindle type | Italian HSD 4.5KW, 6KW |
Click for details

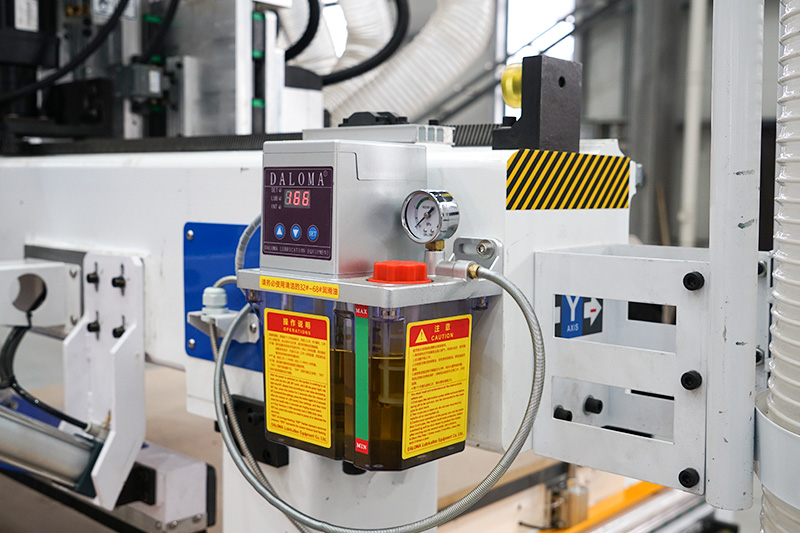

Lubrication

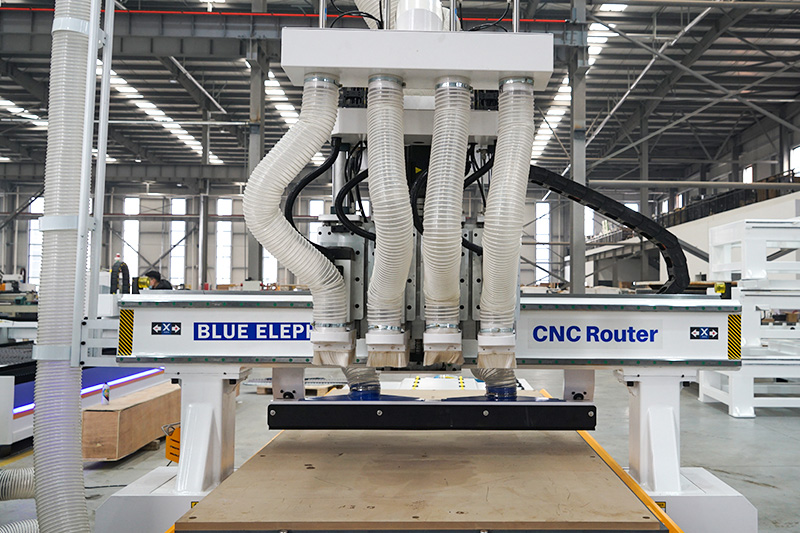

Spindles

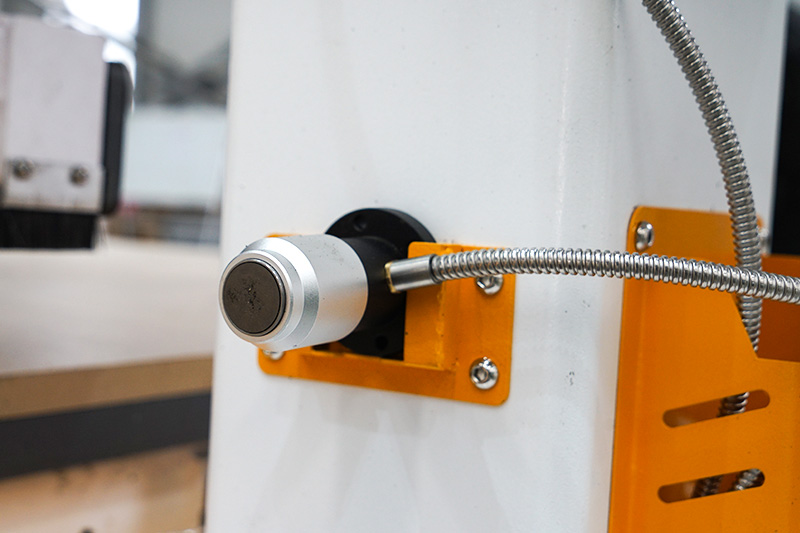

Tool sensor

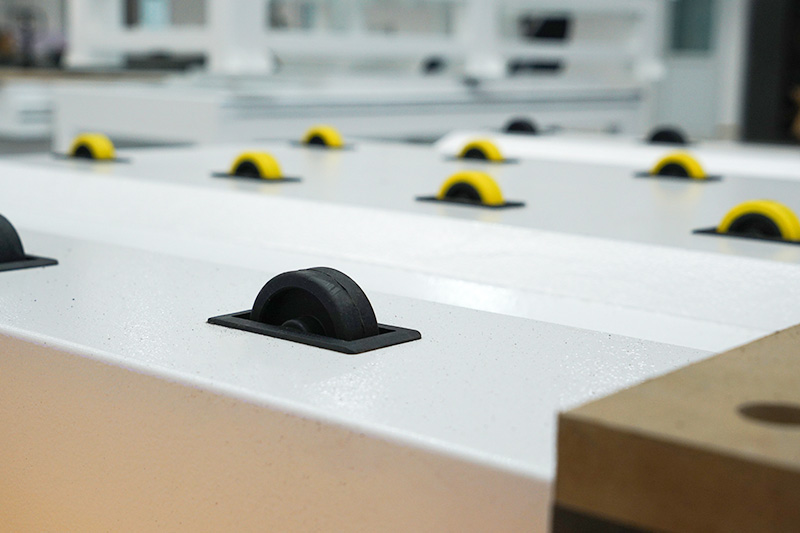

Loading rollers
