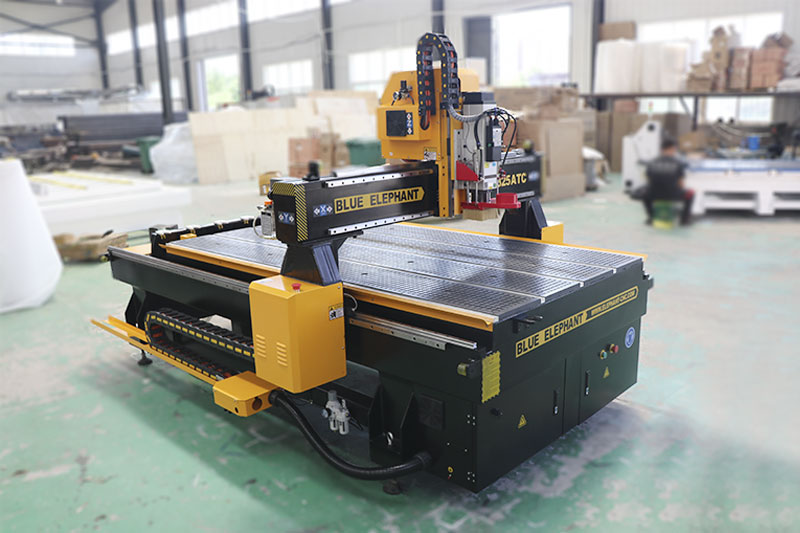

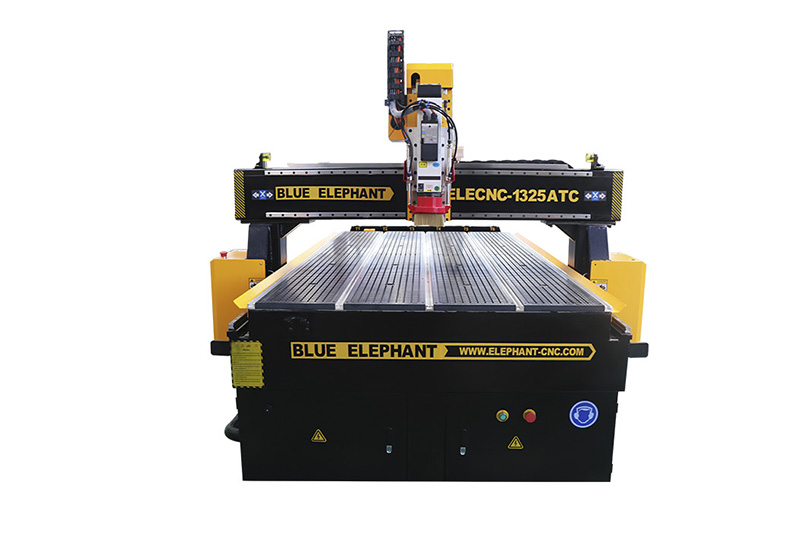

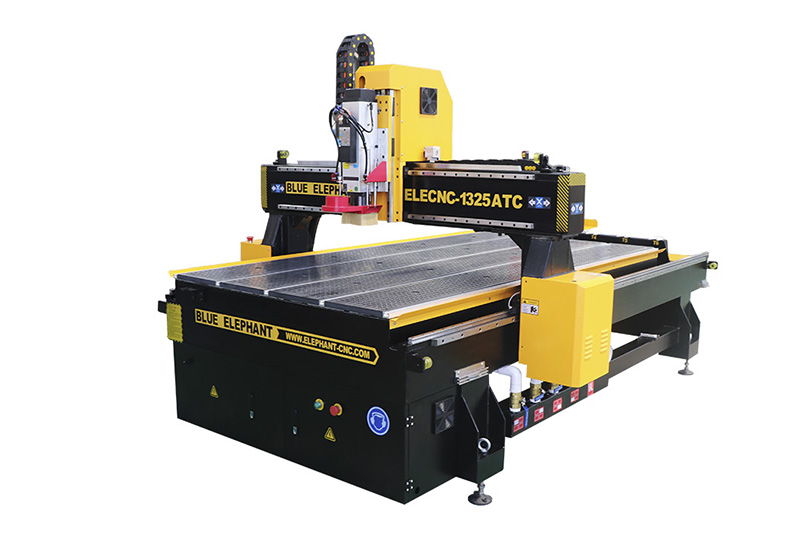

ATC CNC router for beginner has a popular 4*8 CNC router table. A simple structure of the built-in control box saves money and space. With the help of NK105 handle, every one masters the skills in a short time. This is a best cnc machine for heavy-duty woodworking, plywood cutting for beginner start business or small shop in less cost.
1. Linear auto tool changer, affordable choice for CNC beginner.
2. Built-in control box takes less space and easy to operate; NK105 handle, the simple and convenient operation device, CNC beginners love it.
3. Servo motor and driver ensures traveling stable and high speed.
4. Quality spare parts and kits, Automatic Oil Lubrication System keeps the machine running well.
| Model | ELECNC1325ATC |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, 18000rpm, ER32 collets |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Linear tool magazine Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | NK105 G3 handle controller, option: Taiwan LNC controller/Taiwan SYNTEC controller |
| Driving system | 850w Leadshine AC servo option: Delta servo |
| Reducer | Optional |
| Machine structure | Heavy duty body |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Linear guide | Taiwan original linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Auto tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC air cooling spindle (HSK F63), etc. |
Click for details

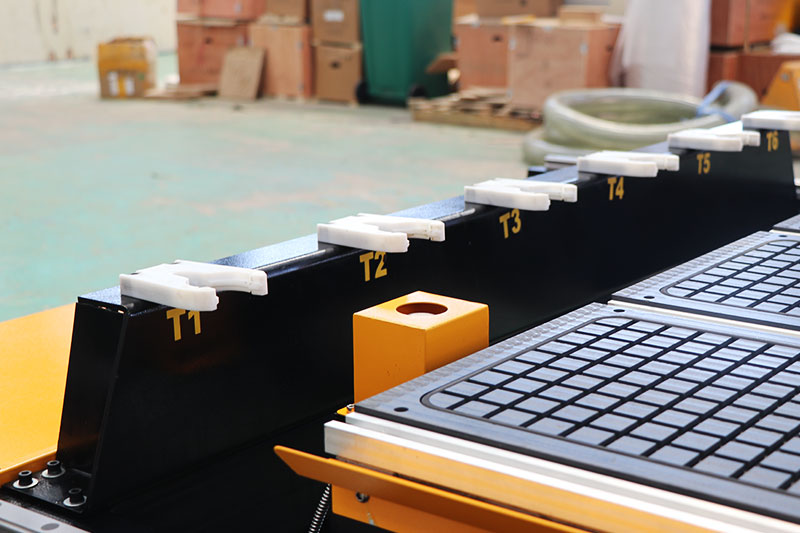

Tool Magazine

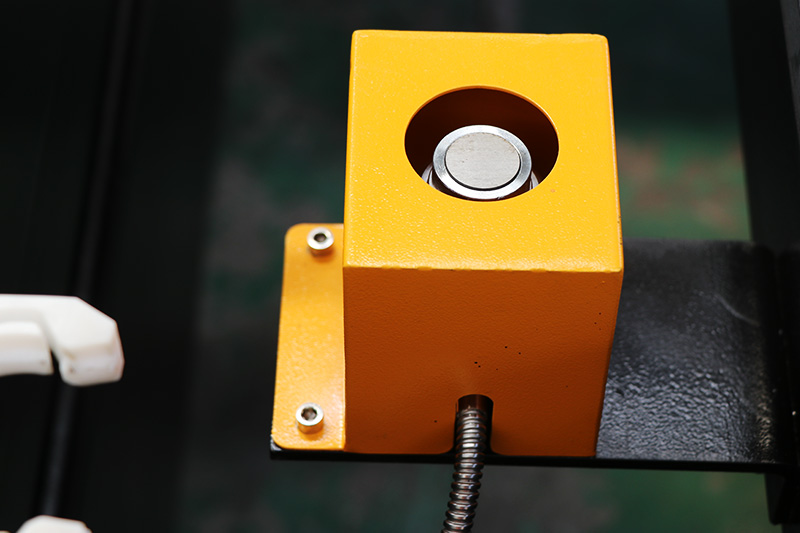

Tool sensor
Motor

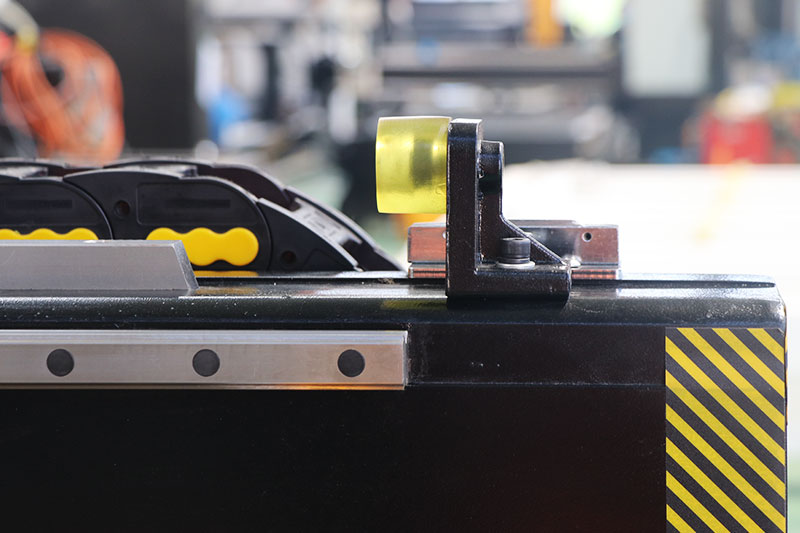

Limit
Click for solution
Click for quotation
I have used this ATC machine for two years. It is very professional for customizing furniture. I have a lot of special ideas. If you also have a lot of inspiration, you can realize it with this ATC machine!
I am very happy with the machine, I am impressed with quality, materials and operation. I checked the position repeatability and found it to be within 0.0005" that is impressive for a wood cutting machine.
Machine arrived. Haven't had any disasters yet. I have worked on CNC many years ago so knew the basics and I bought some good design software, Vectric Vcarve Pro, which helps a lot. If you need a reference for anyone contemplating buying one of your machines, please let me know. I'm more than happy to this.
Machine arrived yesterday. I tried some simple programs. Machine works great. I am satisfying. I use it every day for all types of work. I cut steel too.
