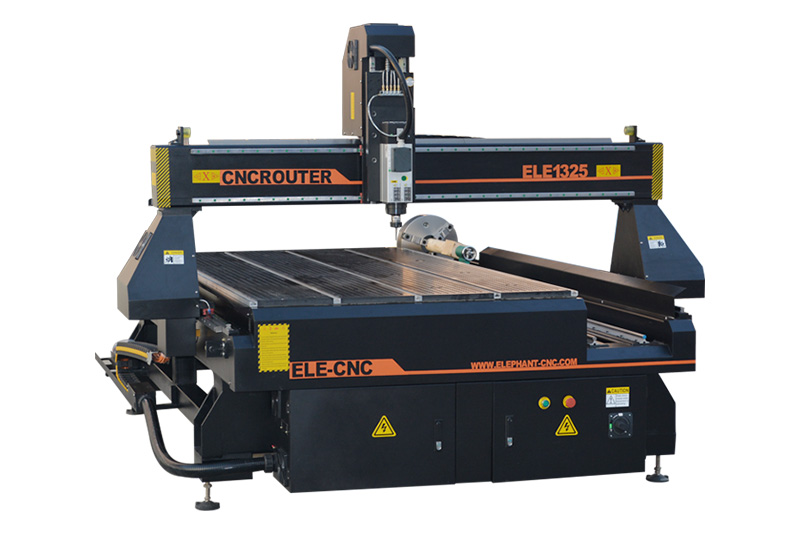

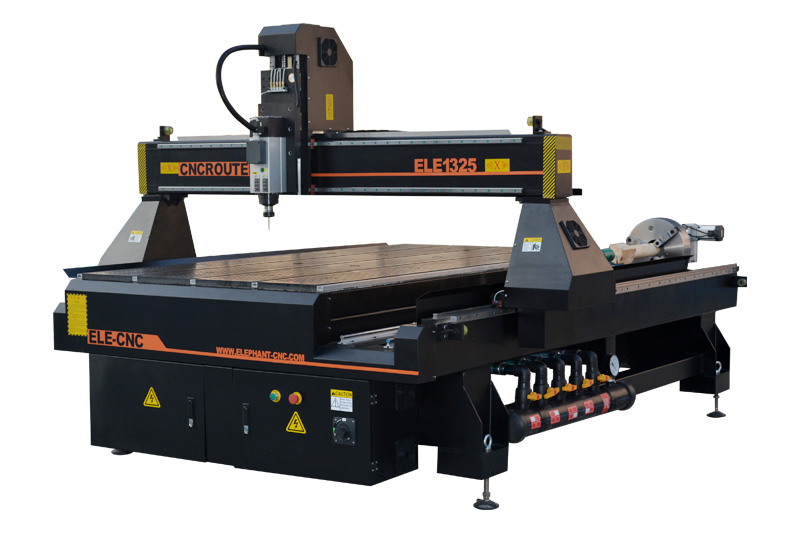

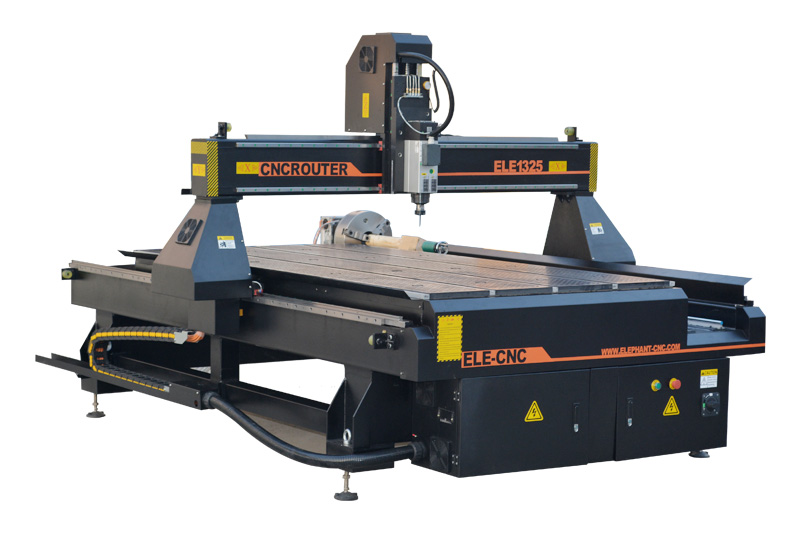

4*8ft CNC Rotary Machine

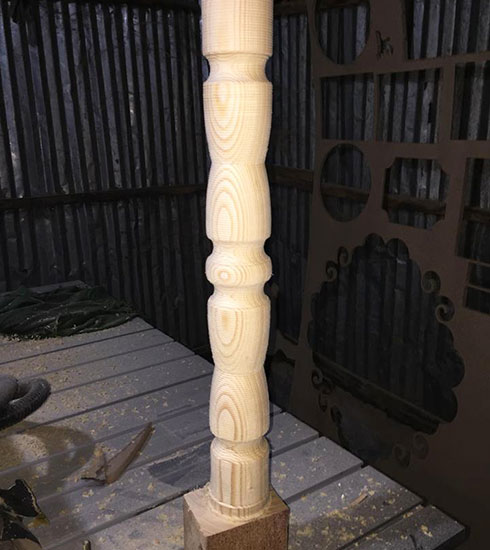

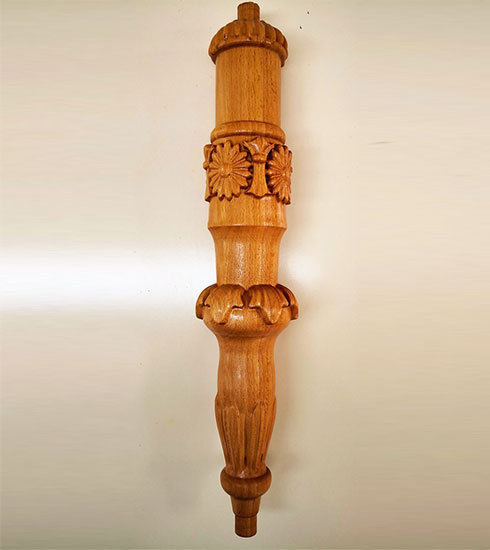

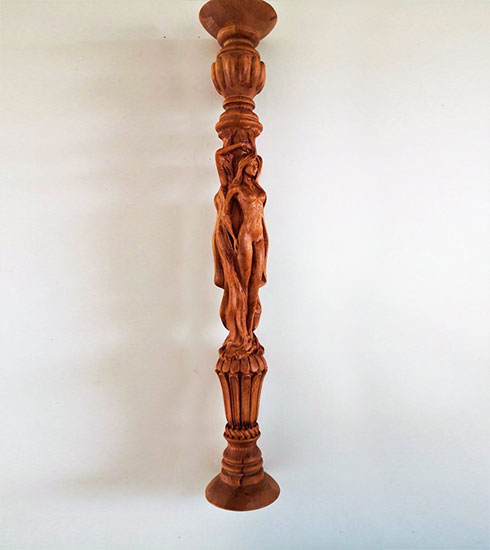

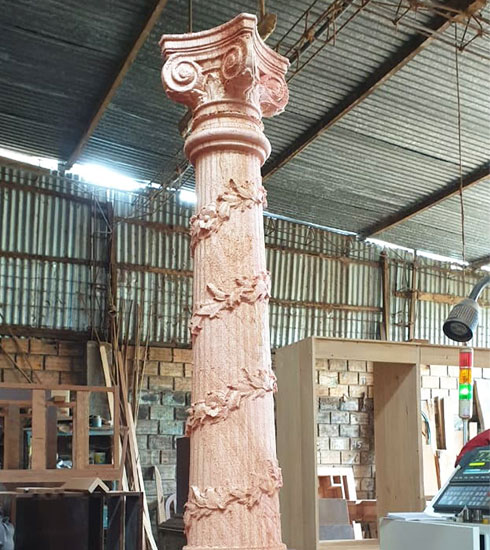

This CNC wood rotary 4th axis CNC machine is specially designed for processing cylindrical workpieces. And if you want to do more complex processing, this rotary machine will be your better choice.
1. Designed with rotary device, and the diameter and length of rotary device can be made according to your requirements.
2. Adopting Japan YASKAWA servo motor drive system, it has the features of high precision, fast and stable performance.
3. Equipped with Italy HSD air cooling spindle, and the speed can reach 18000RPM.
4. Manufactured with welded structure by thick profiled steel, it
makes the machine run stably.
| Model | ELECNC1325-R |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3KW air cooling spindle, ER25 |
| Inverter type | 3.7kw |
| Tool holder with collet | ER25 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Mach 3 |
| Driving system | 750W Japan YASKAWA servo motor and driver, 5 sets. |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump | Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system | 3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type |
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5KW, 6KW spindles |
Click for details

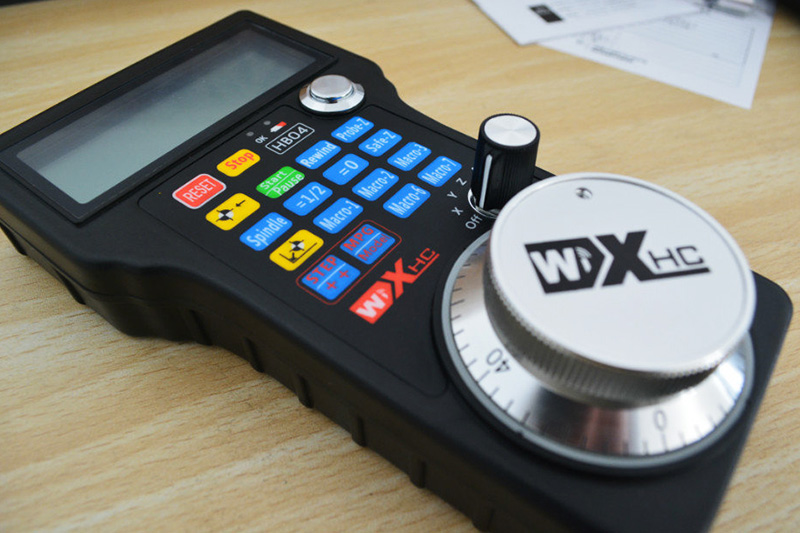

Handle

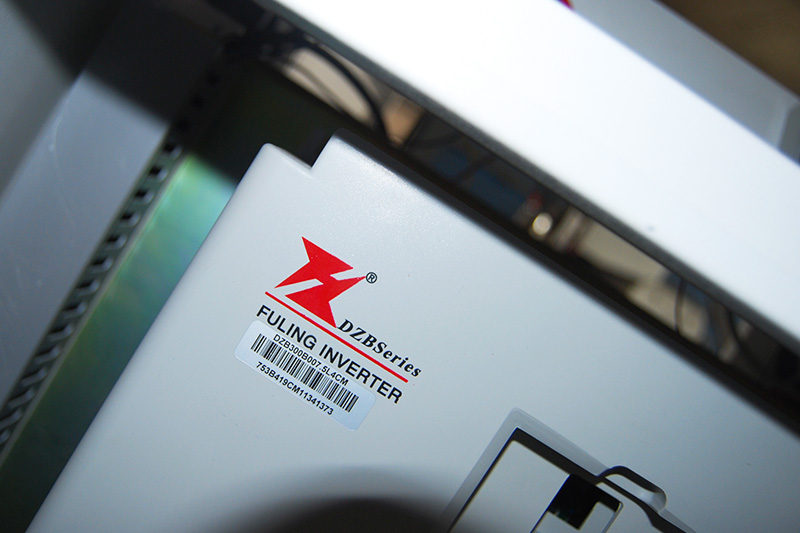

Fuling Inverter

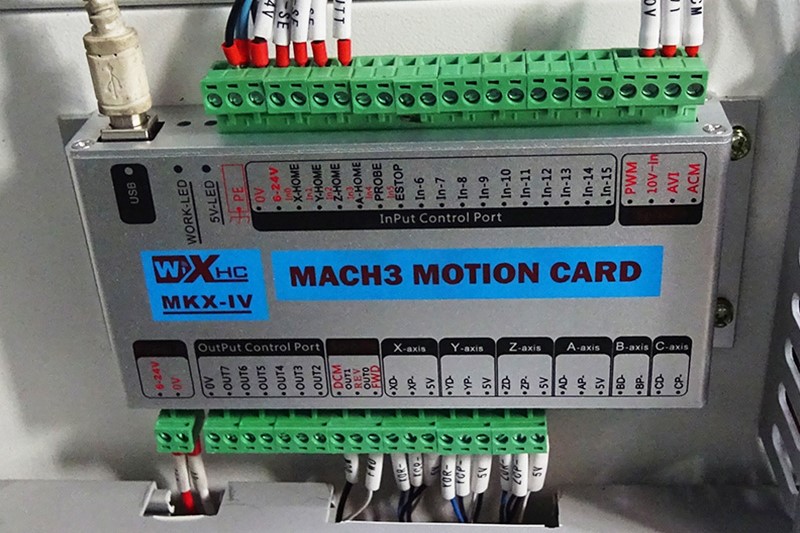

Mach3 Motion Card

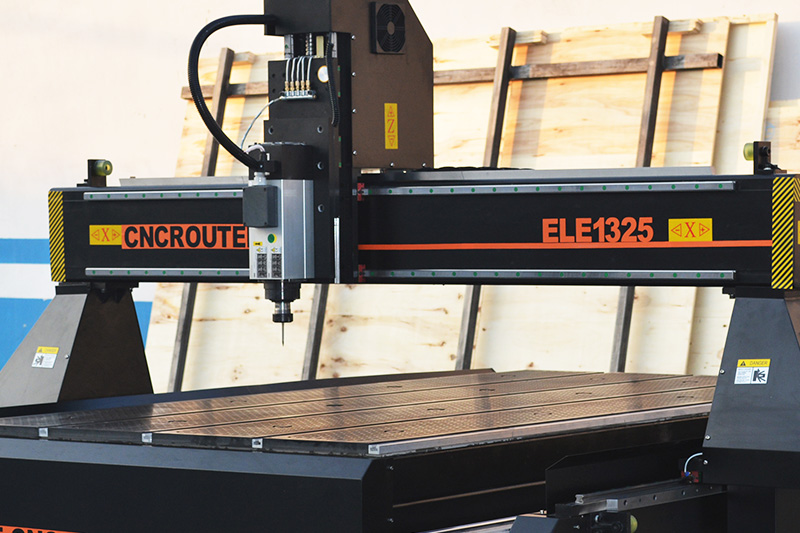

Air Cooling Spindle
