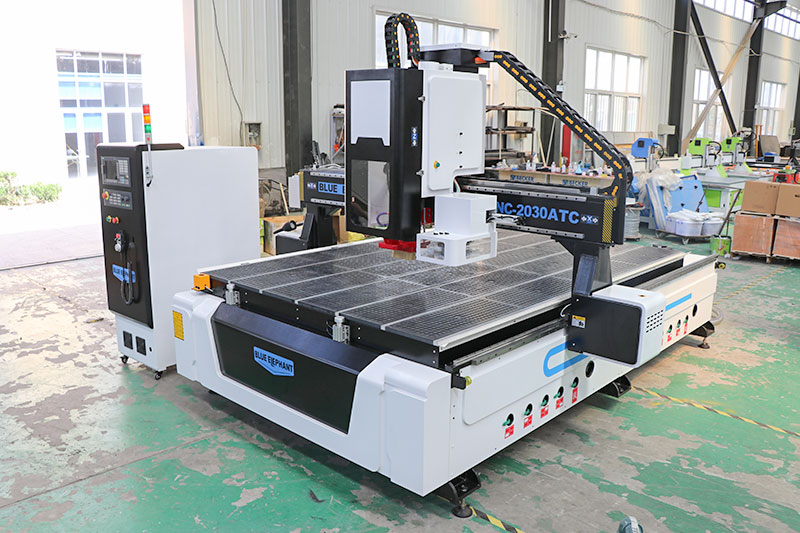

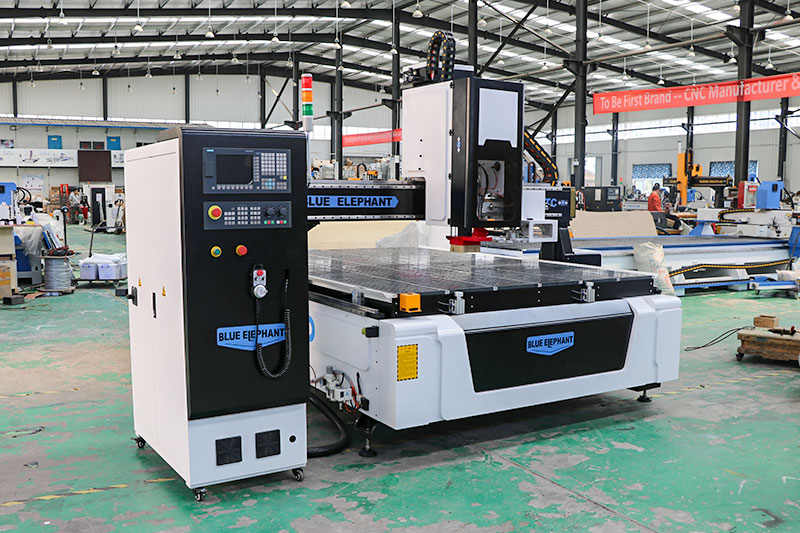

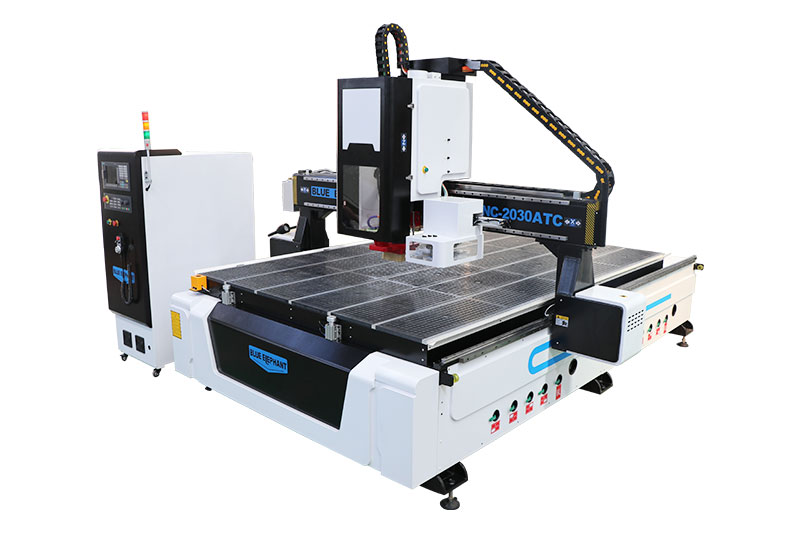

2030 ATC CNC Router for Wood
Laser Head 1325 ATC CNC Router
It is an ATC CNC router for heavy-duty woodworking. First, the automatic tool changer saves time of shifting tool. So no man needed during working, which fits for complex process and long time woodworking. Second, the strong steel frame and servo motor enhance rail guide and meet the need for a long time heavy duty works.
1. Heavy-duty frame and gantry ensure the processing precision;
2. Carousel automatic tool change magazine with 8 tools can change a bit within 8’;
3. Global imported parts make better machine performance and longer service life;
4. With German SIMENS control system and SIEMENS servo motor, it is very popular with European clients. Besides, SIEMENS support 12 languages, such as German, English, Chinese, French, Spanish, etc.
| Model | ELECNC2030ATC |
| X,Y axis travel | 2000*3000mm |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC / LNC controller, option：Ncstudio |

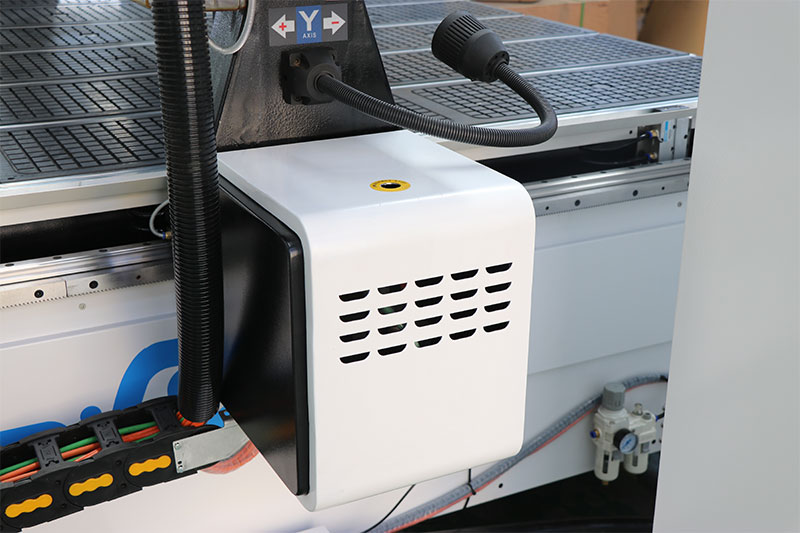

| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |

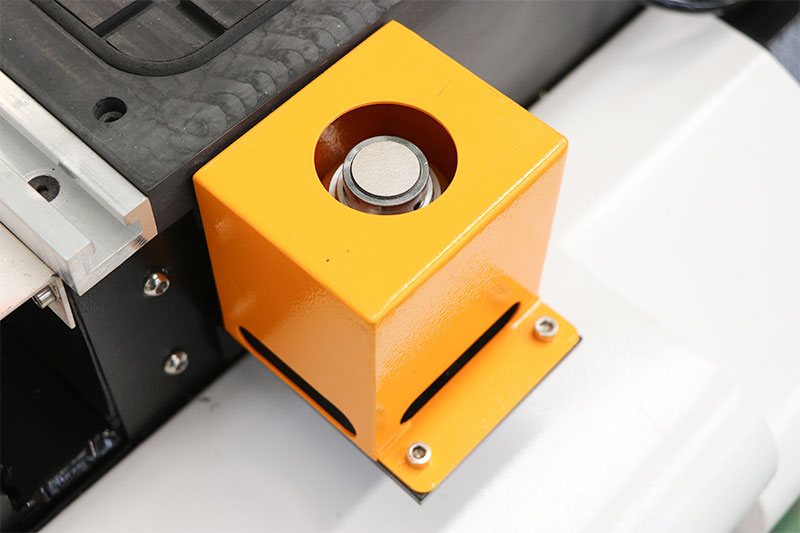

| Tool calibration | Automatic tool sensor calibration |

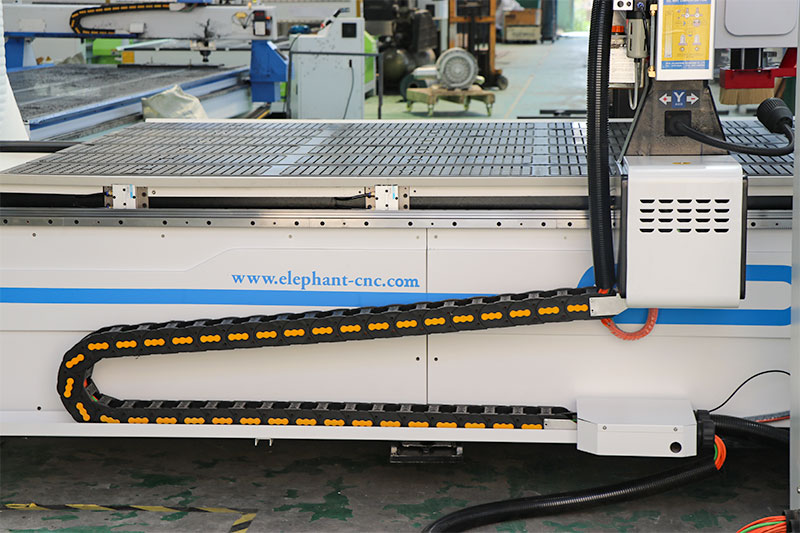

| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam,Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |

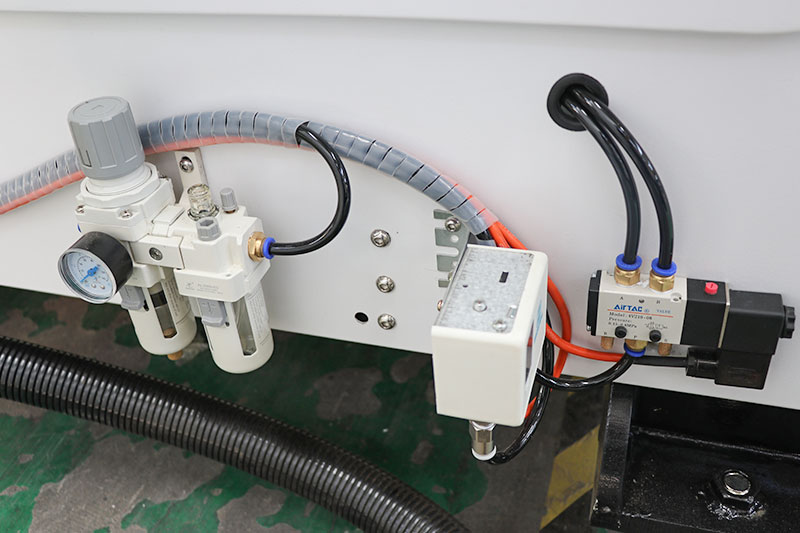

| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |
