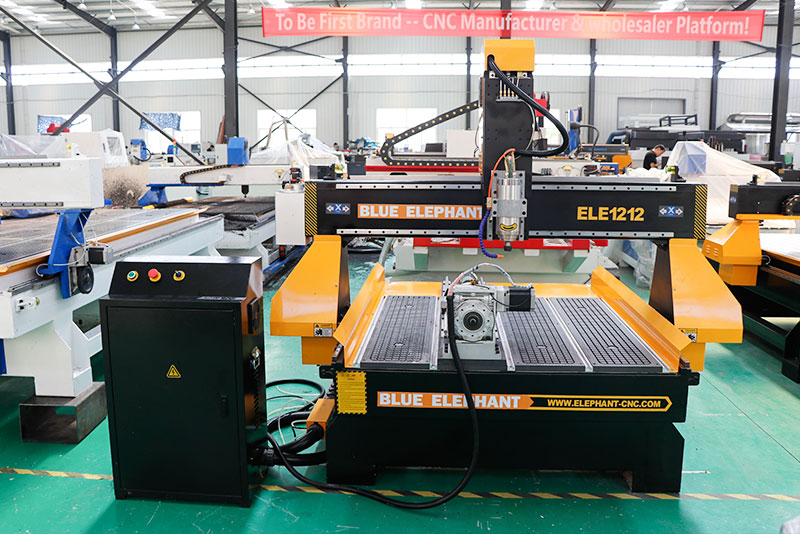

1212 Rotary Axis CNC Router
1325 Rotary Axis CNC Router

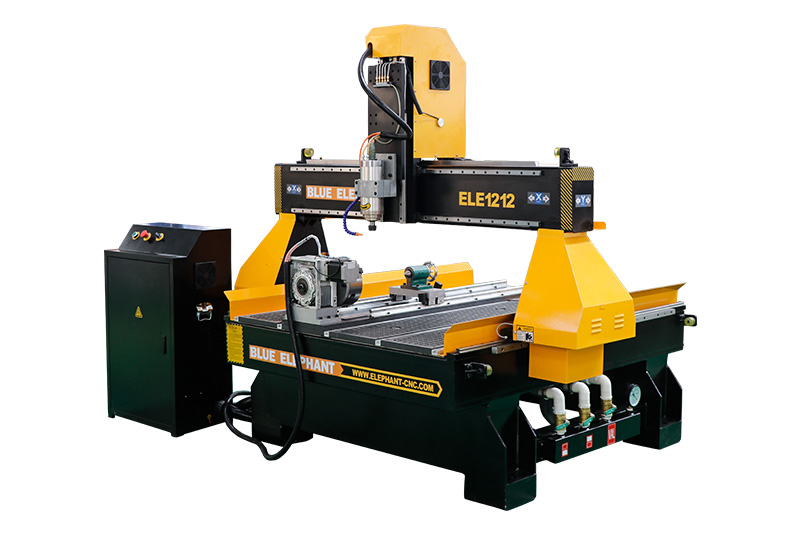

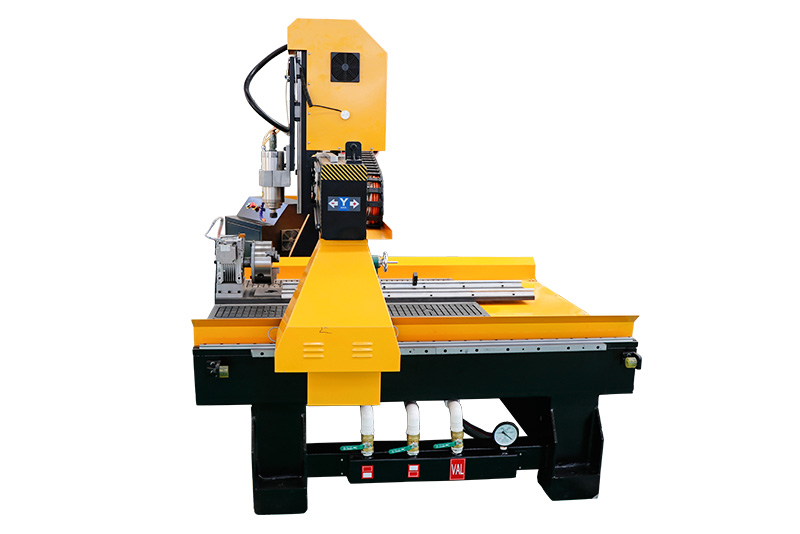

This rotary axis CNC machine is also one of 4 axis CNC router. And the rotary device, as the fourth axis of the CNC router, it can replace the X axis or Y axis for cylindrical items processing, such as chair frames, stair frames, roman columns, columns, etc.
1. The machine was designed with rotary device, which is mainly to process cylindrical workpieces, such as chair frames, stair frames, columns, posts, etc.
2. The diameter and length of rotary device can be customized and the rotary device can be removed and designed to the position you want.
3. Equipped with a 3kw Changsheng water cooling spindle, and it’s speed can reach 24000rpm for per minute.
4. The working size and the high of Z axis can be customized according to your requirements.
| Model | ELECNC1212-R |
| X,Y axis travel | 1200x1200mm, option: 1300*2500mm; 1500*3000mm; 2000*4000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, etc. |
| Spindle type | 3kw water cooling spindle, ER20 |
| Inverter type | 3.7kw |
| Rotary device | 200mm diameter rotary device |
| Tool magazine | No tool magazine Option: Linear or carousel type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Mach 3 4 axis, option: DSP B18 |
| Driving system | Stepper motor and leadshine driver option: 850w Japan Yaskawa servo |
| Reducer | No reducer Option: Japan shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot& vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
Click for details

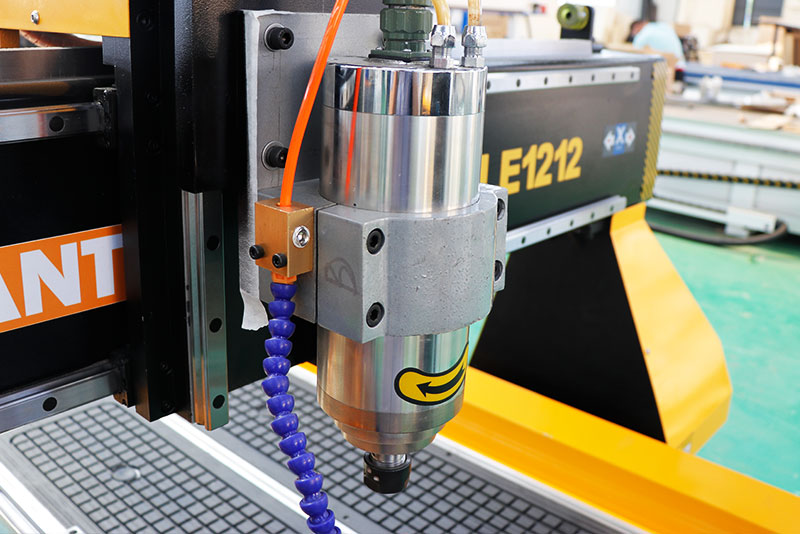

Spindle

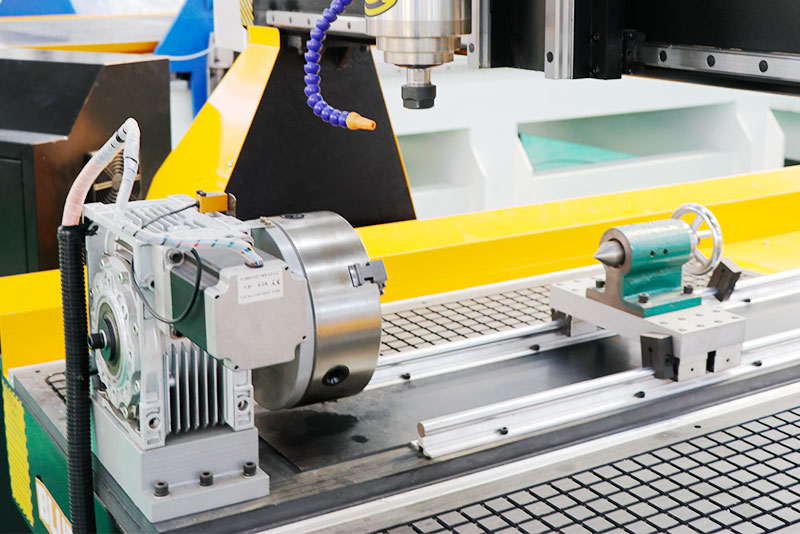

Rotary Device

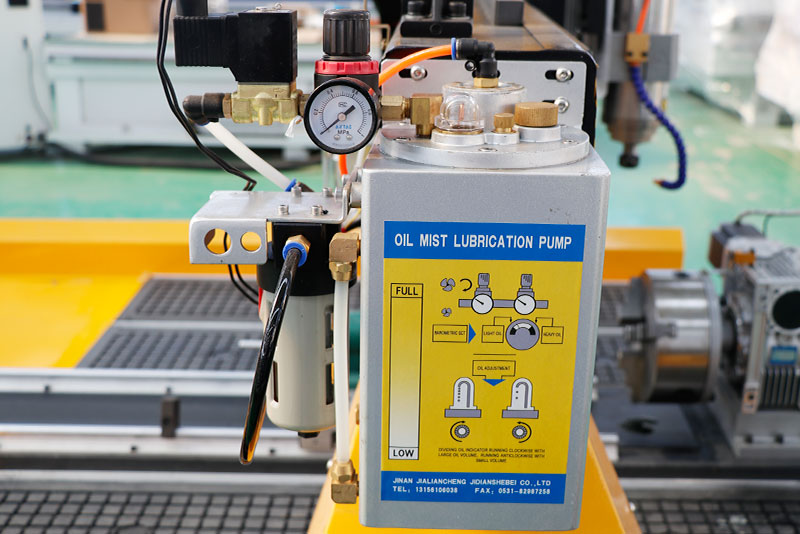

Lubrication pump

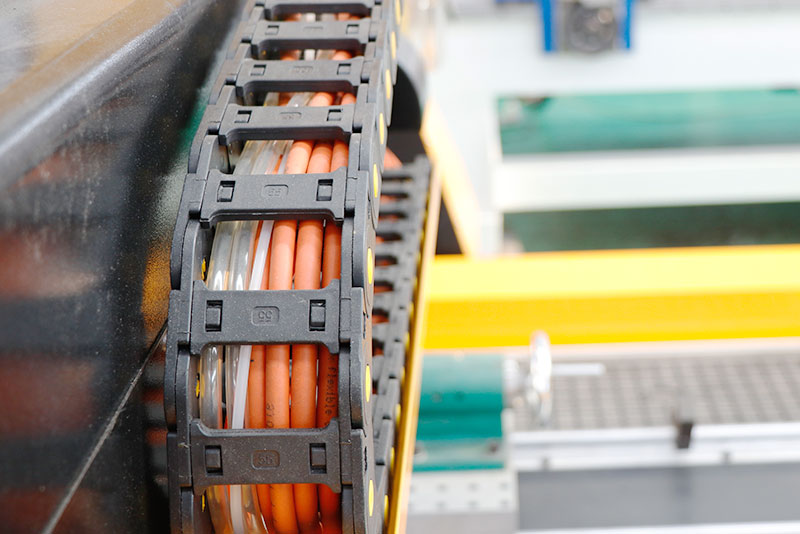

Towline
