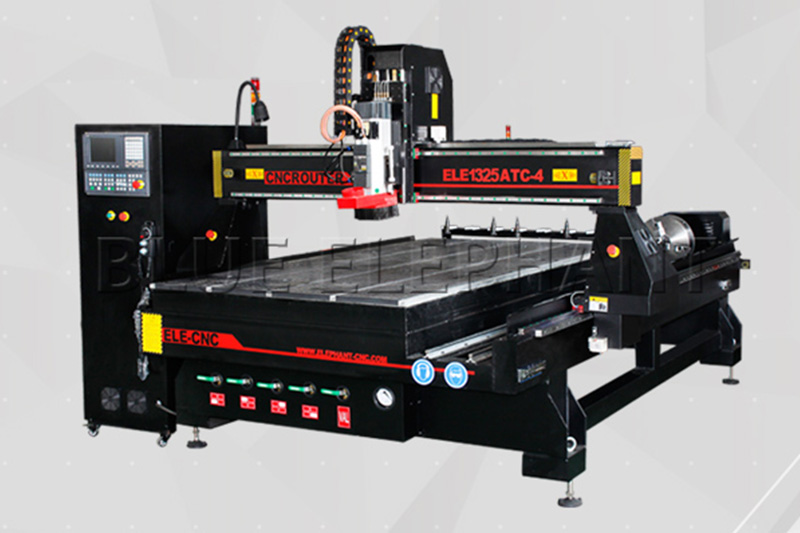

4x8 ATC CNC router with rotary device is different from 3 axis CNC router from two aspects. Firstly, this is an ATC CNC router. It takes less time for tools changing. Secondly, this 4x8 CNC router has a rotary device for cylinder engraving and carving. It can do more and better woodworking than that of 3 axis CNC routers.
1. High-performance machine with extraordinary value, but at a very economical price.
2. Removable rotary device: its diameter and length can be made according to your requirements.
3. The machine is equipped with Italy HSD ATC air cooling spindle, and its speed can be reached to 24000RPM.
4. Rigid vacuum table with grids and T-slots, maximize the vacuum hold-down power and also enables you to clamp the workpiece in place.
| Model | ELECNC1325ATC-R |
| X, Y axis travel | 1300*2500*300mm, option: 1500*300mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 9kw HQD ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw Fuling inverter |
| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC 60WE |
| Driving system | 1000W Japan YASKAWA AC servo driver and 850W AC servo motor, 4 sets |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Rotary device | 200mm diameter rotary device |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan 25# Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ARTCAM and Aspire |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | HSD 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
Click for details

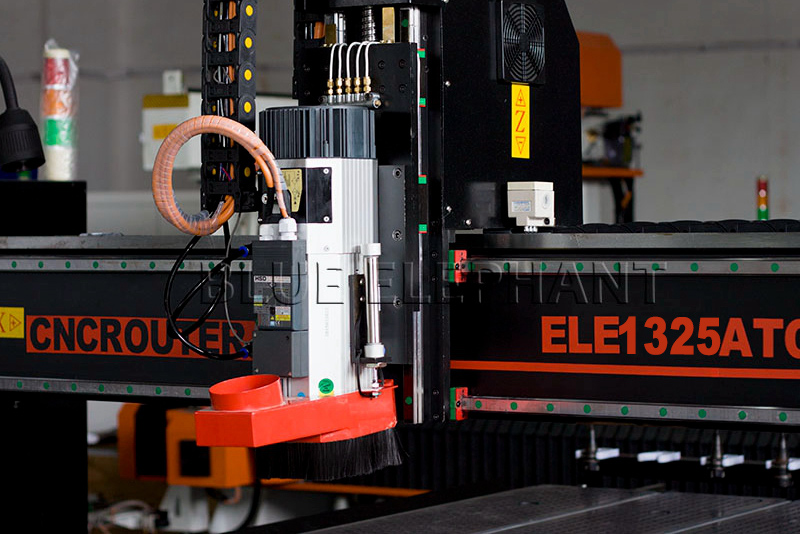

Spindle

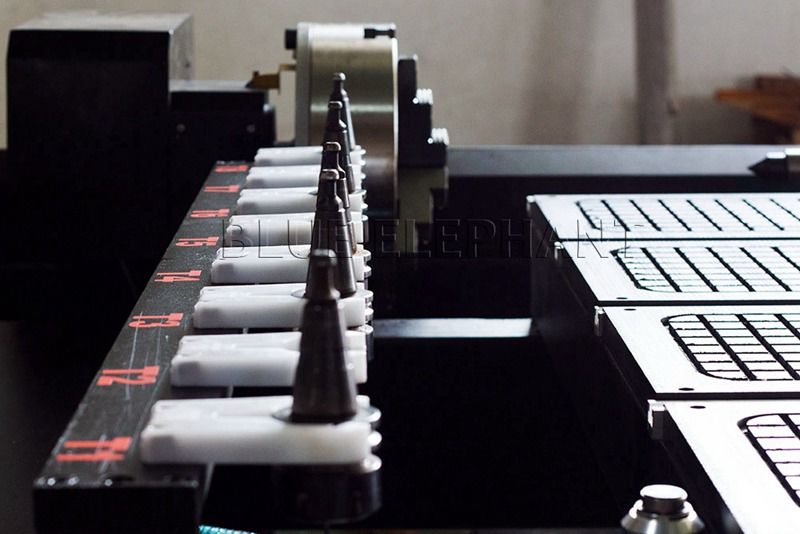

Tool magazine

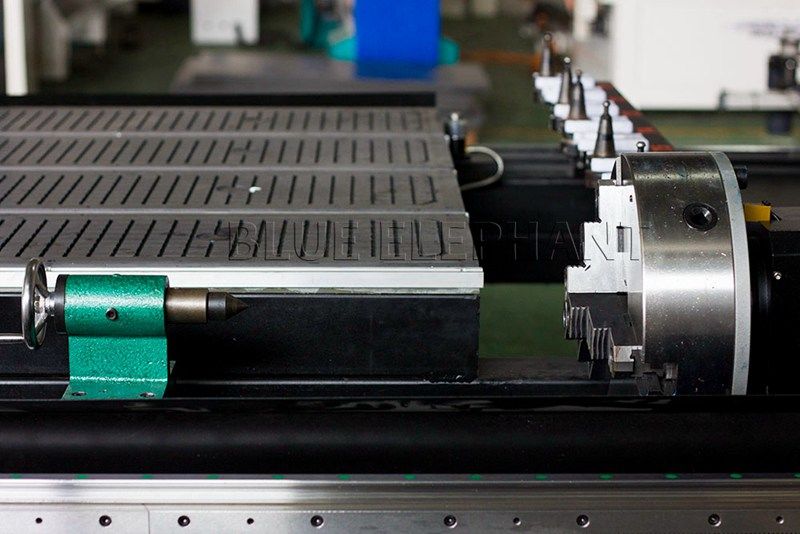

Rotary device

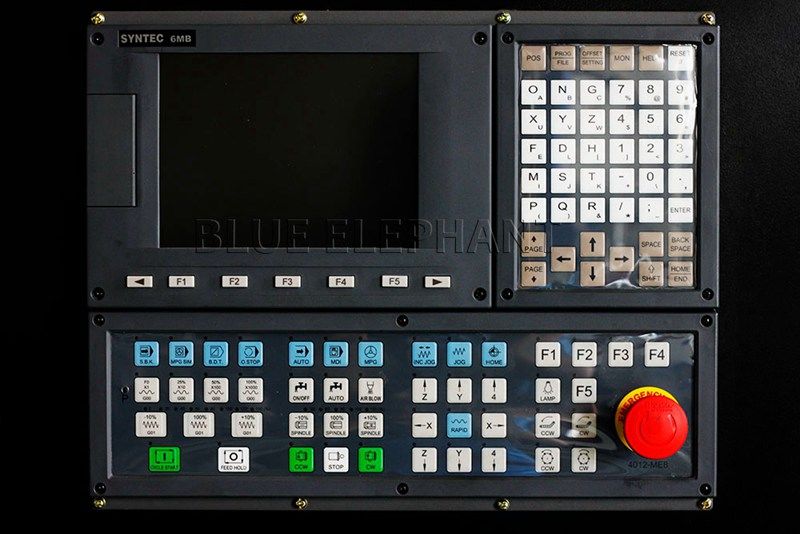

Control panel
