1325 ATC CNC with Horizontal Spindle
1328 Linear ATC CNC Router

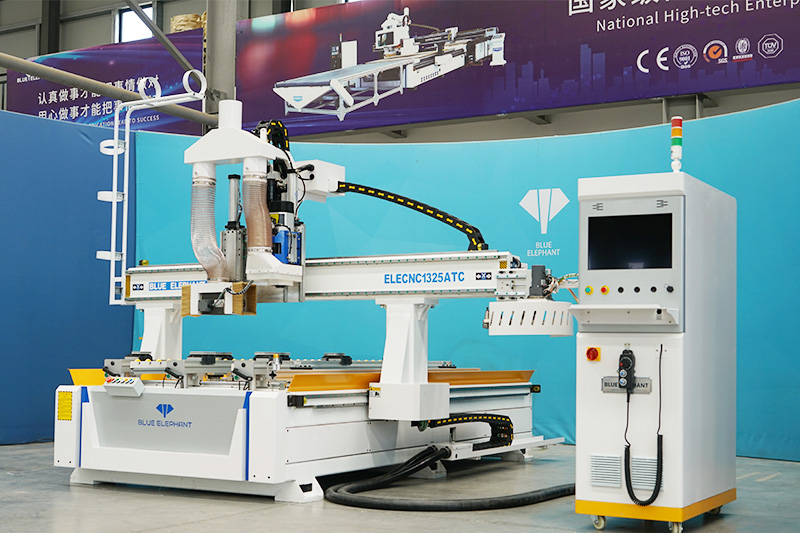

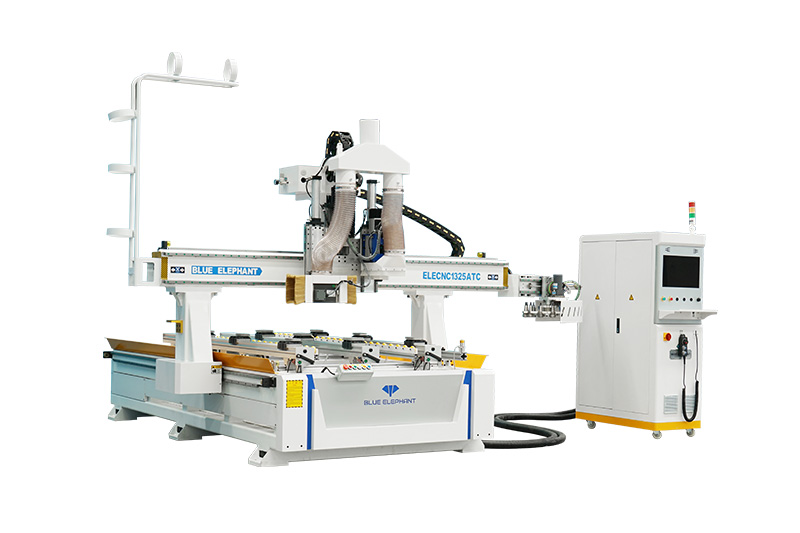

This is a multi-functional automatic tool changing CNC router for panel furniture production. The vertical spindle and horizontal spindle together can complete all the cutting, engraving, and drilling work on the top and side surfaces of the panel in one operation. This CNC router machine is good at processing the panel furniture of various sizes.

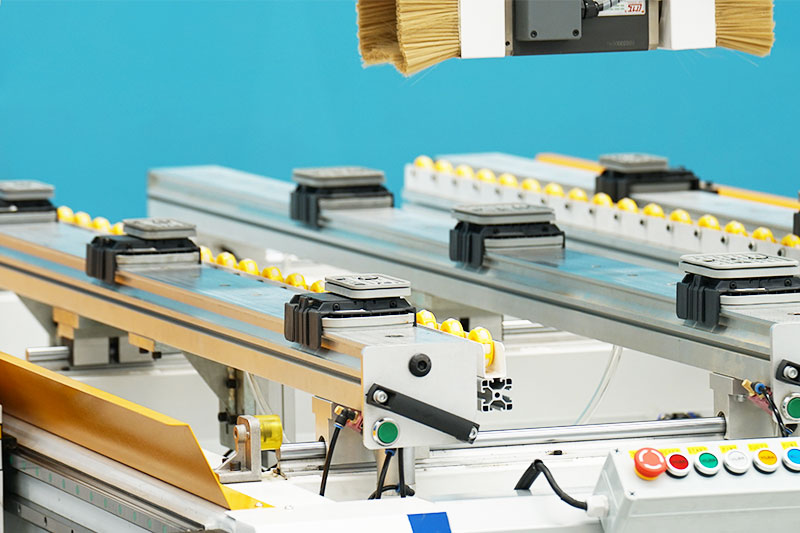

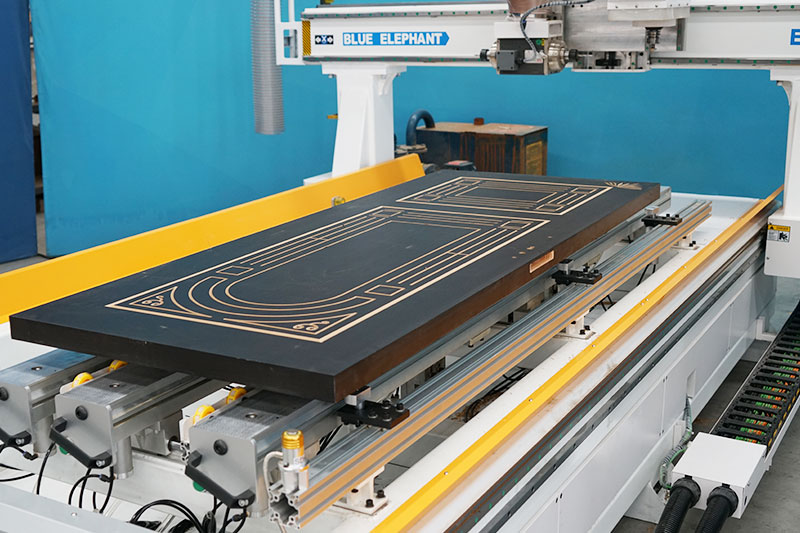

1. The machine adopts PTP worktable with large adsorption force and movable suction cups, which is suitable for processing various sizes of plates.
2. When processing small plates, it can realize double-workstation processing and loading and unloading at the same time of processing.

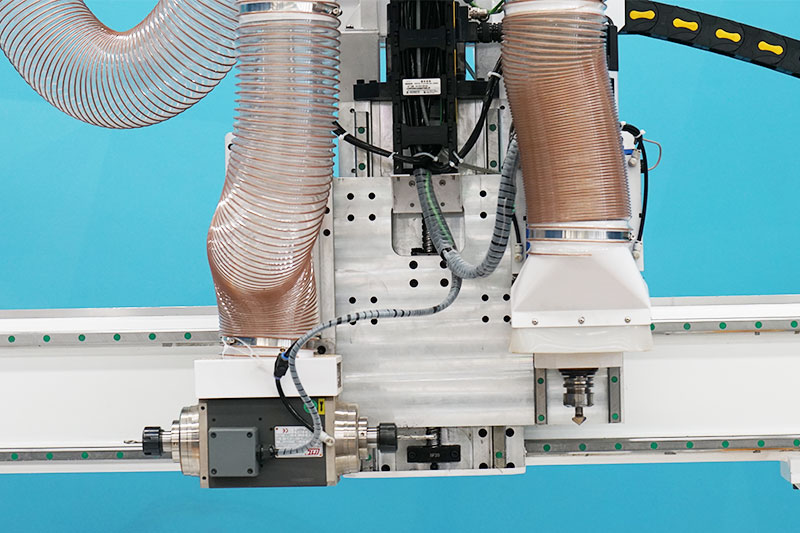

3. The horizontal spindle carrying two tools can realize horizontal punching, reducing the clamping times and improving work efficiency.

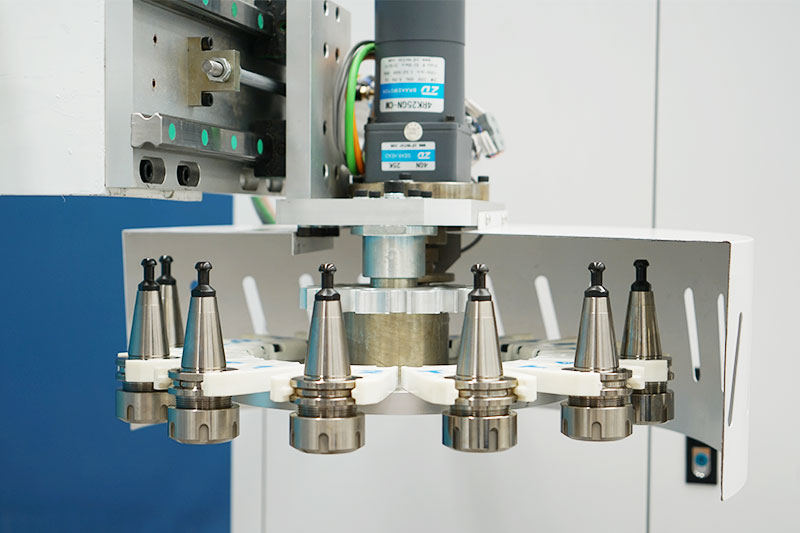

4. Equipped with a disc tool changer, it can realize automatic tool change, reduce downtime, reduce labor and improve processing efficiency.
5. This machine is mainly used for processing various doors and cabinets.
| Model | ELECNC1325ATC |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 300mm, option: 400mm, 500mm, 600mm,etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Horizontal spindle | Included, 3.5KW, 5.5kw, 7.5KW, ect. |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | PTP Working table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
