5x10 ATC CNC Router with Aggregate Head
1530 ATC Wood CNC Router for Furniture

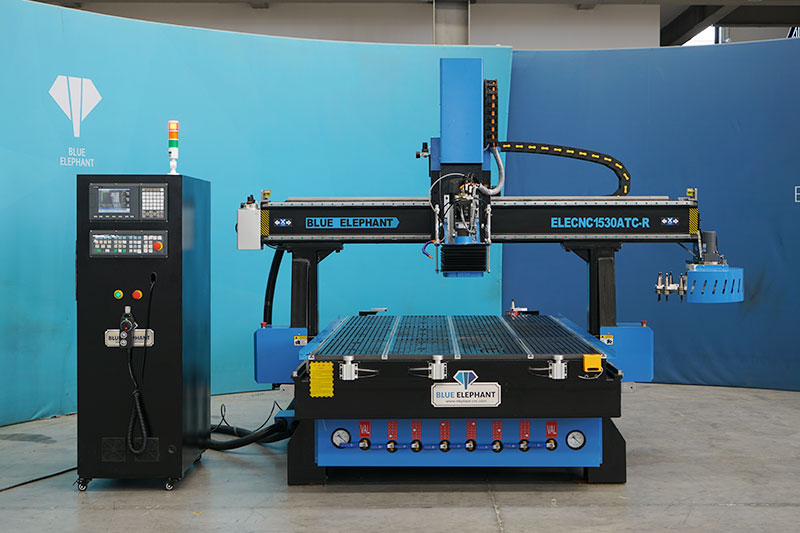

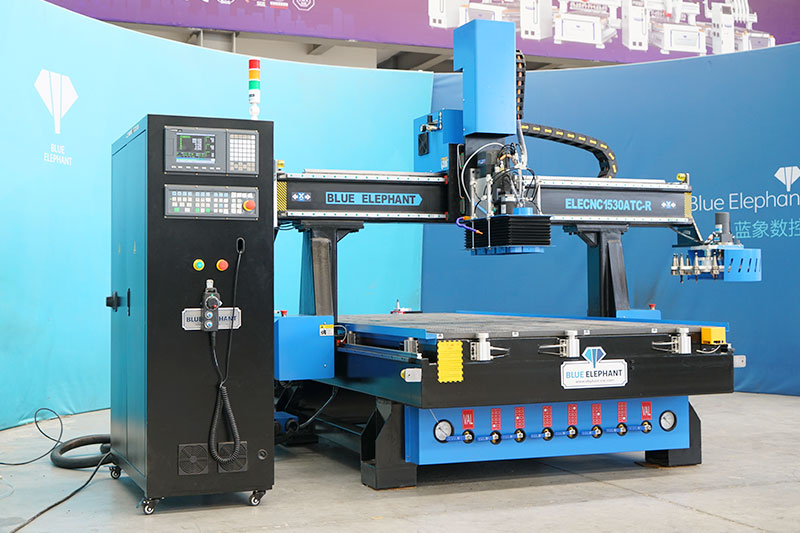

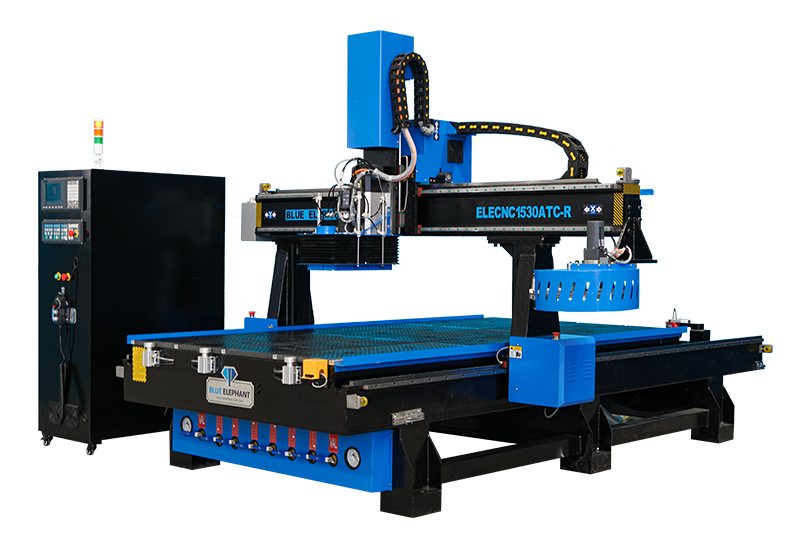

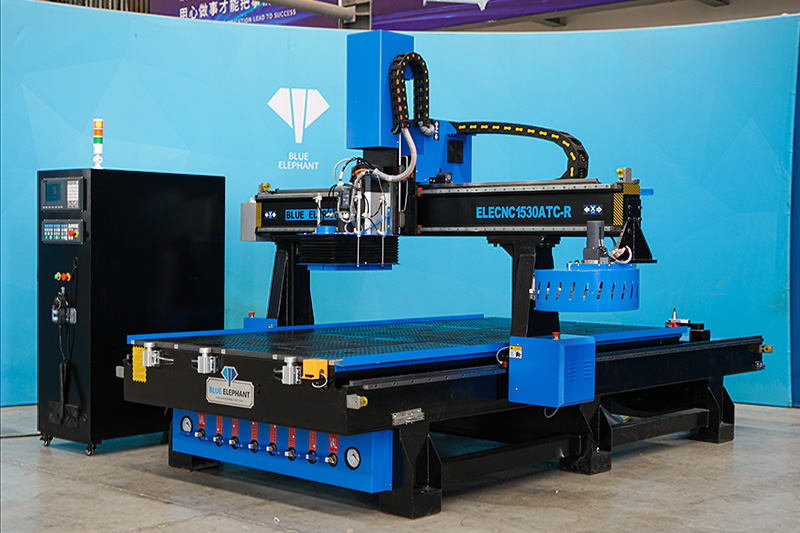

This custom ELECNC1530 ATC CNC wood router is designed for the wooden furniture cabinetry making. Equipped with an aggregate head, it can realize side wood drilling and slotting and vertical cutting quickly and precisely.
1. It has the automatic tool changing function, which enable this CNC router to change bits or the aggregate head automatically, thus ensuring higher work efficiency.

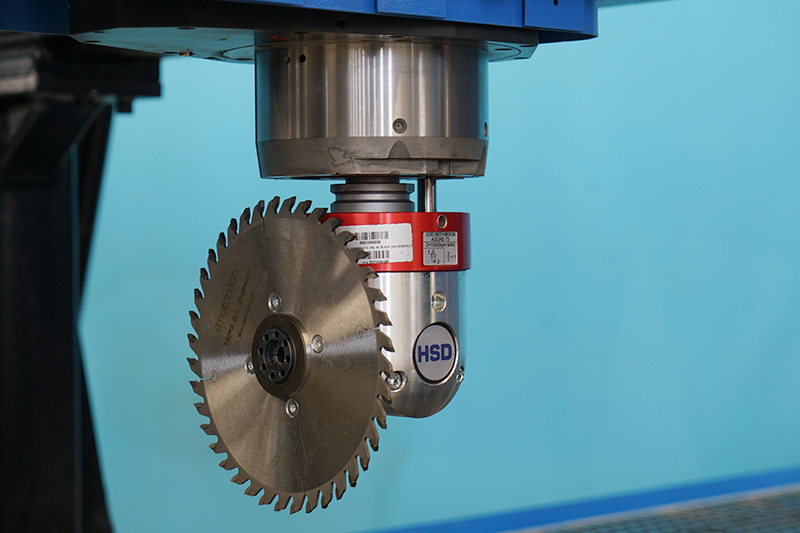

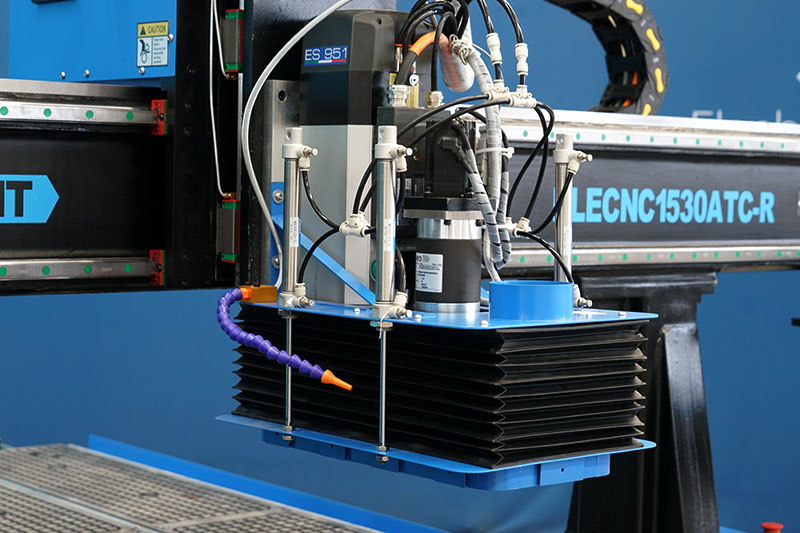

2. This CNC wood router is equipped with an additional C axis and an HSD aggregate head, which can rotate 360 degrees to realize cutting at any angle.
3. The aggregate head can realize side wood drilling and slotting work if it is equipped with a CNC router bit, and can complete cutting at any angle if it carries a saw blade.
4. All specifications can be customized based on your actual processing demands.
| Model | ELECNC-1530ATC |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 300mm, option: 400mm, 500mm, 600mm,etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Aggregate head | HSD aggregate head at C axis |

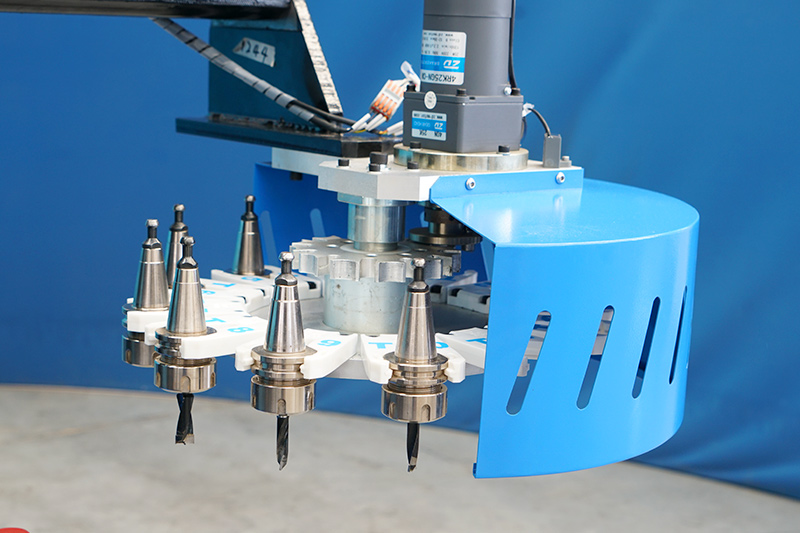

| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC, option: Taiwan LNC controller |
| Driving system | 850w Yaskawa servo motor and driver; option: 1kw Taiwan Syntec servo, 850w AC servo motor |
| Reducer | Japan SHIMPO reducer |
| Rotary device | Diameter 200mm, option: 300mm, 400mm |
| Structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 7 pieces (X3, Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
