1325 ATC CNC Router with Laser Head
1530 ATC CNC Router
This CNC router is a combination of an ATC CNC wood cutting machine with a laser head. The laser head is used to leave various marks on multiple non-metal materials. Then, the spindle moves to cut out shapes according to the given paths. Besides, the CNC router can change among 6 tools automatically, which greatly improves work efficiency.
1. The laser head can leave various marks on a wide range of non-metallic materials, and then the spindle can move to cut out shapes. These two steps can be controlled in one program.
2. 9KW air-cooled spindle has a powerful cutting ability and stable operation for long-term operation.
3. T-slot vacuum worktable helps to fix the workpieces firmly to ensure good cutting precision.
4. All components and parts adopt famous-brand products, ensuring smooth and reliable operation and long service life of the CNC router.
| Model | ELECNC1325ATC |
| X, Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle | 9kw HQD ATC air cooling spindle, 24000rpm |
| Laser head | Equipped with a laser head |
| Inverter type | 11kw Fuling inverter |
| Tool magazine | Linear tool magazine Option: carousel type auto tool changer |
| Tool holder with collet | BT30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | SYNTEC 60CA, option: Taiwan LNC controller |
| Driving system | 850w Leadshine servo motor |
| Reducer | Shimpo |
| Machine structure | Heavy duty machine body |
| Work table | T-slot & vacuum work table |
| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Linear guide | HIWIN linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Auto tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
|
Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
Click for details

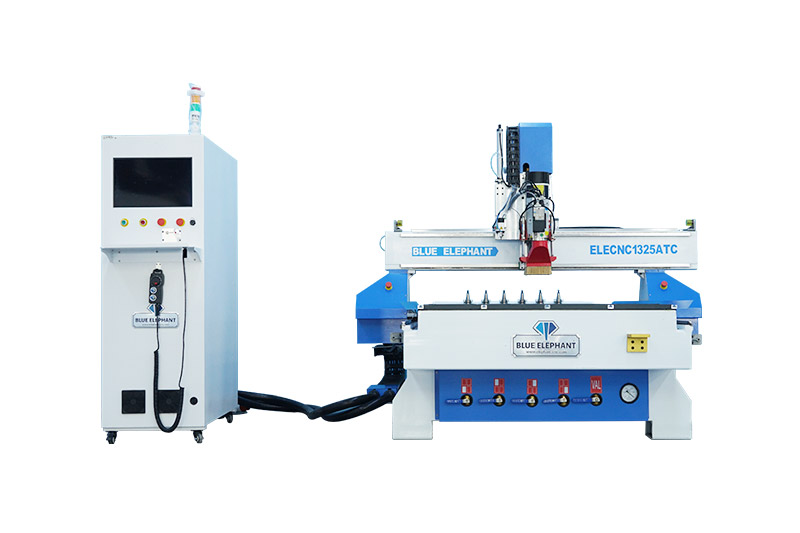

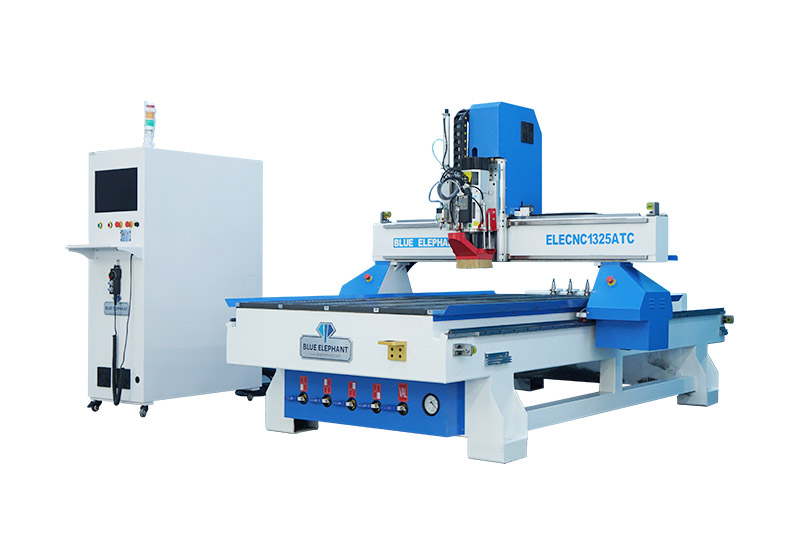

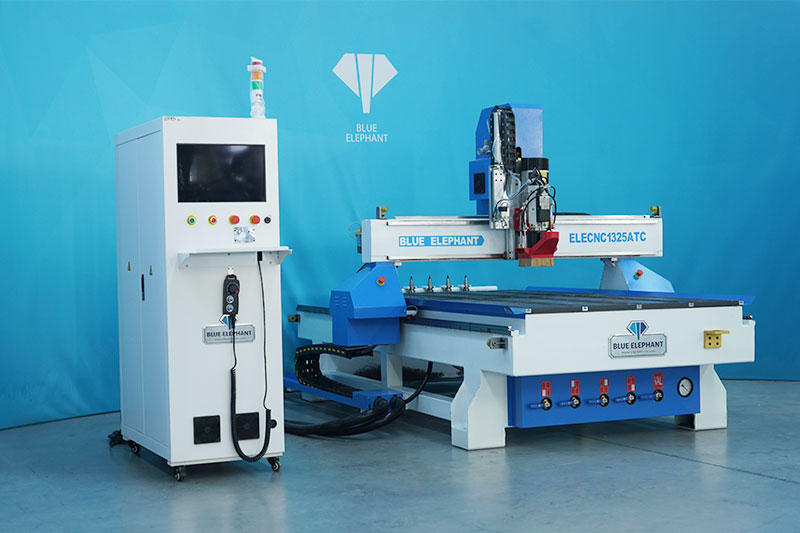

Apprearance

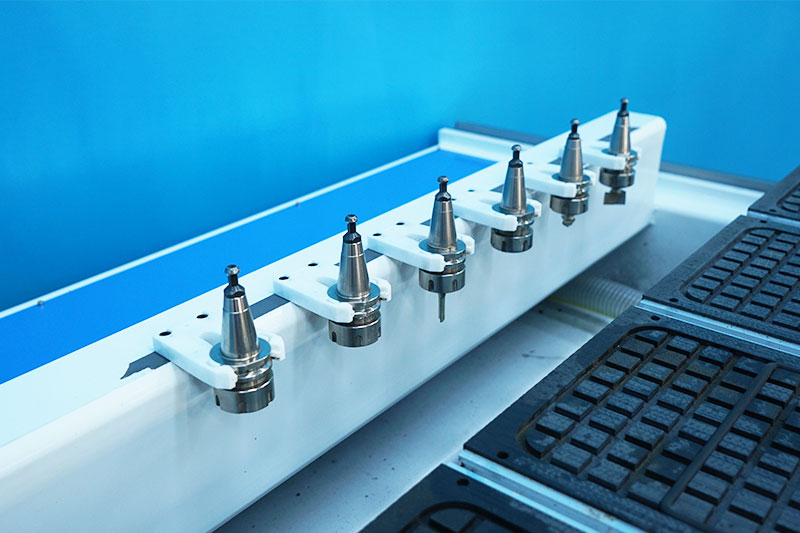

Tool magazine

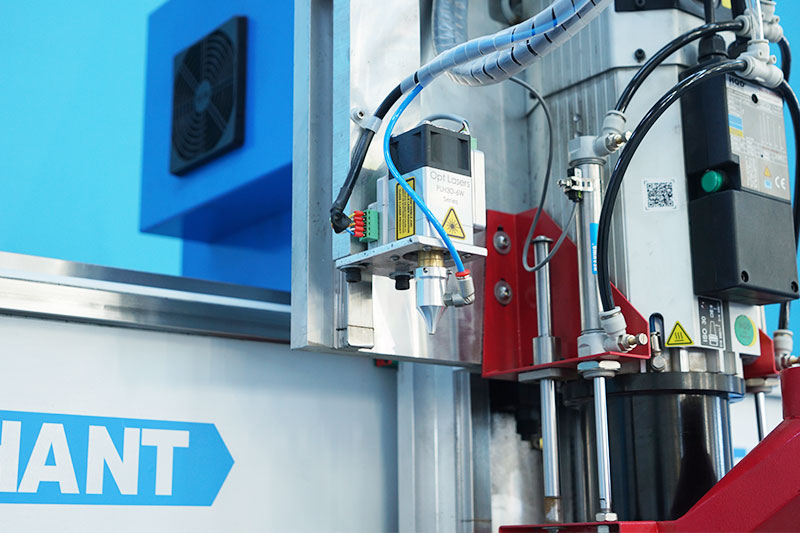

Laser head

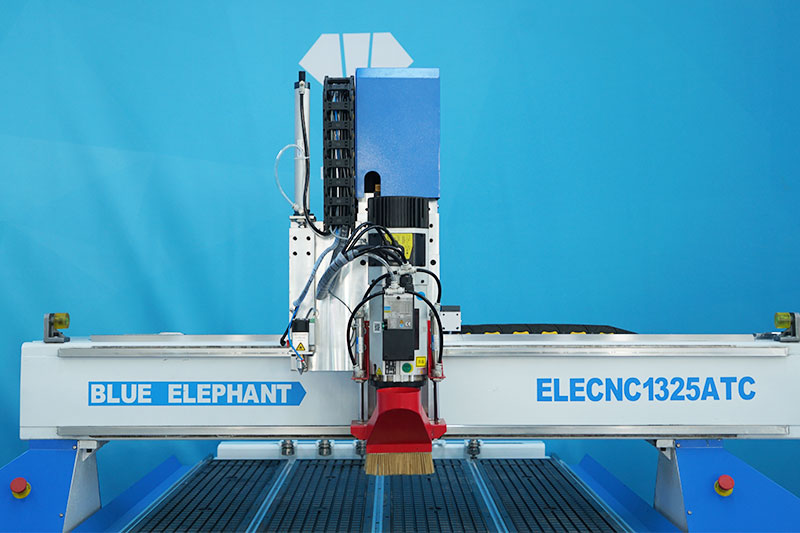

Z axis
Click for solution
Click for quotation
All very well, did the first job. The machine made the facades for the kitchen. The work was done quickly and efficiently. Next time I work, I’ll take photos and videos for you. I’m very glad to choose your company, thank you again for your worry.
I got the machine in a very good condition. Thank you so much. Now I have some things to finish in my workshop before starting to connect and use it. I will comeback to you with more photos and my first comments in few days. Thanks again to Blue Elephant that made my dream come true.
We have tested the machine, it’s working properly. We are planing to purchase the second one, please send PI. Thanks very much.
So far so good. The machine arrived in perfect condition, it was packed very nicely. Cutting an oval coffee table, 45000 years old swamp Kaurin and resin. Worked beautifully.
