Description

CNC wood cutting machines for sale with HSD ATC spindle saves time and labor of manual tool changing. It is the best choice for the long time, heavy-duty, multi-bit-requiring woodworking.

Features

1. Italy HSD air cooling spindle and the working speed can reach up to 24000RPM.
2. The machine is one of the typical 3 Axis ATC CNC machines. If you want to do the 3D wood carving, 4 Axis Wood CNC Router Machine is more suitable.
3. T-slot and vacuum working table with 6 zones helps to fix the material, and increase the utilization rate.
4. Siemens control system is easy to operate; Positioning cylinder fixes the material very well.
5. Please notice that all specifications can be designed according to your special requirements.

Parameters

Model	ELECNC2040ATC
X,Y axis travel	2000x4000mm, option: 15003000mm; 20003000mm; 2000*6000mm, etc.
Z axis travel	500mm, option: 200mm, 300mm, 400mm, 600mm, etc.
Spindle type	12kw HSD air cooling spindle, HSK F63 tool holder
Inverter type	15kw
Drilling bank	Optional
Tool magazine	Linear tool magazine Option: Carousel type auto tool changer
Tool holder with collet	HSK F63, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Simens control system, option: Syntec, LNC
Driving system	Simens 1.5kw servo motor and drivers Option: 850w Leadshine servo, 850W YASKAWA servo
Reducer	SHIMPO reducer
Machine structure	Heavy duty body
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	Optional: 7 pieces (X2,Y4)
Linear guide	Taiwan Linear guide
Transmission	X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	Automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc.
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.07mm
Working air pressure	0.8MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, all full set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (ISO30, HSK F63), 12kw (ISO30, HSK F63), etc.

Click for details

Frequent Asked Questions

Can I remove vacuum table from this machine?

Yes, you can just keep T slots table. For T slots table, it will fix materials by clamps.

Can I use this CNC router to make table legs?

Yes, we can add the rotary device for you. It is used to process cylinder material to make table legs, chair legs, etc.

Which kind of work this machine can do?

3D reliefs, signs, furniture, toys, decoration items, simple molds, musical instrument, etc.

ATC CNC Router Details

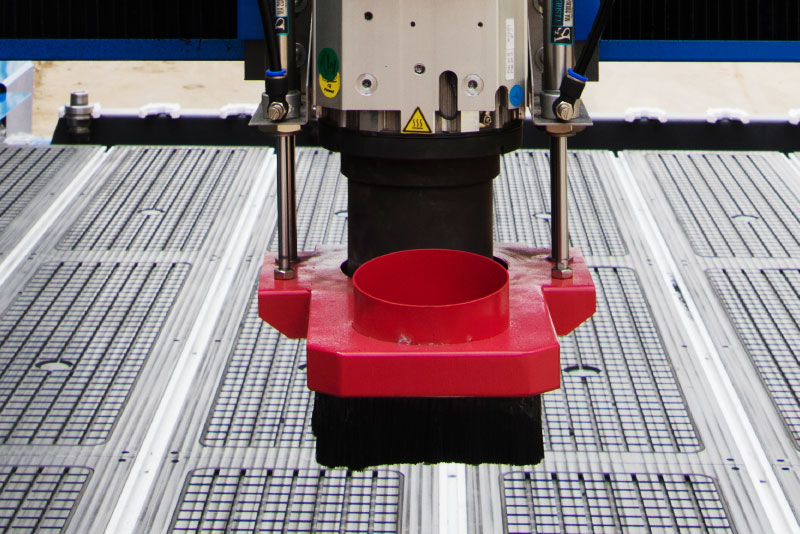

Spindle

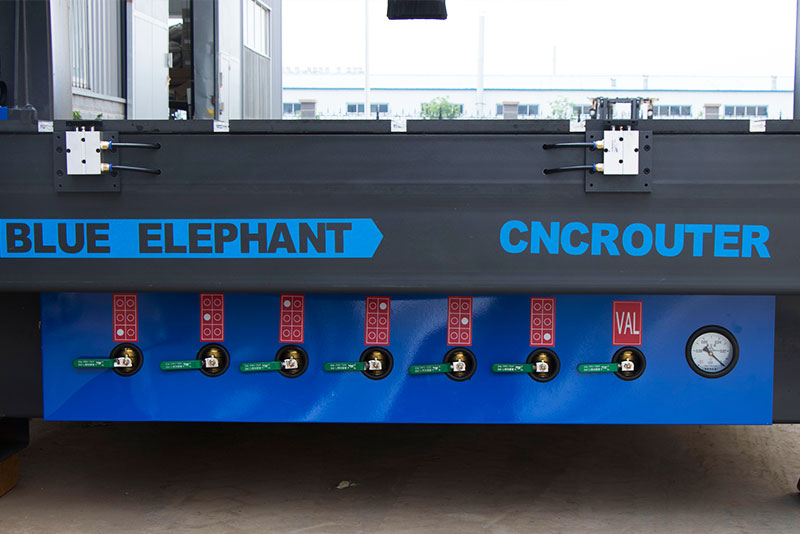

Vacuum valve

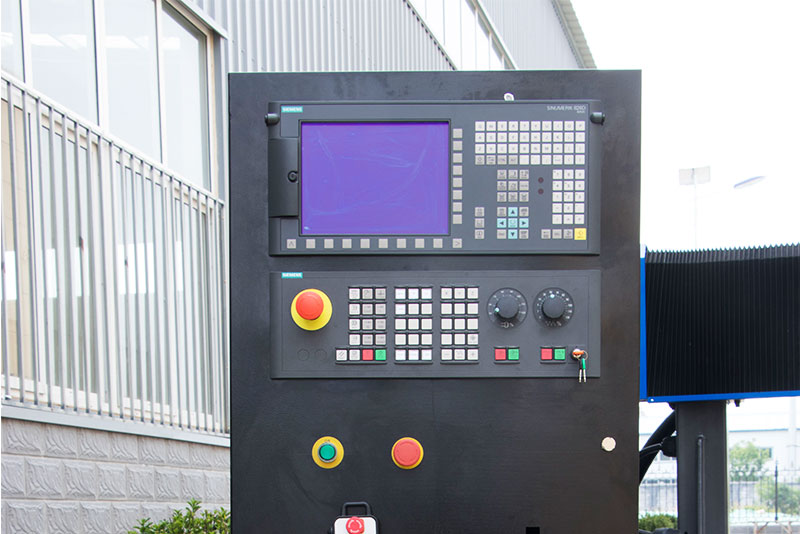

Control panel

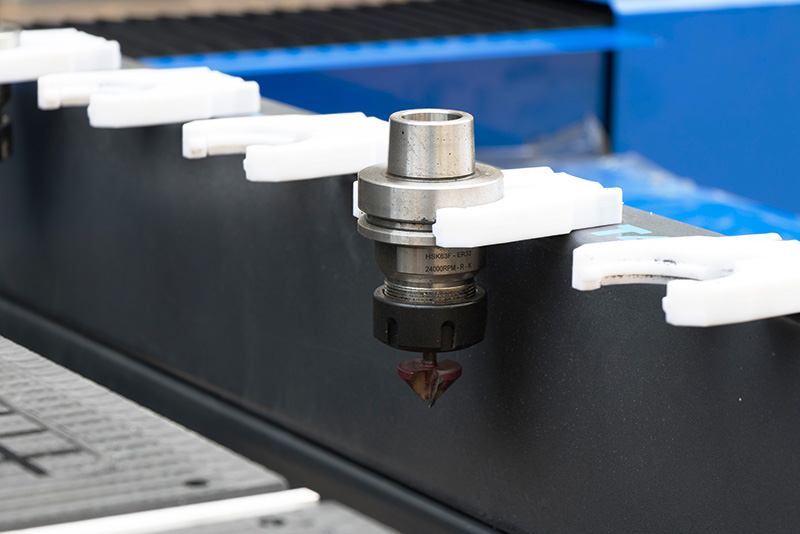

Tool magazine

Application

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers

Samples
