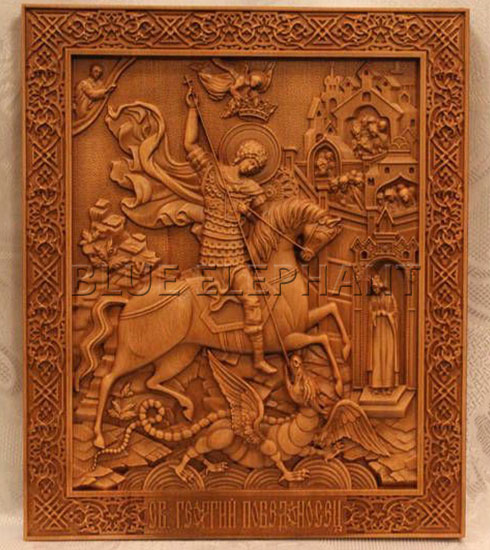

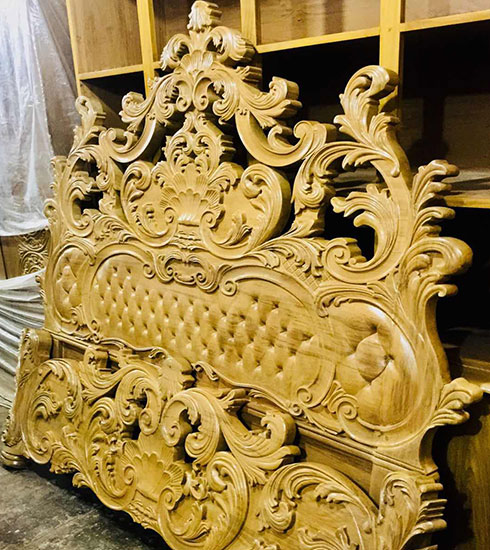

1325 CNC Router Processing Wood
1530 CNC Router Processing Acrylic

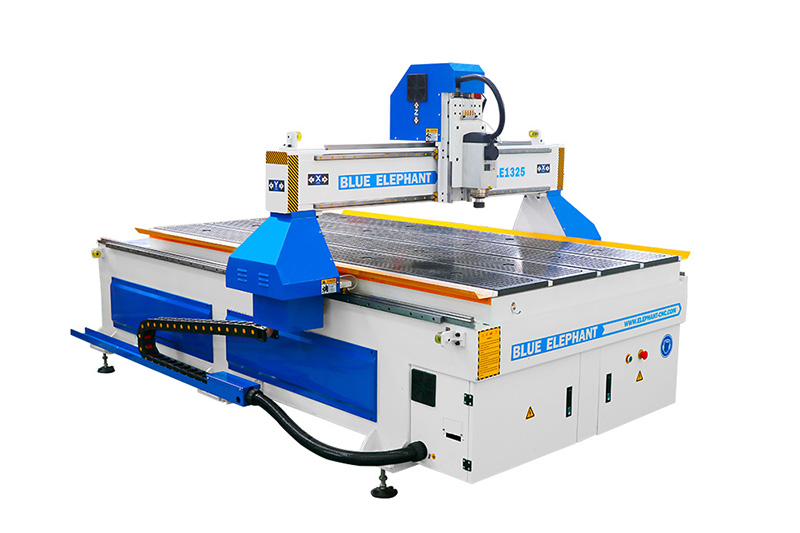

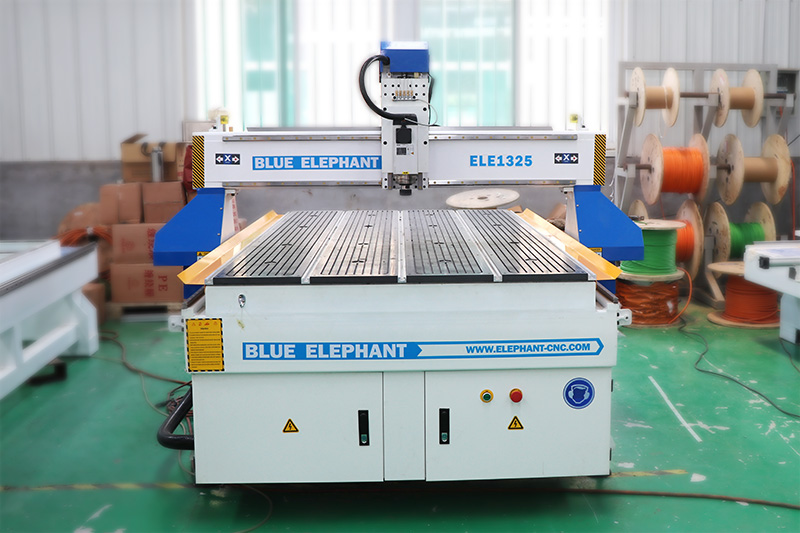

4x8 CNC Router, 1325 CNC Router for Sale at best price. This is an entry-level CNC router, which is affordable, durable and powerful, and is easy to learn and operate. It is a top choice for small businesses and beginners.
1. This 4x8 CNC router is good at cutting & engraving wood, plywood, MDF, plexiglass, acrylic, PPMA, plastic, carbon fiber, soft metal (copper, aluminum), make a perfect wood inlay, etc.
2. 4x8 CNC router is a good choice for both personal hobby uses and commercial purposes.
3. With a single control box placed inside the cnc, this design saves more working space.
4. CNC router kits of this type are cost-efficient, and it saves a lot and is very economical in terms of maintenance.
| Model | ELECNC1325 |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*6000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, etc. |
| Spindle type | 4.5kw air cooling spindle, ER32 |
| Inverter type | 5.5kw |
| Drilling bank | Optional |
| Tool magazine | No tool magazine Option: linear type or carousel type auto tool changer |
| Tool holder with collet | ER32 collet:φ4, φ6, 1/8, 1/2 |
| Control system | Richa Auto DSPA11 controller, option: Mach3 |
| Driving system | FL118 Stepper motor+Leadshine 860H driver,4 sets. option:850w Leadshine servo |
| Reducer | Optional |
| Structure | Heavy duty body |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw(ISO30,HSK F63),etc |
Click for details

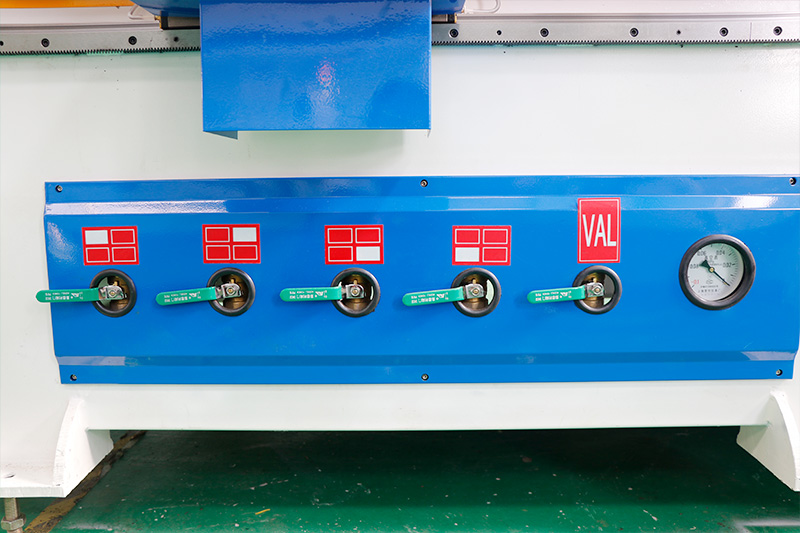

Vacuum valve

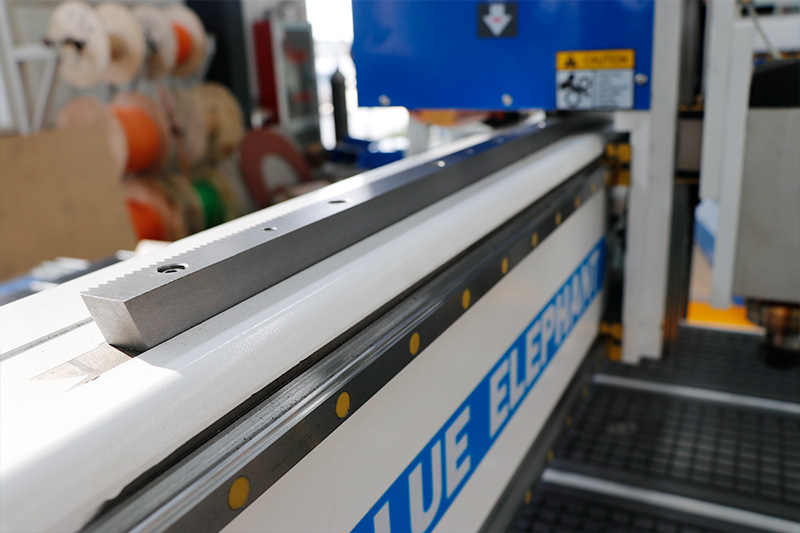

Transmission

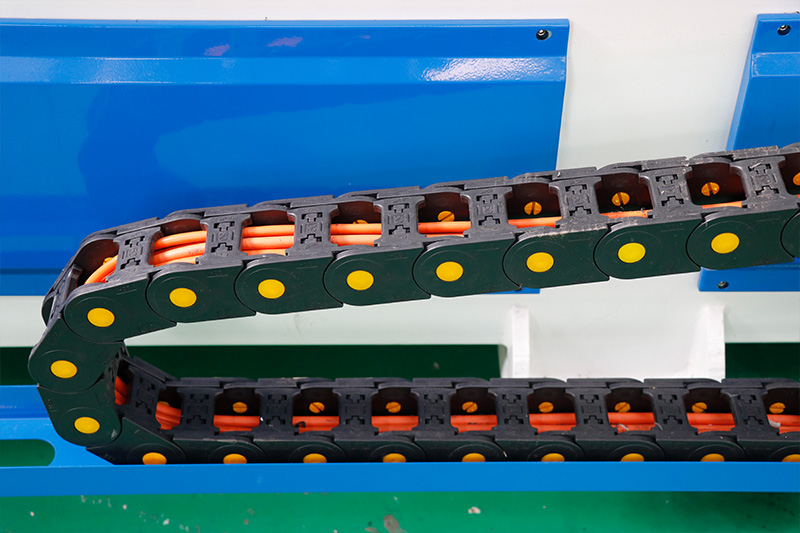

Towline

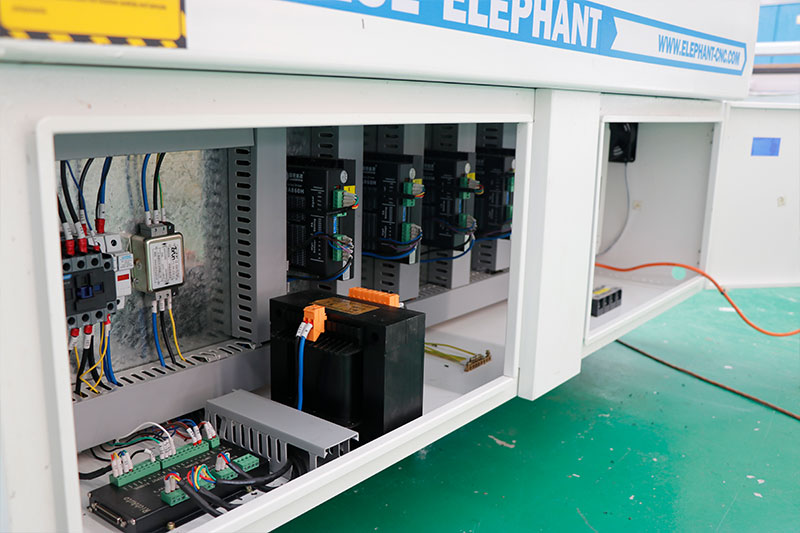

Electric parts
Click for solution
Click for quotation
