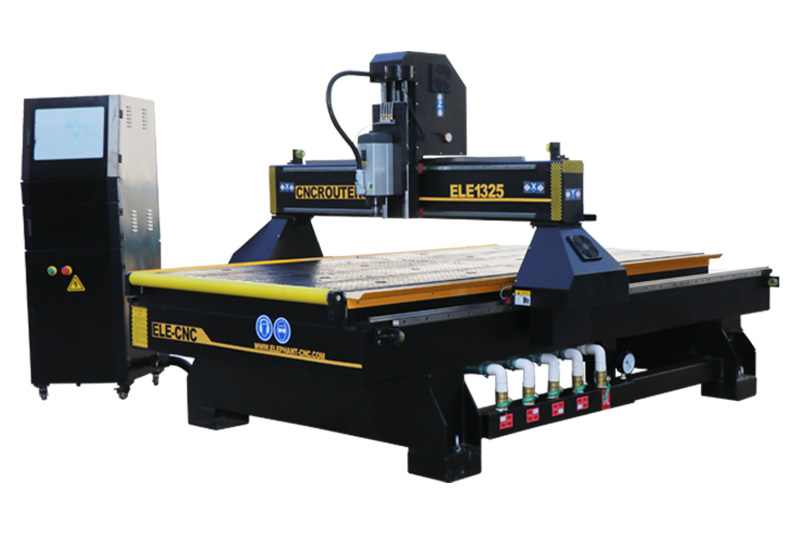

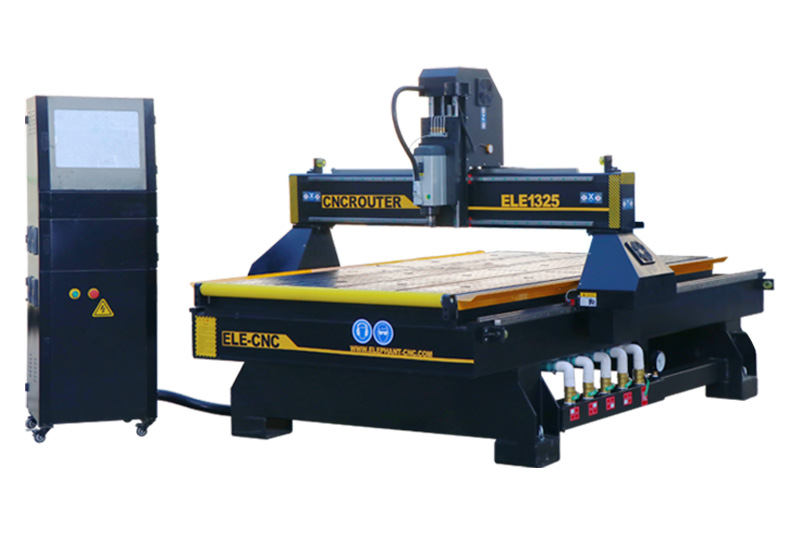

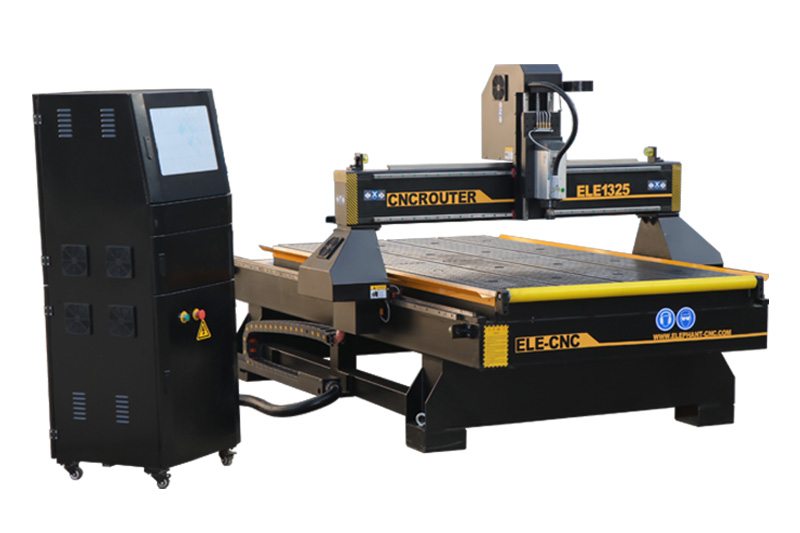

This woodworking engraving machine- best 4×8 CNC router for sale uses a separate electric control cabinet, which has the advantages of easy operation and maintenance. At the same time, it protects electrical components and prolongs the service life of the machine accordingly.
1. Adopting original Italy HSD spindle, it can ensure high processing quality and production efficiency of the machine.
2. Manufactured with Japan YASKAWA servo system, it can guarantee long life of the machine.
3. With NC studio 53C control system, it is very easy to master.
4. This type of CNC wood router Machine is simple to install and operate.
| Model | ELECNC1325 3 Axis with roller |
| X,Y axis travel | 1300x2500mm, option:1500*3000mm;2000*3000mm;2100*4000mm,etc |
| Z axis travel | 200mm, option:300mm, 400mm |
| Spindle type | 4.5kw Italy HSD air cooling spindle, ER32 |
| Inverter type | 5.5kw Delta inverter |
| Control system | NC Studio control system |
| Driving system | Stepper FL118 and Leadshine 860H drivers |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot& vacuum working table |
| Linear guide | Hiwin Linear guide |
| Transmission | X, Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool Calibration | Manual tool sensor |
| Cables | Germany Igus cables with CE,UL certificate |
| Other devices | Press roller |
| Compatible Software | Artcam, Aspire,etc |
| Command Language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.05mm |
| Working Accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Protection device | Light curtain |
| Spindle type | Water/air cooling spindle 3kw, 4.5kw, 5.5kw, 6kw, etc |
| Rotary device | Diameter 100mm, 200mm, etc |
Click for details

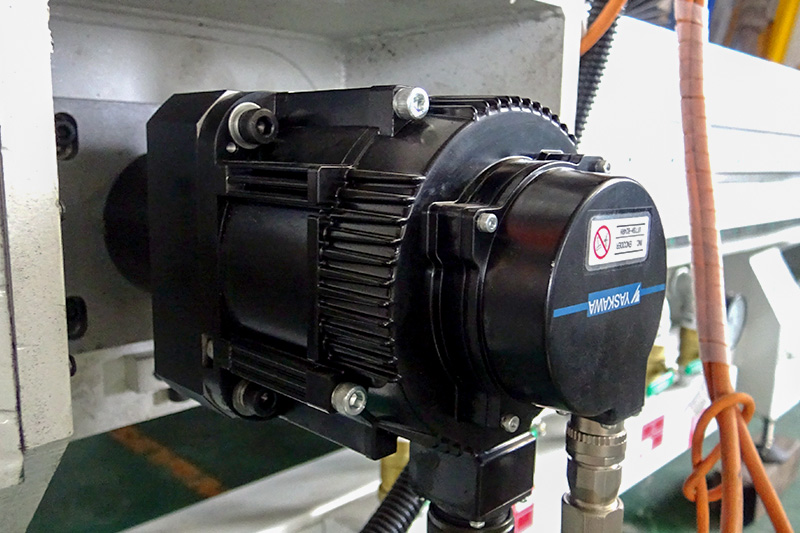

Yaskawa Servo Motor

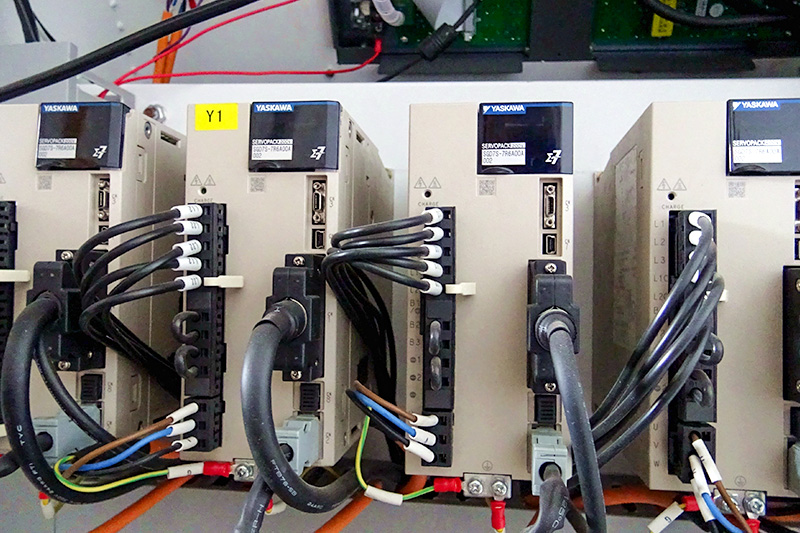

Yaskawa Drive

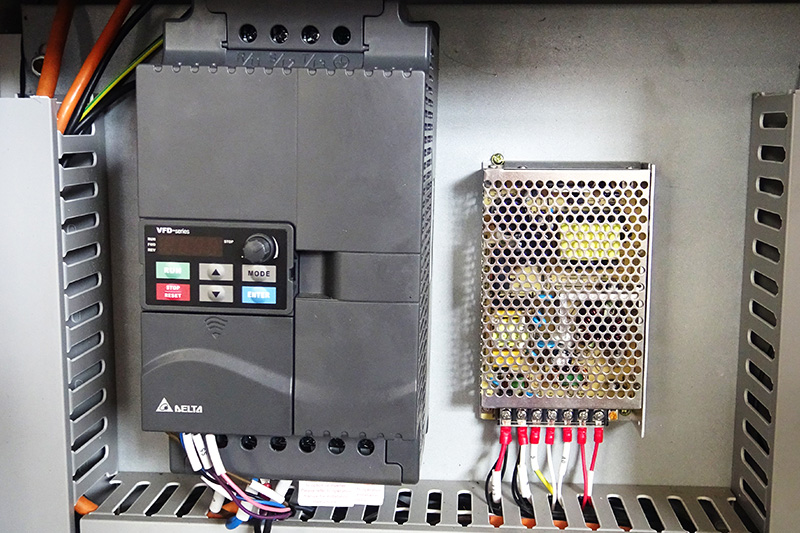

Delta Inverter

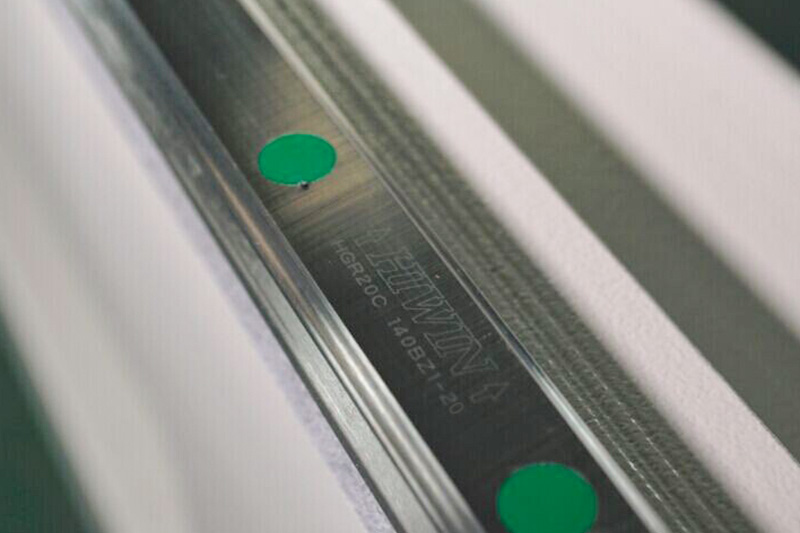

Guide rail
