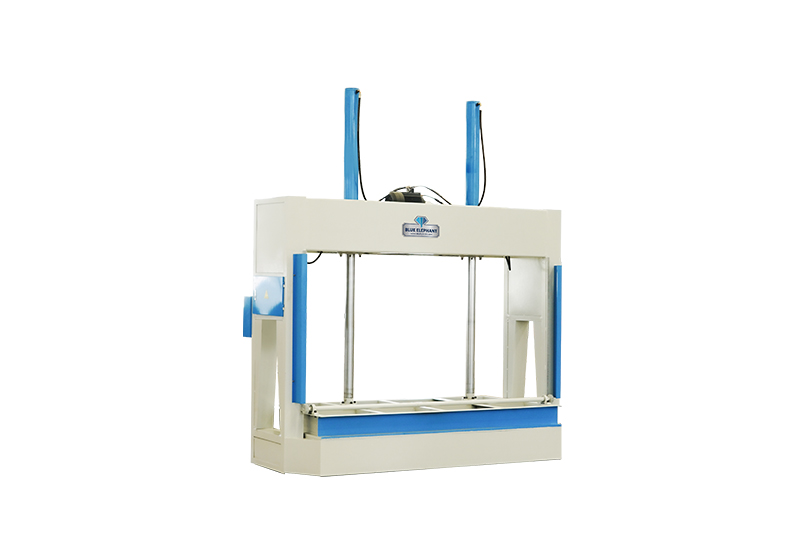

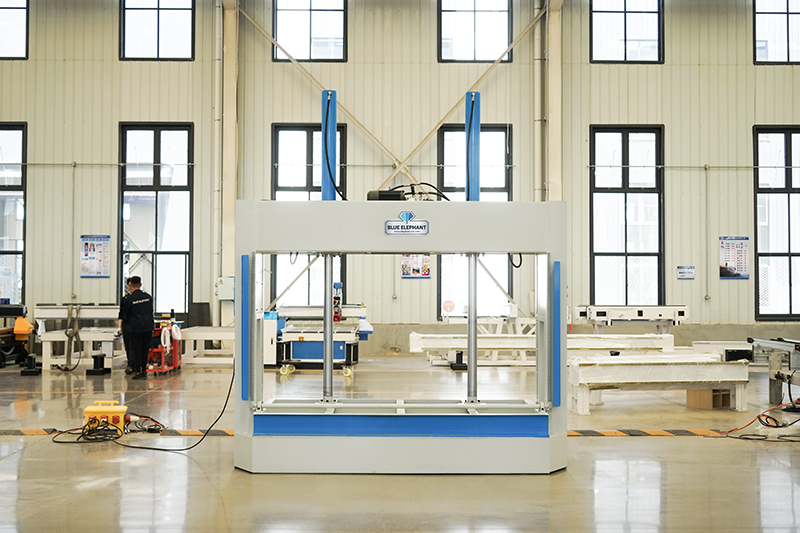

High Efficiency 1325 Hydraulic Cold Press Machine for Sale
Professional Automatic Vacuum Press Machine for Sale

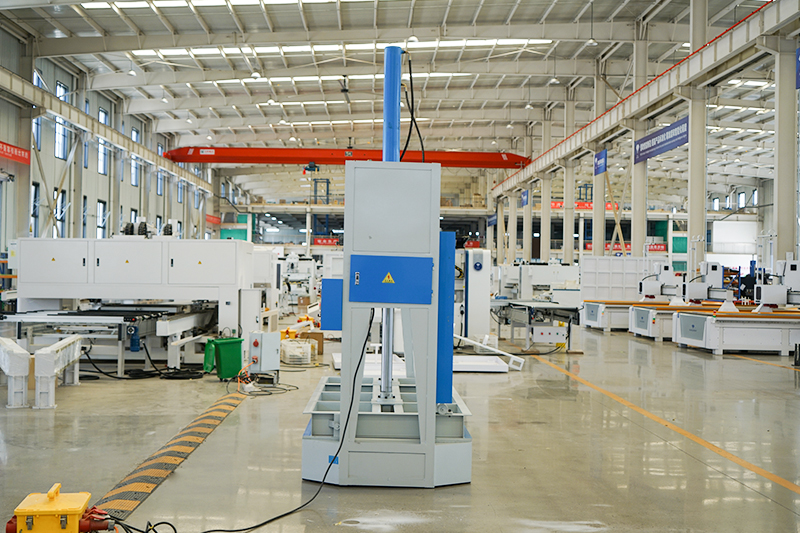

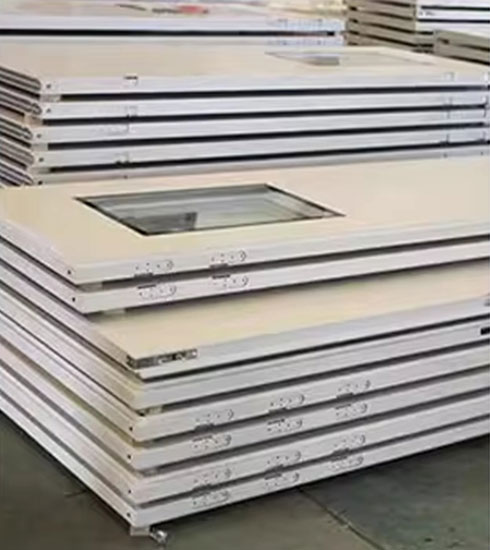

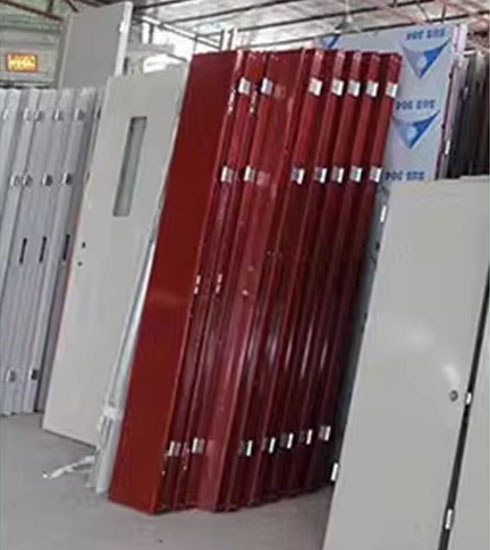

Hydraulic cold press is used to cold press and bond furniture panels, as well as to level and shape them. For wooden doors and various panels, it has good pressing quality, fast speed and high efficiency, and is widely used in furniture manufacturers, door manufacturers, decorative panels and other panel production industries. The cold press machine has low working noise, fast lifting speed, stable and strong pressure, and low maintenance rate.
1.The electrical control system provides overload, short circuit, loss of voltage and under voltage protection for the equipment. The rated voltage is AC380V and the voltage range is 380V±10%, 50HZ.
2. It adopts the hydraulic system to work, with fast lifting speed, uniform pressure and high efficiency.
3. The hydraulic cold press is equipped with an emergency stop button switch, which is safe and efficient.
4.It is operated by pressing from top to bottom and buttons, and the upper and lower working tables are finely processed by large milling machines.
5. It adopts timing control, and the time can be set according to the production process. The pressing plate will automatically rise when the time comes, which is convenient and trouble-free.
| Machine size | 2500*1250*1300mm |
| Packing size | 3000*1250*2500mm |
| Motor | 3-phase 380V, 50HZ, 4KW |
| Working table size | 2500*1250mm |
| Hydraulic Cylinder | 140*90mm, 2 items |
| Max. working pressure | 50t (0-50t adjustable), large tonnage cold press machine can be customized |
| Feeding method | Horizontal feeding and discharging |
| Max. working stroke | 1300mm (Customizable) |
| Motor power | 4KW horizontal motor, high power motor can be customized |
Click for details

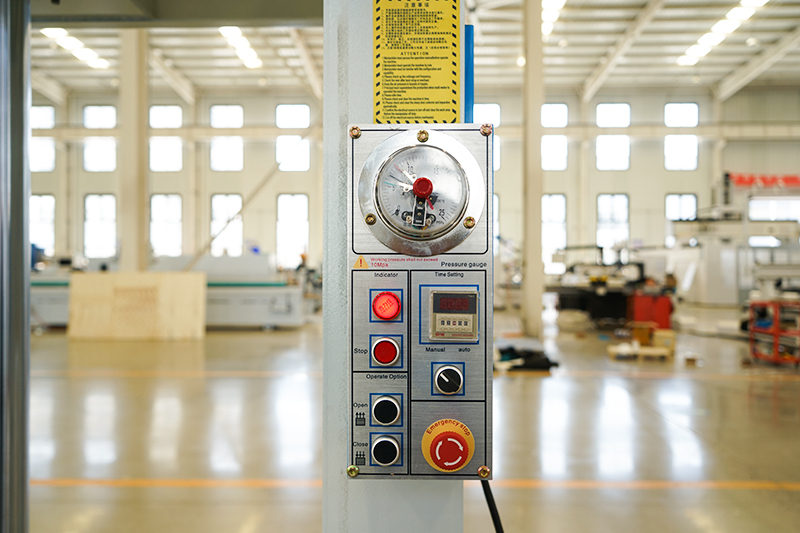

Control panel

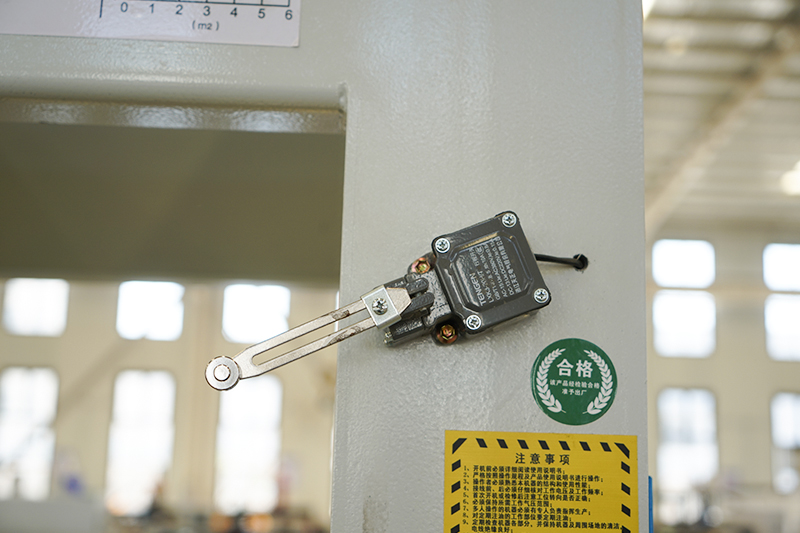

Limit switch

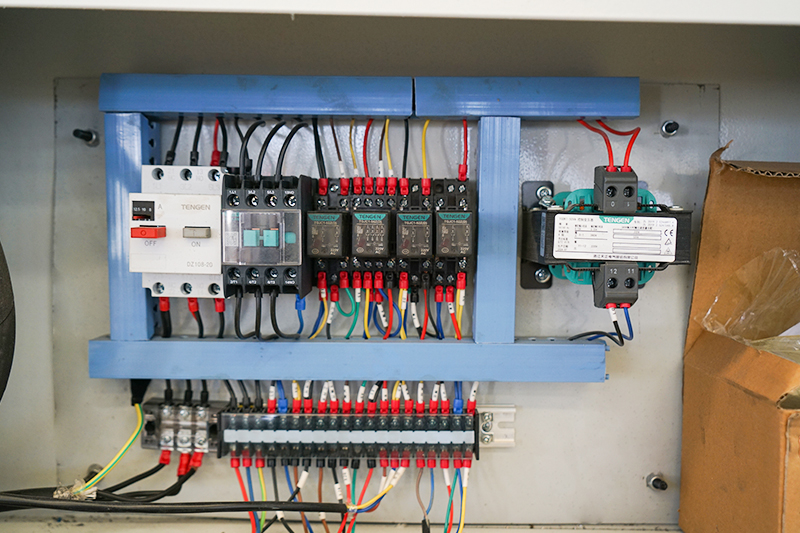

Electrical box

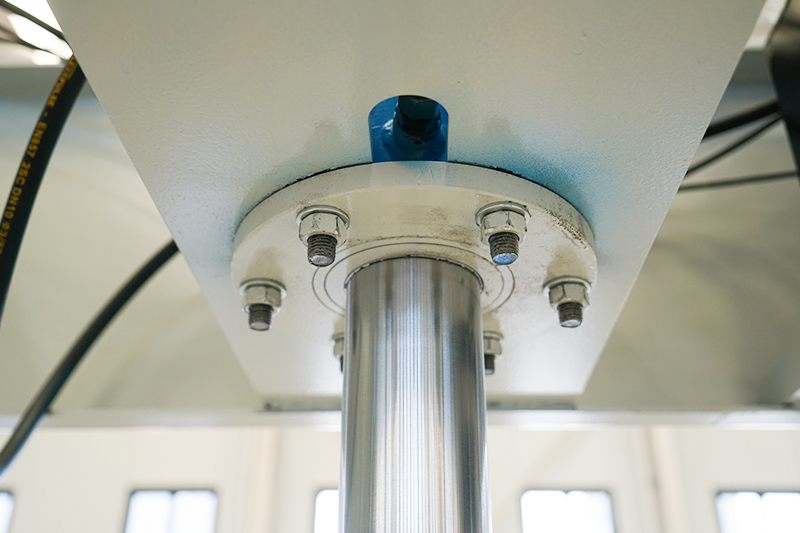

Hydraulic cylinder
