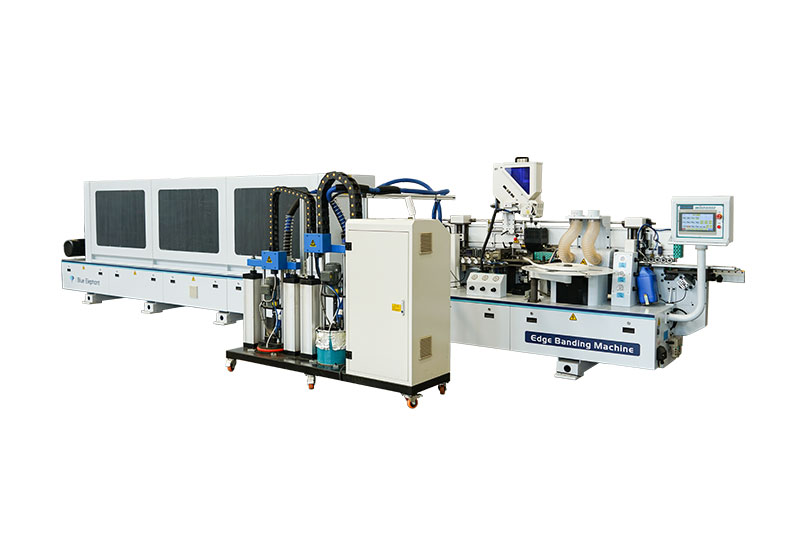

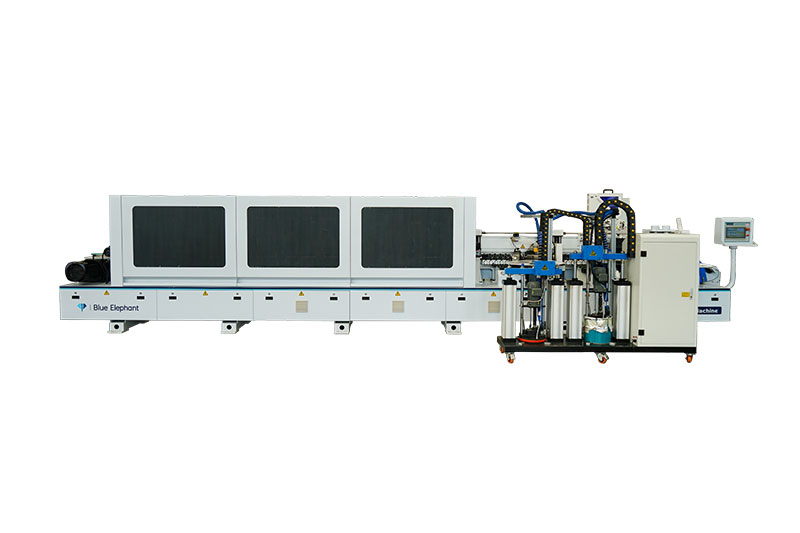

E-70JDSR PUR Automatic Edge Banding Machine
2024 New Design E-80 Automatic Edge Banding Machine
The maximum processing speed of the E-70JDSR edge banding machine can reach 23m/min, and the tracking chamfering can reach 18m/min.With complete functions, stable system, intelligent operation control and high-speed and efficient production, it is suitable for mass production of panel furniture. The edge banding effect is beautiful, delicate, smooth, and the sealing line is straight and smooth.
1.The machine uses Blue Elephant customized 22CM high-pressure beam, which is stronger than conventional pressure beams, not easy to deform, and has more stable edge sealing.
2.Pre-milling function: It can mill the edges and residues of the cut surface of the plate flat. The glue coating is more uniform and the glue line is thinner.
3.The upper glue pot is compatible with Eva and PUR glue, melts glue quickly, applies glue thinly, mixes glue convenient and efficient, and is easy to remove and clean.
4.The lower glue pot uses PUR glue, with precise glue supply and fully enclosed glue delivery, making the glue coating thinner, more delicate and even.
5.It adopts 5.5KW large motor, stable and powerful.
| Model | E-70JDSR |
| Machine weight | 3250kg |
| Overall size(Length×width×height) | 8630× 900× 1750mm |
| Total power | 21KW |
| Working pressure | 0.6Mpa |
| Feed speed | Low 16/Mid 18/High 23m/min |
| Panel width | ≥50mm |
| Panel thickness | 9mm-50mm |
| Panel length | ≥ 50mm(No milling) ≥ 150mm(Pre-milling) |
| Min. size (Width×length) | 60x60mm 150x200mm（use pre-milling) |
| Tape thickness | 0.4mm~3mm |
Click for details

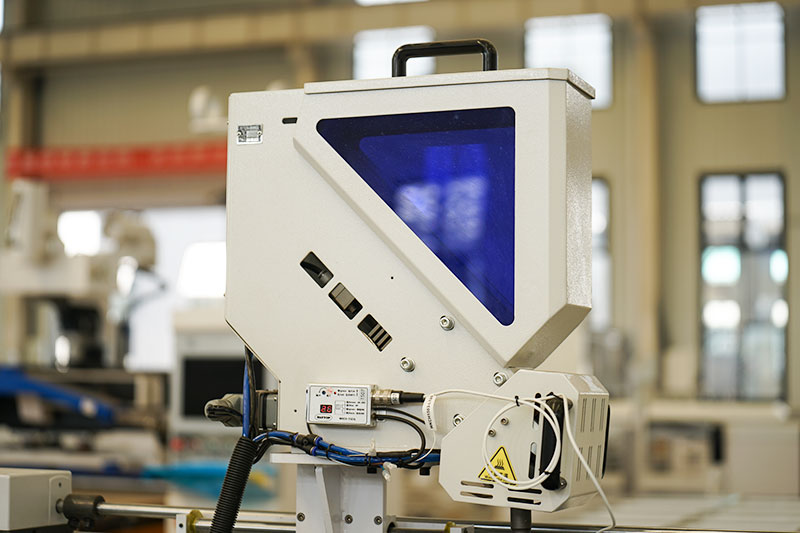

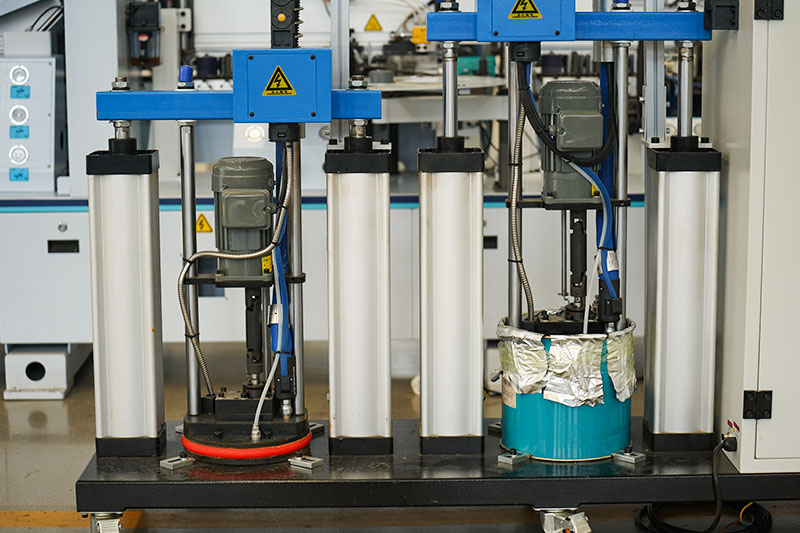

Rapid Sol Unit

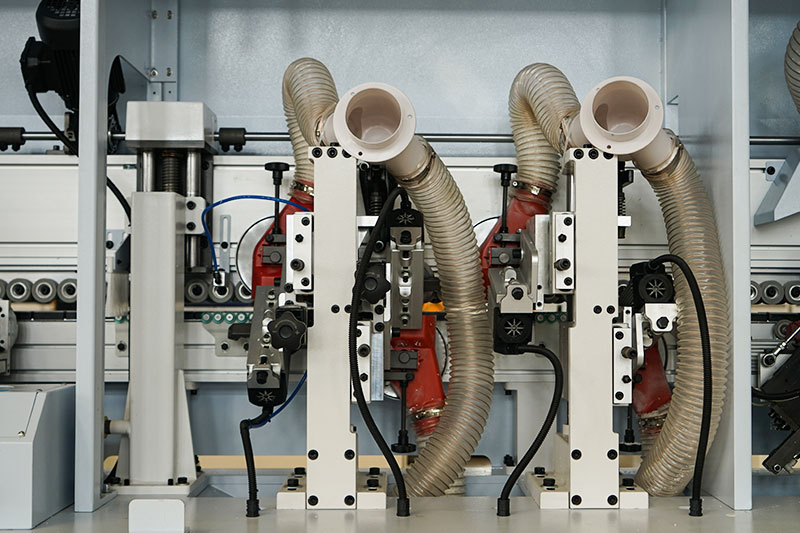

Rough Trimming Device＋ Fine Trimming Device

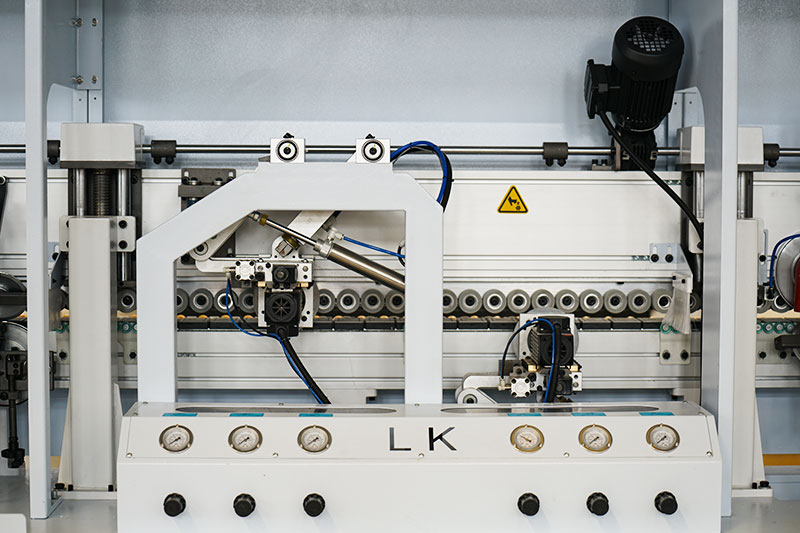

Profiling Tracking Device

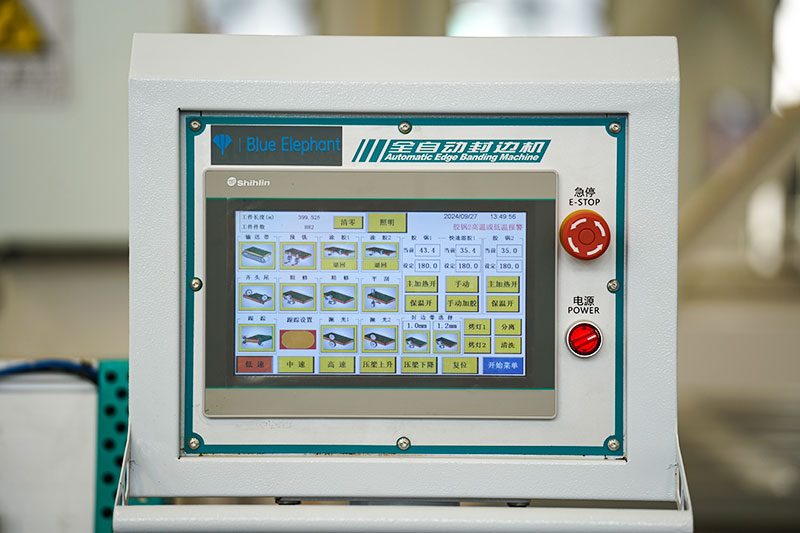

Control System
