Six Sided ATC CNC Drilling Machine

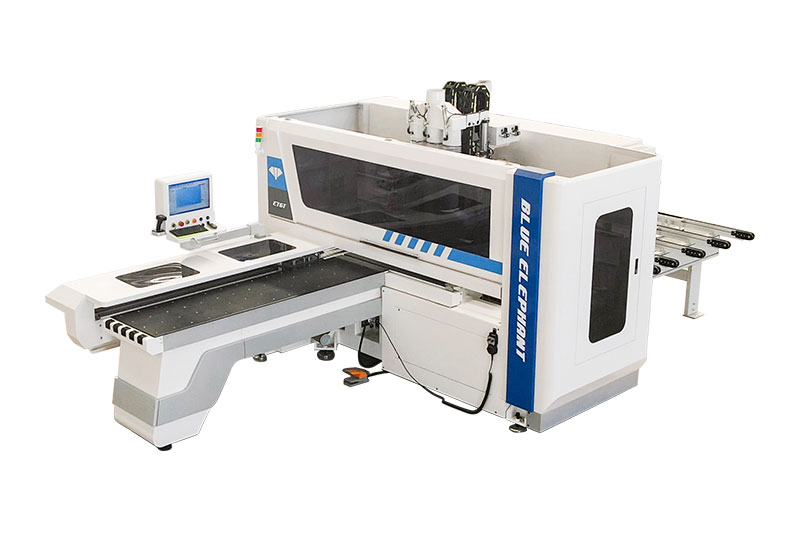

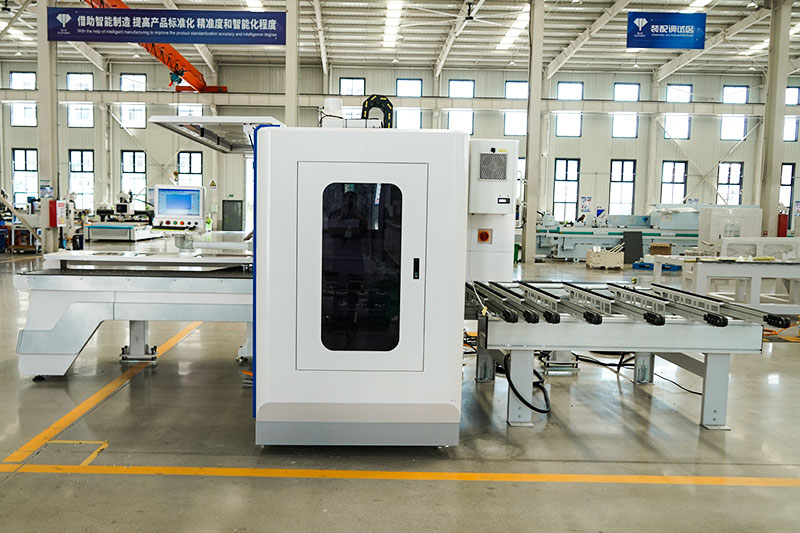

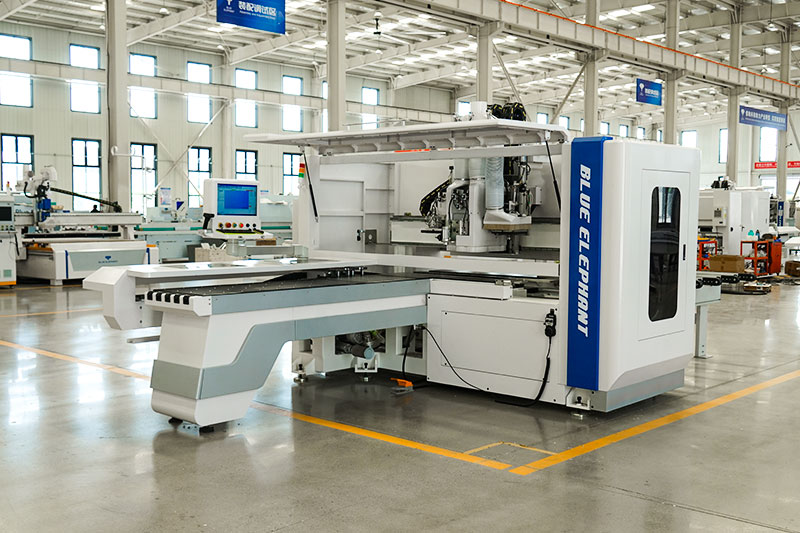

Single Head 6-Side CNC Drilling Machine
The latest ET6T automatic tool change six sided CNC drilling machine is equipped with a 6-tool ATC magazine. It can complete more invisible parts processing, grooving and drilling, greatly improving processing efficiency. In addition, the four direction drilling head can realize 4 sides processing of the plate. And the integrated machine bed is easy to install and operate.

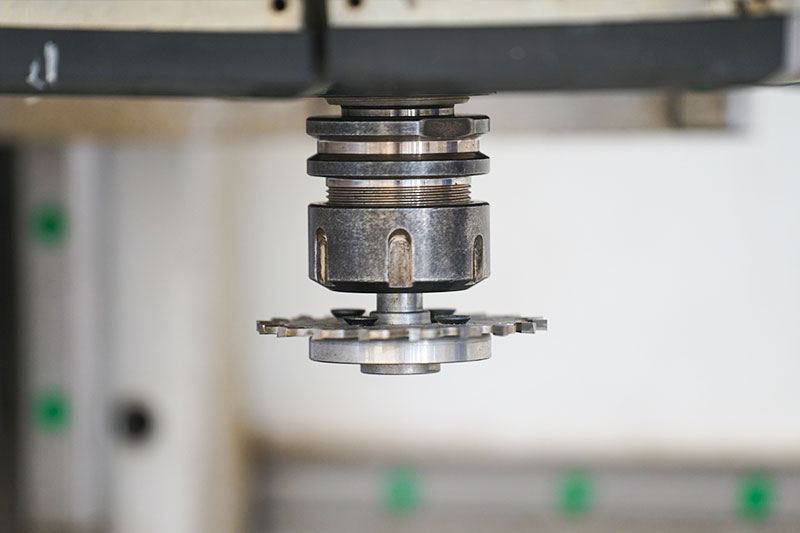

1. The automatic tool change six sided CNC drilling machine is upgraded with a linear ATC magazine with 6 different tools, which can realize the processing of Lamello, Muteyi, sidelight slots, pivot hinges, and 3-in-1 invisible piece.
2. With a 2.5KW Changchuan four direaction drilling head, the six sided ATC CNC drilling machine can achieve front, rear, left, and right drilling or grooving of the panels.

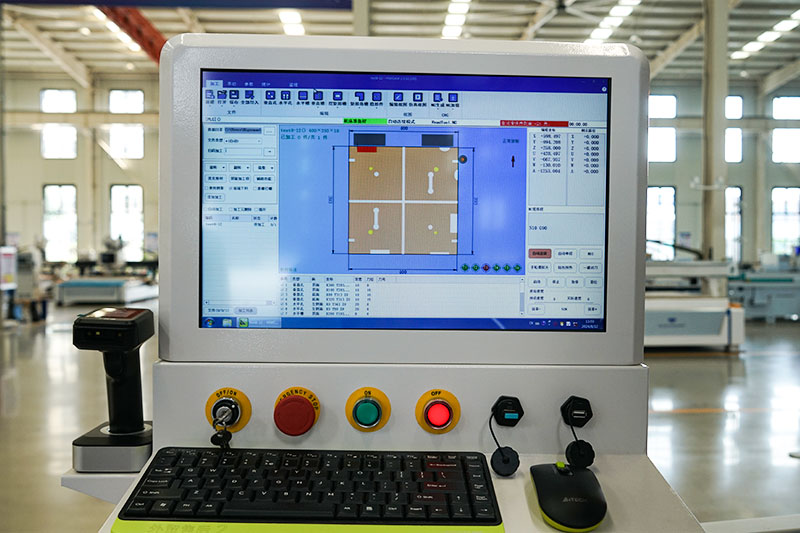

3. The 6-sided ATC CNC drilling machine uses the Blue Elephant customized control system, significantly increasing efficiency by 32%.
4. Equipped with an air floating worktable, the automatic tool change six sided CNC drilling machine greatly improves the plate conveying efficiency and avoids scratching.
| Model | ET6T |
| Processing length | 250-2800mm |
| Processing width | 50-1220mm |
| Processing thickness | 12-45mm |
| Spindle type | 3.5KW HQD air cooling Spindle |
| 5.5KW Changchuan ATC spindle | |
| 2.5KW Changchuan drilling spindle (optional) | |

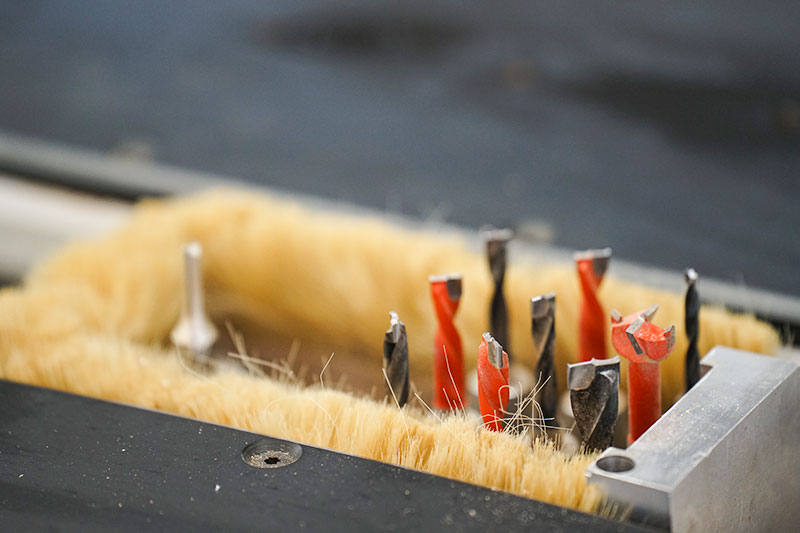

| Number of tools | 12 top vertical drilling+8 horizontal drilling; 9 bottom vertical drilling |
| Control system | Blue Elephant Custom System |
| Driver system | Absolute servo motor |
| Inverter | Fuling inverter |
| Worktable | Air floating worktable |
| Working voltage | 380V/60HZ/3PH |
Click for details
Bottom Drilling
Six-sided Drilling Machine Part
Six-sided Drilling Machine Part
Six-sided Drilling Machine Part
