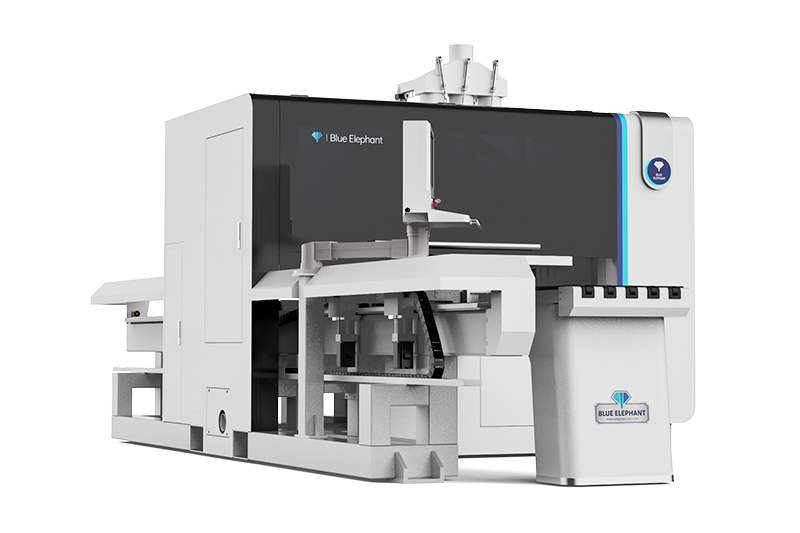

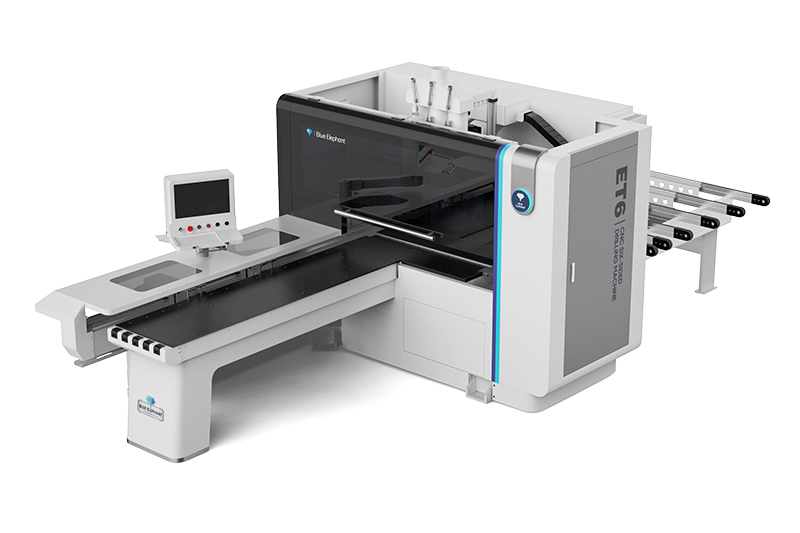

Six-sided CNC Wood Drilling Machine
Six-sided CNC Drilling Machine
This is a high-end Automatic CNC drilling machine for panel furniture, which has the advantages of high processing efficiency and high degree of automation. Through wireless code scanning with automatic sorting function, automatic positioning, and automatic loading processing, it can realize six-side position processing and front and back groove processing at a time.
1. This CNC drilling machine has an original skin breaking function, which can make the punching smoother and maximize the yield rate of the plate.
2. The use of dual drives greatly improves the speed of slotting and punching, and correspondingly improves production efficiency
3. The use of high-end air floating table, so that the processing accuracy is more accurate.
4. Automatically optimize the direction of the board to achieve front and back discharge.
| Model | ET6 |
| Working size: | 1300x2500mm |
| Spindle type | 3.5KW Air Cooling Spindle*2 |
| Number of tools | 12 Vertical top drilling+8 horizontal drilling +9 bottom vertical drilling |
| Control system | Blue Elephant Custom System |
| Driver system | Absolute servo motor |
| Transmission | Taiwan helical rack |
| X axis Travel speed | 120m/min |
| Y axis Travel speed | 80m/min |
| Re-positioning accuracy | ±0.03mm |
| Software | Blue Elephant Custom System |
| Working voltage | 220V /380V/ 50-60HZ |
| Machine overall size | 5832*2727*2367mm |
Click for details

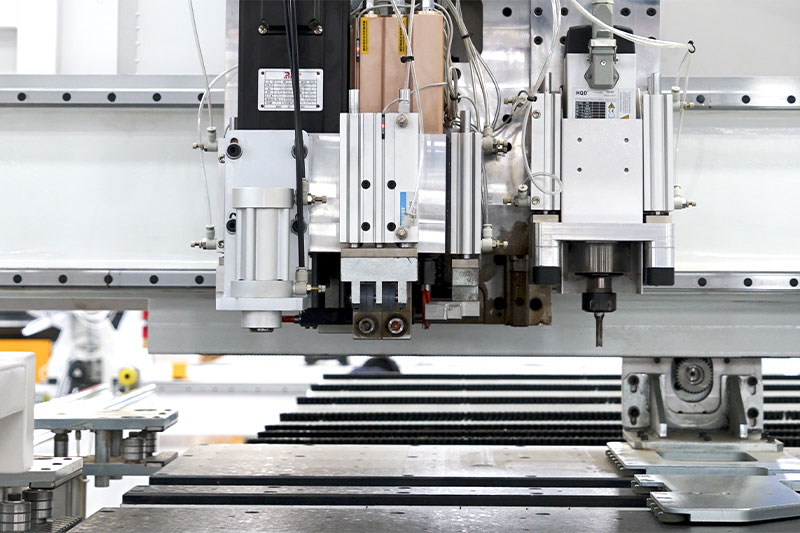

Drilling unit
Control
Worktable

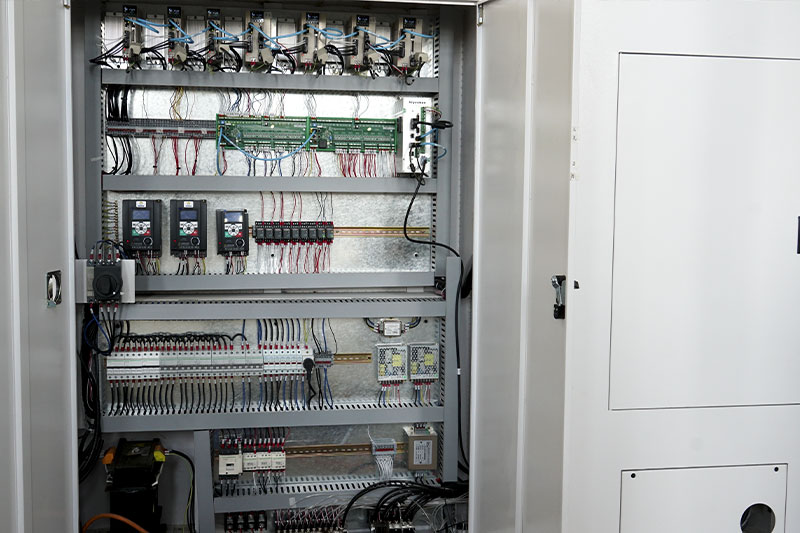

Control cabinet
Click for solution
Click for quotation
