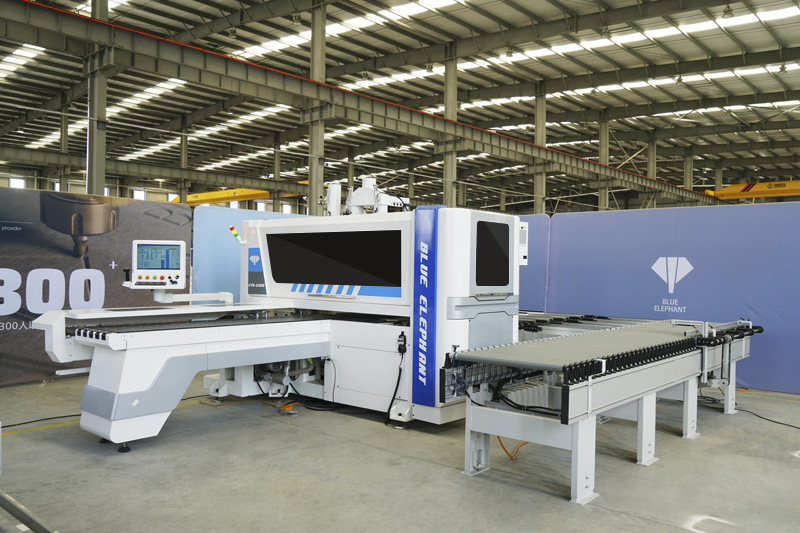

Double Heads Six Sides Drilling Machine
Six Side Wood CNC Drilling Machine
This is an upgraded six-sided CNC drilling machine for sale. Compare with the single head six side CNC drilling machine, it adopts the precision CNC double drill packages developed by Blue Elephant, which ensures the high accuracy and improves the drilling efficiency by 30%. And the return system greatly saves labor and time costs.

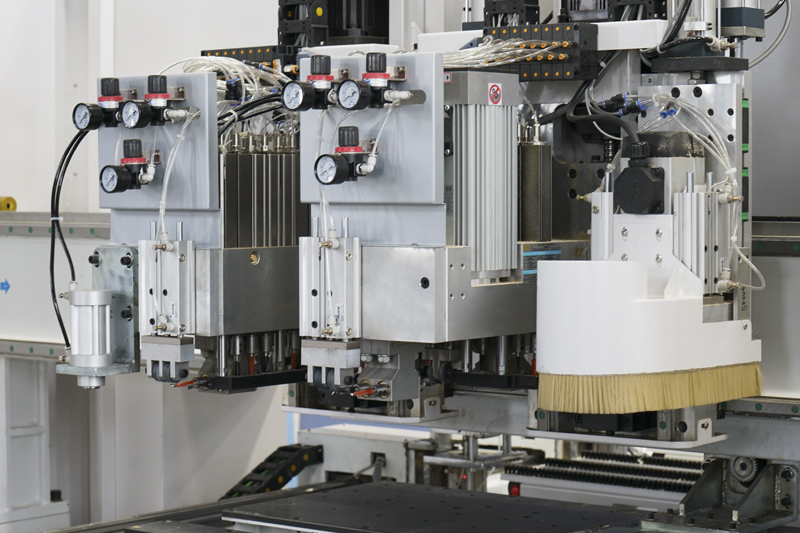

1. Each drill head contains 12 vertical drill bits and 8 horizontal drill bits. Double drill heads can drill holes at the same time. Compared with single drill head, the efficiency is increased by 30%. At the same time, the multiple different drill bits can be switched quickly, which can meet the fast and efficient drilling and milling of all holes and slots.

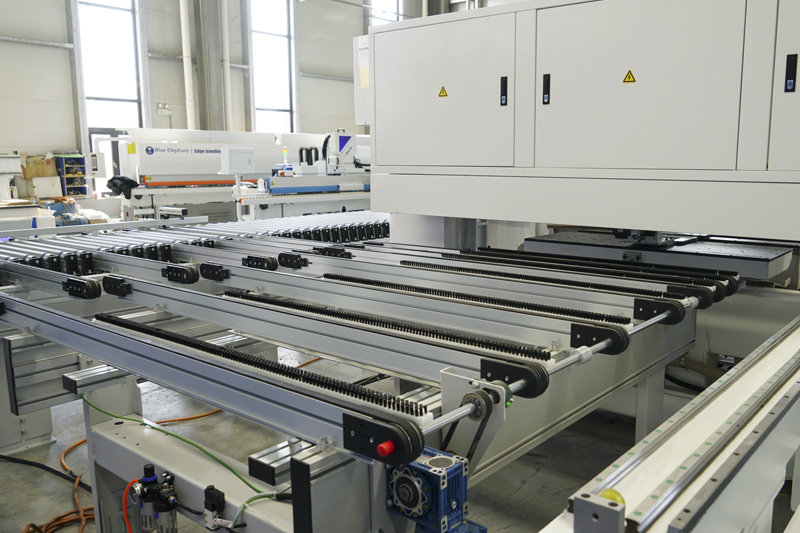

2. The return table device only needs one worker to operate, load and unload. The operation is simple and fast, saving one labor cost.

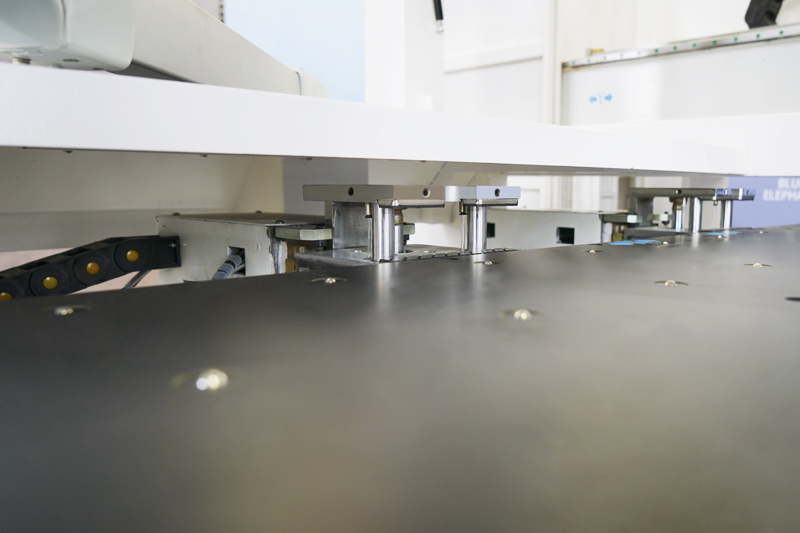

3. Adopting C-type double gripper mechanism, it can control board feeding and positioning according to computer drilling program, which is more stable and reliable.
4. The maximum processing length of this machine is 250-2800mm, the maximum processing width is 50-1200mm, and the maximum processing length is 12-45mm.
| Model | ET6D |
| Working size | 1300x2500mm |
| Spindle type | 3.5KW Air Cooling Spindle*2 |
| Number of tools | 12 Vertical top drilling+8 horizontal drilling*2 +9 bottom vertical drilling |

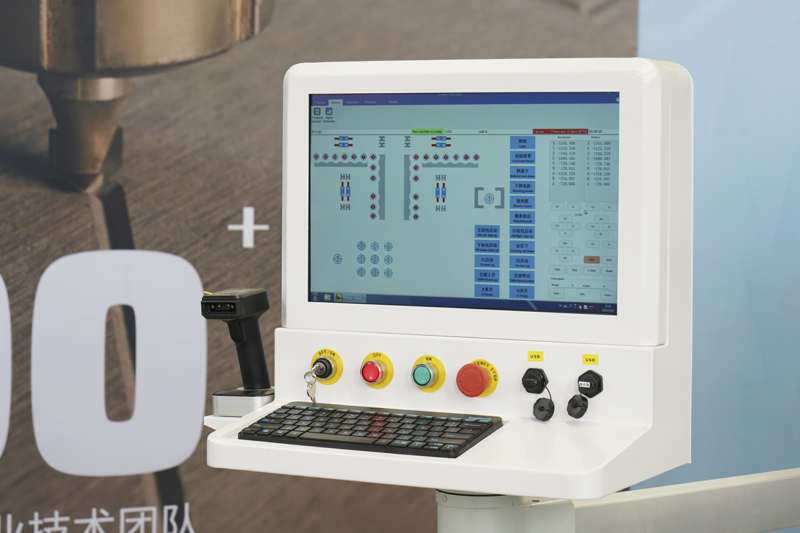

| Control system | Blue Elephant Custom System |
| Driver system | Absolute servo motor |
| Transmission | Taiwan helical rack |
| X axis Travel speed | 120m/min |
| Y axis Travel speed | 80m/min |
| Re-positioning accuracy | ±0.03mm |
| Software | Blue Elephant Custom System |
| Working voltage | 220V /380V/ 50-60HZ |
| Machine overall size | 5832*2727*2367mm |
