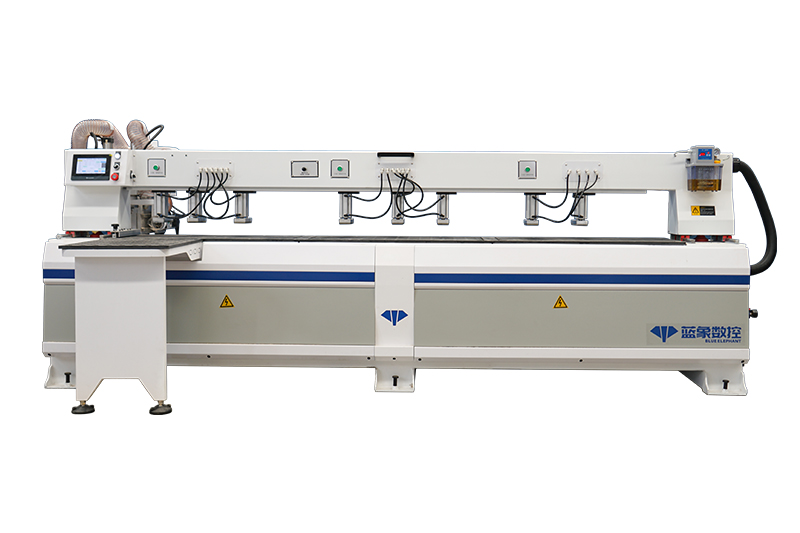

Non-pulling Cabinet Door Free Handle CNC Drill Machine Four Spindles Side Hole Drilling Machine

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELE400
Category : CNC Drilling Machine
Price Range : $5,000 to $10,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

This is the most advanced CNC drill side hole drilling machine for sale in 2023. The newest wood boring machine adopts the non-pulling handicraft and hidden piece process to provide more convenience and possibility for the cabinet and door manufacturing industry. It can help you realize various free handles drilling like horn handles, arc handles, single-angle handles, etc.

Features

1. Non-pulling handicraft
The most notable feature of this machine is that it can help customers in the furniture industry to realize the handle-free design of cabinets and doors, which is more concise and beautiful.
2. Hidden piece process
The nob-pulling CNC drilling machine can also cut and make different invisible joints, such as mortise and tenon, Lamello, etc.
3. Dual scanning
Using the Lorenchi scanning system, it can realize plate scanning and code scanning.

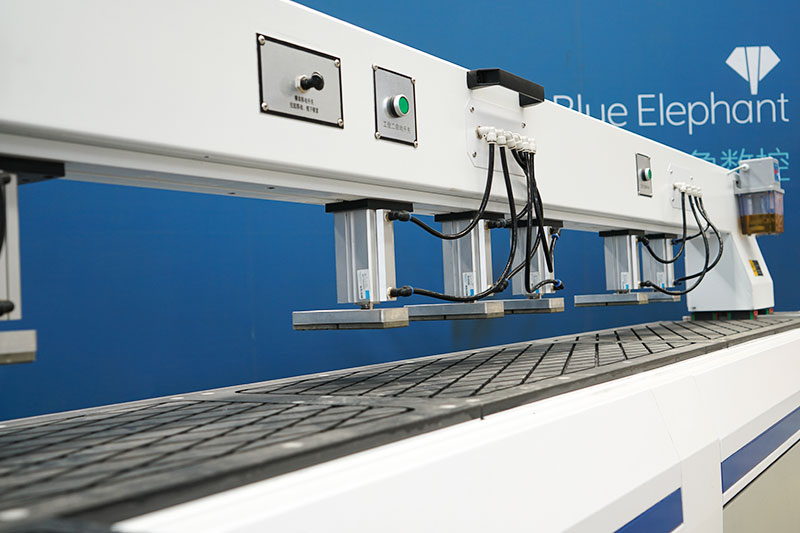

4. Movable beam and positioning baffle
The machine beam and positioning baffle are both movable, which is very convenient to accurately process plates of different thicknesses and sizes.
5. Adjustable guiding rule
The adjustable guiding ruler is scalable and adjustable, and very flexible. It can be used in different processing and measuring scenarios. In addition, the scale marks are also very convenient for recording and reading the length value.

Parameters

Working size	360013001450mm
Left and right X-axis working stroke	0-2800mm
Front and rear Y-axis working stroke	0-50mm
Up and down Z axis working stroke	0-50mm
Spindle motor speed	18000RP m/min
Spindle motor power	T1/T2 spindle 2.2KW, T3/T4 spindle 3.5KW
Spindle motor brand	SCS/Huajiang/Changsheng/Oakmond

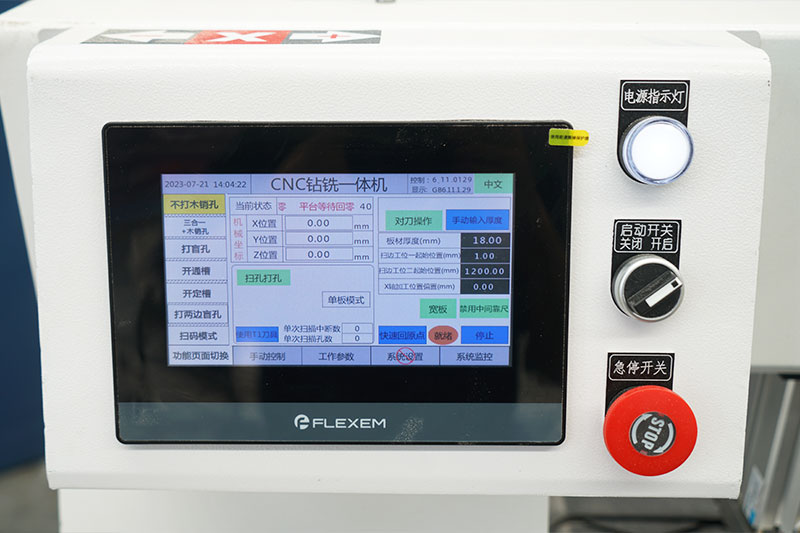

Control system	Lorenchi dual scanning system

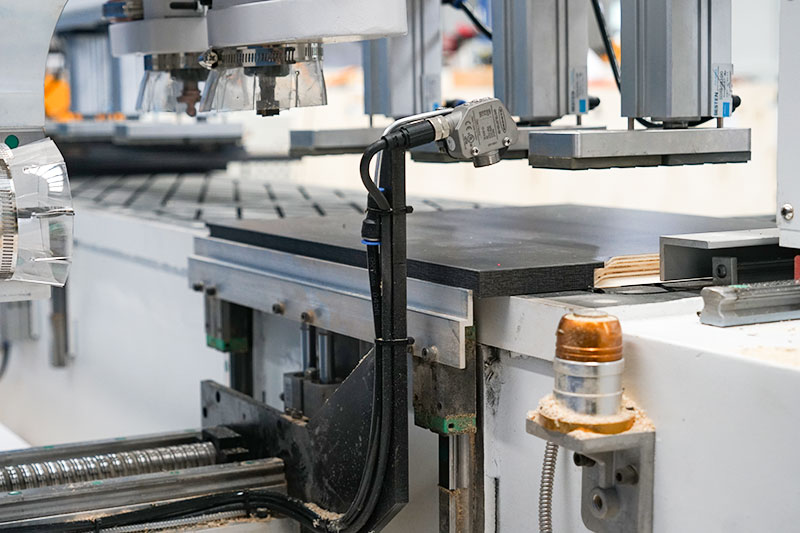

Laser sensor	American Banner laser head
Rails	#20 square rails
Reducer	Taiwan Planet
Inverter	Best 4KW
Software	Blue Elephant Custom System
Working voltage	220v, 3ph, 60hz

Click for details

Frequent Asked Questions

What job can this machine do?

This side drilling machine can drill multiple types of holes, such as minifix holes and Lamello holes and make slots on side surface of the wooden panels.

Can this machine make 45 degrees Lamello?

No. This machine can not make 45 degrees Lamello. But we can change the structure of one spindle to enable it to make 45 degrees Lamello according to your requirements.

What is the difference between ELE200 and ELE100?

A: ELE200 side drilling machine can complete all the work that the ELE100 machine can do, and ti can also make Lamello holes, which is an additional function.

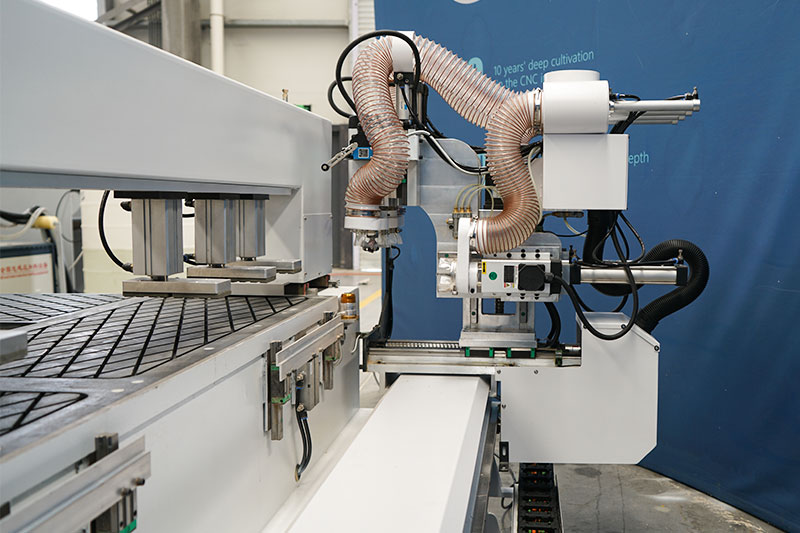

CNC Drilling Machine Details

Application

Side drilling machines are mainly used to drill side holes or make slots or grooves on side surface of wooden panels. It is designed with simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blade that they have. All three models of side hole drilling machine have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.

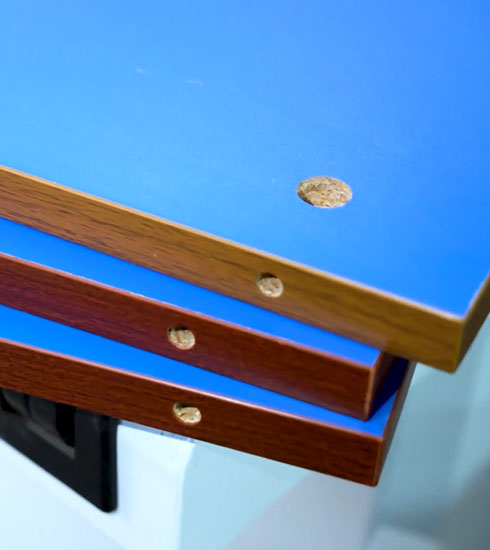

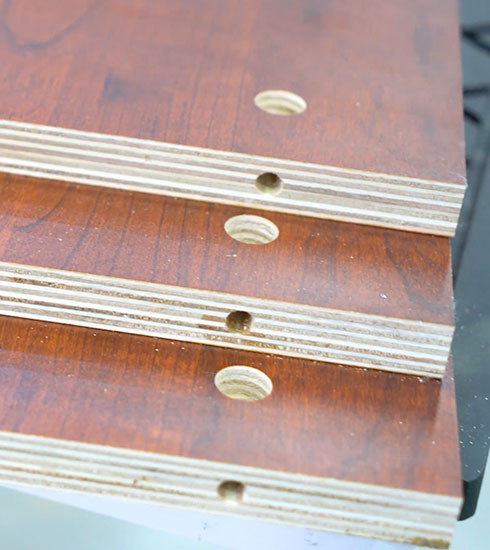

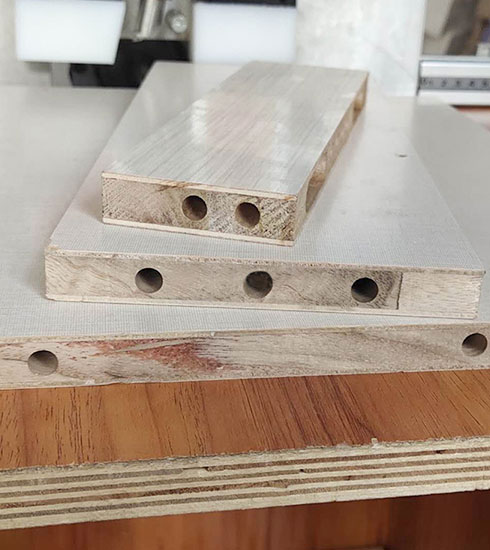

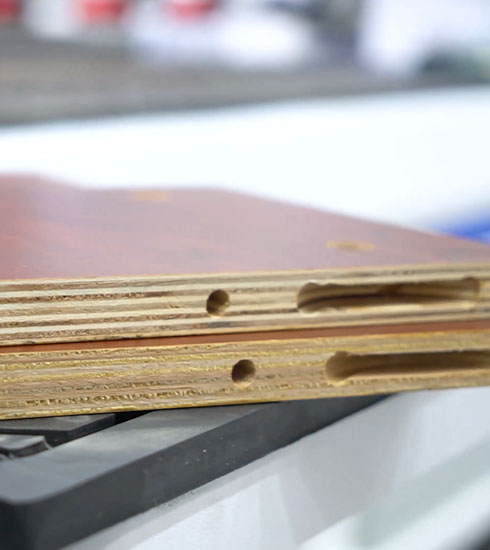

Samples
