Name: New 4+1 CNC Stone Bridge Cutting Saw Machine for Kitchen Countertops Near Me Sale in Germany DE ES4-3220
Brand: Blue Elephant
SKU: ES4-3220-54-1470
Price: 32600.00 USD
Availability: InStock
Rating: 4.8 (95 reviews)

Infrared 4 Axis CNC Marble and Granite Bridge Saw Machine with Water Cooling Spindle for Sale

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ES4-3220
Category : 4 Axis Bridge Saw
Price Range : $30,000 to $40,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

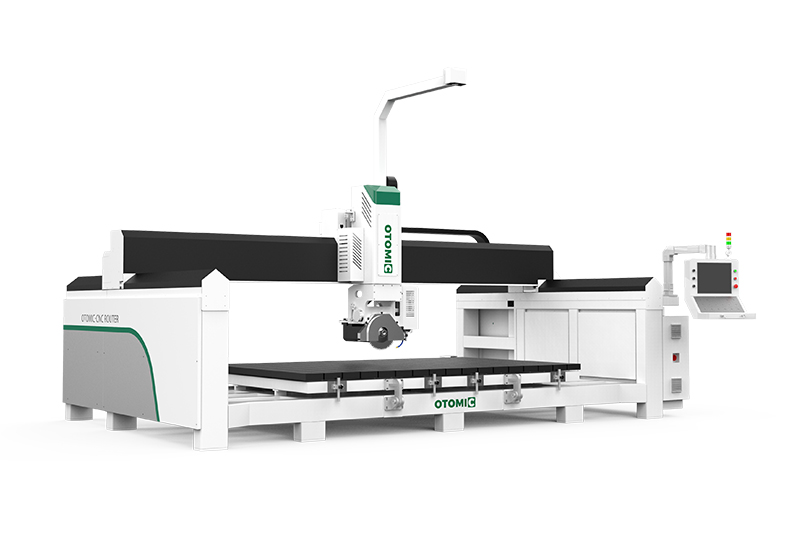

This 4 axis stone bridge cutting saw has infrared ray head and camera, which can automatically realize typesetting and positioning. In addition, it has an air cooling spindle to better engrave stone patterns. So we can also call it 4+1 bridge saw machine for stone. Blue Elephant customized CNC control system will realize high-quality and precise cutting.

Features

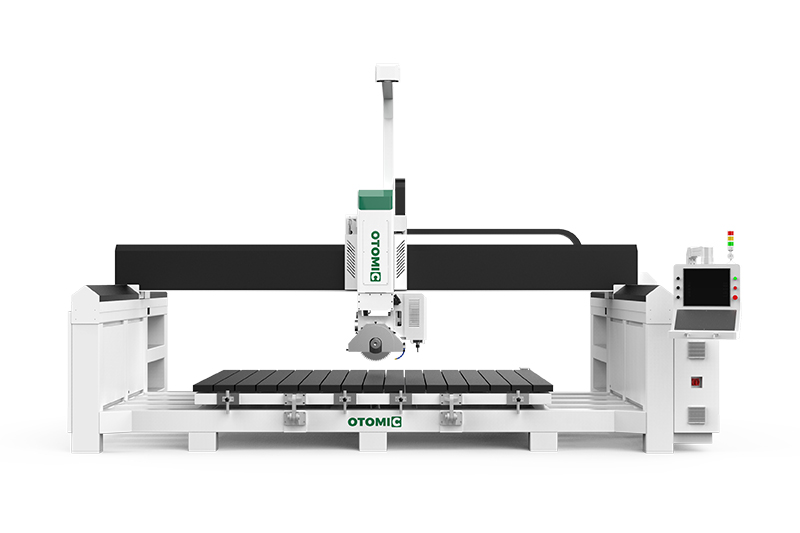

1. The bridge saw head can tilt 0° or 45° for stone chamfering and cutting.
2. The bridge saw table is tilted at 85° to facilitate loading and unloading.
3. The main core components adopt international first-line brands such as Schneider, which is more stable.
4. One-piece structure guarantees small footprint and easy installation and movement.
5. Equipped with a top camera, it can automatically typeset and position stone slabes.
6. The extra water cooling spindle can easily realize stone engraving with fast speed and high precision.

Parameters

ES4-3220 4 Axis CNC Bridge Saw
Travel	3 axis	32002000200mm
	C axis	±360°
	A axis	0/45°
Speed	X axis	30mmin
	Y axis	30mmin
	Z axis	10mmin
Servo motor	X axis、Y axis	2KW HANYU absolute value servo motor
	Z axis	2KW HANYU absolute value servo motor（with brake）
	C axis	1KW HANYU absolute value servo motor
Guide	Y axis	Taiwan 30#
	X axis	Taiwan 30#
	Z axis	Taiwan 30#
Rack	X axis、Y axis	2M
Worktable	Structure	squared timber
	Size	3200×2000mm
	Flip angle	0-85°
	Reverse weight	800KG
Saw blade	Size	360mm
Saw blade	Maximum thickness	60mm
Screw	Z axis	3210
Reducer	X/Y axis SHIMPO reducer
Saw blade motor	15KW Saw blade motor (2930r/min)
Inverter	18.5KW Fuling inverter
Controller	Blue Elephant customized control system（CAM software）
Low-voltage apparatus	Schneider
Air Pressure	0.6-0.8Mpa
Voltage	380V/3P/50HZ
Machine size	5.85m×4.5m×3.6m
Machine weight	3.5t

Click for details

Frequent Asked Questions

What machining processes can this machine complete?

It can complete edge milling, curved edge cutting, countertop cutting and milling, inclined edge cutting, arc edge cutting and milling, wash basin cutting and other processes.

What software and control system does it use?

This 5 axis stone bridge saw is provided with a built-in CAM software with Blue Elephant customized control system dedicated for stone CNC machine. The interface is human friendly, so it is easy to learn and operate.

Can the worktable rotate?

Yes, the worktable of this machine can flip up to 80 degrees to facilitate the unloading of stone slabs. It also improves work efficiency and saves human labor.

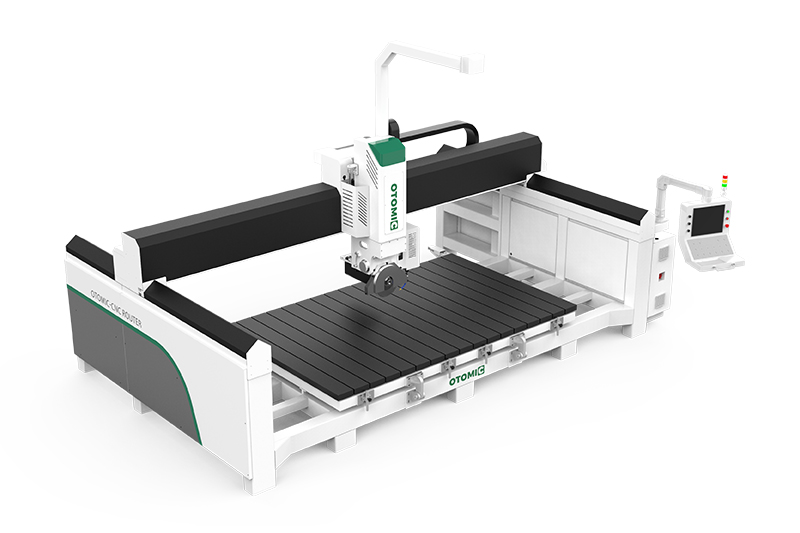

4 Axis Bridge Saw Details

Application

Stone Countertops: It can precisely cut and shape slabs of granite, marble, or quartz into custom sizes and designs required for kitchen and bathroom countertops.

Architectural Stone: It can cut architectural stone pieces for buildings, including exterior cladding, facade elements, columns, balusters, and decorative features.

Flooring and Wall Tiles: They can cut large stone slabs into smaller tiles of uniform sizes, allowing for efficient installation and creating visually appealing surfaces.

Monuments and Memorials: It enables the cutting and shaping of stones to create intricate designs, lettering, and customized shapes for honoring individuals or events.

Furniture and Artistic Pieces: They are also employed in creating artistic pieces, sculptures, and decorative elements from stone or wood materials.

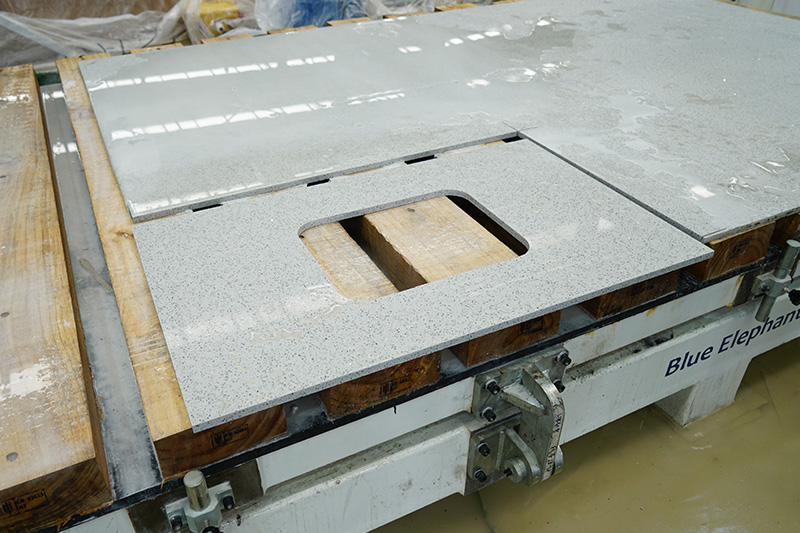

Samples

Click for solution

Production Facility

Quality Control & Testing
