How To Upgrade DSP A11 Handle Control System

Position: Home > User Guide > CNC Controller System > DSP Controller > DSP A1X > How To Upgrade DSP A11 Handle Control System
How To Upgrade DSP A11 Handle Control System
Click:

RichAuto download update file link:
http://richnc.com.cn:9092/en/service/download/search-A11-1.html

The steps are as follows.

  • Power on while keep pressing “OK”button

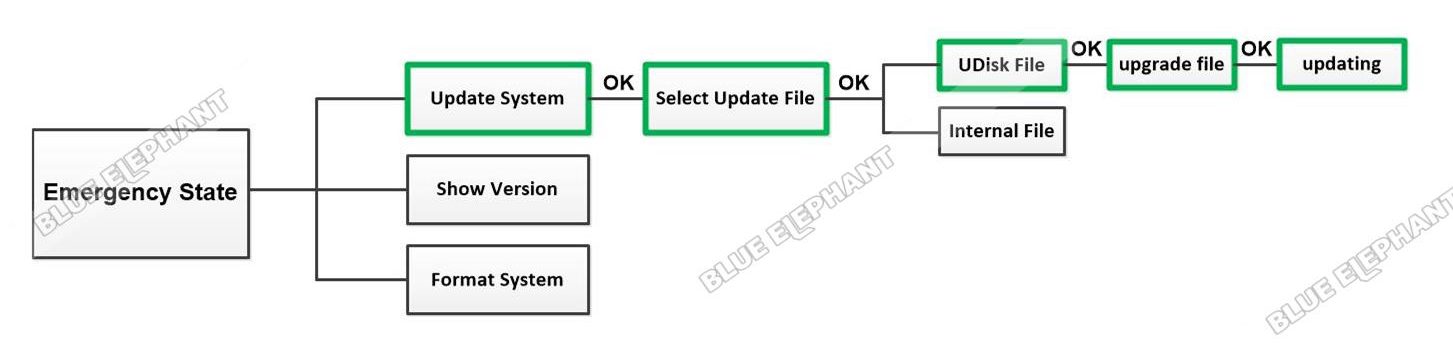

  •  The first part is updating system.
    • Enter “Emergency State”,then choose “Update System”
    • Press“OK”button,and wait for a moment.
    • Choose “Udisk File”,then press”OK”button,then find the upgrade file we need
    • Press”OK”button and wait for updating,then we will enter this “Information”interface
    • Restarting the handle system.Now system updating is finished.

锐志天宏更新文件下载链接:
http://richnc.com.cn:9092/en/service/download/search-A11-1.html

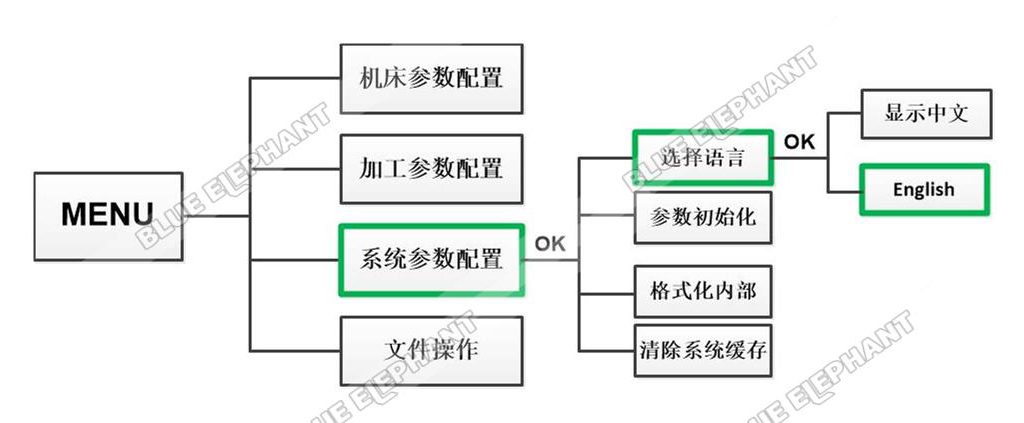

  • The second part is change language from Chinese to English.
    • Press “menu”button,choose“系统参数配置”(system parameter configuration)
    • Press“OK”button,choose“选择语言”(select  language)
    • Press“OK”button,choose “English”
    • Press“OK”button

The video is as follow.
