How To Use Tool Sensor In DSP A11 Handle Control System

Position: Home > User Guide > CNC Controller System > DSP Controller > DSP A1X > How To Use Tool Sensor In DSP A11 Handle Control System

Click:

The steps are as follows.

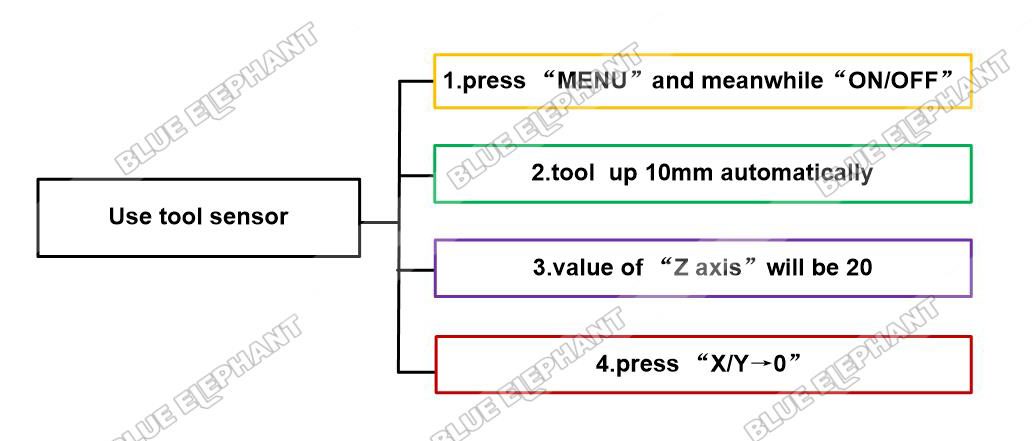

1.Press”MENU”and “ON/OFF” combination button,the Z axis will move down to the tool sensor.
2.When the tool touch the tool sensor,the tool will up 10 mm automatically.
The thickness of tool sensor is 10 mm. So the value of Z axis is 20.
3.PRESS “X/Y→0”, please notice the coordinate.

The video is as follow.
